How to Design a Zero-Leakage Pipeline with Bellows Valves

To make a pipeline with no leaks, you must first choose valves that are tightly sealed and stop fugitive emissions where they start. This important benefit is provided by bellows seal valves, which have a flexible metal bellows soldered to both the valve stem and hood. This makes a static seal that can expand and contract while the valve is in use without losing its integrity. Bellows technology creates a physical barrier that stops process fluids from leaving, even when pressure, temperature, or corrosion are very high. This is different from traditional packing seals, which let tiny escape paths form between the stem and housing. This basic design concept makes bellows seal valves necessary for working with dangerous, harmful, or environmentally sensitive materials where there can be no leaks at all.

Understanding the Zero-Leakage Challenge in Pipeline Systems

One of the most constant problems that oil and gas activities, chemical processing plants, and midstream infrastructure have to deal with is pipeline leaks. Every year, leaks that aren't found cost the industry millions of dollars in lost goods, cleanup costs, and fines from the government. They also put worker safety and public trust at risk.

Common Sources of Pipeline Leakage

About 60% of all fugitive pollution in industrial pipe systems come from valve stem leaks. When subject to changes in temperature, chemical attack, or repeated valve strokes, traditional sealing materials break down quickly. Over time, the graphite and PTFE packing rings get less flat on top of each other. This makes tiny holes in the rings that let toxic chemicals escape into the air. Another big problem is that the valve seat can wear away, especially when gritty slurries or high-speed fluids are used, which slowly removes sealing surfaces. Corrosion-related failures happen more slowly because active media break down valve body materials chemically, causing pinholes and stress cracks that weaken the structure long before damage is seen.

Risks and Consequences of Leakage

When a pipeline leaks, it has effects that go far beyond the instant loss of product. Hydrocarbon leaks pollute the environment, which costs a lot to clean up and causes long-term damage to ecosystems that can last for decades. Using a bellows seal valve can help prevent such leaks. Environmental protection agencies punish people who break the rules more and more. For example, the EPA can fine people up to several thousand dollars every day they don't follow the rules. When there is emergency downtime for fixes, it throws off production plans, which leads to missed deliveries and strained relationships with customers. Exposure of workers to flammable or toxic gas can cause major health problems and even legal claims. Facilities that deal with hydrogen sulfide, benzene, or other dangerous chemicals are at a very high risk, and even small leaks can have terrible effects.

Limitations of Traditional Sealing Solutions

Standard packing seals need to be adjusted and replaced often to keep their closing performance at a minimum. Maintenance teams have to tighten packing gland nuts every so often to squeeze worn-out sealing rings. This is only a short-term fix that makes the stem rub against itself more, which speeds up wear. Diaphragm valves are better at stopping leaks, but because their flow paths are so winding, they can only handle a certain amount of pressure and flow. Above 200°F, elastomeric diaphragms break down quickly, so they can't be used in high-temperature situations like those found in petroleum and processing processes. bellows seal valves try to combine the best parts of both technologies, but they add more ways for them to fail and make upkeep more difficult. The Valve Manufacturers Association's studies show that normal packing setups still allow loss rates of 100 to 500 ppm even when they are well taken care of.

Core Principles of Zero-Leakage Design

To really achieve zero-leakage performance, systems engineering must be used to look at every possible leak path in the pipeline infrastructure. Material compatibility research makes sure that process fluids won't be able to attack valve parts chemically during their whole life. When engineers choose materials for bellows sections, valve bodies, and trim parts, they have to think about things like pH levels, chloride concentrations, temperature changes, and pressure cycling. For example, making sure that flanged connections are perfectly lined up and that bolts are torqued in the right order during installation prevents mechanical stress concentrations that could damage the seal. Before the system is put into service, it is tested for leaks using helium mass spectrometry or other sensitive detection methods that can find leak rates below 1x10^-9 atm cc/sec.

Bellows Seal Valve Fundamentals & Design Considerations

bellows seal valve technology is very different from traditional ways of closing valves. It gives engineers a tried-and-true way to stop stem leaks in high-stress situations.

Working Principles of Bellows Seal Valves

The bellows assembly is made up of several thin-walled metal convolutions that are soldered together to make a structure that looks like an accordion and bends in one direction when the valve is working. This bendy part firmly connects to the valve stem on one end and to the bonnet or body on the other. This makes a welded metal seal that stops any way for air to leak out. When the valve opens and closes, the bellows either contracts or expands to allow the stem to move. This keeps the process smooth and surroundings completely sealed off. During normal use, the bellows works in compression, which makes it more resistant to wear than versions that are loaded in extension. Most industrial bellows seal valves have a secondary packing seal as an extra safety measure, even though the bellows itself seals the valve. This redundant design philosophy makes sure that even if the lungs fail, the normal packing will stop the fumes from escaping right away, giving the system time for routine maintenance.

Material Selection for Bellows and Valve Bodies

The choice of material has a big effect on how well and how long a valve works in difficult situations. 316L and 321 stainless steel metals are very good at resisting rust in most hydrocarbon services, organic chemicals, and water-based solutions. These austenitic materials stay flexible over a wide range of temperatures and are good at resisting fatigue in mild riding situations. Nickel-based superalloys, such as Inconel 625 and Hastelloy C-276, are very resistant to chloride stress corrosion cracking. This makes them perfect for use in sour gas service, marine uses, and chemical processing conditions that are very corrosive. Duplex and super-duplex stainless steels are strong like ferritic alloys and don't rust like austenitic grades. They are cost-effective options for high-pressure uses with carbon dioxide, hydrogen sulfide, or chlorides. Manufacturers of bellows usually cut thin sheets of material that are between 0.006 and 0.012 inches thick into convolutions and then weld several layers together to get the pressure ratings and cycle life they need. The materials used for the valve body must be at least as resistant to rust as the internal trim parts, and they must also be strong enough to keep the pressure inside.

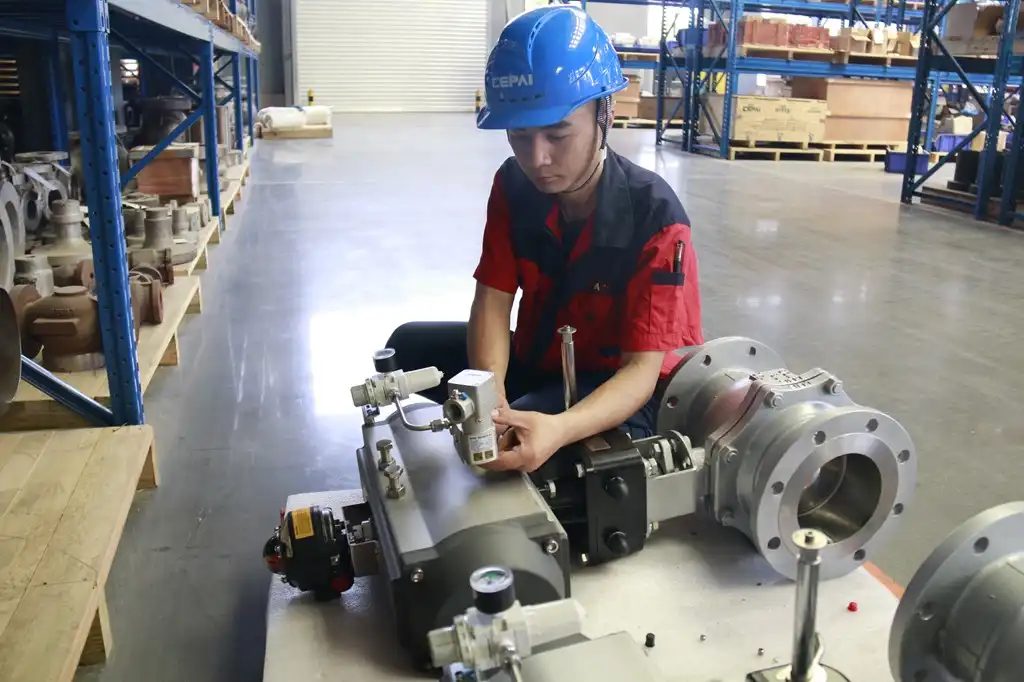

Customization and Integration Options

Modern bellows seal valves are made in a flexible way so they can meet a wide range of control and activation needs. Pneumatic actuators respond quickly to automatic control loops, and their spring-return designs make sure that the position stays fixed even if the instrument loses air. Electric actuators allow for exact positioning and do not require infrastructure for compressed air. This makes them useful for sites that are far away or places that want to prioritize electricity. When pneumatic cylinders aren't enough for big valve sizes or high differential pressure situations, hydraulic actuators can provide a high push output. Smart positioners with digital communication methods can be connected to distributed control systems to give real-time information on the position of valves, as well as diagnostics and repair alerts. Limit switches, position transmitters, solenoid valves, and filter regulators that are made to fit specific control system designs can be part of instrumentation kits.

Maintenance Best Practices

Bellows seal valves with proper maintenance can last for more than 20 years in tough situations. Visual checks are done on a regular basis to make sure that the outside parts don't have any rust, mechanical damage, or illegal changes. Operators should keep an eye on the valve stem's travel to find any limits or stiffness that could mean internal gunk or worn-out bellows. Portable pollution monitors are used to check for leaks on a regular basis. This makes sure that the hermetic closing is still working and finds any problems before they get so bad that they break the law. When it's time to change the bellows, makers give detailed instructions on how to take the valve apart, inspect it, and put it back together again in a way that keeps it working well. Many places set up condition-based maintenance plans that change bellows assemblies based on the number of cycles they've been through instead of random time intervals. This makes the system more reliable while cutting down on maintenance costs that aren't needed.

Selecting the Right Bellows Seal Valve for Your Pipeline

To pick the right bellows seal valve technology for zero-leakage uses, you need to carefully look at a lot of technical and financial factors that affect both the short-term performance and the overall costs of ownership.

Performance Comparison with Alternative Valve Types

When it comes to important closing measures, bellows seal valves always do better than other options. Comparative testing shows that metal bellows seals that are properly defined have leakage rates below what can be detected, while packed valves usually have 100–1000 ppm, even after recent changes to the packing. Similar low-emission performance is seen in diaphragm valves, but they have big problems with pressure rating, temperature capability, and flow capacity. Metal-seated ball valves are very good at shutting off, but they don't have the zero-leakage stem closing that bellows designs do. This means that they can't be used in situations where fugitive emissions are the main worry. Gate valves and globe valves with standard packing need to be adjusted and maintained often to keep their closing performance at a minimum. This means that they have higher operational costs even though they cost less at first.

Application-Specific Selection Criteria

For uses with pressures above 1500 psi, bellows must be strong, with multiple convolution layers and the right thickness to handle repeated pressure cycles without breaking down from wear and tear. Extreme temperatures call for careful choice of materials. For example, cryogenic services below -320°F need austenitic stainless steels that stay flexible at very low temperatures. High-temperature uses above 800°F might need nickel-based superalloys that don't deform or rust easily. When chlorides, sulfides, or organic acids are present in a corrosive environment, materials must be evaluated based on their chemical makeup, content, temperature, and the chance of localized corrosion processes such as pitting, crevice attack, or stress corrosion cracking. The number of cycles has a big effect on the fatigue life of bellows. For uses that go through more than 2000 cycles a year, you need to use high-quality materials and modest design factors.

Total Cost of Ownership Analysis

When buying bellows seal valves for the first time, they usually cost 30 to 50 percent more than regular packed valves. This is because they are made with more precision and better materials, which is needed for tight sealing performance. Total cost of ownership estimates, on the other hand, show that there are big economic benefits over normal service lives of 10 to 15 years. When packing maintenance isn't needed, yearly maintenance labor costs go down. For example, facilities say they save 4–8 hours per valve per year compared to packed options that need to be adjusted every three months. You can keep saving money by not having to pay fines for pollution or throw away products. This is especially true for materials that are volatile or dangerous, where even small leaks can lead to fines or expensive cleanup costs for the environment. Less unexpected repair downtime makes production more reliable and customers happier. Longer service life delays the need to replace capital items and lowers the long-term costs of purchasing and setting them up.

Implementation Strategies for Zero-Leakage Pipeline Design

To successfully use bellows seal valve technology, you need to pay attention to system-level integration factors that affect both the valve's initial performance and its long-term dependability.

Installation and Alignment Procedures

Before installing something correctly, the flanged joints need to be cleaned well to get rid of any dirt, scale, or old gasket material that might stop them from fitting evenly and cause stress to build up. When picking a gasket, you need to think about the temperature, pressure, and chemicals that will be used. For high-performance uses, spiral-wound or metal-jacketed gaskets are usually the best choice. It's important to pay close attention to how the flanges are aligned because if they are off-center or not lined up correctly at an angle, they can put too much stress on the valve body and bend it. Installation teams should make sure that the pipe next to the valve can support its own weight without depending on the strength of the valve body. They can do this by using hangers and supports of the right size and placing them according to the results of a piping stress analysis. To get even gasket compression and stop the flange from turning, bolts are tightened in set cross-pattern patterns using measured torque tools.

Supporting Hardware and Accessories

Complete piping systems must be carefully designed to have zero leaks in order to do so. This includes parts that work with the valves, such as the bellows seal valve. High-integrity gaskets made from flexible graphite or expanded PTFE seal well at flanged joints and can handle small flange flaws and thermal expansion. Specialty fasteners, like stud bolts with heavy hex nuts, make it easier to apply the right amount of force and do upkeep in the future. Valve mounting clamps and pipe supports stop the transfer of mechanical stress from pipe loads, vibration, or heat expansion that could damage the bellows. Instruments like pressure gauges, temperature monitors, and flow meters make it possible to keep an eye on process factors that change the performance and life of valves in real time. Remote tracking systems that automatically find leaks can spot problems early on, before they get worse and cause safety or emission violations.

Performance Monitoring and Verification

Comprehensive leak testing procedures make sure that the hermetic sealing works properly during setup and for as long as it is used. Helium mass spectrometry is the most delicate way to find leaks; it can find leak rates that are orders of magnitude below what is required by law or because of safety concerns. Portable pollution monitors that use flame ionization or photo-ionization monitoring can be used to check for petroleum leaks in the field during regular inspections. Acoustic emission tracking finds the ultrasonic signs of high-pressure leaks, which lets them be quickly identified and located without having to directly access the parts that might be leaking. Infrared cameras can see clouds of hydrocarbon gas coming from leaks. This is especially useful for checking big installations or pipes that are high up and hard to get to. Setting up standard readings during commissioning makes data that can be used for trending analysis, which finds performance degradation that starts slowly before it gets too bad.

Conclusion

To create pipeline systems with zero leakage, you need to carefully combine hermetically sealed bellows seal valves technology, suitable materials, and strict installation methods that get rid of fugitive emissions at all possible leak paths. Bellows seal valves have been shown to work better than other options because they have welded metal seals that stay intact in harsh service conditions like high pressures, temperature changes, and acidic media. To make sure the implementation goes well, you need to carefully choose your suppliers, taking into account not only the product specs but also their manufacturing quality systems, tech support, and willingness to commit to a long-term relationship. The initial investment in high-quality bellows seal technology pays off in a big way: no more upkeep costs, no more fines from the government, better safety, and longer service life, all of which lower the total cost of ownership.

FAQ

1. What cycle life can I expect from bellows seal valves?

When made from the right materials and with the right design, bellows systems can usually go through 10,000 to 50,000 full-stroke cycles. This depends on the temperature, pressure difference, and stroke length. Applications that only partially stroke or don't run very often can usually go over 100,000 rounds before they need to replace the bellows. For tough cycle uses, high-end materials like Inconel 625 are better at resisting fatigue than regular 316 stainless steel.

2. How do I verify continued hermetic sealing performance?

Zero-leakage performance is confirmed by regular leak tests using portable pollution monitors or soap solution applied to the bellows seal valves area. Any fumes that can be found point to possible bellows damage that needs more research. Many factories use bellows seal valves as part of fugitive emissions tracking systems that run every three months or once a year to make sure they are still following the rules.

3. Can bellows seal valves handle abrasive or fouling services?

The best way to handle clean, non-abrasive fluids is with bellows systems. When used with polymerizing chemicals, viscous materials, or applications that involve floating solids, the bellows may get clogged or wear out too quickly. Extended bonnet designs with purge connections help protect bellows systems in some uses, but other closing methods may work better for services that are highly contaminated or rough.

Partner with CEPAI for Reliable Bellows Seal Valve Solutions

CEPAI is a reliable company that makes bellows seal valves for oil and gas research, pipeline operations, and refineries around the world that need leak-free performance at the highest level. Our wide range of API 6A, API 6D, and ISO certifications shows that we are dedicated to meeting the high quality standards that purchasing managers and drilling engineers require. We are experts at making custom wellhead systems, choke valves, and high-pressure control devices that are made to work in rough field situations where regular sealing methods don't work. Our technical team works closely with EPC contractors and equipment OEMs to provide custom solutions that meet the exact needs of each project. They are backed up by quick engineering support and steady production capacity. Get in touch with our experts at cepai@cepai.com to talk about your zero-leakage application needs and find out how our proven valve technology lowers emissions, upkeep costs, and operating risks.

References

1. American Petroleum Institute. "API Standard 622: Type Testing of Process Valve Packing for Fugitive Emissions," Third Edition, 2018.

2. Valve Manufacturers Association. "Fugitive Emissions Control in Valves: Engineering Guidance and Best Practices," Technical Report VMA-2021, 2021.

3. Becht, Charles and Hollinger, Gary. "Bellows Fatigue Life Evaluation Methods and Design Criteria," Journal of Pressure Vessel Technology, Vol. 143, No. 2, 2021.

4. Environmental Protection Agency. "Protocol for Equipment Leak Emission Estimates," EPA-453/R-95-017, Office of Air Quality Planning and Standards, 2016.

5. Green, Don and Perry, Robert. "Perry's Chemical Engineers' Handbook," Ninth Edition, Chapter 10: Transport and Storage of Fluids, McGraw-Hill Education, 2018.

6. Zappe, R.W. "Valve Selection Handbook: Engineering Fundamentals for Selecting the Right Valve Design for Every Industrial Flow Application," Fifth Edition, Gulf Professional Publishing, 2004.
