How Bellows Seal Valves Solve Fugitive Emission Problems?

Bellows seal valves solve problems with escaping emissions by using a metal bellows design that completely seals off any leaking paths in the stem. The packing material in packed gland valves breaks down over time. The bellows, on the other hand, makes a flexible, welded barrier between the process fluid and the air. This part, which looks like an accordion, expands and shrinks with the movement of the valve stem while maintaining a zero-emission seal. This is important for keeping volatile organic compounds, toxic gases, and flammable fuels inside, which is something that regulatory agencies closely watch in pipeline systems and drilling operations.

Understanding Fugitive Emission Problems in Industrial Valves

Root Causes of Valve Stem Leakage

In standard systems, the main way that emissions get out is through valve stem plugs. Most traditional packing materials, like braided graphite or PTFE mixtures, need to be compressed in order to close. Through temperature cycling and mechanical movement, this tension slowly loosens up. Each movement of the valve slightly loosens the packing, making tiny holes in the material that lets process fluid exit. This wear and tear happens much faster in high-cycle uses like those found in automated control systems.

Changes in temperature make things even harder. When heat-conducting oil systems or steam uses start up, the temperatures change quickly, which makes metal parts and packing materials expand at different rates. Leaks happen because of the gaps that are left until workers manually close the packing glands again. This type of maintenance is reactive and never fully stops leaks.

Regulatory Pressures Driving Technology Adoption

How upstream and midstream companies deal with fugitive pollution has changed because of the Environmental Protection Agency's Method 21 tracking rules. Leak detection and repair programs that happen every three months require that valve parts be checked in a strict way, with leak limits recorded in parts per million. Penalties get harsher over time for people who don't follow the rules, so preventing problems is much cheaper than fixing them.

A lot of pipeline owners and refineries are now facing consent orders that say they need technologies with almost no emissions to do certain jobs, such as bellows seal valve. In places like California, state laws and regulations have extra requirements that go beyond federal rules. Because of these rules, buying teams are more likely to choose technologies that are naturally low in emissions, like bellows seal valve, than options that need to be maintained.

Impact on Operational Safety and Economics

Fugitive emissions directly affect worker safety in drilling and production settings, in addition to worries about following the rules. Even in small amounts, hydrogen sulfide, benzene, and other dangerous chemicals that are used in upstream activities can be very bad for your health. Stopping stem leaking lowers the risk to workers and makes risk management easier.

It turns out that the business case is just as strong. A plant can lose a lot of product through thousands of small leaks. This is especially true for high-value petrochemical byproducts. Energy service providers with small profit margins can't afford the damage that comes from having field equipment stockpiles full of poor sealing technology.

Bellows Seal Valve Design and Working Principle

Hermetic Sealing Mechanism

The bellows system is the most important part of this type of bellows seal valve in terms of technology. The bellows is made of corrosion-resistant metals like Inconel 625 or stainless steel 316, and it is made up of many curves that are bonded together to make a bendable cylinder. One end welds to the valve cover and stays there, and the other end connects to the valve stem. In this way, a barrier is fully closed off, and no dynamic sealing surfaces are left open to process fluid.

When the valve is working, the stem moves and either contracts or expands the bellows convolutions. This motion is possible because the design is flexible, but it still keeps its sealed integrity. Importantly, there is no relative motion at the weld joints because the bellows bends instead of moves. This gets rid of the wear processes that break down packed glands. Welded construction makes sure that the process fluid never comes into touch with the air, which is needed for strict uses that need virtually no emissions.

Component Design Variations

For different commercial uses, bellows configurations need to be changed. Most oil and gas jobs can be done with metallic bellows, which are great at keeping air in and can handle temperatures up to 1000°F in some material combinations. Flexibility and cycle life are affected by the number of convolutions. More convolutions mean more stroke capacity, but lower pressure ratings. Engineers choose bellows specs that meet certain stroke and pressure requirements.

PTFE-lined tubes are used in specific chemical processes where process compatibility is more important than metal compatibility. The fluoropolymer lining makes it more resistant to chemicals, and the metal ribs on the outside keep the structure strong. This mixed method, along with the bellows seal valve, strikes a balance between material suitability and sealing effectiveness for tough petrochemical applications.

Selection Criteria Based on Process Conditions

To pick the right bellows seal configurations, you need to look at a number of working factors. Ratings for pressure and temperature must match the process conditions, even if something goes wrong. Cycle life standards affect the design of bellows. For example, uses that move the parts a lot need strong convolution geometry to keep them from breaking down from overuse.

Chemical compatibility testing is very important. Most materials used for bellows are very resistant to rust, but some process chemicals may need metals that are better. Concerns about chloride stress corrosion cracking in saltwater pumping systems may mean that super duplex stainless steel needs to be used instead of normal 316.

How much stem movement is needed affects the size of the bellows. When a control valve is used for constant throttling, it needs different specs than an isolated valve that only opens and closes. Working with makers that focus on engineering makes sure that the bellows' properties fit the needs of the service, rather than using general requirements.

Advantages of Bellows Seal Valves Over Traditional Valves

Superior Emission Control Performance

Instead of trying to lower fugitive pollutants, hermetic closure gets rid of them at their source. When bellows seal valves are working properly, EPA Method 21 testing usually doesn't find any measurable emissions—readings are always below the 500 ppm detection limits. In packed valves, on the other hand, values often go over 10,000 ppm, even after recent repair.

The pollution benefit is especially useful for services that use volatile organic compounds and poisonous fluids. Pipeline security teams that are in charge of sour gas systems like the extra safety that comes from getting rid of possible hydrogen sulfide release points. By getting rid of stem leaks ignition sources, refineries that process light fuels lower the risk of explosions.

Confidence in compliance is another important gain. When purchasing managers choose hermetically sealed technology, they pretty much get rid of the risk of stem seal compliance for those parts. This makes programs for finding and fixing leaks easier, makes tracking easier, and gives proof that can be used during regulatory checks.

Operational Reliability and Lifecycle Economics

Reliability is greatly increased by getting rid of dynamic sealing surfaces. Packed valves need to be adjusted every so often to keep their sealing power. This is an ongoing repair job that field service providers have to fit in around production. Hermetic designs don't need any upkeep when it comes to stem closing, which means they don't need as much regular attention.

Typical service intervals for bellows seal valve are three to five times longer than with traditional options, as we've seen. This directly leads to lower maintenance costs, less downtime for output, and more tools being available. The benefit is greater when there are a lot of bellows seal valves, like in pipeline systems or refineries where repair staff are always having to deal with different requests.

Total cost of ownership research always favors sealed technology, even though it costs more to buy at first. A good return on investment is achieved by cutting down on repair work, not having to pay for new packing, avoiding fines related to emissions, and increasing uptime. In new building projects, EPC companies are choosing hermetically sealed valves based on their lifecycle value rather than their initial cost.

Performance in Extreme Conditions

The benefits of hermetic sealing are especially clear in high-pressure situations like wellhead tools and drills. As the pressure rises, packed glands have a harder time keeping their seals. This is because the expansion forces working on the packing materials get stronger, which speeds up degradation. Welded bellows construction keeps their stability across all pressure ranges without affecting performance.

Another practical benefit is the ability to handle changes in temperature. The bendable bellows design lets different temperatures expand or contract without making leak tracks. This is helpful in places where temperatures change quickly, like steam systems, heat transfer fluid circuits, and processes that start up and stop down on a regular basis.

When the right alloys are used, corrosion protection in a corrosive climate is higher than with standard options. When digging offshore and the equipment is exposed to saltwater spray, stainless and nickel metal bellows are better at resisting rust because of how they are made. This resistance to the environment makes tools last longer in harsh field circumstances.

Choosing and Procuring Bellows Seal Valves: Best Practices for B2B Buyers

Critical Supplier Evaluation Criteria

Certifications from API and ISO give oil and gas uses basic quality guarantee. Suppliers who have API 6A certification for wellhead tools show that they can meet the strict standards of the upstream business. API 6D approval for pipeline valves also shows that the company knows how to make the valves well. These validations by a third party lower the risk of buying things by making sure that sellers meet well-known industry standards.

Assessing a company's ability to make things goes beyond just giving licenses. Evaluation of production capacity makes sure that sellers can meet project delivery deadlines without lowering the quality of the work. The ability to do custom engineering is important for specific uses that need to change the design. Quality assurance goals can be met by showing proof of mechanical testing, pressure test certifications, and the ability to track down materials.

Long-term worth is affected by technical support systems. Costly mistakes can be avoided by getting responsive engineering help during the design creation process. Field service skills help with completing installations and fixing problems when they happen. As carefully as they look at product specs, procurement managers should also look at the technical tools that suppliers offer.

Procurement Strategy Development

The procurement method is based on the needs of the individual project. When EPC contractors are in charge of new building projects, the engineering, procurement, and construction teams need to work together to make sure that the valve specs match the overall system design. Getting suppliers involved early on in the engineering process stops design disagreements and opens up chances for value engineering.

Buying MRO for running buildings works in a different way. Maintenance managers look for parts that can be used with other equipment, extra parts that can be delivered quickly, and prices that are competitive for regular changes, such as for bellows seal valve. Setting up framework deals with qualified sellers makes buying things over and over easier and secures good business terms.

When a lot of something is needed, bulk procurement methods take advantage of volume benefits. Dedicated procurement efforts are needed for pipeline building projects or facility upgrades that need hundreds of valves. Cost and supply chain efficiency are both improved by negotiating package prices, setting up staged delivery schedules, and organizing manufacturing efforts.

Quality Verification and Documentation Requirements

Full material certifications make sure that valve parts meet certain requirements. Mill test records for bellows metals, body castings, and trim materials show the chemical make-up and mechanical qualities of the raw materials. This paperwork is needed for rules on pressure equipment and helps with keeping notes for the whole life of the equipment.

Documentation from pressure tests confirms efficiency skills. There is trust in pressure containment when there are hydrostatic test papers that show the shell and seat are intact at certain multiples of the working pressure. For example, services that work at very low temperatures might need testing in a cold box, while apps that work at high temperatures might need proof through a hot test.

Records of quality control inspections show that the manufacturing process is disciplined. Dimensional inspection records, non-destructive examination results, and assembly verification forms show how well quality management is being done by suppliers. Instead of depending only on compliance statements, people who work in procurement should ask for and look over this paperwork.

Conclusion

The hermetically sealed valve technology, such as bellows seal valve, solves the problem of fugitive emissions by offering basic design benefits rather than small changes to current methods. By getting rid of the dynamic stem sealing surfaces, this system offers stability and compliance trust that other packing systems can't match. This technology makes digging in the upstream, building pipelines in the middle, and refining in the downstream safer, better for the environment, and more profitable.

Lifecycle value is becoming more and more important in procurement choices over original cost. Investing in better sealing technology is worth it because it lowers the cost of upkeep, makes compliance easier, and improves operating reliability. As rules about the environment get stricter and safety standards change in the industry, fully sealed designs are the way of the future for demanding valve uses.

Working with trusted makers who have the right API certifications gives you access to tried-and-true technology backed by strict quality control systems. When you combine mechanical knowledge, the ability to make things, and the technical support infrastructure, you get partnerships that go beyond just selling products and involve working together to solve problems.

FAQ

1. Which industries benefit most from hermetically sealed valve technology?

Zero-emission stem sealing is very helpful for oil and gas research and production, especially in sour gas services and volatile chemical uses. Pipeline owners who move dangerous chemicals lower the risk of not following environmental rules and improve safety performance at the same time. Refining and petrochemical plants that deal with dangerous or valuable process streams get benefits from both following the rules and protecting the products they make. The ability to hold things without letting them leak is also useful for making nuclear power, medicines, and unique chemicals.

2. How do emission control capabilities compare to packed gland valves?

Even after just a few months of care, traditional packed valves give off amounts that can be measured, usually more than 10,000 parts per million on devices used to find leaks. Designs that are hermetically sealed always read below the levels needed to be detected, which means that there are virtually no emissions when the system is running normally. This difference in performance gets rid of the risk of noncompliance, lowers the need for tracking, and increases the safety gaps. This benefit is especially useful in situations where even a small leak could be harmful to health, safety, or the environment.

3. What maintenance practices extend valve longevity in harsh operational environments?

Visual inspections done on a regular basis during planned repair times find changing conditions in the outside world before they affect performance. Monitoring operating parameters keeps an eye on activation torque trends that could point to changes inside the machine that need attention. Preventing premature bellows fatigue by using correct construction methods and managing thermal expansion keeps valves from being subjected to too much pipe stress. Following the manufacturer's advice on repair intervals based on job cycles and process conditions will make sure that the equipment works well for as long as it is designed to.

Partner with CEPAI for Certified Emission Control Solutions

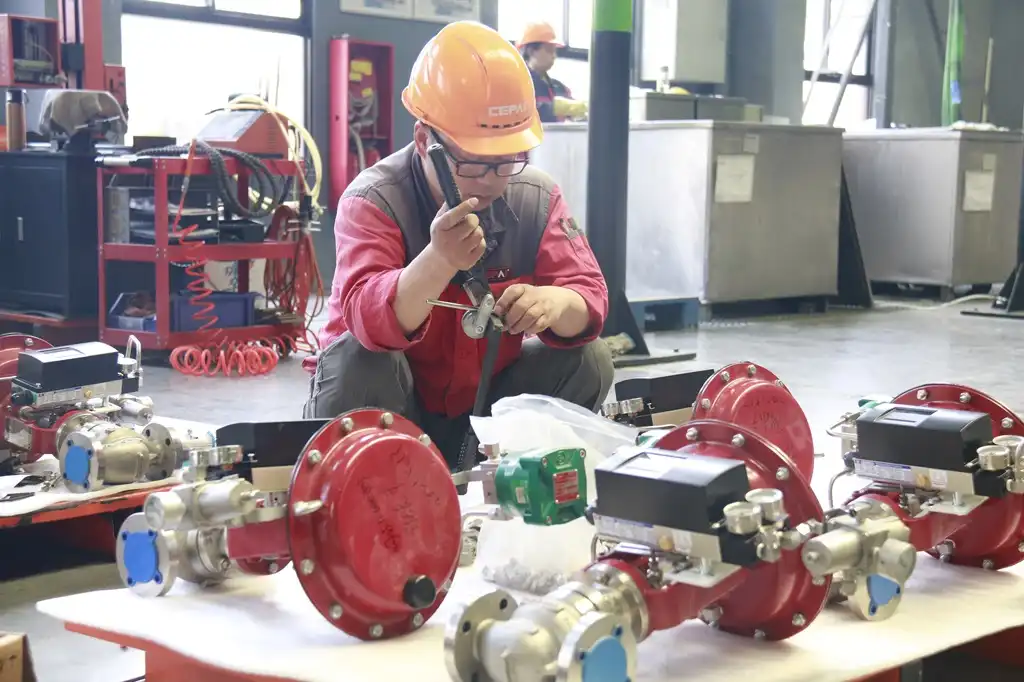

CEPAI offers API-certified bellows seal valve systems that are designed to meet the needs of challenging upstream, midstream, and downstream uses. Our many certificates, such as API Q1, API 6A, API 6D, ISO 9001, and CE marking, show that we are good at making things and have quality control systems that procurement workers can trust. We know that drilling engineers, pipeline security teams, and process control managers have to choose emission control equipment that meets very strict performance standards.

Our engineering team works directly with your technical staff to come up with the best setups that meet all of your needs for chemical compatibility, temperature ranges, and pressure classes. Whether you need special wellhead valves for high-pressure drilling, pipeline isolation valves for corrosive services, or control valves for processing petrochemicals, we can help. Our solutions are backed by thorough testing and full documentation. Rapid technical support makes sure that your questions are answered by experts when you need help with specifications or fixing problems.

Email our expert application engineers at cepai@cepai.com to talk about your unique valve needs and problems with fugitive emissions. We give you full technical specs, certification paperwork, and delivery timeline proposals tailored to your project needs—supporting your procurement objectives with reliable bellows seal valve solutions from a trusted manufacturer.
