Floating Ball vs Trunnion Mounted Ball Valves: Comparison

When selecting ball valves for critical oil and gas operations, understanding the fundamental differences between floating ball and trunnion mounted ball valve designs becomes essential. The trunnion mounted ball valve incorporates additional mechanical support structures called trunnions that anchor the ball, reducing movement and enhancing sealing performance under extreme pressure conditions. Unlike floating ball valves where the sphere moves freely within the valve body, trunnion-mounted designs provide fixed positioning that delivers superior reliability in demanding upstream, midstream, and downstream applications across the energy sector.

Understanding Floating Ball and Trunnion Mounted Ball Valves

Different operating views are reflected in the mechanical engineering behind these two valve technologies, which have direct effects on performance and suitability for specific applications. The pretty simple process that makes floating ball valves work is that the spherical element moves laterally inside the valve body to make closing contact with seats further downstream. Line pressure pushes the ball against the seat in this form, making a good seal that works well in mild pressure situations.

Design Principles of Floating Ball Valves

The ease and low cost of floating ball valve design are emphasized. The ball part sits between two metal or rubber seats, and there are no other mechanical support systems around it. When pushed, the ball moves laterally and turns 90 degrees at the same time to stay in touch with the valve seats. This pattern of movement makes a wiping motion that helps keep sitting surfaces clean while it's in use.

In floating ball designs, the stem link usually has a slot-and-key layout that lets the ball move laterally while still sending rotational force. Floating ball valves with this design work well in clean service situations where the media isn't contaminated much and the pressure needs aren't too high or too low.

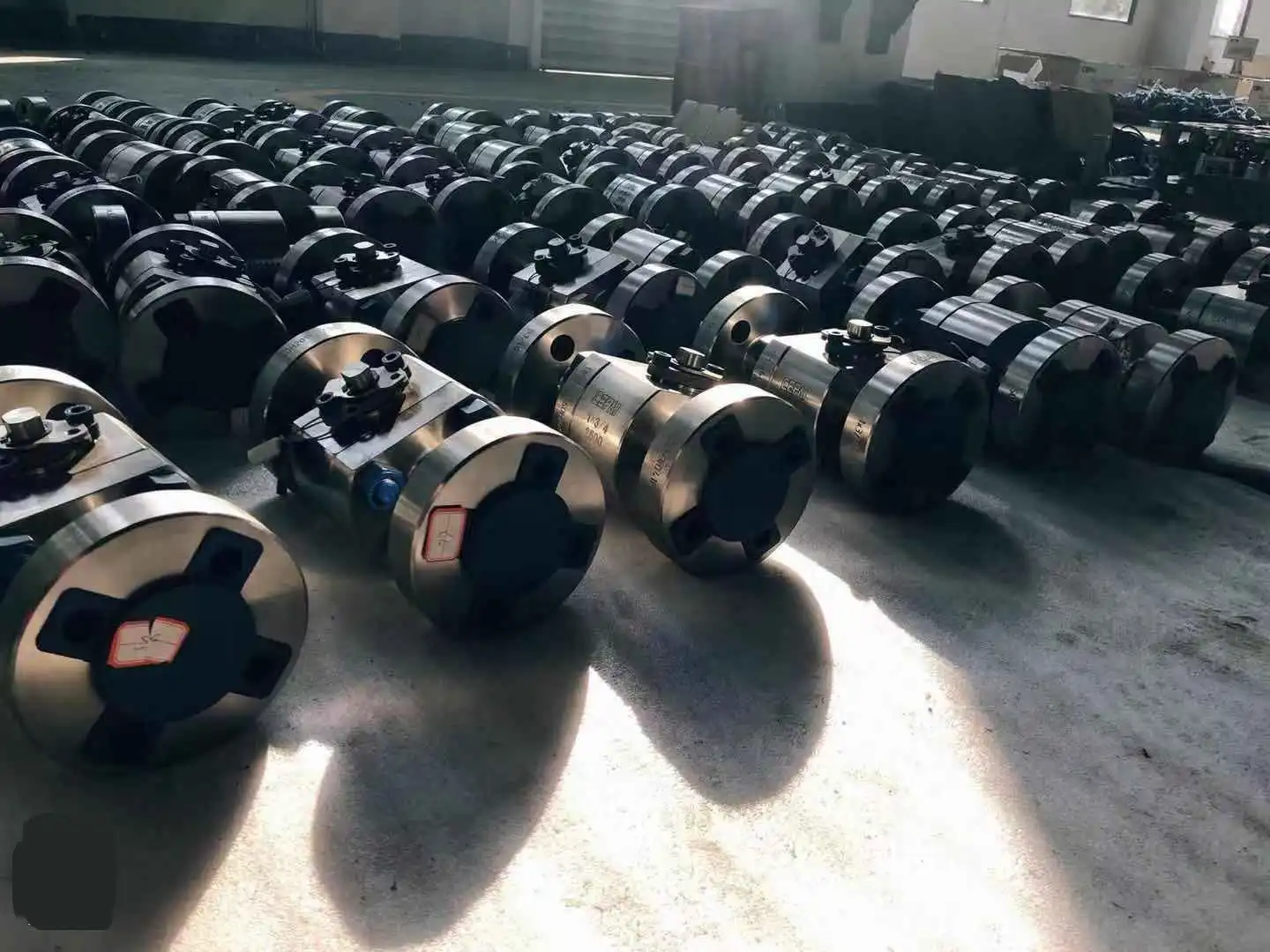

Trunnion Mounted Ball Valve Engineering

Trunnion-mounted ball valve systems have complex mechanical support that changes the way they work in basic ways. The ball part is connected to upper and lower trunnions, which stop it from moving laterally but let you precisely control its spin. This set placement gets rid of the sealing system that depends on pressure that is found in floating designs. Instead, spring-loaded seats keep in touch with the ball surface all the time.

The trunnion support system better spreads mechanical loads across the valve structure, which lets these units work with much higher temperatures and pressures. Modern trunnion designs often have anti-static features and fire-safe building materials that meet strict safety standards for fuel service uses.

Material Selection and Construction Standards

Both types of valves use materials that were designed to work in certain conditions. However, trunnion-mounted valves usually need more complex metalworking because there is more stress around the support points. Carbon steel, different types of stainless steel, and special metals made for sour service conditions with hydrogen sulfide are all common body materials.

Seat materials for trunnion mounted ball valve are very different depending on the job. For example, PTFE and other soft elastomers are good for clean environments, while metal-to-metal layouts are better for high temperatures or fire safety. Trunnion-mounted ball valves usually have harder seat materials because they can keep the contact pressure steady with spring systems instead of just using line pressure.

Performance and Application Comparison

These valve technologies are clearly different in how they work. Each design is best for a certain set of pressures, temperatures, and repair needs. By knowing these performance traits, engineers and procurement experts can choose valves that work best in real-world situations and meet business needs.

Pressure Rating Capabilities

Trunnion-mounted ball valves work great in high-pressure situations and can handle pressures of up to 2500 PSI and even higher in some cases. Because trunnion support gives these valves a mechanical edge, they can keep sealing well even when pressure changes during regular operations. Because of this, they are essential for uses at wellheads, on high-pressure transmission lines, and in important shutdown services.

When the pressure goes up to 1000 PSI, floating ball valves usually work well, but some designs can handle modest rises above this level. The pressure limit comes from the mechanical stress that is put on valve seats when line pressure goes up. In extreme cases, this stress could cause warping or premature wear.

Temperature Performance Characteristics

Temperature tolerance changes a lot between these technologies because of the materials used and the limitations of the mechanical design. Trunnion-mounted ball valves can work in temperatures ranging from cryogenics (below -50°F) to high temperatures (above 800°F) as long as the right materials are used.

Fixed ball setting in trunnion designs stops problems with thermal expansion that can affect the performance of moving ball valves. As temperatures rise, the controlled expansion of spring-loaded seats keeps the seals intact without putting too much stress on the valve parts.

Industry-Specific Applications

For wellhead assemblies and Christmas tree installations, oil and gas development companies depend on trunnion mounted ball valves a lot. These valves must be completely reliable in extreme temperatures and pressures. For these uses, a failed seal is not an option, so trunnion designs with better sealing abilities are necessary for worker safety and environmental protection.

Pipeline managers pick which technologies to use based on the state of the line and the needs of the business. When cost-effectiveness is more important than highest pressure capability, lower-pressure gathering systems may use moving ball valves instead of trunnion-mounted units for high-pressure transmission lines.

Advantages and Disadvantages: Floating Ball vs Trunnion Mounted Ball Valves

By looking at the pros and cons of each technology for trunnion mounted ball valve, procurement teams can make smart choices that balance the need for efficiency with operational goals and budget limits. Depending on the needs of the product and the long-term goals of operations, each style has its own benefits.

Floating Ball Valve Benefits

One of the best things about moving ball valve technology is that it saves money and is easy to use. These units usually cost 30–50% less than similar trunnion-mounted options, which makes them appealing for uses that don't need to handle high pressure. The simplified design makes it easier to make and cuts down on lead times for common setups.

The maintenance needs for moving ball valves are still pretty easy because they have fewer mechanical parts and are easier to take apart. Most of the time, field workers don't need special tools to do regular maintenance. This cuts down on working downtime and maintenance costs over the lifetime of the valve.

Trunnion Mounted Ball Valve Advantages

Trunnion placed ball valve technology has a number of important benefits that make the higher initial investment costs worth it in difficult situations. The better ability to seal in harsh conditions ensures operating efficiency that stops expensive production interruptions and safety issues.

Because the ball and seats don't rub against each other as much, trunnion systems need much less operating force. Because of this feature, smaller motors can be used, which lowers the overall cost of assembly and makes it easier to connect robotic systems. The constant force needs across the pressure range also make the control system work better and make the actuator last longer.

Another big benefit is that trunnion-mounted units tend to last longer between major maintenance events, which means they last longer between repairs. Controlled mechanical loads and better stress distribution make parts last longer and lower the total cost of ownership, even though they cost more to buy at first.

Comparative Limitations

Floating ball valves can't be used in high-pressure situations because the seat can bend and make the closing less reliable. The pressure-dependent closing mechanism also makes the torque needs changeable, which can make it harder to size actuators and build control systems.

Trunnion-mounted ball valves are more expensive to buy and have more moving parts, which might not be necessary in low-pressure situations. Because there are more parts, they need more complex repair methods and specialized skills for field service work.

Procurement Insights: Making the Right Choice for Your Business

When choosing a strategic valve, you need to look at a lot of things besides just the pressure and temperature specs. These include technical needs, economic factors, and operational goals. The people who work in procurement have to look at the total cost of ownership and make sure that the equipment they choose meets the safety and dependability standards that regulators and operational partners expect.

Total Cost of Ownership Analysis

The initial purchase price of a trunnion mounted ball valve is only a small part of how much it will cost over its lifetime. Installation, upkeep, and operation have a big effect on the economic results. Ball valves that are fixed on a trunnion usually pay for themselves over time by requiring less upkeep, working more reliably, and lasting longer.

Different types of valves have different installation requirements. For example, trunnion-mounted units may need extra structural support because they are heavier and put stress on different areas of the structure. But the fact that an actuator isn't needed as much can make installation easier and lower the overall cost of the job.

Application-Driven Selection Criteria

To choose the right valves, you should first carefully look at how they will be used, rather than being too cautious and over-specificating, which adds costs that aren't necessary. Even though it costs more at first, trunnion mounted ball valve technology is usually better for applications that need to handle high temperatures, regular changes in pressure, or important safety functions.

For both types of valves, the features of the service media affect the choice of material and the design needs. Corrosive conditions, abrasive particles, or particular hydrocarbon makeup may require certain building features that change the technology that can be used and the suppliers that can provide them.

Supplier Certification and Quality Assurance

Manufacturers with the right API certifications, quality management systems, and proven knowledge in certain application areas should be given the most weight when choosing a vendor. Companies like CEPAI that keep their API Q1, API 6A, and API 6D licenses show that they are dedicated to quality standards and industry norms.

For floating ball and trunnion mounted uses, the documentation needs are very different. For important service installations, they need full material tracking, testing records, and compliance certificates. How well a supplier can provide the necessary paperwork can affect the choice of technology and the time it takes to buy it.

Maintenance and Troubleshooting for Trunnion Mounted Ball Valves

Strategies for preventive maintenance make valves more reliable while reducing the number of operating interruptions that can have a big effect on the economics of production. Technical teams can make service schedules and troubleshooting steps that stretch the life of equipment and keep it safe to use by knowing what care is needed and how it usually breaks down.

Preventive Maintenance Protocols

Specific wear spots and performance signs that foretell potential failures before they affect operations should be addressed in regular inspection plans for trunnion mounted ball valves. Monitoring seat wear through torque measures, leakage tests, and eye inspections during planned maintenance windows helps find problems before they get worse, making it easy to fix them.

Maintaining the actuator is an important part of making sure the valve system works well as a whole. Because trunnion-mounted designs need less power, actuators last longer. However, they still need to be oiled, their seals checked, and their control systems calibrated on a regular basis to work at their best.

Common Failure Modes and Solutions

In trunnion mounted ball valves, seat leakage usually happens slowly over time. This is usually shown by an increase in working force or obvious leakage at the drain connections. The spring-loaded seat design means that in many cases, the valve can be adjusted or replaced without having to be completely taken apart. This cuts down on maintenance costs and downtime.

Stem packing wear can affect both how well the seal works and how well the actuator works. Live-loading features in modern packing designs keep the sealing pressure even as materials age, but they still need to be adjusted or replaced from time to time based on working cycles and weather conditions.

Material Degradation Factors

Choosing the right material for the job is a big part of how resistant something is to corrosion. Trunnion-mounted ball valves used with sour gas need special surface processes and metals that keep them from hydrogen weakening and stress corrosion cracking over long periods of time.

By causing different valve parts to expand and contract at different rates, temperature variation can affect how well seals work. Knowing about these effects helps maintenance teams figure out what needs to be adjusted and how often to check on things based on how they actually work instead of picking random times.

Conclusion

When deciding between floating ball and trunnion mounted ball valve technologies, you need to carefully think about the needs of your application, the cost, and your long-term operating goals. Floating ball valves are a cheap way to handle mild pressure situations where ease and cost-effectiveness are important. Trunnion-mounted ball valves work better in harsh high-pressure and high-temperature conditions, where the higher starting cost is justified by the higher level of operating reliability. When buying professionals and engineering teams understand these basic differences, they can make decisions that improve performance and cost while still meeting the strict safety and reliability standards needed by modern oil and gas operations.

FAQ

What pressure ranges are suitable for trunnion mounted ball valves?

Trunnion-mounted ball valves can usually handle pressures between 150 PSI and over 2500 PSI, but this depends on the size and material of the valve. The trunnion support system in these valves keeps them closing well even at their highest rated pressures. This makes them perfect for high-pressure transmission lines and wellhead uses where pressure changes often.

How do operating torques compare between floating and trunnion mounted designs?

Because there is less friction between the ball and the seats, trunnion-mounted ball valves need much smaller working torques. Compared to moving ball valves of the same size and pressure grade, this feature can cut the size of the actuator needed by 30 to 50 percent. This saves money and makes the control system work better.

What maintenance intervals are recommended for trunnion mounted ball valves?

Although trunnion mounted ball valves usually need to be inspected every 12 to 18 months under normal working conditions, maintenance times vary depending on the running conditions. Monitoring may need to happen more often for critical applications, but it's usually okay to wait up to 24 months for clean service applications. Monitoring torque and checking for leaks on a regular basis helps make repair schedules more effective based on how things are actually working.

Are trunnion mounted ball valves suitable for automated control systems?

The uniform torque needs and exact positioning capabilities of trunnion mounted ball valves make them ideal for automated applications. Because they work steadily, they can be used with electric, pneumatic, and hydraulic actuators. Also, because they need less power, smaller actuators can be used, which improves response time and control accuracy.
