Understanding Rubber-Lined Butterfly Valves and Their Applications
The Anatomy of a Rubber-Lined Butterfly Valve
Rubber-lined butterfly valves consist of several key components that contribute to their effectiveness in slurry handling. The valve body, typically made of cast iron or ductile iron, provides structural integrity and support. The disc, which rotates to control flow, is often constructed from stainless steel or other corrosion-resistant materials. The rubber lining, usually made from elastomers like EPDM, Neoprene, or Nitrile, covers the internal surfaces of the valve body and disc. This lining acts as a protective barrier against abrasive and corrosive materials. The stem, which connects the disc to the actuator, is designed to withstand high torque and ensure smooth operation.
Advantages of Rubber Lining in Butterfly Valves
The rubber lining in butterfly valves offers numerous benefits for slurry handling applications. Firstly, it provides excellent abrasion resistance, protecting the valve's metal components from wear caused by abrasive particles in the slurry. This significantly extends the valve's service life and reduces maintenance requirements. Secondly, the rubber lining offers superior chemical resistance, making it suitable for handling corrosive slurries without degradation. The elastomeric nature of the lining also allows for better sealing capabilities, ensuring tight shut-off and minimizing leakage. Additionally, the rubber lining helps dampen vibrations and reduce noise during valve operation, contributing to a more stable and quieter process.
Industries Benefiting from Rubber-Lined Butterfly Valves
Rubber-lined butterfly valves find widespread use across various industries dealing with slurry handling. In the mining sector, these valves are essential for managing mineral slurries during extraction and processing operations. Wastewater treatment plants rely on rubber-lined butterfly valves to control the flow of sewage and sludge, where resistance to corrosive chemicals is crucial. The chemical industry utilizes these valves for handling abrasive and corrosive chemical slurries in production processes. Power plants employ rubber-lined butterfly valves in ash handling systems and flue gas desulfurization applications. Additionally, industries such as pulp and paper, food processing, and oil and gas benefit from the durability and reliability of rubber-lined butterfly valves in their respective slurry handling operations.
Key Features That Make Rubber-Lined Butterfly Valves Ideal for Slurry Handling
Superior Abrasion Resistance
One of the primary reasons rubber-lined butterfly valves excel in slurry handling is their exceptional abrasion resistance. The elastomeric lining acts as a protective shield against the abrasive particles present in slurries. As the slurry flows through the valve, the rubber lining absorbs and dissipates the energy of impacting particles, preventing them from eroding the metal components. This characteristic is particularly valuable in applications involving mineral slurries, sand-laden fluids, or other abrasive materials. The superior abrasion resistance translates to longer valve life, reduced maintenance frequency, and lower replacement costs, making rubber-lined butterfly valves a cost-effective solution for slurry handling systems.
Excellent Chemical Resistance
Rubber-lined butterfly valves demonstrate remarkable chemical resistance, making them suitable for handling a wide range of corrosive slurries. The elastomeric lining can be tailored to withstand specific chemical compositions, pH levels, and temperatures encountered in various industrial processes. For instance, EPDM linings offer excellent resistance to acids, alkalis, and oxidizing agents, while Nitrile rubber excels in applications involving hydrocarbons and oils. This chemical resistance ensures that the valve maintains its integrity and performance even when exposed to aggressive slurries, preventing premature failure and potential leaks. The ability to customize the lining material based on the specific chemical properties of the slurry further enhances the versatility of rubber-lined butterfly valves in diverse industrial applications.
Tight Sealing and Flow Control
Rubber-lined butterfly valves provide exceptional sealing capabilities and precise flow control, critical attributes for effective slurry handling. The elastomeric lining conforms to the valve seat, creating a tight seal when the valve is closed. This feature is particularly important in slurry applications, where preventing leakage is crucial for maintaining process efficiency and safety. The resilient nature of the rubber lining allows it to accommodate minor imperfections or wear, ensuring consistent sealing performance over time. Furthermore, the butterfly design enables accurate flow control through the rotation of the disc. This precision control is invaluable in slurry handling systems, where maintaining specific flow rates and pressures is often essential for optimal process performance and product quality.
Maintenance and Best Practices for Rubber-Lined Butterfly Valves in Slurry Applications
Regular Inspection and Cleaning Procedures
Maintaining rubber-lined butterfly valves in slurry handling applications requires a proactive approach to ensure optimal performance and longevity. Regular inspections should be conducted to assess the condition of the rubber lining, checking for signs of wear, cracking, or delamination. The frequency of these inspections depends on the severity of the slurry application but typically ranges from monthly to quarterly. During inspections, particular attention should be paid to high-wear areas such as the seat and disc edges. Cleaning procedures are equally important to prevent buildup of slurry residues that could affect valve operation. Flushing the valve with clean water or appropriate cleaning solutions after each use or during scheduled maintenance can help remove accumulated particles and extend the valve's service life.

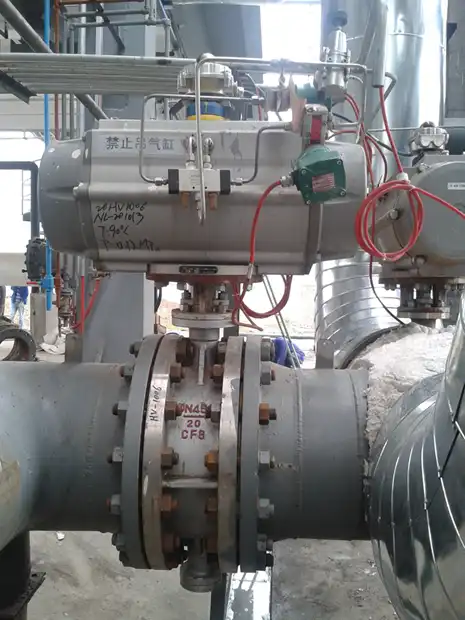

Proper Installation and Alignment Techniques
Correct installation and alignment of rubber-lined butterfly valves are crucial for their performance in slurry handling systems. The valve should be installed in a location that allows easy access for maintenance and operation. Proper alignment with the pipeline is essential to prevent uneven stress distribution on the rubber lining and ensure smooth disc rotation. When installing, care must be taken to avoid over-tightening flange bolts, which could deform the rubber lining and compromise sealing. The use of appropriate gaskets and following manufacturer-recommended torque specifications are important steps in the installation process. Additionally, ensuring that the valve is installed in the correct orientation relative to the flow direction is critical for optimal performance and longevity in slurry applications.
Preventive Maintenance Strategies
Implementing preventive maintenance strategies is key to maximizing the lifespan and reliability of rubber-lined butterfly valves in slurry handling applications. Regular lubrication of moving parts, such as the stem and bearings, is essential to ensure smooth operation and prevent premature wear. Monitoring valve actuator performance and adjusting as necessary can help maintain precise flow control. Periodic replacement of wear parts, such as seat rings or seals, should be scheduled based on manufacturer recommendations and observed wear rates in the specific application. Implementing a predictive maintenance program using technologies like vibration analysis or ultrasonic testing can help detect potential issues before they lead to valve failure. Additionally, maintaining detailed records of valve performance, maintenance activities, and replacement parts can aid in optimizing maintenance schedules and identifying patterns that could inform future valve selection or process improvements.
Conclusion
Rubber-lined butterfly valves have proven to be an exceptional choice for slurry handling applications across various industries. Their unique combination of abrasion resistance, chemical compatibility, and tight sealing capabilities makes them ideally suited for managing challenging slurries. By providing reliable performance, extended service life, and precise flow control, these valves contribute significantly to the efficiency and safety of slurry handling processes. As industries continue to face increasingly demanding applications, the versatility and durability of rubber-lined butterfly valves position them as a crucial component in modern slurry management systems.
FAQs
1. What makes rubber-lined butterfly valves suitable for slurry handling?
Rubber-lined butterfly valves excel in slurry handling due to their superior abrasion and chemical resistance, tight sealing capabilities, and precise flow control. The rubber lining protects against wear from abrasive particles and corrosive chemicals, while the butterfly design allows for accurate flow regulation.
2. How often should rubber-lined butterfly valves be inspected in slurry applications?
The inspection frequency depends on the specific application, but typically ranges from monthly to quarterly. Regular inspections help identify wear, damage, or potential issues early, ensuring optimal valve performance and longevity.
3. Can rubber-lined butterfly valves handle different types of slurries?
Yes, rubber-lined butterfly valves can be customized with different elastomer linings to handle various slurry types. The choice of lining material depends on the specific chemical composition, abrasiveness, and temperature of the slurry being processed.
Expert Slurry Handling Solutions with Rubber-Lined Butterfly Valves | CEPAI
CEPAI Group Co., Ltd. specializes in providing high-quality rubber-lined butterfly valves for demanding slurry handling applications. Our state-of-the-art manufacturing facility, equipped with the longest high-precision intelligent production line in the Asia Pacific region, ensures superior product quality and consistency. As a leading valve manufacturer and supplier, we offer customized solutions to meet your specific slurry handling needs. Contact our expert team at cepai@cepai.com to discover how our rubber-lined butterfly valves can enhance your industrial processes.
