Why is Stainless Steel Preferred for Control Valves in Hydrocarbon Pipelines?

Stainless steel control valve is the material of choice for control valves in hydrocarbon pipelines due to its exceptional combination of properties. Its superior corrosion resistance protects against the harsh chemicals and environmental conditions often present in these applications. The material's high strength-to-weight ratio ensures durability and longevity, even under high pressure and temperature conditions typical in hydrocarbon transport. Stainless steel's excellent heat resistance prevents warping or deformation, maintaining valve integrity and performance. Additionally, its smooth surface finish reduces friction and potential buildup of deposits, enhancing flow efficiency. These properties, coupled with stainless steel's recyclability and long-term cost-effectiveness, make it the preferred material for control valves in demanding hydrocarbon pipeline operations.

​​​​​​​

The Advantages of Stainless Steel in Control Valve Applications

Corrosion Resistance: A Critical Factor in Hydrocarbon Environments

Stainless steel's exceptional corrosion resistance is a key factor in its widespread use for control valves in hydrocarbon pipelines. The chromium content in stainless steel forms a protective oxide layer on the surface, shielding the underlying metal from corrosive agents. This passive layer continuously regenerates when damaged, providing long-lasting protection against various forms of corrosion, including pitting, crevice corrosion, and stress corrosion cracking.

In hydrocarbon pipelines, control valves are exposed to a range of corrosive substances, including hydrogen sulfide, carbon dioxide, and chlorides. Stainless steel's ability to withstand these aggressive environments ensures the longevity and reliability of the valve components. The material's resistance to both general and localized corrosion minimizes the risk of leaks, reduces maintenance requirements, and extends the overall lifespan of the control valve.

Furthermore, different grades of stainless steel offer varying levels of corrosion resistance, allowing engineers to select the most appropriate alloy for specific pipeline conditions. For instance, duplex stainless steels provide enhanced resistance to chloride-induced stress corrosion cracking, making them suitable for offshore and subsea applications where seawater exposure is a concern.

Mechanical Properties: Strength and Durability in Demanding Conditions

The mechanical properties of stainless steel control valve make it an ideal material for control valves in high-pressure and high-temperature hydrocarbon pipeline systems. Stainless steel exhibits high tensile strength and yield strength, enabling it to withstand the substantial internal pressures encountered in pipeline operations. This strength allows for the design of compact yet robust valve bodies and components, optimizing space utilization without compromising performance.

Stainless steel's excellent ductility and toughness contribute to its ability to absorb impact and resist cracking under stress. This is particularly important in pipeline systems subject to vibration, thermal cycling, or sudden pressure changes. The material's resilience helps maintain the integrity of valve seals and seats, ensuring reliable shut-off and control functions over extended periods.

Moreover, stainless steel retains its mechanical properties at elevated temperatures, a crucial factor in hydrocarbon pipelines where temperatures can fluctuate significantly. This temperature stability prevents creep and maintains dimensional stability, ensuring consistent valve performance across a wide operating range. The material's low coefficient of thermal expansion also minimizes the risk of thermal stress and fatigue, further enhancing the valve's reliability in dynamic temperature environments.

Surface Characteristics: Enhancing Flow and Reducing Maintenance

The surface characteristics of stainless steel contribute significantly to the performance and maintainability of control valves in hydrocarbon pipelines. Stainless steel can be polished to achieve a very smooth surface finish, reducing friction and minimizing the accumulation of deposits or scale. This smooth surface promotes laminar flow, reduces pressure drop across the valve, and enhances overall system efficiency.

The non-porous nature of stainless steel prevents the absorption of fluids or gases, reducing the risk of contamination and making it easier to clean and maintain the valve. This property is particularly valuable in applications where product purity is critical or where frequent cleaning cycles are required to prevent buildup of residues.

Additionally, stainless steel's resistance to erosion and wear helps maintain the valve's internal geometry over time, ensuring consistent flow characteristics and control precision throughout its service life. This durability translates to reduced maintenance frequency and lower lifecycle costs for pipeline operators.

Stainless Steel Grades and Their Suitability for Control Valves

Austenitic Stainless Steels: Versatility in Corrosive Environments

Austenitic stainless steel control valve steels, particularly grades 316 and 316L, are widely used in control valve applications for hydrocarbon pipelines. These grades offer excellent corrosion resistance, good formability, and superior weldability. The addition of molybdenum in 316 and 316L enhances their resistance to pitting and crevice corrosion, making them suitable for applications involving chlorides or other halides.

Grade 316L, with its lower carbon content, is especially beneficial in welded constructions, as it reduces the risk of sensitization and intergranular corrosion. This grade is often preferred for control valves in sour gas service or offshore applications where resistance to stress corrosion cracking is paramount.

For more demanding environments, super austenitic stainless steels like 904L or 6% molybdenum grades offer even higher corrosion resistance. These alloys are used in control valves exposed to extremely aggressive media or in critical applications where extended service life is essential.

Duplex Stainless Steels: Combining Strength and Corrosion Resistance

Duplex stainless steels, such as 2205 and 2507, have gained popularity in control valve applications due to their unique combination of high strength and excellent corrosion resistance. These alloys possess a two-phase microstructure of austenite and ferrite, resulting in mechanical properties superior to those of austenitic grades.

The increased strength of duplex stainless steels allows for the design of lighter, more compact control valves without compromising on pressure ratings. This is particularly advantageous in offshore installations where weight reduction is crucial. Additionally, duplex grades exhibit improved resistance to stress corrosion cracking and pitting corrosion compared to austenitic stainless steels.

Super duplex grades like 2507 offer even higher corrosion resistance and strength, making them suitable for the most demanding hydrocarbon pipeline environments. These alloys are often chosen for control valves in high-pressure, high-temperature applications or in systems handling particularly aggressive fluids.

Martensitic and Precipitation-Hardening Stainless Steels: High-Strength Options

In certain control valve applications where extreme hardness or wear resistance is required, martensitic or precipitation-hardening stainless steels may be employed. Martensitic grades like 410 or 420 can be heat-treated to achieve high hardness, making them suitable for valve components subject to abrasive wear or erosion.

Precipitation-hardening stainless steels, such as 17-4PH, offer a combination of high strength, moderate corrosion resistance, and good toughness. These alloys are often used for valve stems, springs, or other components requiring high strength and dimensional stability.

While these grades offer superior mechanical properties, their use in control valves for hydrocarbon pipelines is generally limited to specific components or applications where their unique properties are essential. The selection of these grades must be carefully considered in relation to the corrosion resistance requirements of the specific pipeline environment.

Design Considerations for Stainless Steel Control Valves in Hydrocarbon Pipelines

Material Selection and Compatibility

Selecting the appropriate stainless steel grade for control valves in hydrocarbon pipelines requires a comprehensive understanding of the operating conditions and fluid properties. Factors such as temperature, pressure, flow rates, and the chemical composition of the transported hydrocarbons must be carefully evaluated. Engineers must consider not only the corrosion resistance requirements but also the mechanical properties needed to withstand the operational stresses.

Compatibility between different stainless steel components and other materials used in the valve assembly is crucial. This includes gaskets, seals, and bolting materials. Proper material pairing helps prevent galvanic corrosion and ensures the overall integrity of the valve. For instance, using compatible austenitic stainless steel fasteners with an austenitic valve body prevents differential thermal expansion issues that could lead to leakage or loosening over time.

In some cases, cladding or overlay welding with corrosion-resistant alloys on carbon steel valve bodies may be considered as a cost-effective alternative to solid stainless steel construction. This approach combines the strength of carbon steel with the corrosion resistance of stainless steel, particularly for large-diameter control valves where the cost of solid stainless steel construction might be prohibitive.

Welding and Fabrication Techniques

The fabrication of stainless steel control valves for hydrocarbon pipelines demands specialized welding and fabrication techniques to maintain the material's corrosion resistance and mechanical properties. Proper welding procedures, including the selection of appropriate filler metals and shielding gases, are essential to prevent sensitization and ensure the integrity of welded joints.

Post-weld heat treatment may be required for certain stainless steel grades to restore corrosion resistance and relieve residual stresses. For duplex stainless steels, controlling the ferrite-austenite balance in the weld metal and heat-affected zone is critical to maintain the desired properties.

Surface finishing techniques, such as passivation or electropolishing, are often employed to enhance the corrosion resistance of fabricated stainless steel components. These processes remove surface contaminants and promote the formation of a uniform passive layer, further improving the valve's resistance to corrosive environments.

Lifecycle Cost Analysis and Performance Optimization

While the initial cost of stainless steel control valves may be higher compared to alternatives, a comprehensive lifecycle cost analysis often reveals their long-term economic benefits. The extended service life, reduced maintenance requirements, and improved reliability of stainless steel valves can result in significant cost savings over the operational lifespan of the pipeline.

Performance optimization of stainless steel control valves involves careful consideration of factors such as flow characteristics, pressure drop, and control precision. Advanced computational fluid dynamics (CFD) modeling and finite element analysis (FEA) techniques are employed to optimize valve geometry and predict performance under various operating conditions.

Implementing smart valve technologies, such as digital positioners and diagnostic systems, can further enhance the performance and reliability of stainless steel control valves. These technologies enable predictive maintenance, remote monitoring, and optimization of valve operation, maximizing the benefits of the stainless steel construction.

Conclusion

Stainless steel's unique combination of corrosion resistance, mechanical strength, and surface properties makes it the preferred material for control valves in hydrocarbon pipelines. Its ability to withstand aggressive environments, maintain performance under extreme conditions, and provide long-term reliability aligns perfectly with the demanding requirements of pipeline operations. The variety of stainless steel grades available allows for tailored solutions to specific application needs, ensuring optimal performance and longevity. As the hydrocarbon industry continues to evolve, stainless steel control valves will remain a crucial component in ensuring the safety, efficiency, and reliability of pipeline systems worldwide.

FAQs

1. What makes stainless steel control valves suitable for hydrocarbon pipelines?

Stainless steel control valves offer excellent corrosion resistance, high strength, and durability in harsh environments typical of hydrocarbon pipelines.

2. How do stainless steel control valves contribute to pipeline efficiency?

The smooth surface of stainless steel reduces friction and deposit buildup, enhancing flow efficiency and reducing maintenance needs.

3. Are there different grades of stainless steel used for control valves?

Yes, various grades like 316, 316L, duplex, and super duplex are used based on specific application requirements and corrosion resistance needs.

Expert Stainless Steel Control Valve Solutions for Hydrocarbon Pipelines | CEPAI

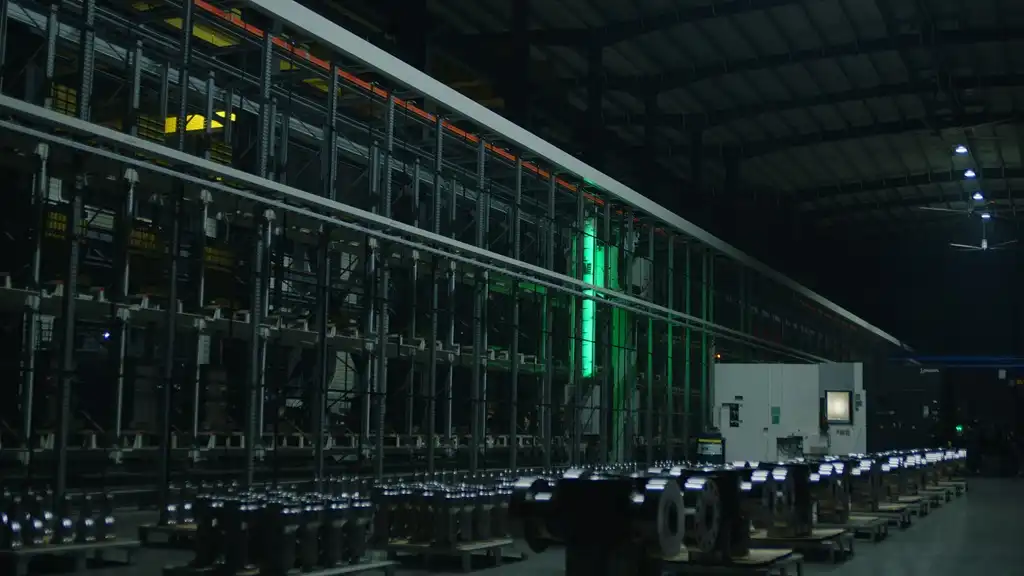

At CEPAI, we specialize in high-quality stainless steel control valves designed for the demanding conditions of hydrocarbon pipelines. Our state-of-the-art manufacturing facility, equipped with the longest high-precision intelligent manufacturing flexible production line in the Asia Pacific region, ensures unparalleled quality and precision. As a leading control valve supplier and manufacturer, we offer tailored solutions to meet your specific pipeline needs. Contact us at cepai@cepai.com to discover how our expertise can enhance your hydrocarbon pipeline operations.
