Understanding Cryogenic Valves: Features and Functionality
Unique Design Elements of Cryogenic Valves
Cryogenic valves possess distinctive design features that set them apart from standard valves. These valves incorporate extended bonnets, which create a thermal barrier between the cryogenic fluid and the valve's operating components. This design prevents the formation of ice on critical parts and ensures smooth operation. Additionally, cryogenic valves often utilize special stem seals and packing materials that maintain flexibility and sealing properties at extremely low temperatures. The body and trim components of these valves are typically constructed from materials with low thermal expansion coefficients, such as austenitic stainless steel or nickel alloys, to prevent thermal stress and potential leakage.
Material Considerations for Extreme Cold
The selection of materials for cryogenic valves is paramount to their performance and longevity. Austenitic stainless steels, particularly grades 316 and 304, are commonly used due to their excellent low-temperature toughness and resistance to embrittlement. For more demanding applications, nickel-based alloys like Inconel or Monel may be employed. These materials maintain their mechanical properties and ductility even at cryogenic temperatures. Seat and seal materials also require careful consideration, with PTFE (Teflon) and PCTFE (Kel-F) being popular choices due to their low-temperature flexibility and chemical resistance. Some valves may incorporate self-lubricating materials to ensure smooth operation without the need for external lubrication, which can become ineffective at cryogenic temperatures.
Operating Principles in Cryogenic Environments
Cryogenic valves operate on principles that take into account the unique challenges of extreme cold. The valve design must allow for thermal contraction and expansion without compromising sealing integrity. Many cryogenic valves incorporate a "loose fit" design, which allows for slight movement of internal components as temperatures fluctuate. Bellows seals are often used to provide a flexible, leak-tight barrier between the valve stem and body. The operating mechanism of these valves is typically designed to minimize heat transfer from the actuator to the cryogenic fluid. Some valves may include thermal siphons or heat dissipation fins to manage temperature gradients effectively. Understanding these operating principles is crucial for selecting the appropriate valve for specific cryogenic applications and ensuring reliable performance under extreme conditions.
Types of Cryogenic Valves: Choosing the Right Fit

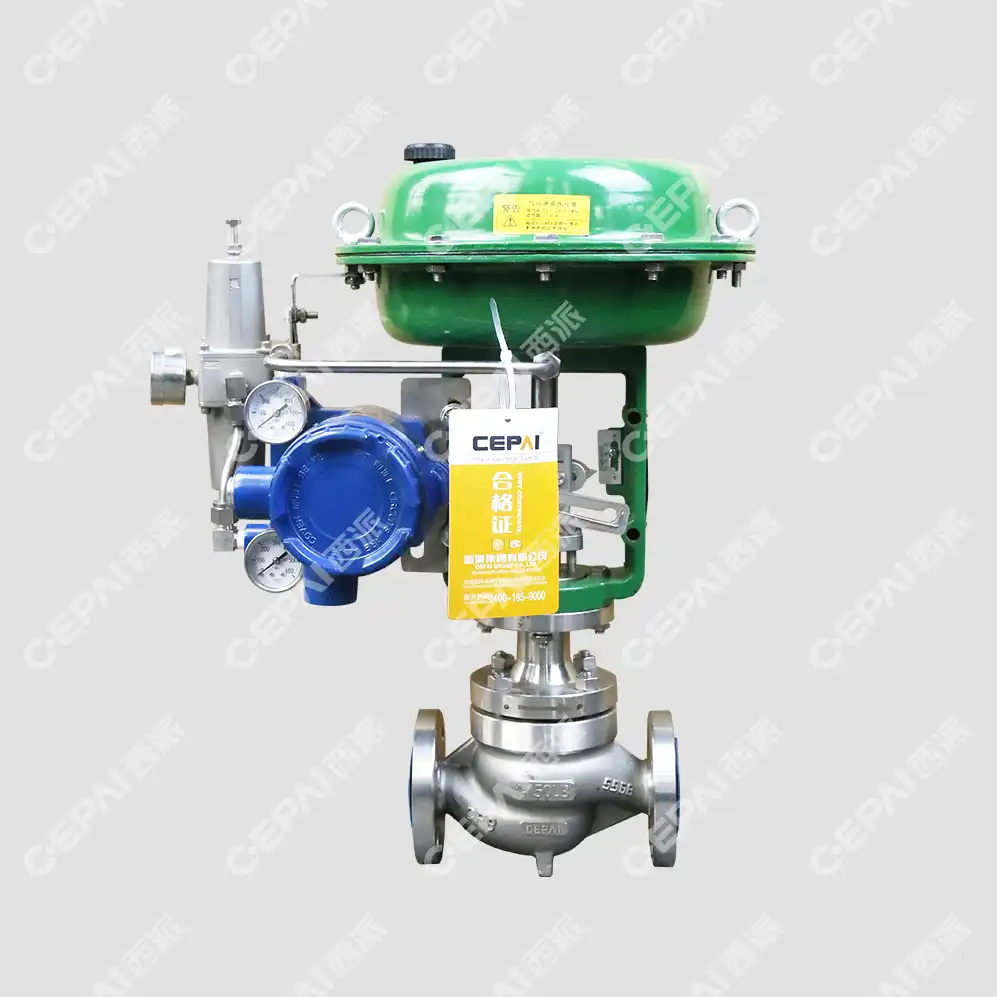

Globe Valves in Cryogenic Applications

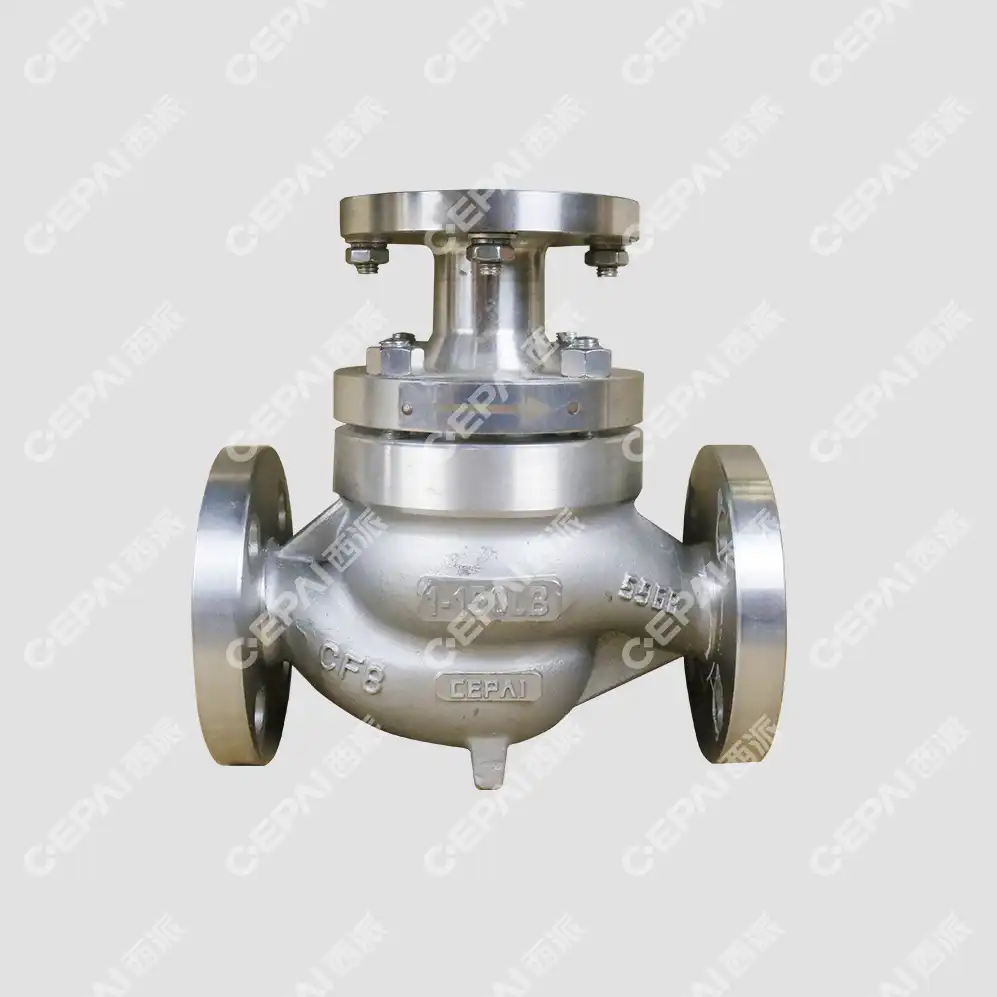

Globe valves are widely used in cryogenic systems due to their excellent throttling capabilities and reliable shut-off performance. In cryogenic applications, globe valves are often designed with an extended bonnet to create a thermal barrier between the cold fluid and the valve's operating components. This design prevents ice formation on critical parts and ensures smooth operation. Cryogenic globe valves typically feature a Y-pattern body, which reduces turbulence and pressure drop. The plug and seat design in these valves is crucial, often incorporating materials like stellite for enhanced wear resistance. Some cryogenic globe valves use a balanced plug design to reduce the operating torque required, especially in high-pressure applications. These valves are particularly suitable for applications requiring precise flow control or frequent cycling in cryogenic environments.
Ball Valves for Low-Temperature Service
Ball valves adapted for cryogenic valve service offer quick operation and excellent sealing capabilities. These valves use a spherical disc (ball) with a bore through the center to control flow. In cryogenic applications, ball valves often feature a trunnion-mounted ball design, which reduces operating torque and provides stable sealing under high-pressure conditions. The ball and seats are typically made from materials like stainless steel or special alloys with low-temperature capability. Cryogenic ball valves may incorporate a cavity filler to prevent trapped fluid from expanding and potentially damaging the valve upon warming. Some designs include a thermal relief system to manage pressure build-up in the valve body. Ball valves are particularly advantageous in cryogenic applications requiring tight shut-off, low-pressure drop, and infrequent operation.
Gate Valves for Cryogenic Systems
Gate valves find application in cryogenic systems where full bore, unobstructed flow is required. These valves use a wedge-shaped disc that moves perpendicular to the flow, providing a clear path when fully open. Cryogenic gate valves often feature a split wedge or parallel slide gate design to ensure tight sealing at extreme temperatures. The body and bonnet are typically forged from low-temperature materials like austenitic stainless steel. Extended bonnets are common in cryogenic gate valves to create a thermal barrier. Some designs incorporate a body cavity pressure relief system to prevent over-pressurization due to trapped cryogenic fluids. Gate valves are particularly suitable for cryogenic applications with infrequent operation and where minimal pressure drop is crucial, such as in main line isolation or tank bottom outlet valves.
Maintenance and Safety Considerations for Cryogenic Valves
Proper Installation and Commissioning Procedures
The installation and commissioning of cryogenic valves require meticulous attention to detail to ensure safe and efficient operation. Prior to installation, all components should be thoroughly cleaned and degreased to remove any contaminants that could compromise performance at low temperatures. Proper alignment is crucial to prevent undue stress on the valve body and piping system. During installation, care must be taken to avoid damaging delicate components such as stem seals or seat materials. The use of appropriate gaskets and bolting materials rated for cryogenic service is essential. Commissioning procedures typically involve gradual cool-down to minimize thermal shock, followed by leak testing using inert gases like helium. It's important to follow manufacturer guidelines for torque specifications and tightening sequences when securing bolted connections. Proper insulation and vapor barriers should be applied to prevent ice formation and maintain thermal efficiency.
Routine Maintenance and Inspection Protocols
Regular maintenance and inspection are vital for ensuring the longevity and reliability of cryogenic valves. Maintenance protocols should include periodic visual inspections for signs of frost, ice buildup, or external leakage. Stem packing should be checked and adjusted as necessary to maintain proper sealing. For valves with pneumatic or hydraulic actuators, the integrity of seals and the condition of hydraulic fluid should be regularly assessed. It's important to verify the proper functioning of any installed safety devices, such as pressure relief valves or rupture discs. Periodic cycling of the valve, if operationally feasible, can help prevent sticking or freezing of moving parts. In some cases, non-destructive testing methods like ultrasonic or radiographic inspection may be employed to detect internal wear or damage. Maintaining detailed records of inspection findings, maintenance activities, and valve performance is crucial for tracking long-term reliability and planning preventive maintenance.
Safety Precautions and Emergency Procedures
Working with cryogenic valves necessitates strict adherence to safety protocols due to the extreme temperatures and potential hazards involved. Personnel must be properly trained in handling cryogenic fluids and equipped with appropriate personal protective equipment, including insulated gloves, face shields, and protective clothing. Emergency shut-off procedures should be clearly established and regularly practiced. It's crucial to have proper ventilation in areas where cryogenic valves are installed to prevent the accumulation of potentially asphyxiating gases. Safety systems such as oxygen deficiency monitors may be necessary in enclosed spaces. In the event of a leak or valve failure, clear evacuation procedures must be in place. Regular safety drills and simulations can help ensure that all personnel are prepared to respond effectively in emergency situations. Additionally, proper signage and hazard warnings should be prominently displayed in areas where cryogenic valves are present, alerting personnel to the potential dangers and required precautions.
Conclusion
Selecting the appropriate valve for cryogenic applications is a critical decision that impacts the safety, efficiency, and reliability of low-temperature systems. Whether opting for globe valves, ball valves, or gate valves, each type offers unique advantages suited to specific cryogenic needs. The key lies in understanding the unique design features, material considerations, and operating principles of cryogenic valves. Proper installation, regular maintenance, and stringent safety protocols are essential for optimal performance and longevity. By carefully considering these factors and staying informed about the latest advancements in cryogenic valve technology, industries can ensure the smooth operation of their cryogenic systems while maintaining the highest standards of safety and efficiency.
