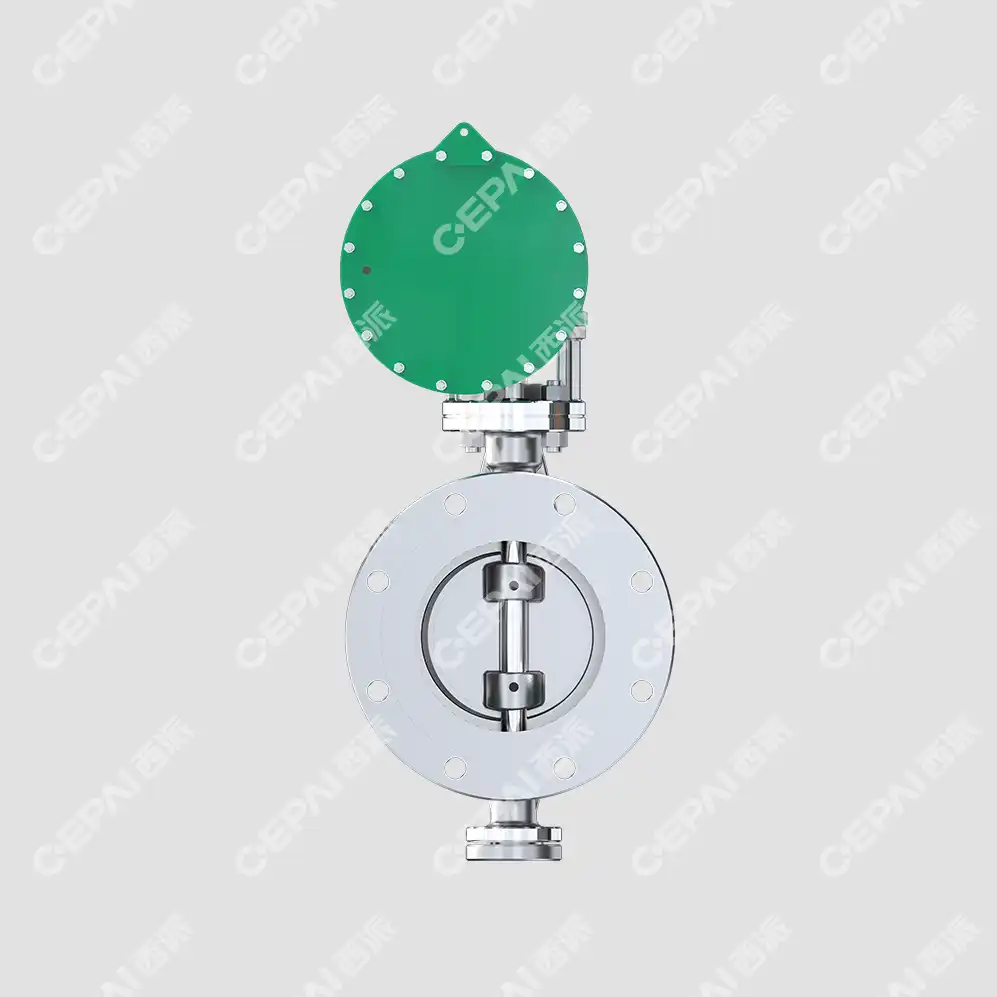

Design and Construction Features of Triple Offset Butterfly Valves
Unique Offset Design Principles
Triple offset butterfly valves are engineered with a sophisticated design that sets them apart from traditional butterfly valves. The term "triple offset" refers to three distinct geometric features that contribute to the valve's exceptional performance. The first offset involves the shaft being positioned behind the disc's centerline. The second offset places the shaft away from the pipe's centerline. The third offset creates a conical seating surface, resulting in a cam-like action during operation.
This ingenious design allows for zero-leakage shut-off and eliminates rubbing between the seat and disc during valve operation. The non-rubbing action significantly reduces wear and extends the valve's service life. When evaluating a triple offset butterfly valve, ensure that these offset principles are correctly implemented to guarantee optimal sealing and longevity.
Material Selection for Valve Components
The choice of materials for various valve components plays a crucial role in determining the valve's performance and durability. High-quality triple offset butterfly valves typically feature body and disc materials such as carbon steel, stainless steel, or specialized alloys like duplex or super duplex stainless steel. These materials offer excellent strength, corrosion resistance, and the ability to withstand high pressures and temperatures.
The valve seat is another critical component that demands careful consideration. Common seat materials include metal-to-metal seats, PTFE, or other advanced polymers. Metal seats provide excellent durability and can withstand extreme temperatures, while polymer seats offer superior chemical resistance and lower operating torque. When selecting a triple offset butterfly valve, assess the compatibility of the seat material with your process media and operating conditions.

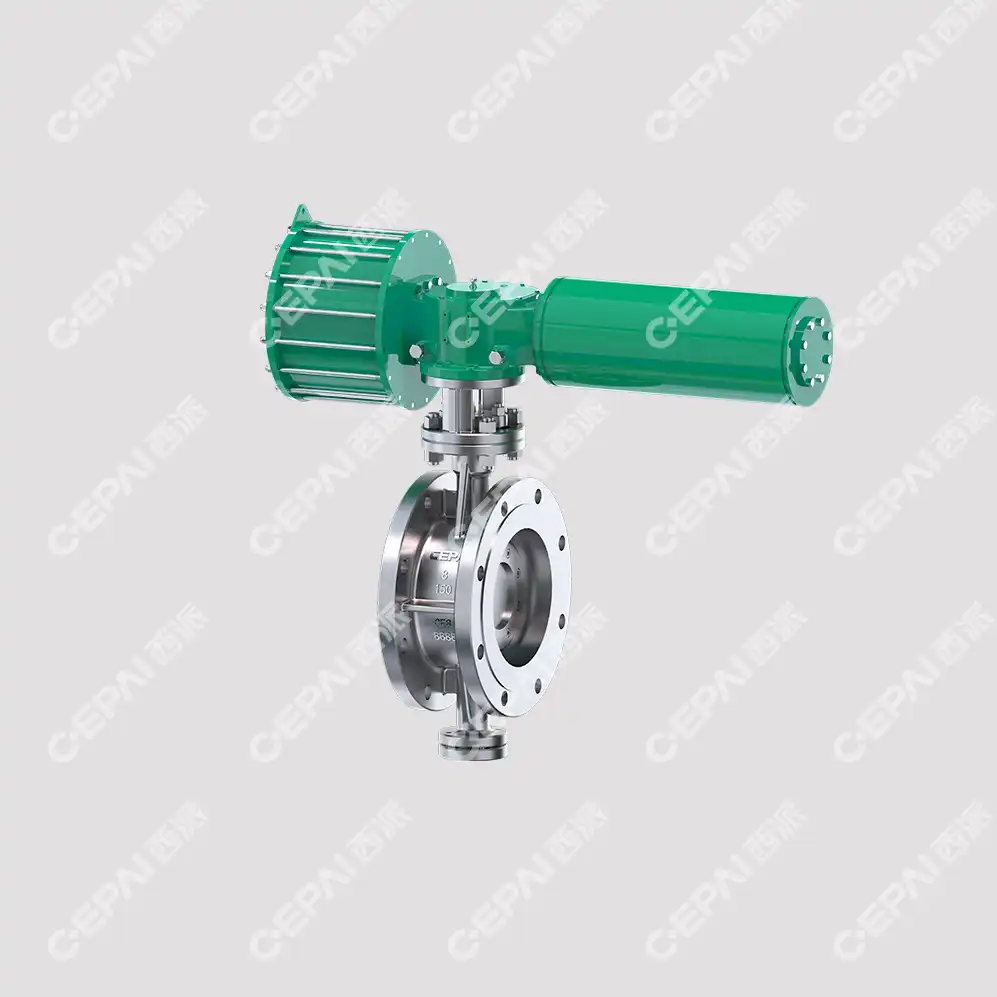

Stem and Bearing Design
The stem and bearing assembly are vital components that affect the valve's operational smoothness and longevity. Look for a valve with a robust stem design, typically made from high-strength materials like 17-4PH or duplex stainless steel. The stem should be precisely machined to ensure a secure fit with the disc and actuator.
Bearings play a crucial role in reducing friction and supporting the stem during valve operation. High-quality triple offset butterfly valves often incorporate self-lubricating bearings made from materials like PTFE or reinforced composites. These bearings minimize maintenance requirements and contribute to smooth, reliable valve actuation. When evaluating a valve, pay attention to the bearing design and material to ensure long-term performance and reduced maintenance costs.
Performance Characteristics and Operational Considerations
Pressure and Temperature Ratings
One of the primary considerations when selecting a triple offset butterfly valve is its pressure and temperature ratings. These ratings determine the valve's ability to withstand the operating conditions of your specific application. High-quality valves are designed to handle a wide range of pressures and temperatures, often exceeding ANSI Class 600 standards.
It's essential to choose a valve with ratings that comfortably exceed your system's maximum operating conditions. This approach provides a safety margin and ensures reliable performance even during unexpected pressure or temperature fluctuations. When reviewing valve specifications, pay close attention to both the body and seat ratings, as these may differ. Additionally, consider the valve's ability to maintain its sealing integrity across the entire pressure and temperature range.
Flow Characteristics and Control Capabilities
Triple offset butterfly valves are renowned for their excellent flow control capabilities. When evaluating a valve, consider its flow coefficient (Cv) and inherent flow characteristic curve. These factors determine how precisely the valve can regulate flow rates and how it responds to changes in opening percentage.
Look for valves with optimized disc designs that minimize turbulence and pressure drop. Some advanced triple offset butterfly valves feature specially contoured discs that enhance flow characteristics and reduce noise. If your application requires precise flow control, consider valves with characterized discs or those that offer customizable flow profiles. Additionally, assess the valve's rangeability, which indicates its ability to control flow accurately across a wide range of operating conditions.
Sealing Performance and Leakage Rates
One of the standout features of triple offset butterfly valves is their ability to achieve zero-leakage shut-off. When selecting a valve, pay close attention to its leakage classification according to industry standards such as API 598 or ISO 5208. Top-tier triple offset butterfly valves often exceed these standards, offering bubble-tight shut-off even under challenging conditions.
The sealing performance is heavily influenced by the valve's seat design and materials. Metal-to-metal seats typically provide excellent durability and fire-safe capabilities but may have slightly higher leakage rates compared to soft-seated designs. Conversely, polymer-based seats can offer superior sealing but may have temperature limitations. Consider your specific application requirements when choosing between these options. Additionally, look for valves with adjustable seats or innovative sealing mechanisms that maintain tight shut-off even after prolonged use.
Maintenance, Reliability, and Long-term Cost Considerations
Ease of Maintenance and Serviceability
When investing in a triple offset butterfly valve, it's crucial to consider its long-term maintenance requirements and serviceability. Look for valves designed with easy maintenance in mind, featuring accessible components and straightforward disassembly procedures. Some advanced designs allow for in-line seat replacement, minimizing downtime during maintenance operations.
Pay attention to the valve's stem packing design, as this is often a critical point for potential leakage. High-quality valves typically incorporate adjustable or self-compensating packing systems that maintain sealing integrity over time and reduce the need for frequent adjustments. Additionally, consider the availability of spare parts and the manufacturer's support for maintenance and repairs. Opting for a valve with readily available components and comprehensive documentation can significantly reduce maintenance costs and downtime over the valve's lifecycle.
Reliability and Durability Factors
The reliability and durability of a triple offset butterfly valve are paramount, especially in critical applications where valve failure can lead to significant safety risks or production losses. When evaluating valve options, consider factors such as the manufacturer's track record, quality control processes, and field performance data.
Look for valves that have undergone rigorous testing, including cycle testing, cryogenic testing, and fire-safe certification where applicable. Pay attention to the valve's corrosion resistance, particularly if it will be exposed to harsh environments or corrosive media. Some manufacturers offer specialized coatings or material treatments that enhance durability and extend the valve's service life. Additionally, consider the valve's resistance to cavitation and erosion, especially in high-pressure drop applications or when handling abrasive fluids.
Total Cost of Ownership Analysis
While the initial purchase price is an important consideration, it's equally crucial to evaluate the total cost of ownership (TCO) when selecting a triple offset butterfly valve. This comprehensive approach takes into account factors such as installation costs, energy efficiency, maintenance requirements, and expected service life.
Consider the valve's impact on system efficiency, including its pressure drop characteristics and the energy required for actuation. Lower-quality valves may offer initial cost savings but could lead to higher operational expenses due to increased energy consumption or more frequent maintenance. Additionally, factor in the potential costs associated with unexpected downtime or emergency repairs.
Evaluate the manufacturer's warranty terms and after-sales support offerings. A comprehensive warranty and responsive technical support can provide significant value over the valve's lifecycle. Lastly, consider the valve's adaptability to future system upgrades or changes in operating conditions. Choosing a versatile valve that can accommodate evolving requirements may offer long-term cost benefits by reducing the need for premature replacement.
Conclusion
Selecting the right triple offset butterfly valve requires careful consideration of various factors, including design features, performance characteristics, and long-term cost implications. By focusing on key aspects such as material selection, sealing performance, and maintenance requirements, you can choose a valve that offers optimal performance, reliability, and cost-effectiveness for your specific application. Remember to evaluate the valve's overall quality, the manufacturer's reputation, and the available support services to ensure a wise investment that will serve your industrial processes efficiently for years to come.
