Advanced Design Features of High-Performance Butterfly Valves
Innovative Disc Geometry
The disc is the heart of any butterfly valve, and in high-performance models, it's a masterpiece of engineering. These valves often feature discs with elliptical or eccentric shapes, designed to minimize turbulence and provide smoother flow characteristics. The precision-engineered disc profile ensures a tight seal against the valve seat, even under high-pressure conditions. This design reduces wear on the seat and extends the valve's operational lifespan.
Moreover, high-performance butterfly valves may incorporate specialized disc coatings or materials. These can include stellite overlays for enhanced wear resistance or PTFE coatings for improved chemical compatibility. The careful selection of disc materials and coatings allows these valves to handle a wide range of media, from corrosive chemicals to abrasive slurries, without compromising performance.
Enhanced Sealing Technology
The sealing mechanism in high-performance butterfly valves is a critical component that sets them apart from standard models. These valves often utilize advanced seat designs, such as double offset or triple offset configurations. These designs allow for a cam-action sealing effect, where the disc lifts away from the seat during opening and closing operations, reducing wear and extending seal life.
High-performance butterfly valves may also feature specialized seat materials like PTFE, RTFE, or metal-to-metal seals for extreme temperature applications. These materials are chosen for their resilience, chemical resistance, and ability to maintain a tight seal under varying conditions. Some designs incorporate fire-safe seals, ensuring the valve remains operational even in the event of a fire, a crucial feature in petrochemical and refinery applications.
Robust Shaft and Bearing Systems
The shaft and bearing system in high-performance butterfly valves are engineered for longevity and reliability. These components often feature corrosion-resistant materials like stainless steel or nickel alloys. The bearings are typically self-lubricating and designed to withstand high loads and temperatures. This robust construction ensures smooth operation and reduces maintenance requirements, even in demanding industrial environments.
Advanced bearing designs, such as thrust bearings or journal bearings, are incorporated to handle both axial and radial loads effectively. This attention to detail in the shaft and bearing system contributes to the valve's overall performance, ensuring precise control and minimal torque requirements for actuation.
Performance Advantages in Industrial Applications
Superior Flow Control and Efficiency
High-performance butterfly valves excel in providing precise flow control across a wide range of operating conditions. The optimized disc and body designs result in improved Cv values, allowing for higher flow rates and reduced pressure drop compared to standard butterfly valves. This enhanced flow efficiency translates to energy savings in pumping systems and more accurate process control in industrial applications.
The ability to maintain consistent performance over a broad range of flow rates makes these valves particularly valuable in applications requiring frequent modulation. Industries such as water treatment, where precise chemical dosing is critical, benefit from the fine control offered by high-performance butterfly valves. Similarly, in HVAC systems, these valves contribute to improved energy efficiency by providing accurate flow regulation.
Exceptional Pressure and Temperature Ratings
One of the hallmarks of high-performance butterfly valves is their ability to withstand extreme pressures and temperatures. These valves are engineered to operate reliably in conditions that would be challenging for standard butterfly valves. With pressure ratings that can exceed 1000 psi and temperature capabilities ranging from cryogenic to over 1000°F, high-performance models are suitable for a wide array of demanding industrial processes.
This resilience makes them ideal for applications in the oil and gas industry, where they may encounter high-pressure natural gas or hot crude oil. In chemical processing plants, these valves can handle corrosive media at elevated temperatures without compromising safety or performance. The ability to maintain a tight shut-off under such extreme conditions is a testament to the advanced engineering behind high-performance butterfly valves.
Extended Service Life and Reduced Maintenance
The robust construction and advanced materials used in high-performance butterfly valves contribute to their extended service life. These valves are designed to withstand frequent cycling and harsh operating conditions without significant wear or degradation. The use of corrosion-resistant alloys and specialized coatings ensures longevity even in aggressive environments.
Maintenance requirements for high-performance butterfly valves are typically lower than those for standard models. The cam-action sealing mechanism reduces wear on the seat, while self-lubricating bearings minimize the need for regular lubrication. Many designs feature easily replaceable seats and seals, simplifying maintenance procedures when they are necessary. This combination of durability and ease of maintenance results in reduced downtime and lower total cost of ownership for industrial operators.
Technological Innovations Driving Performance
Advanced Manufacturing Techniques

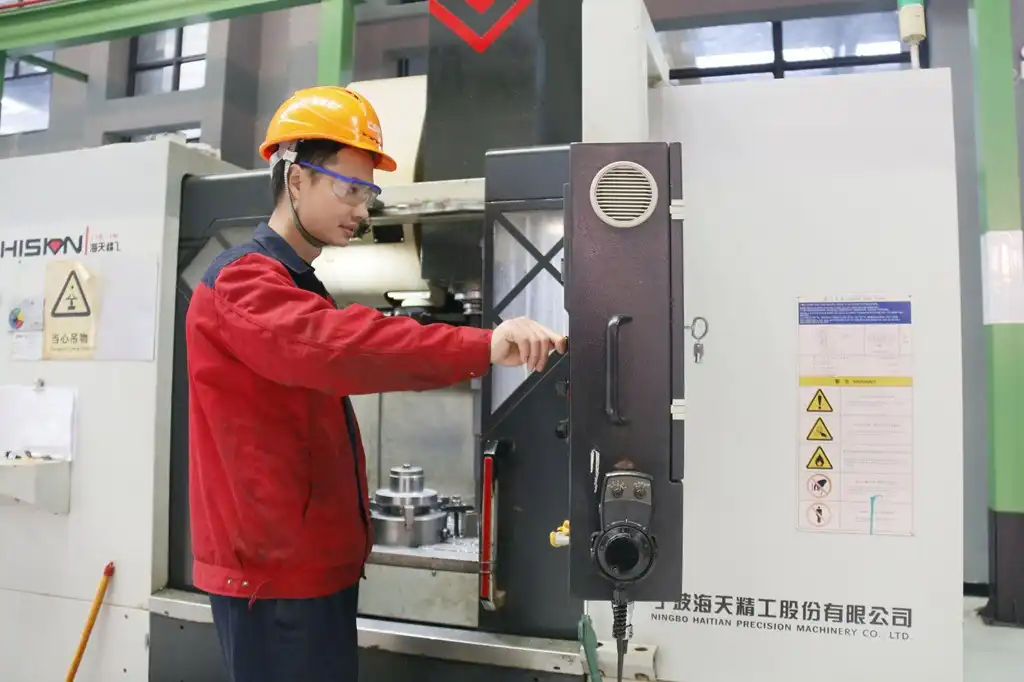

The production of high-performance butterfly valves leverages cutting-edge manufacturing technologies to achieve unprecedented levels of precision and quality. Computer-aided design (CAD) and finite element analysis (FEA) are employed to optimize valve geometry, ensuring optimal flow characteristics and structural integrity. Advanced machining centers with multi-axis capabilities allow for the creation of complex disc and body shapes with tight tolerances.
Innovative manufacturing processes such as metal injection molding (MIM) and 3D printing are increasingly being utilized in valve production. These techniques enable the creation of intricate components with improved material properties and reduced waste. The result is a new generation of high-performance butterfly valves that push the boundaries of what's possible in terms of efficiency and reliability.
Smart Valve Technology Integration
The integration of smart technology is revolutionizing the capabilities of high-performance butterfly valves. Digital positioners and advanced control systems allow for precise valve positioning and real-time feedback. This level of control enables operators to optimize processes and respond quickly to changing conditions, enhancing overall system efficiency.
Predictive maintenance capabilities are being incorporated into high-performance butterfly valves through the use of sensors and data analytics. These systems can monitor valve performance, detect early signs of wear or potential failures, and alert operators before issues escalate. This proactive approach to maintenance helps prevent unexpected downtime and extends the operational life of the valve.
Material Science Advancements
The development of new materials and coatings continues to enhance the performance of butterfly valves. High-performance polymers with excellent chemical resistance and low friction properties are being used for seat materials, improving sealing capabilities and reducing actuation torque requirements. Advanced metal alloys, such as duplex stainless steels and nickel-based superalloys, provide increased strength and corrosion resistance for valve bodies and discs.
Nanotechnology is also making its way into valve design, with nanocoatings offering improved wear resistance and reduced friction. These innovations in material science allow high-performance butterfly valves to operate in increasingly demanding environments, expanding their applicability across various industries.
Conclusion
High-performance butterfly valves represent a significant leap forward in flow control technology. Their advanced design features, including innovative disc geometry, enhanced sealing technology, and robust shaft systems, set them apart from standard models. These valves offer superior flow control, exceptional pressure and temperature ratings, and extended service life, making them invaluable in demanding industrial applications. As technological innovations continue to drive improvements in manufacturing techniques, smart valve technology, and material science, the capabilities of high-performance butterfly valves will only continue to expand, solidifying their role as critical components in modern industrial processes.
FAQs
1. What are the main advantages of high-performance butterfly valves?
High-performance butterfly valves offer superior sealing, precise flow control, higher pressure and temperature ratings, and extended service life compared to standard models.
2. In which industries are high-performance butterfly valves commonly used?
These valves are widely used in oil and gas, chemical processing, power generation, water treatment, and HVAC industries.
3. How do high-performance butterfly valves contribute to energy efficiency?
They provide improved flow characteristics and precise control, reducing pressure drop and optimizing system performance, which leads to energy savings.
Experience the Difference with CEPAI's High-Performance Butterfly Valves

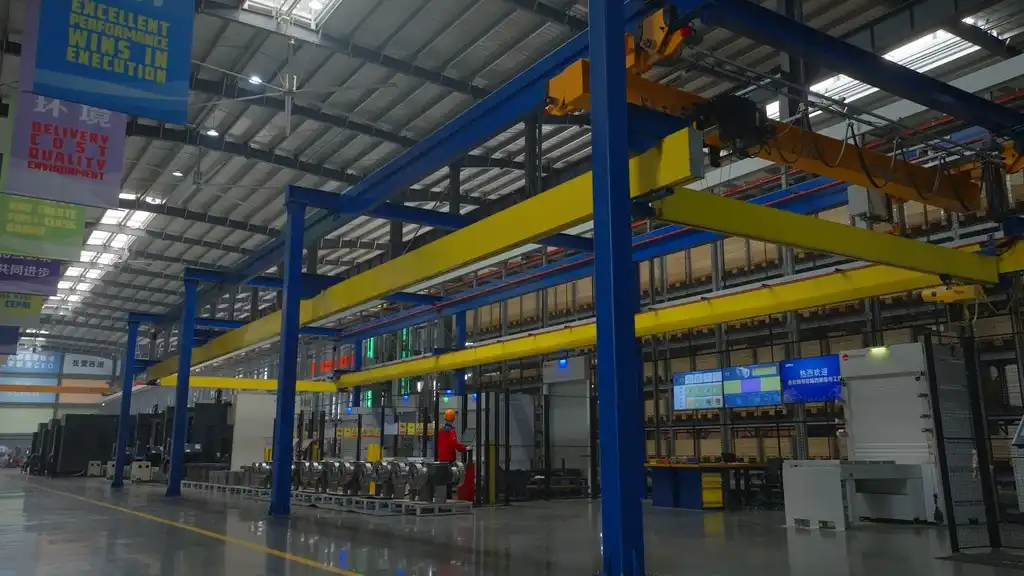

CEPAI Group Co., Ltd. leads the industry with its state-of-the-art manufacturing facilities and commitment to innovation. Our high-performance butterfly valves are produced on Asia Pacific's longest high-precision intelligent manufacturing flexible production line. With certifications including APIQ1, API6A, and ISO9001, we ensure unparalleled quality and reliability. Experience the advantages of our advanced valve technology, backed by our comprehensive remote operation and maintenance service system. For more information or to discuss your specific needs, contact us at cepai@cepai.com.
