Understanding Control Valve Components and Their Functions

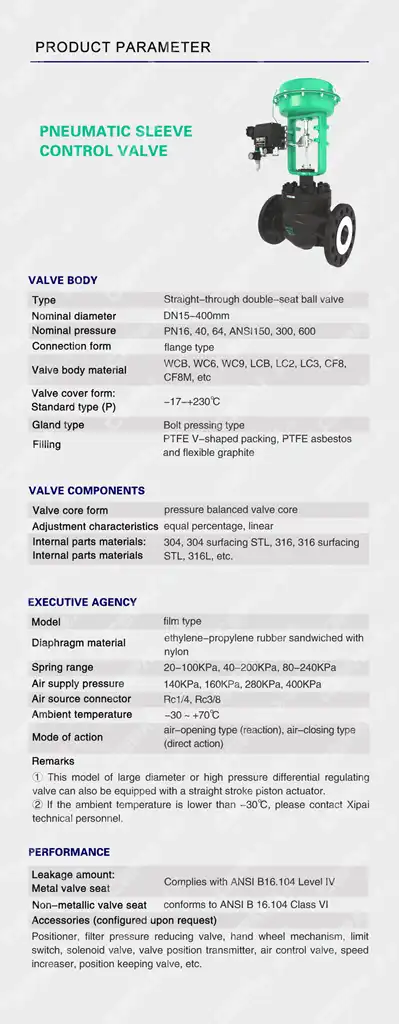

The Valve Body: The Core of Flow Control
The valve body is the primary component of a control valve, serving as the housing for internal parts and the conduit for fluid flow. Typically made from durable materials like cast iron, steel, or specialized alloys, the body's design significantly influences the valve's performance. It contains the inlet and outlet ports, as well as the internal passages that guide the fluid. The body's shape and size are carefully engineered to optimize flow characteristics, minimize pressure drop, and withstand the operating conditions of the specific application.
Various body styles exist, each suited for different process requirements. Globe valves, for instance, offer excellent control characteristics and are widely used in throttling applications. Ball valves provide quick shutoff and high flow capacity, making them ideal for on-off services. Butterfly valves, with their compact design, are perfect for large diameter piping systems where space is limited. The choice of valve body style depends on factors such as required flow coefficient, pressure drop, and process fluid properties.
Actuators: The Driving Force Behind Valve Movement
Actuators are the powerhouse of control valves, responsible for positioning the valve plug or disc in response to control signals. They convert energy from various sources - pneumatic, hydraulic, or electric - into mechanical motion, precisely controlling the valve's opening and closing. Pneumatic actuators, utilizing compressed air, are prevalent due to their simplicity, reliability, and intrinsic safety in hazardous environments. Hydraulic actuators offer high force output and are often used in high-pressure applications. Electric actuators provide precise control and are suitable for remote locations where compressed air isn't readily available.
The selection of an actuator depends on several factors, including required thrust, stroking speed, fail-safe requirements, and environmental conditions. Modern actuators often incorporate smart positioners, which enhance control accuracy and provide diagnostic capabilities. These intelligent devices can detect valve problems early, facilitating predictive maintenance and reducing downtime in critical processes.
Trim: The Heart of Flow Regulation
The trim, consisting of the plug (or disc) and seat ring, is where the actual flow control occurs. As the plug moves relative to the seat, it changes the flow area, thereby regulating the fluid flow rate. The trim's design is crucial in determining the valve's control characteristics, rangeability, and ability to handle challenging process conditions. Various trim designs exist, each offering unique benefits:
- Cage-guided trims provide stability and noise reduction
- Characterized trims offer customized flow characteristics
- Anti-cavitation trims mitigate damage in high-pressure drop applications
- Low-noise trims reduce aerodynamic noise in gas applications
The material selection for trim components is critical, considering factors such as erosion resistance, corrosion resistance, and temperature limitations. Advanced materials like tungsten carbide or ceramic can significantly extend valve life in severe service conditions. The interplay between trim design and material selection is key to achieving optimal valve performance and longevity.
Control Valve Operating Principles and Flow Characteristics
Equal Percentage, Linear, and Quick Opening Characteristics
Control valves exhibit different flow characteristics based on their trim design, which defines the relationship between valve travel and flow rate. Understanding these characteristics is crucial for proper valve selection and process control optimization. The three primary flow characteristics are:
- Equal Percentage: In this characteristic, equal increments of valve travel produce equal percentage changes in the existing flow. This non-linear relationship is particularly useful in processes where large changes in pressure drop occur, as it provides more sensitive control at lower flow rates. Equal percentage valves are commonly used in temperature and pressure control applications.
- Linear: Linear characteristic valves produce a flow rate directly proportional to the valve travel. This straightforward relationship makes linear valves ideal for applications where the pressure drop across the valve remains relatively constant, such as liquid level control in tanks.
- Quick Opening: These valves provide maximum flow change with minimal initial travel, making them suitable for on-off services or applications requiring rapid changes in flow rate. Quick opening characteristics are often used in safety systems or where fast response times are critical.
Selecting the appropriate flow characteristic is essential for achieving stable process control and minimizing control loop variability. Factors such as process dynamics, control system requirements, and rangeability needs should be considered when choosing the optimal characteristic for a given application.
Rangeability and Turndown Ratio: Measures of Control Precision
Rangeability and turndown ratio are crucial parameters that define a control valve's ability to regulate flow accurately across a wide range of conditions. Rangeability is the ratio of maximum to minimum controllable flow rates, while turndown ratio refers to the ratio of maximum flow to the minimum flow that can be measured accurately.
A high rangeability allows a single valve to handle a broader spectrum of flow rates, potentially reducing the need for multiple valves in a system. This capability is particularly valuable in processes with varying demand or seasonal changes. Typical rangeability for control valves can vary from 20:1 to 100:1 or higher, depending on the valve design and trim selection.
The turndown ratio, often influenced by the accuracy of flow measurement devices, directly impacts the valve's ability to maintain precise control at low flow rates. A higher turndown ratio enables more accurate control across a wider operating range, enhancing process efficiency and product quality.
Factors affecting rangeability and turndown include valve type, trim design, actuator capabilities, and the presence of advanced control features like characterized cages or multi-stage trims. Balancing these parameters with other performance requirements is key to optimizing valve selection for specific process needs.
Cavitation, Flashing, and Noise: Challenges in Valve Operation
Control valves often face challenging process conditions that can lead to phenomena like cavitation, flashing, and excessive noise. These issues not only affect valve performance but can also cause severe damage and safety concerns if not properly addressed.
Cavitation occurs in liquid applications when the pressure at the vena contracta (the point of maximum velocity and minimum pressure) drops below the vapor pressure of the liquid. Vapor bubbles form and then collapse violently as pressure recovers downstream, causing noise, vibration, and potentially severe erosion damage to valve components.
Flashing is similar to cavitation but occurs when the downstream pressure remains below the vapor pressure, resulting in a two-phase flow. While less damaging than cavitation, flashing can still cause erosion and affect flow capacity.
Noise in control valves can result from various sources, including turbulence, cavitation, or high-velocity gas flow. Excessive noise can lead to operator discomfort, environmental issues, and even equipment damage due to vibration.
Mitigating these issues often involves specialized trim designs, such as anti-cavitation trims with flow paths that gradually reduce pressure, or low-noise trims that break up flow streams to reduce turbulence. Material selection also plays a crucial role, with hardened alloys or ceramics offering improved resistance to erosion in severe service conditions.
Advanced computational fluid dynamics (CFD) analysis and experimental testing are increasingly used to predict and address these challenges during valve design and selection. By carefully considering these factors, engineers can ensure optimal valve performance and longevity even in the most demanding applications.
Advanced Control Valve Technologies and Future Trends
Smart Positioners and Digital Valve Controllers
The integration of smart positioners and digital valve controllers represents a significant advancement in control valve technology. These intelligent devices offer precision control, self-diagnostics, and communication capabilities that greatly enhance valve performance and maintenance strategies.
Smart positioners use microprocessor-based technology to accurately position the valve based on the input signal. They can compensate for factors like friction, hysteresis, and changes in supply pressure, ensuring consistent valve response. Advanced models incorporate features like auto-tuning, which optimizes valve performance without manual intervention.
Digital valve controllers go a step further by providing comprehensive diagnostic information. They can monitor valve health parameters such as cycle count, total travel, and dynamic error band. This data enables predictive maintenance strategies, allowing operators to address potential issues before they lead to failures or process disruptions.
These devices often support various communication protocols such as HART, Foundation Fieldbus, or Profibus, facilitating seamless integration with plant-wide control and asset management systems. The ability to remotely monitor and configure valves reduces the need for field visits, enhancing safety and operational efficiency.
Wireless and IoT Integration in Valve Monitoring
The advent of Industrial Internet of Things (IIoT) technologies is revolutionizing control valve monitoring and management. Wireless sensors and communication protocols allow for real-time data collection from valves in remote or hazardous locations, providing unprecedented visibility into valve performance and process conditions.
Wireless transmitters can monitor parameters such as valve position, temperature, and vibration, transmitting this data to centralized control systems or cloud-based platforms. This constant stream of information enables more sophisticated analytics, including machine learning algorithms that can predict valve failures or optimize process control strategies.
IoT integration also facilitates the implementation of digital twin technology for control valves. By creating a virtual replica of the physical valve, operators can simulate different operating scenarios, test control strategies, and optimize maintenance schedules without risking disruption to actual processes.
The adoption of these technologies is driving a shift towards condition-based and predictive maintenance strategies, moving away from traditional time-based approaches. This transition promises to reduce unplanned downtime, extend valve life, and optimize maintenance resources across industrial operations.
Energy-efficient and Sustainable Valve Designs
As industries increasingly focus on sustainability and energy efficiency, control valve manufacturers are innovating to meet these demands. New valve designs aim to reduce energy consumption, minimize emissions, and enhance overall process efficiency.
Low-friction trim designs and advanced sealing technologies help reduce the energy required for valve actuation. This not only lowers power consumption but also enables the use of smaller actuators, reducing overall valve package size and weight.
Valves with improved flow paths and optimized body designs minimize pressure drop, reducing pumping energy requirements in the broader process system. CFD analysis plays a crucial role in developing these energy-efficient designs, allowing engineers to fine-tune flow characteristics for optimal performance.
Materials innovation is also contributing to sustainability efforts. The use of recycled or recyclable materials in valve construction, as well as the development of corrosion-resistant alloys that extend valve life, are becoming more prevalent. Additionally, low-emission packing and sealing systems help reduce fugitive emissions, addressing environmental concerns particularly in industries like oil and gas.
Looking ahead, the integration of renewable energy sources for valve actuation, such as solar-powered actuators for remote locations, represents an exciting frontier in sustainable valve design. These innovations not only reduce the environmental impact of industrial processes but also offer long-term cost benefits through improved efficiency and reduced maintenance needs.
Conclusion
The working principle of control valves, rooted in the manipulation of flow paths to regulate fluid dynamics, underpins their critical role in modern industrial processes. From the fundamental components like the valve body and actuator to advanced features such as smart positioners and IoT integration, control valves continue to evolve, offering enhanced precision, efficiency, and sustainability. As industries face increasing demands for process optimization and environmental responsibility, the ongoing advancements in control valve technology will remain crucial in shaping the future of fluid control systems across diverse applications.
