Design and Functionality of Butterfly Valves
Components and Construction

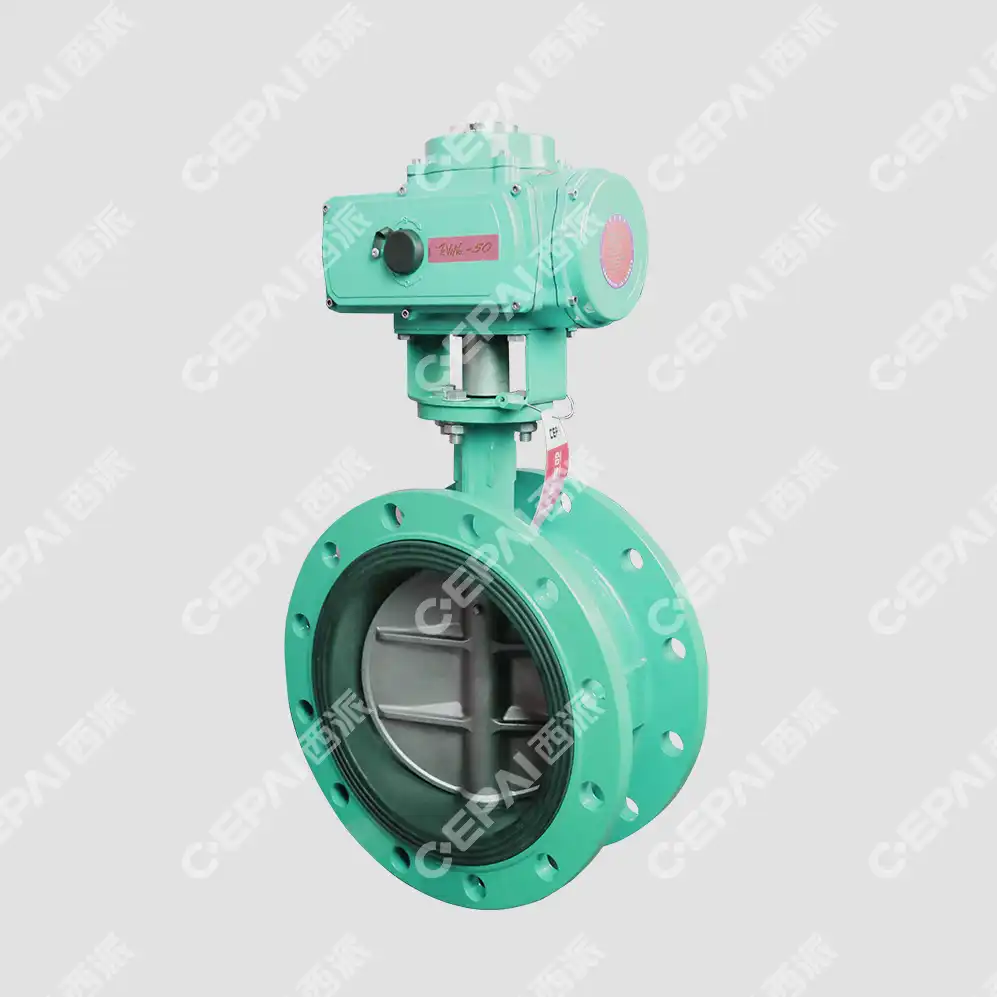

Butterfly valves boast a straightforward yet ingenious design. The main components include the valve body, disc, stem, and seat. The valve body houses the internal parts and connects to the pipeline. The disc, typically circular, acts as the flow control mechanism. It's attached to the stem, which rotates to open or close the valve. The seat provides a seal when the valve is closed, ensuring leak-tight shutoff.
Operating Principles
The operation of a butterfly valve hinges on the rotation of its disc. When fully open, the disc aligns parallel to the flow, offering minimal resistance. As the disc rotates towards the closed position, it gradually restricts the flow. At 90 degrees from the open position, the disc completely blocks the passage, stopping the flow. This simple rotational movement allows for precise control over flow rates, making butterfly valves ideal for modulating applications.
Types of Butterfly Valves
Butterfly valves come in several varieties, each tailored to specific needs. Concentric valves feature a centered disc and stem, suitable for low-pressure applications. Eccentric and double-eccentric designs offer improved sealing capabilities for higher pressures. Triple-eccentric valves provide the best sealing performance, often used in critical applications. Wafer-style valves fit between pipe flanges, while lug-type valves can be installed at the end of a pipeline. The choice depends on factors like pressure ratings, media type, and installation requirements.
Applications and Advantages of Butterfly Valves
Industrial Uses
Butterfly valves find extensive use across numerous industries. In the oil and gas sector, they control the flow of crude oil, natural gas, and refined products through pipelines and processing facilities. Water treatment plants employ these valves to manage water distribution and filtration processes. Chemical plants utilize them for handling corrosive substances and regulating chemical reactions. HVAC systems rely on butterfly valves for efficient temperature control in large buildings. Their versatility extends to food and beverage processing, pharmaceutical manufacturing, and power generation plants.
Benefits in Flow Control
The advantages of butterfly valves in flow control are manifold. Their quarter-turn operation allows for quick opening and closing, essential in emergency shutoff scenarios. The disc's design enables precise flow modulation, making them excellent for applications requiring frequent adjustments. Butterfly valves offer low pressure drop when fully open, contributing to energy efficiency in fluid systems. Their compact size and lightweight construction make them ideal for space-constrained installations. Additionally, these valves can handle bi-directional flow, adding to their versatility.
Cost-Effectiveness and Maintenance
Butterfly valves present a cost-effective solution for many flow control needs. Their simple design translates to lower manufacturing costs compared to other valve types. Installation is straightforward, often requiring less time and labor. Maintenance needs are typically minimal, with fewer moving parts reducing the likelihood of mechanical failures. Many designs allow for easy in-line maintenance, minimizing downtime. The longevity of well-constructed butterfly valves further enhances their economic value over time. These factors combine to make butterfly valves an attractive option for both initial investment and long-term operational costs.
Selection and Maintenance of Butterfly Valves
Choosing the Right Valve

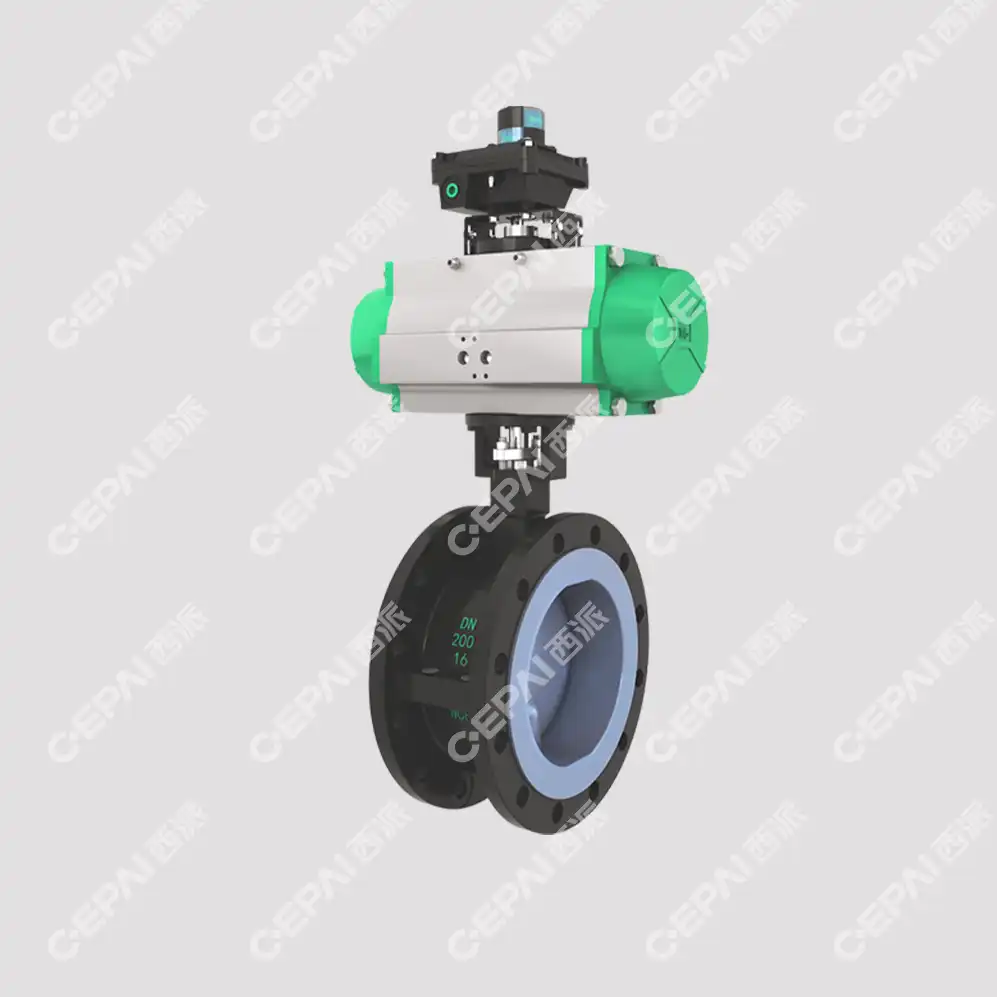

Selecting the appropriate butterfly valve requires careful consideration of several factors. The nature of the fluid being controlled - its viscosity, temperature, and corrosiveness - plays a crucial role. Pressure ratings must match the system requirements to ensure safe operation. The valve's materials, including body, disc, and seat, should be compatible with the media to prevent degradation. Size considerations involve not just the pipe diameter but also the flow characteristics and required control precision. Actuation method - manual, pneumatic, or electric - depends on the specific application and control system integration. Environmental factors, such as ambient temperature and exposure to elements, also influence the selection process.
Installation Best Practices
Proper installation is vital for optimal butterfly valve performance. Alignment is crucial - the valve must be centered in the pipeline to prevent uneven wear and ensure a proper seal. Adequate support should be provided to prevent stress on the valve body. For wafer-style valves, using the correct gaskets and ensuring even compression is essential. Lug-type valves require careful bolt tightening to maintain alignment. Cleanliness during installation prevents debris from interfering with the valve's operation. Proper orientation relative to flow direction is necessary, especially for eccentric designs. Post-installation testing should be conducted to verify proper sealing and operation before the system is fully pressurized.
Maintenance and Troubleshooting
Regular maintenance extends the life and reliability of butterfly valves. Periodic inspections should check for signs of wear, corrosion, or damage to the disc, seat, and stem. Lubrication of moving parts, particularly the stem, prevents seizing and ensures smooth operation. Seat replacement may be necessary over time to maintain a tight seal. Actuator maintenance, including calibration for automated valves, ensures precise control. Common issues include leakage, which may result from worn seats or misalignment, and difficult operation, often caused by stem issues or debris buildup. Addressing these problems promptly prevents more serious failures and system downtime. Implementing a preventive maintenance schedule based on the valve's usage and operating conditions maximizes its lifespan and performance.
Conclusion
Butterfly valves play an indispensable role in modern fluid control systems, offering a blend of simplicity, efficiency, and versatility. Their ability to provide precise flow control, coupled with their compact design and cost-effectiveness, makes them a preferred choice across numerous industries. From regulating the flow of oil in pipelines to managing water distribution in treatment plants, butterfly valves demonstrate remarkable adaptability. As technology advances, these valves continue to evolve, incorporating new materials and design improvements to meet increasingly demanding applications. Understanding their purpose, selection criteria, and maintenance needs is crucial for maximizing their potential in any fluid control system.
