Understanding Ball Valves: Design, Operation, and Applications
Ball Valve Design and Components
Ball valves are characterized by their spherical closure unit, which is the key component in controlling fluid flow. The valve's body houses this spherical ball, which has a bore through its center. When the valve is open, this bore aligns with the pipeline, allowing fluid to pass through. The ball is typically supported by two seals or seats that ensure a tight closure when the valve is in the closed position.
The main components of a ball valve include:
- Valve body: Houses the internal components and connects to the pipeline
- Ball: The spherical closure unit with a bore
- Stem: Connects the ball to the actuator or handle
- Seats: Provide sealing between the ball and valve body
- Packing: Prevents leakage around the stem
- Actuator or handle: Used to operate the valve
The design of ball valves allows for excellent sealing capabilities, making them suitable for applications requiring tight shut-off. The spherical shape of the closure unit also contributes to low pressure drop when the valve is fully open.
Ball Valve Operation and Control
Ball valves operate on a simple principle of rotation. When the valve handle or actuator is turned, it rotates the stem, which in turn rotates the ball. A quarter-turn (90 degrees) is typically sufficient to fully open or close the valve. This quick operation makes ball valves ideal for applications requiring rapid shut-off or isolation.
The control of ball valves can be manual, using a lever or handwheel, or automated using pneumatic, hydraulic, or electric actuators. Automated control is particularly useful in remote or hazardous environments, or when precise and repeated valve positioning is required.
Ball valves can be designed for on-off service or for throttling applications. However, it's worth noting that standard ball valves are not ideal for precise flow control due to their non-linear flow characteristics. For applications requiring precise throttling, specialized control ball valves with modified ball designs are available.
Applications and Advantages of Ball Valves
Ball valves find extensive use across various industries due to their versatility and reliability. Some common applications include:
- Oil and gas pipelines
- Chemical processing plants
- Water treatment facilities
- Power generation plants
- HVAC systems
The advantages of ball valves include:
- Excellent sealing capabilities, even at high pressures
- Low torque requirements for operation
- Minimal pressure drop when fully open
- Durability and long service life
- Suitable for a wide range of temperatures and pressures
- Ability to handle various types of fluids, including slurries
These characteristics make ball valves a popular choice in applications where reliable shut-off and low maintenance are crucial. However, they may not be the best option in situations where precise flow control is required or where space is severely limited.
Exploring Butterfly Valves: Mechanism, Features, and Uses
Butterfly Valve Mechanism and Structure
Butterfly valves operate on a fundamentally different principle compared to ball valves. The key component in a butterfly valve is a disc-shaped closure unit that rotates around a central axis. When the valve is open, the disc is parallel to the flow, allowing fluid to pass around it. When closed, the disc rotates perpendicular to the flow, blocking the passage.
The main components of a butterfly valve include:
- Valve body: Houses the disc and provides connection to the pipeline
- Disc: The circular closure unit that controls flow
- Stem: Connects the disc to the actuator or handle
- Seat: Provides sealing between the disc and valve body
- Packing: Prevents leakage around the stem
- Actuator or handle: Used to operate the valve
The design of butterfly valves results in a compact, lightweight valve that requires minimal space for installation and operation. This makes them particularly suitable for applications where space is at a premium.
Butterfly Valve Features and Performance
Like ball valves, butterfly valves typically operate with a quarter-turn motion. However, the flow characteristics of butterfly valves differ significantly. As the disc rotates, it gradually increases or decreases the flow area, providing more linear control characteristics compared to ball valves. This makes butterfly valves more suitable for throttling applications.
Butterfly valves can be designed for various pressure ratings and sizes. High-performance butterfly valves with special seat designs can handle higher pressures and provide tight shut-off, although generally not to the same degree as ball valves.
The control of butterfly valves can be manual or automated, similar to ball valves. However, due to their lighter weight and lower torque requirements, butterfly valves often require smaller actuators, which can lead to cost savings in automated systems.
Industries and Applications Using Butterfly Valves
Butterfly valves are widely used across numerous industries due to their compact design and versatile performance. Some common applications include:
- Water and wastewater treatment plants
- HVAC systems
- Fire protection systems
- Food and beverage processing
- Chemical processing
- Power generation cooling systems
The advantages of butterfly valves include:
- Compact and lightweight design
- Lower cost compared to many other valve types
- Quick opening and closing
- Good throttling capabilities
- Low pressure drop in the fully open position
- Suitable for large diameter applications
These characteristics make butterfly valves an excellent choice for applications requiring frequent operation, precise flow control, or installation in limited spaces. However, they may not be suitable for high-pressure applications or where absolute zero leakage is required.
Comparing Ball Valves and Butterfly Valves: Making the Right Choice
Performance Comparison: Pressure Ratings and Sealing
When it comes to pressure handling capabilities, ball valves generally have an edge over butterfly valves. Ball valves can be designed to handle very high pressures, often exceeding 10,000 psi in specialized designs. The spherical closure unit, supported by robust seats, provides excellent sealing even under high pressure conditions.
Butterfly valves, while capable of handling moderate pressures, typically have lower pressure ratings compared to ball valves. Standard butterfly valves are usually limited to pressures below 1,000 psi, although high-performance designs can extend this range. The sealing in butterfly valves relies on the contact between the disc edge and the seat, which can be more challenging to maintain under high pressures.
In terms of shut-off capability, ball valves generally provide better sealing. The ball's spherical surface, when in contact with the seats, creates a reliable seal that can achieve near-zero leakage rates. Butterfly valves can also provide good shut-off, but achieving the same level of tightness as ball valves, especially in larger sizes or higher pressures, can be more challenging.
Size and Space Considerations
One of the most significant advantages of butterfly valves is their compact design. The disc-type closure unit allows for a much shorter face-to-face dimension compared to ball valves of the same nominal size. This makes butterfly valves an excellent choice for installations where space is limited or where weight is a concern.
Ball valves, while generally more compact than gate or globe valves, still require more space than butterfly valves. The spherical closure unit necessitates a larger valve body, resulting in increased weight and space requirements. However, this larger size often translates to greater durability and higher pressure capabilities.
For large diameter applications, butterfly valves often become more economical and practical. As the size increases, the cost and weight of ball valves rise significantly, while butterfly valves remain relatively economical even in large sizes.
Flow Control and Throttling Capabilities
When it comes to flow control and throttling, butterfly valves generally have an advantage. The gradual opening and closing of the disc provide more linear flow characteristics, making them well-suited for applications requiring precise flow control. Many butterfly valve designs also offer a wide range of controllability, allowing for fine adjustments in flow rates.
Standard ball valves, on the other hand, are not ideal for throttling applications. Their flow characteristics are non-linear, with most of the flow change occurring in the last portion of the valve's travel. This can make precise flow control challenging. However, specialized control ball valves with modified ball designs can provide improved throttling capabilities.
For on-off applications, both valve types perform well, with ball valves often preferred due to their superior sealing capabilities. The choice between the two in such applications often comes down to other factors such as pressure requirements, space constraints, and cost considerations.
Conclusion
The choice between ball valves and butterfly valves depends on the specific requirements of each application. Ball valves excel in high-pressure scenarios and applications requiring tight shut-off, while butterfly valves offer advantages in space-constrained installations and throttling applications. Understanding the strengths and limitations of each valve type is crucial for making informed decisions in valve selection. By carefully considering factors such as pressure ratings, sealing requirements, space constraints, and flow control needs, engineers and plant managers can choose the most appropriate valve type for their specific applications, ensuring optimal performance and reliability in their fluid control systems.
FAQs
Can ball valves and butterfly valves be used interchangeably?
While both valve types can be used for flow control, they are not always interchangeable due to differences in pressure ratings, sealing capabilities, and space requirements. The choice depends on specific application needs.
Which valve type is better for high-pressure applications?
Ball valves are generally better suited for high-pressure applications due to their robust design and excellent sealing capabilities.
Are butterfly valves good for throttling?
Yes, butterfly valves are often preferred for throttling applications due to their more linear flow characteristics, allowing for precise flow control.
Choose CEPAI for Superior Valve Solutions

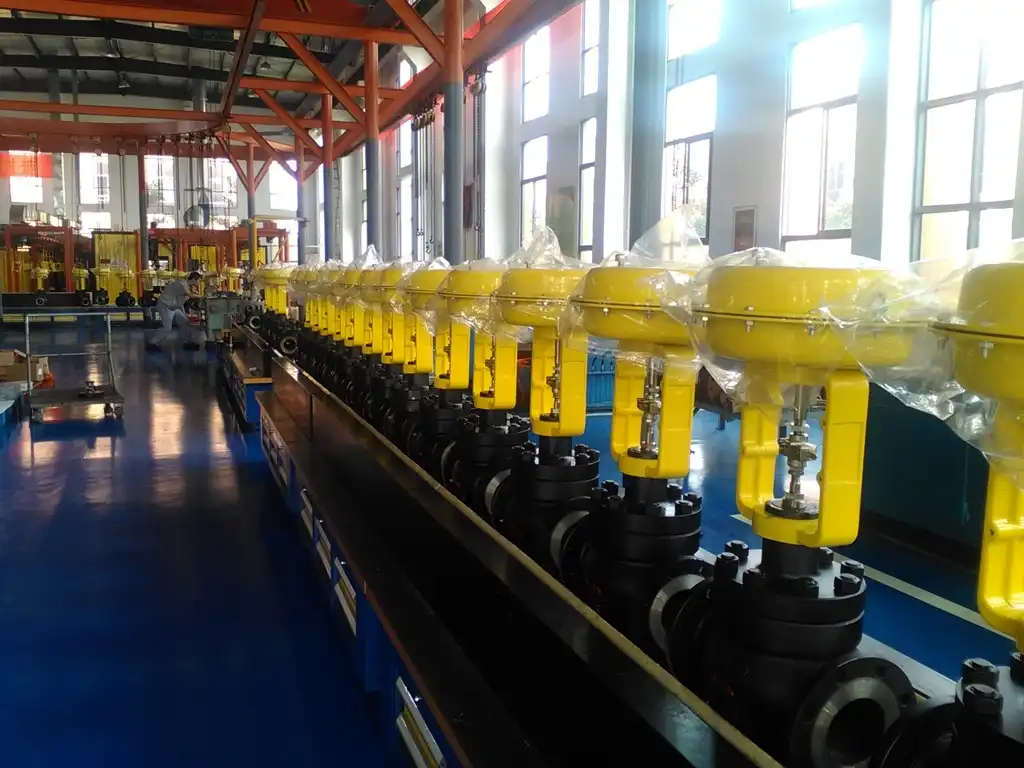

CEPAI Group Co., Ltd. stands at the forefront of valve technology, offering cutting-edge solutions for diverse industrial needs. Our state-of-the-art manufacturing facility, featuring Asia Pacific's longest high-precision intelligent production line, ensures unparalleled quality and precision in every valve we produce. Whether you need high-performance ball valves or efficient butterfly valves, CEPAI delivers excellence. Experience the difference of our innovative, reliable, and globally certified products. Contact us at cepai@cepai.com to explore how our valve solutions can enhance your operations.
