Design and Construction: Globe Valves vs. Check Valves
Globe Valve Design Features
Globe valves are characterized by their distinctive spherical body shape, which houses the internal components. The key elements of a globe valve include the body, bonnet, stem, handwheel, and disc. The body is typically made of durable materials like cast iron, steel, or bronze to withstand high pressures and temperatures. Inside the valve, a disc-type closure element moves perpendicular to the fluid flow path, guided by the stem. This design allows for precise control over the flow rate by adjusting the distance between the disc and the seat.
The bonnet, secured to the valve body, houses the stem and provides a pressure-tight seal. The stem, connected to the handwheel or actuator, transmits the opening and closing motion to the disc. Globe valves can be configured with various disc and seat designs, such as plug-type, needle-type, or composition disc, to suit different applications and media types. This versatility in design makes globe valves suitable for a wide range of industries, from oil and gas to chemical processing.
Check Valve Construction
Check valves, also known as non-return valves, have a simpler construction compared to globe valves. Their primary function is to allow flow in one direction while preventing backflow. The basic components of a check valve include the body, closure element (such as a disc, ball, or piston), and a spring (in some designs). The valve body is typically compact and streamlined to minimize flow resistance.
The closure element is the heart of the check valve, designed to move freely between the open and closed positions in response to fluid pressure. In swing check valves, a hinged disc swings open with forward flow and closes when flow stops or reverses. Ball check valves use a spherical ball that lifts off its seat during forward flow. Lift check valves employ a disc or piston that rises vertically to allow flow. Globe check valves are another type, featuring a similar body style to globe valves but functioning automatically to prevent backflow. Some check valves incorporate springs to assist in faster closure and to maintain a seal against low back pressures. The simplicity of check valve design contributes to their reliability and low maintenance requirements in various applications.
Material Selection and Compatibility
The choice of materials for both globe and check valves is crucial for ensuring longevity and performance in specific operating conditions. For globe valves, the body and bonnet are often made of cast iron, carbon steel, or stainless steel, depending on the pressure rating and corrosion resistance required. The stem may be constructed from stainless steel or brass for strength and corrosion resistance. Disc and seat materials can vary widely, including metals, plastics, or elastomers, chosen based on the fluid properties and temperature range.
Check valves similarly employ a range of materials to suit different applications. The body may be cast iron, bronze, or various grades of steel. For the closure element, materials like stainless steel, bronze, or PTFE are common, selected for their compatibility with the process fluid and wear resistance. In corrosive environments or high-purity applications, special alloys or exotic materials might be necessary for both valve types. The selection of appropriate materials ensures optimal performance, extends valve life, and maintains system integrity across diverse industrial settings.
Operational Principles: How Globe and Check Valves Function

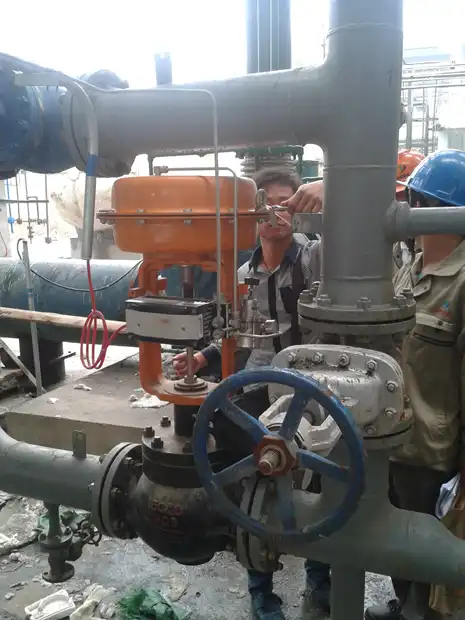

Globe Valve Operation Mechanism
Globe valves operate on a simple yet effective principle that allows for precise flow control. When the handwheel or actuator is turned, it rotates the stem, which in turn moves the disc vertically towards or away from the seat. As the disc approaches the seat, it gradually restricts the flow path, reducing the flow rate. When the disc is fully seated, it creates a tight seal, completely stopping the flow. This linear motion of the disc perpendicular to the flow path enables fine-tuning of the flow rate, making globe valves ideal for throttling applications.
The internal design of globe valves, featuring a contoured body and strategically placed inlet and outlet ports, creates a tortuous flow path. This configuration results in a pressure drop across the valve, which contributes to its excellent control characteristics. The ability to maintain stable flow control over a wide range of positions makes globe valves particularly suitable for applications requiring frequent adjustment or precise flow regulation. Additionally, the seating arrangement in globe valves allows for a tight shutoff, even in high-pressure systems, enhancing their versatility in various industrial processes.
Check Valve Working Principle
Check valves operate automatically, relying on the pressure differential created by fluid flow to open and close. In its basic form, a check valve consists of a movable element (disc, ball, or piston) that is pushed open by forward flow and closes when flow ceases or reverses. This self-actuating mechanism eliminates the need for external power or manual operation, making check valves, including the globe check valve, highly reliable for backflow prevention.
The opening of a check valve occurs when the upstream pressure exceeds the downstream pressure plus the cracking pressure (the minimum differential pressure required to open the valve). As flow increases, the closure element moves further from its seat, allowing more fluid to pass. When flow stops or reverses, the closure element is pushed back onto its seat, either by gravity, spring force, or reverse flow pressure, effectively sealing the valve and preventing backflow. This quick response to flow direction changes makes check valves crucial in protecting equipment from damage due to reverse flow and maintaining system efficiency in various applications, from water distribution networks to complex chemical processing plants.
Flow Characteristics and Control
The flow characteristics of globe and check valves differ significantly due to their distinct operational principles. Globe valves offer excellent control over flow rates through their adjustable disc position. This feature allows for a nearly linear relationship between valve opening and flow rate, especially when equipped with characterized trim. The ability to fine-tune flow makes globe valves suitable for applications requiring precise control, such as in temperature regulation systems or chemical dosing processes.
Check valves, on the other hand, are designed for binary operation – they are either fully open or fully closed, depending on the flow direction. Their flow characteristics are typically described by the pressure drop across the valve at various flow rates. The goal in check valve design is to minimize this pressure drop while ensuring quick closure to prevent backflow. Some advanced check valve designs incorporate features like dashpots or counterweights to control the closure speed and reduce water hammer effects. While check valves do not offer flow control in the same way as globe valves, their automatic operation and ability to prevent reverse flow are crucial in maintaining system integrity and efficiency in numerous industrial applications.
Applications and Advantages: Choosing Between Globe and Check Valves
Ideal Applications for Globe Valves
Globe valves excel in applications that require precise flow control and frequent adjustment. They are commonly used in throttling services where the flow rate needs to be regulated accurately. In the oil and gas industry, globe valves play a crucial role in controlling the flow of various fluids in refinery processes, wellhead operations, and pipeline systems. Their ability to provide tight shutoff makes them suitable for isolation purposes in high-pressure environments.
In the power generation sector, globe valves are utilized in steam systems for controlling flow rates and pressures. They are also found in HVAC systems for regulating coolant flow and in water treatment plants for managing chemical dosing. The versatility of globe valves extends to the chemical processing industry, where they are used for controlling the flow of corrosive substances and maintaining precise reaction conditions. Their robust construction and ability to handle a wide range of temperatures and pressures make globe valves indispensable in these demanding applications.
Optimal Uses for Check Valves
Check valves find their primary application in scenarios where preventing backflow is critical. In water supply systems, they are installed to prevent contamination of the main water source by backflow from individual connections. In oil and gas production, check valves are crucial components in pumping systems, preventing the backflow of oil or gas in pipelines and wellheads. This is particularly important for maintaining well integrity and preventing potential environmental hazards.
In the chemical processing industry, check valves protect sensitive equipment from damage caused by reverse flow. They are also essential in compressor systems, preventing compressed gas from flowing back into the compressor. In hydraulic and pneumatic systems, check valves, including the globe check valve, maintain pressure and ensure unidirectional flow, which is vital for system efficiency and component protection. Their simple, reliable operation makes check valves ideal for applications where automatic backflow prevention is needed without the complexity of powered or manually operated valves.
Comparative Advantages and Limitations
Globe valves offer superior control over flow rates, making them ideal for applications requiring precise adjustment. Their design allows for excellent sealing capabilities, even in high-pressure systems. However, globe valves typically create a higher pressure drop compared to other valve types due to their tortuous flow path. They also require more frequent maintenance due to their complex internal structure and are generally more expensive than simpler valve types.
Check valves, in contrast, provide automatic operation without the need for external power or control systems. This simplicity results in lower initial costs and reduced maintenance requirements. Their compact design allows for easy installation in tight spaces. However, check valves do not offer flow control capabilities and are limited to their primary function of preventing backflow. Some designs may be prone to slamming or chatter under certain flow conditions, which can lead to wear and potential failure if not properly addressed.
The choice between globe and check valves depends on the specific requirements of the application. Where precise flow control is needed, globe valves are the preferred option. For applications focused on backflow prevention with minimal intervention, check valves are the optimal choice. Understanding these differences is crucial for engineers and system designers to select the most appropriate valve type for their specific needs, ensuring optimal system performance and reliability.
Conclusion
In conclusion, globe valves and check valves serve distinct yet equally important roles in fluid control systems. Globe valves excel in applications requiring precise flow regulation and throttling, offering versatility across various industries. Their ability to provide accurate control makes them indispensable in complex processes. Check valves, with their automatic operation and backflow prevention capabilities, are crucial for system protection and efficiency. While simpler in design, check valves, including the globe check valve, are essential for maintaining unidirectional flow in numerous applications. Understanding the unique characteristics, advantages, and limitations of each valve type is key to making informed decisions in system design and maintenance, ultimately contributing to improved performance and reliability in industrial processes.
