Understanding Butterfly Valve Design and Operation
Basic Components of a Butterfly Valve
Butterfly valves consist of several key components that work together to control fluid flow. The main parts include the valve body, disc, stem, seat, and actuator. The valve body houses the internal components and connects to the pipeline. The disc is a circular plate that rotates to regulate flow. The stem connects the disc to the actuator, which controls the disc's position. The seat provides a seal between the disc and body when the valve is closed.
Disc Designs and Their Impact on Flow
Various disc designs affect the flow characteristics of butterfly valves. Common types include concentric, double-eccentric, and triple-eccentric discs. Concentric discs are centered within the valve body and offer simple operation. Double-eccentric discs have two offset axes, reducing wear and providing better sealing. Triple-eccentric discs have three offset axes, offering the best sealing performance and longevity, especially in high-pressure applications.
Actuation Methods and Control Systems
Butterfly valves can be actuated manually, electrically, pneumatically, or hydraulically. Manual actuation is suitable for infrequent operation, while electric actuators offer precise control and are often used in automated systems. Pneumatic actuators provide quick response times and are ideal for remote locations. Hydraulic actuators are used in high-torque applications. Advanced control systems, such as positioners and digital controllers, enhance the valve's accuracy and responsiveness in complex processes.
Flow Characteristics and Performance Factors
Types of Flow Characteristics
Butterfly valves exhibit various flow characteristics depending on their design and application. The most common types are linear, equal percentage, and quick opening. Linear characteristics provide a proportional relationship between valve opening and flow rate. Equal percentage characteristics offer more precise control at lower flow rates. Quick opening characteristics allow for rapid changes in flow rate with small disc movements, suitable for on-off applications.
Factors Affecting Flow Coefficients
Several factors influence the flow coefficients of butterfly valves. These include the valve size, disc shape, seat design, and fluid properties. The valve's Cv (flow coefficient) is a critical parameter that quantifies its flow capacity. Larger valves generally have higher Cv values, allowing greater flow rates. The disc shape affects the valve's resistance to flow, with streamlined designs offering lower pressure drops. Seat materials and designs impact sealing effectiveness and flow characteristics, especially at low opening angles.
Pressure Drop and Cavitation Considerations
Pressure drop across a butterfly valve is an important consideration in system design. Excessive pressure drop can lead to energy losses and reduced efficiency. The relationship between valve opening and pressure drop is non-linear, with higher pressure drops occurring at smaller openings. Cavitation, the formation and collapse of vapor bubbles in the fluid, can occur in certain operating conditions, potentially causing damage to the valve and adjacent piping. Proper valve sizing and material selection are crucial to mitigate cavitation risks and optimize performance.
Applications and Industry-Specific Considerations
Oil and Gas Industry Applications

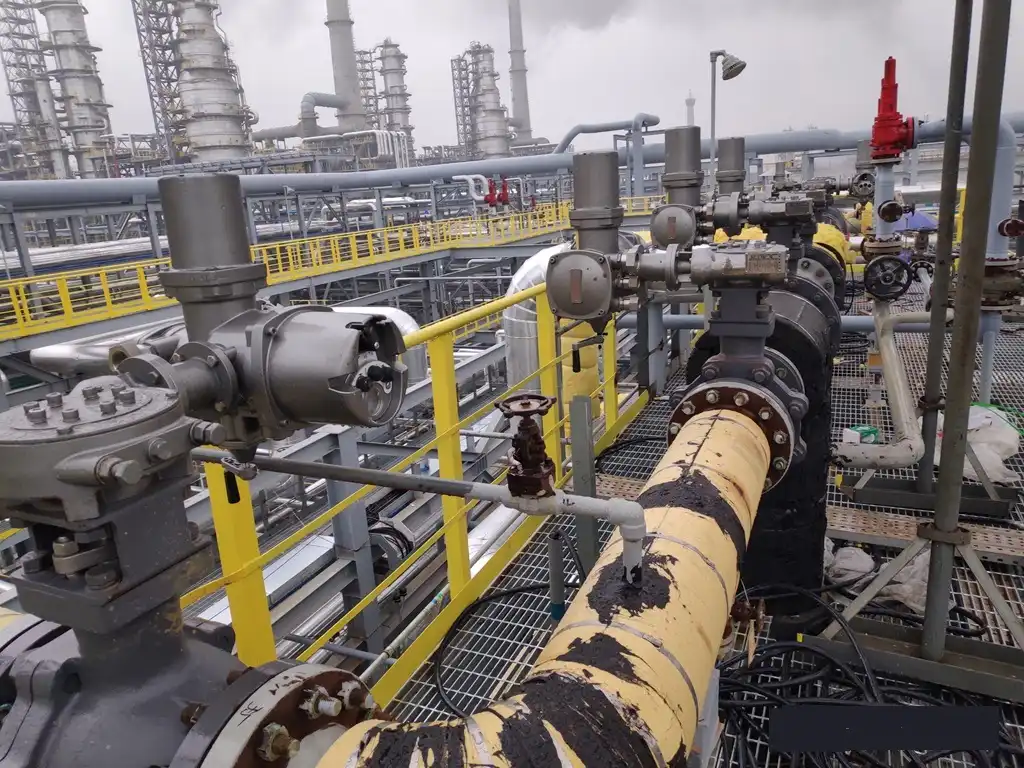

In the oil and gas industry, butterfly valves play a vital role in various processes. They are used in pipeline systems for isolation and control of crude oil, natural gas, and refined products. High-performance butterfly valves with specialized sealing materials are employed in offshore platforms and refineries to handle corrosive fluids and extreme temperatures. The valves' compact design and reliable operation make them suitable for space-constrained environments like subsea installations and modular process units.
Water Treatment and Distribution Systems
Water treatment facilities and distribution networks extensively use butterfly valves for flow control and isolation. Large-diameter butterfly valves are installed in main water lines to regulate flow rates and pressures. These valves often feature corrosion-resistant materials like stainless steel or rubber-lined bodies to withstand the effects of treated water. In desalination plants, butterfly valves with special alloys are used to handle seawater and brine solutions, ensuring long-term reliability in harsh environments.
Chemical and Process Industries
The chemical and process industries rely on butterfly valves for precise flow control of various fluids, including acids, solvents, and slurries. High-performance butterfly valves with specialized seat materials are used to handle aggressive chemicals and maintain tight shut-off. In pharmaceutical manufacturing, sanitary butterfly valves with polished surfaces and hygienic designs ensure product purity and ease of cleaning. The food and beverage industry employs butterfly valves in processing lines, where quick and efficient product changeovers are essential.
Conclusion
Understanding the flow characteristics of butterfly valves is crucial for optimal valve selection and system performance. These versatile components offer efficient flow control across various industries, from oil and gas to water treatment and chemical processing. The modified equal percentage flow characteristic of butterfly valves provides precise control, especially at lower flow rates. Factors such as disc design, actuation method, and material selection significantly influence valve performance. By considering these aspects and industry-specific requirements, engineers and operators can harness the full potential of butterfly valves in their fluid control systems, ensuring reliability, efficiency, and safety in diverse applications.
FAQs
1. How does a butterfly valve's flow characteristic differ from other valve types?
Butterfly valves typically have a modified equal percentage flow characteristic, offering more precise control at lower flow rates compared to linear or quick-opening valves.
2. What factors should be considered when selecting a butterfly valve for high-pressure applications?
For high-pressure applications, consider factors such as valve body and disc material strength, seat design for tight shut-off, and appropriate actuation method to handle the required torque.
3. How do butterfly valves compare to ball valves in terms of flow control?
Butterfly valves generally offer finer control over a wider range of flow rates, while ball valves excel in providing tight shut-off and full-bore flow when fully open.
