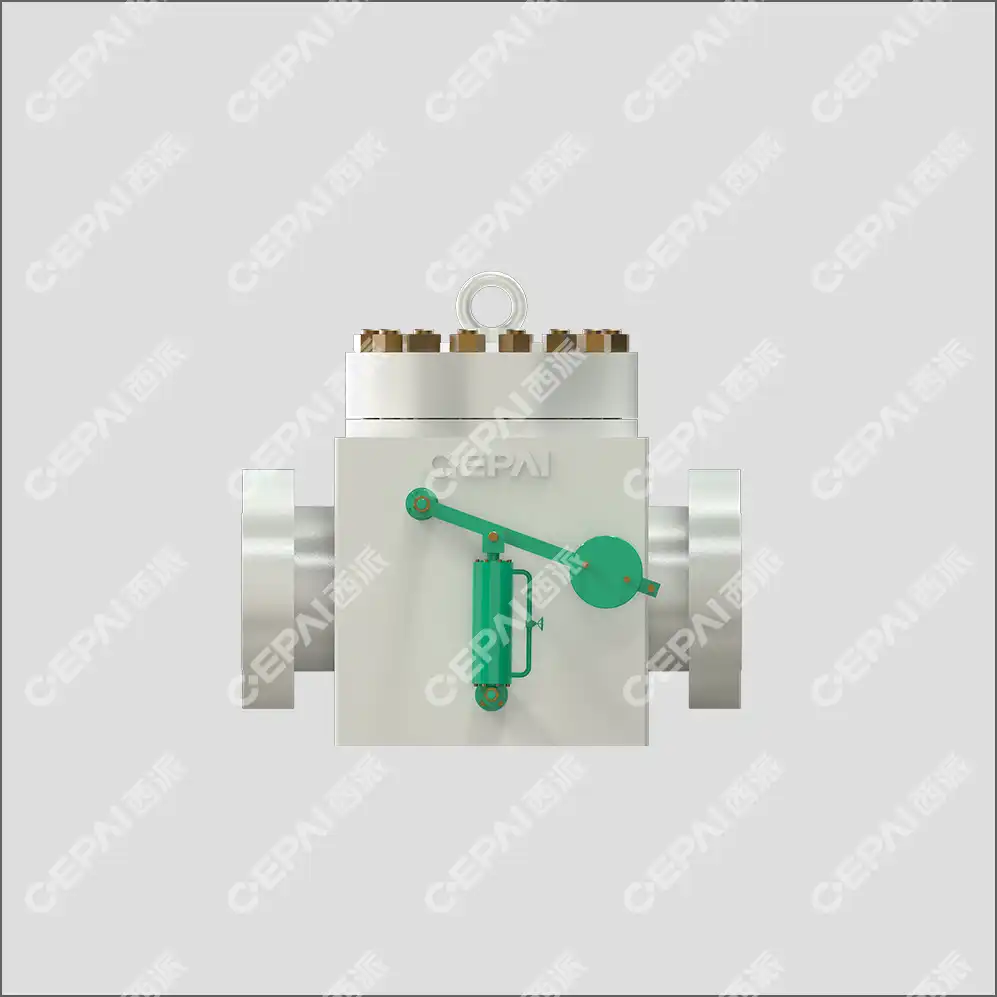

Factors Influencing Swing Check Valve Size Selection
Flow Rate and Pressure Considerations
When selecting the appropriate swing check valve size, flow rate and pressure are paramount considerations. The valve must be capable of handling the maximum flow rate without causing excessive pressure drop or turbulence. Engineers typically use flow coefficients (Cv values) to determine the valve's capacity. Higher Cv values indicate greater flow capacity, but it's essential to balance this with the system's pressure requirements. Undersized valves can lead to increased pressure drop and reduced efficiency, while oversized valves may result in poor sealing and premature wear.
Pipe Diameter and System Configuration
The swing check valve size should be compatible with the existing pipe diameter and system configuration. In most cases, the valve's nominal size should match the pipe size to ensure proper fit and performance. However, some situations may require a valve size that differs from the pipe diameter. For instance, in systems with varying flow rates or pressure fluctuations, a slightly smaller or larger valve may be necessary to optimize performance. Consider the overall system layout, including elbows, tees, and other fittings, as these can impact flow characteristics and influence valve sizing decisions.
Media Properties and Operating Conditions
The properties of the fluid or gas passing through the swing check valve significantly impact size selection. Viscosity, temperature, and the presence of particulates or corrosive elements all play a role in determining the most suitable valve size. High-viscosity fluids may require larger valve sizes to maintain adequate flow rates, while abrasive or corrosive media might necessitate special materials or coatings. Additionally, consider the operating temperature range and any potential thermal expansion or contraction that could affect valve performance. By accounting for these media-specific factors, you can ensure that the chosen swing check valve size will perform optimally under your project's unique conditions.
Standard Swing Check Valve Size Ranges and Industry Norms
Common Nominal Sizes and Their Applications
Swing check valves are available in a wide range of nominal sizes to accommodate various applications. Typical sizes range from 1/2 inch to 48 inches or larger, with the most common sizes falling between 2 inches and 24 inches. Smaller sizes (1/2 inch to 4 inches) are often used in auxiliary systems, instrumentation lines, or small-diameter pipelines. Medium sizes (6 inches to 12 inches) are frequently employed in distribution networks and process piping. Large sizes (16 inches and above) are typically found in main transmission lines, water treatment facilities, and large-scale industrial applications. It's crucial to select a size that aligns with your specific project requirements while considering future scalability and potential system modifications.
Industry Standards and Specifications
Several industry standards govern the design, manufacturing, and sizing of swing check valves. The American Petroleum Institute (API) Standard 6D provides specifications for pipeline valves, including swing check valves used in oil and gas applications. The American Society of Mechanical Engineers (ASME) B16.34 standard covers pressure-temperature ratings and dimensions for flanged, threaded, and welding-end valves. Additionally, the Manufacturers Standardization Society (MSS) SP-71 standard specifically addresses swing check valves. Familiarizing yourself with these standards ensures that the selected valve size complies with industry requirements and maintains compatibility across different systems and manufacturers.
Pressure Classes and Their Impact on Sizing
Pressure class is a critical factor in swing check valve sizing, as it determines the valve's pressure-handling capabilities. Common pressure classes include ANSI Class 150, 300, 600, 900, 1500, and 2500. The pressure class affects the valve's body thickness, flange dimensions, and overall robustness. Higher pressure classes generally result in larger and heavier valves, which may impact installation requirements and support structures. When selecting a valve size, ensure that the chosen pressure class can withstand the maximum operating pressure of your system, including any potential pressure surges or fluctuations. It's also important to consider the relationship between pressure class and temperature, as the maximum allowable working pressure often decreases at higher temperatures.
Optimizing Swing Check Valve Performance Through Proper Sizing
Minimizing Pressure Drop and Energy Loss
Proper sizing of swing check valves is crucial for minimizing pressure drop and energy loss within your system. An appropriately sized valve allows for smooth, unrestricted flow when open, reducing turbulence and associated energy losses. To achieve this, consider the valve's flow coefficient (Cv) in relation to your system's flow requirements. Ideally, the valve should be sized to operate within its optimal flow range, typically between 70% and 90% of its maximum capacity. This approach ensures efficient operation while providing a safety margin for unexpected flow increases. Additionally, pay attention to the valve's internal geometry, such as disc shape and hinge design, as these factors can influence pressure drop characteristics.
Enhancing Valve Longevity and Reliability
Selecting the right swing check valve size contributes significantly to the valve's longevity and overall system reliability. Oversized valves may experience incomplete disc closure, leading to accelerated wear and potential leakage. Conversely, undersized valves can cause excessive disc movement and premature wear of sealing surfaces. To enhance valve reliability, choose a size that allows for stable disc operation across your system's flow range. Consider factors such as fluid velocity, disc stability, and potential water hammer effects when making your selection. Implementing proper sizing practices can extend valve life, reduce maintenance requirements, and minimize the risk of unexpected failures that could disrupt your operations.
Balancing Cost and Performance in Valve Selection
While proper sizing is crucial for optimal performance, it's essential to balance this with cost considerations. Larger valve sizes generally come with higher price tags, not only for the valve itself but also for associated piping, supports, and installation costs. However, undersizing to save on initial costs can lead to increased operational expenses and potential system failures in the long run. To strike the right balance, conduct a thorough cost-benefit analysis that considers factors such as energy efficiency, maintenance requirements, and expected service life. In some cases, investing in a slightly larger or higher-quality valve may yield significant long-term savings through improved performance and reduced downtime. Collaborate with valve manufacturers and engineering consultants to explore innovative sizing solutions that optimize both cost and performance for your specific project needs.
Conclusion
Understanding standard swing check valve sizes is essential for maximizing the efficiency and reliability of your oil and gas projects. By carefully considering factors such as flow rates, pressure requirements, and system configurations, you can select the optimal valve size that ensures smooth operation and longevity. Remember that proper sizing goes beyond merely matching pipe diameters; it involves a comprehensive analysis of your system's unique characteristics and operational demands. By applying the insights gained from this guide, you'll be better equipped to make informed decisions that enhance your project's performance and contribute to its long-term success.
