Troubleshooting Control Valve Noise: Causes and Quiet Solutions

When control valve systems make too much noise in industrial settings, production efficiency goes down and upkeep costs go through the roof. Between 85 and 120 decibels of noise can come from these important flow regulation devices, which can shorten the life of equipment and make the workplace less safe. When engineers know what causes valve noise, like cavitation, turbulence, and mechanical shaking, they can put in place specific methods that make the system quiet again. Acoustic analysis and systematic inspection techniques are used together in modern troubleshooting methods to correctly find noise sources. Noise reduction strategies that work include choosing the right valves, using advanced trim designs, and planning your maintenance in a way that makes sure they work reliably and quietly in a wide range of demanding industrial settings.

​​​​​​​

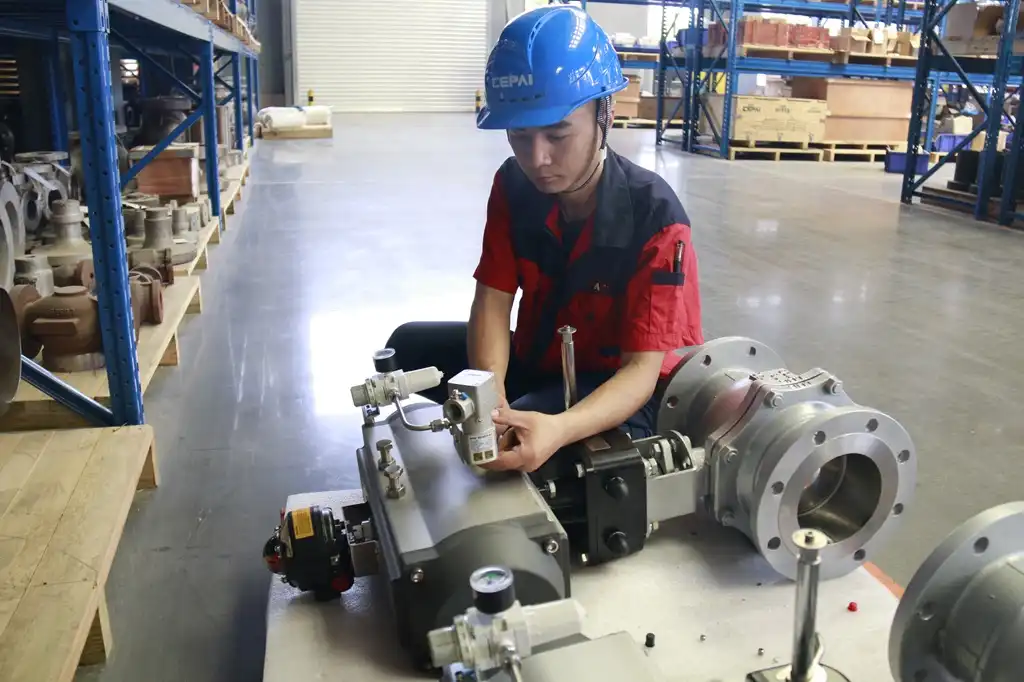

Understanding Control Valve Noise: Definition and Key Causes

One of the most constant problems in industrial fluid systems is valve noise. The acoustic energy produced by fluid dynamics and mechanical interactions can get so high that it threatens the safety of workers and the health of the equipment. This effect happens when moving fluids cause rough conditions, changes in pressure, or cavitation inside the valve system and the pipes that connect to it.

Primary Noise Generation Mechanisms

When fluids hit limits or sudden changes in the shape of valve bodies, turbulent flow patterns happen. This turbulence causes changes in pressure that show up as broad sound energy at a number of different frequency bands. The frequency of these movements is directly related to the flow rate, the difference in pressure, and the way the valve trim shape was designed.

Cavitation is another important source of noise, especially when working with liquids and the pressure drops below the vapor pressure of the fluid. There is a lot of force behind the formation and breakup of vapor bubbles, which causes sharp acoustic transients that can damage internal valve parts and make high-frequency noise signals.

Mechanical and Installation Factors

Noise levels are raised by motor operation, gear reduction systems, and location input devices in actuator mechanisms. Electric motors usually make steady-state humming sounds, while gas systems make venting sounds every once in a while while they're working. If you don't place something correctly or don't isolate vibrations well enough, these mechanical sounds can get louder through structure transmission paths.

An important reason for too much noise is valves that are the wrong size. When over-sized valves are used at low openings, they make high-speed jets that make the turbulence stronger, while when small units are used close to full capacity, they have a hard time keeping the flow stable. Both situations cause high noise levels that could be avoided by using the right selection criteria.

Diagnosing Noise Problems: Step-by-Step Troubleshooting Guide

To properly diagnose noise in a control valve, you need to use organized testing methods and have a deep understanding of how valves work. Sound level meters that are tuned for industrial settings give basic sound information, and vibration sensors find mechanical problems that add to total noise patterns.

Measurement and Data Collection Procedures

Acoustic tests should be done in a number of places around the valve system and under a range of working situations. Near-field readings taken within three feet of the valve body show how much noise is being made directly, while far-field readings show how much noise is being made in other work areas. Frequency analysis helps tell the difference between noise caused by fluid dynamics and noise caused by mechanical sources, which lets you focus on fixing the problem.

For correlation analysis, it is important to write down the working settings while measuring noise. Acoustic qualities are affected by flow rates, pressure differences, valve settings, and the properties of the fluid. Keeping track of these factors along with sound readings makes a complete set of data that can be used to find the root cause.

Systematic Inspection Methodology

The first thing that is looked at is the alignment of the valve placement, the strength of the supports, and the soundness of the mounting hardware. Vibrations can make noise worse if there are loose connections, poor pipe supports, or motors that aren't lined up right. During repair shutdowns, an internal check shows wear patterns, erosion damage, or debris buildup that could be causing sound problems.

By trying the system in all of its operational places, it is possible to find the exact situations that cause too much noise. A lot of control valve uses have noise peaks at certain opening percentages, which is also when flow patterns become unsteady or cavitation starts to form. When developing a solution, extra care needs to be taken with these key working points.

Proven Solutions to Control Valve Noise Reduction

Getting rid of valve noise requires methods that cover both the ways the noise is made and how it gets spread. Depending on how bad the noise problems are and what the operation needs, engineering solutions can range from easy changes to the trim to replacing the whole valve.

Advanced Trim Design Solutions

The best way to handle high-pressure difference situations with a control valve is to use multi-stage pressure reduction. Specialized trim designs make many small pressure drops instead of one big one. This lowers the chance of cavitation while keeping the flow patterns smooth. These designs cut down on noise production by a large amount and increase valve service life by lowering corrosion damage.

Anti-cavitation trim geometries have carefully designed flow channels that keep the pressure above the vapor pressure level of the fluid. To get rid of noise caused by cavitation while keeping accurate flow control, tortuous path designs, stepped orifices, and expansion chambers all work together. How well these methods work rests a lot on how well the application engineering and sizing calculations are done.

Here are the core advantages of modern trim technologies:

• Staged pressure reduction: multiple small pressure drops get rid of single-point cavitation while keeping accurate flow control over a wide range of working conditions.
• Optimized flow geometry: streamlined paths lower the amount of turbulence and noise it makes by up to 20 decibels in most situations.
• Enhanced durability: new materials and coats protect against erosion damage, which means less frequent service visits and quiet operation.

These trim innovations address fundamental noise causes while improving overall valve performance and reliability in demanding industrial environments.

Acoustic Accessories and Installation Modifications

Inline silencers are a good way to cut down on noise in situations where changing the trim alone isn't enough. Absorptive designs use sound-dampening materials to lower broadband energy across multiple frequency ranges, while reactive designs use chamber sizes and resonant frequencies to cancel out certain noise components.

Changing the way a pipe is configured can have a big effect on how noise is transmitted and made. Enough straight run lengths upstream and downstream of the valve help create stable flow patterns that lower noise caused by turbulence. By placing pipe supports and vibration isolators in the right places, structures don't send sound waves to nearby areas.

Comparing Control Valve Noise Solutions: What Works Best for Your Applications?

To choose the best noise reduction methods for a control valve, you need to carefully look at the types of valves, actuator technologies, and the needs of your particular application. Different types of valves have different acoustic properties that affect how well a solution works in different working situations.

Valve Type Performance Characteristics

Globe valves are very good at slowing, and their noise levels are pretty consistent across their working range. Their straight-lined flow paths make pressure differences that are easy to handle and work well with trim optimization methods. While ball valves work well for on-off service, they can make a lot of noise when they have to slow down flow because of the way they are designed.

Butterfly valves create special sound problems because the disc positioning makes flow patterns that aren't symmetrical. But because they are small, light, and work quickly, they are good for situations where noise is only made during short placement cycles and not all the time when they are slowing.

Material Selection Impact

The materials used for valve bodies affect both how noise is made and how it is sent. The cast steel design gives the structure great strength and reduces vibrations through strong mounting surfaces. Stainless steel choices are better at resisting corrosion and have slightly different sound qualities that may be useful in some situations.

The way trim materials change flow properties and cavitation resistance has an effect on noise production. Hardened stainless steels keep their smooth surfaces, which encourages laminar flow. Specialized coats can smooth out surfaces that are rough, which can cause turbulence to form.

Procurement Advice: Buying Control Valves with Noise Control in Mind

To successfully buy quiet control valve systems, you need to know exactly what the application needs and carefully evaluate each provider. Leading makers offer a wide range of noise control options, but finding the right mix requires careful application analysis and the creation of performance specifications.

Key Procurement Criteria

The choice of actuator for a control valve has a big effect on the general noise level and dependability of the system. Electric actuators can precisely position things while making very little noise, which makes them perfect for places where noise is a problem. Pneumatic systems can respond quickly and fail safely, but they need to be carefully muffled to reduce noise and have their supply pressure regulated to keep things running smoothly.

Flow coefficient matching makes sure that the valve works at its best while reducing the amount of noise it makes. When oversized valves are used with low openings, they make flow patterns that are unstable and make too much noise. On the other hand, when units are small, they have a hard time keeping smooth operation across all needed flow ranges. When you do the right size calculations, you take into account both regular and emergency situations.

Supplier capabilities can do more than just describe products. They can also help with application planning, test products, and provide service after the sale. Manufacturers with specific acoustic testing centers can check the noise performance in controlled settings, which gives installers faith in the results. Technical help is especially useful for complicated applications that need unique solutions.

Quality Assurance and Certification Requirements

API and ISO approvals make sure that valve designs meet performance and dependability standards set by the industry. These approvals give people faith in claims that their products reduce noise and make sure that they will work with other parts of the system. The need for documentation in the certification process also makes sure that all of the acoustic properties are tested across all working areas.

Total cost of ownership for noise control systems is directly affected by the length of the warranty and the availability of service assistance. A full guarantee shows that the maker is confident in the sound performance and protects you from unexpected maintenance costs. The ability to provide local service makes it possible to quickly fix any operating problems that may arise over time.

Conclusion

Control valve noise is a tricky problem that needs to be carefully analyzed and fixed in a way that fits the needs of the business. Understanding the basic ways that noise is made, like turbulence, cavitation, and mechanical shaking, helps engineers choose the right ways to reduce noise so that operations are quiet again while keeping process performance the same. Modern ways of fixing problems use acoustic measurement methods and thorough valve cleaning procedures to correctly find the root causes. Advanced trim designs, the right choice of valves, the smart use of acoustic devices, and regular upkeep are all good ways to make sure that the system stays quiet for a long time. To make sure that noise control works best in tough industrial settings, it's important to carefully consider valve types, actuator technologies, and suppliers' skills before making a purchase.

FAQ

What causes the most noise in control valve systems?

Cavitation is the main source of noise in liquid uses. It happens when the pressure in the area drops below the vapor pressure level of the fluid. When vapor bubbles form and then burst, they make very loud noises that can reach 120 dB or more. Flow patterns that aren't smooth and the working of mechanical actuators add to the noise at different frequency ranges.

How often should maintenance be performed to reduce valve noise?

Inspections every three months make it possible to find early signs of wear patterns, trash buildup, or alignment problems that cause noise. Complete maintenance once a year, which includes calibrating the actuator, replacing the seals, and checking the trim, helps keep the sound performance at its best. Critical apps may need to be checked on a monthly basis to make sure that noise doesn't cause problems with their operations.

Can upgrading actuators significantly reduce control valve noise?

Modern electric motors usually make 10-15 decibels less noise. Smart positioners with advanced control methods cut down on hunting and vibration, two things that can cause noise problems. But changes to actuators may only help with noise that comes from mechanical sources and may not have much of an effect on noise that comes from fluid dynamics inside the valve body.

CEPAI: Your Partner for Quiet Control Valve Solutions

Excessive valve noise disrupting your operations requires immediate attention from experienced professionals who understand both the technical challenges and practical solutions. CEPAI specializes in manufacturing high-performance regulating valves, choke valves, and wellhead equipment designed specifically for demanding oil and gas applications where noise control proves critical to operational success. Our engineering team combines decades of industry experience with advanced acoustic testing capabilities to deliver custom solutions that meet your specific noise reduction requirements.

As a certified control valve manufacturer with API Q1, API 6A, and ISO 9001 certifications, CEPAI ensures every product meets rigorous quality standards while incorporating the latest noise reduction technologies. Our comprehensive product line includes sleeve-type regulating valves, high-pressure check valves, and emergency shut-off systems engineered for quiet operation in challenging environments. Contact our technical specialists at cepai@cepai.com to discuss your noise control requirements and discover how our proven solutions can restore operational quiet to your facility.
