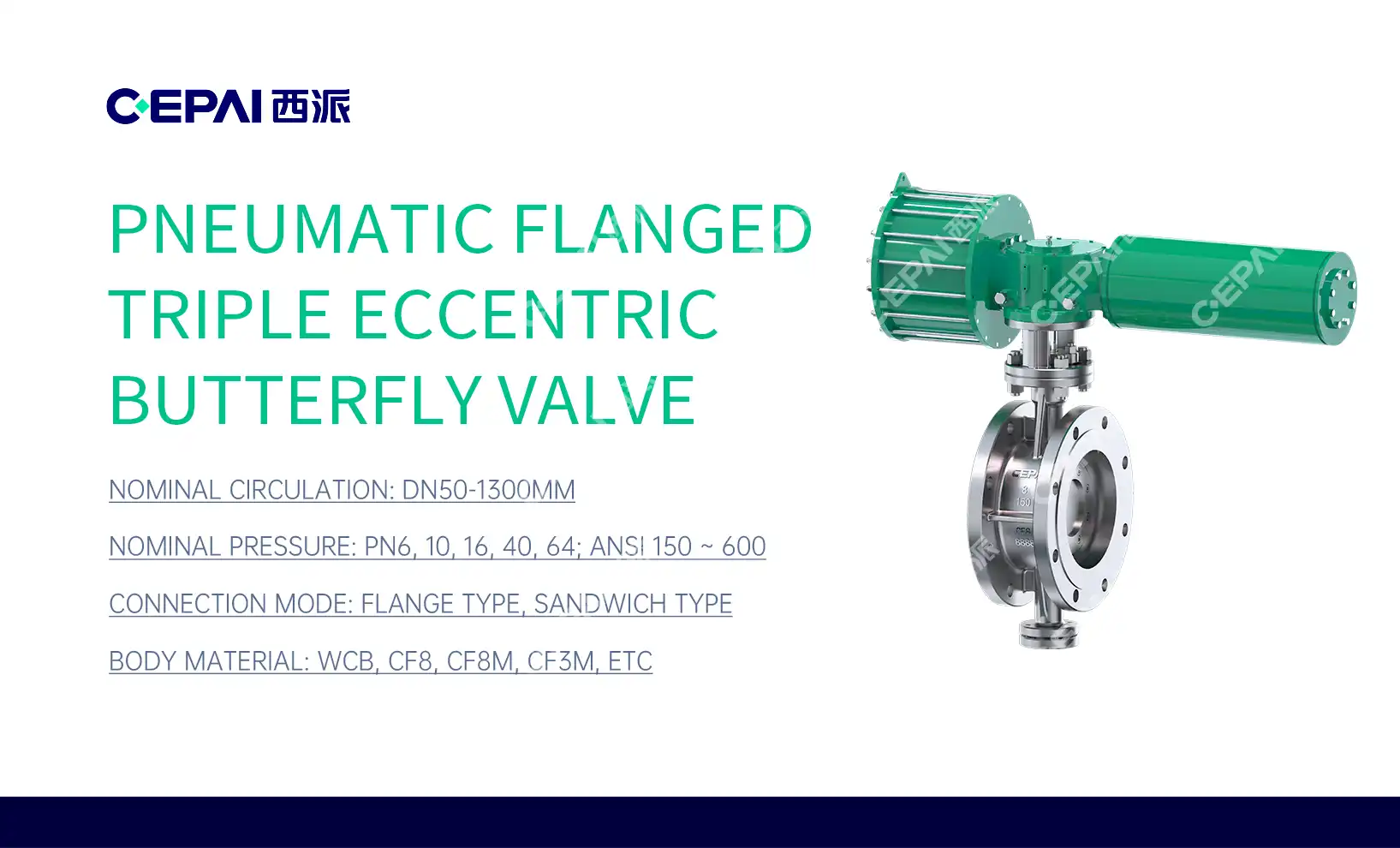

Understanding the Basics: Triple Offset vs. Traditional Butterfly Valves
Design Principles and Construction
Triple offset butterfly valves and traditional butterfly valves differ significantly in their design principles and construction. Traditional butterfly valves feature a centrally mounted disc that rotates around a fixed axis. This simple design has been widely used for decades due to its cost-effectiveness and ease of operation. However, it has limitations in terms of sealing performance and wear resistance, especially in demanding applications.
On the other hand, triple offset butterfly valves employ a more sophisticated design. The term "triple offset" refers to three key design features:
- The first offset places the shaft behind the disc's centerline
- The second offset positions the shaft away from the pipe's centerline
- The third offset creates a conical sealing surface
This innovative configuration results in a cam-action closure, which significantly enhances sealing performance and reduces wear on the sealing components. The conical sealing surface allows for metal-to-metal seating, making triple offset valves suitable for high-temperature and high-pressure applications where elastomeric seals might fail.
Sealing Mechanisms and Performance
The sealing mechanisms of triple eccentric butterfly valve, triple offset, and traditional butterfly valves play a crucial role in their performance and applicability. Traditional butterfly valves typically rely on elastomeric seals that compress against the valve body when closed. While effective for many applications, these seals can degrade over time, especially when exposed to extreme temperatures or corrosive media.
Triple eccentric butterfly valve and triple offset butterfly valves, with their metal-to-metal sealing capability, offer superior leak-tightness and longevity. The conical sealing surface creates a wedge effect during closure, ensuring a tight seal even under high pressure differentials. This design also minimizes friction during operation, reducing wear and extending the valve's service life.
Moreover, the sealing performance of triple eccentric butterfly valve and triple offset valves remains consistent across a wide range of temperatures and pressures, making them ideal for critical applications where zero leakage is essential. This reliability translates to improved process efficiency and reduced maintenance requirements in the long run.
Operational Characteristics and Flow Control
When it comes to operational characteristics and flow control, both valve types have their unique attributes. Traditional butterfly valves are known for their quick quarter-turn operation and relatively high flow capacity. They provide good throttling capabilities in low to medium-pressure applications and are often used in HVAC systems, water treatment plants, and general industrial processes.
Triple offset butterfly valves, while also offering quarter-turn operation, excel in precision flow control and tight shutoff. Their design allows for smoother operation with less torque, even in high-pressure scenarios. This translates to more accurate flow regulation and better overall system performance. The triple offset design also minimizes turbulence and pressure drop across the valve, contributing to improved energy efficiency in the process.
Furthermore, triple offset valves typically offer bi-directional sealing, allowing them to be installed in either flow direction without compromising performance. This flexibility can simplify installation and maintenance procedures in complex piping systems.
Comparative Analysis: Strengths and Limitations
Pressure and Temperature Ratings
One of the most significant advantages of triple offset butterfly valves lies in their superior pressure and temperature ratings. These valves are engineered to withstand extreme conditions that would be challenging for traditional butterfly valves. Typically, triple offset valves can handle pressures up to 100 bar (1450 psi) or more, depending on the specific design and materials used. This high-pressure capability makes them suitable for critical applications in the oil and gas industry, power plants, and chemical processing facilities.
Temperature-wise, triple offset valves excel in both cryogenic and high-temperature applications. With proper material selection, they can operate effectively in temperatures ranging from -196°C to 815°C (-320°F to 1500°F). This wide temperature range is particularly beneficial in processes involving steam, thermal oil, or cryogenic fluids.
In contrast, traditional butterfly valves generally have more limited pressure and temperature ratings. While high-performance models are available, they typically max out at lower pressure ratings compared to their triple offset counterparts. The use of elastomeric seals in traditional designs also restricts their temperature range, usually capping at around 200°C (392°F) for standard models.
Maintenance Requirements and Lifecycle Costs
When considering maintenance requirements and lifecycle costs, triple eccentric butterfly valve and triple offset butterfly valves often present a more favorable long-term solution. The metal-to-metal sealing mechanism of these valves eliminates the need for frequent seal replacements, which is a common maintenance task for traditional butterfly valves with elastomeric seals. This reduction in routine maintenance not only lowers direct costs but also minimizes process downtime, contributing to overall operational efficiency.
The robust construction and wear-resistant design of triple eccentric butterfly valve and triple offset valves contribute to their extended service life. Many triple offset valves can operate for years without significant maintenance, even in demanding applications. This longevity translates to lower lifecycle costs, despite the higher initial investment compared to traditional butterfly valves.
Traditional butterfly valves, while generally less expensive upfront, may require more frequent maintenance, particularly in challenging operating conditions. The elastomeric seals can degrade over time, leading to leakage and the need for replacement. However, in less demanding applications, traditional valves can still offer a cost-effective solution with reasonable maintenance requirements.
Application Suitability and Industry Preferences
The choice between triple offset and traditional butterfly valves often comes down to specific application requirements and industry preferences. Triple offset valves have gained significant traction in industries where reliability, safety, and performance are paramount. They are particularly favored in:
- Oil and gas production and transportation
- Petrochemical processing
- Power generation, especially in steam systems
- LNG facilities and cryogenic applications
- Chemical manufacturing
In these industries, the superior sealing performance, reliability, and ability to handle extreme conditions make triple offset valves the preferred choice for critical applications.
Traditional butterfly valves, on the other hand, remain popular in applications with less demanding requirements. They are widely used in:
- Water and wastewater treatment
- HVAC systems
- Food and beverage processing
- General industrial processes with moderate pressure and temperature demands
The simplicity, cost-effectiveness, and adequate performance of traditional butterfly valves in these applications continue to make them a viable option for many industries.
Making the Right Choice: Factors to Consider
Process Requirements and Operating Conditions
When selecting between a triple eccentric butterfly valve and a traditional butterfly valve, the first and most critical consideration is your specific process requirements and operating conditions. Begin by thoroughly assessing the following parameters:
- Operating pressure range
- Temperature extremes (both high and low)
- Flow rates and required flow control precision
- Media characteristics (corrosiveness, abrasiveness, viscosity)
- Cycling frequency and operational demands
If your application involves high pressures (above 50 bar), extreme temperatures, or corrosive media, a triple offset butterfly valve is likely the more suitable choice. Its robust design and metal-to-metal sealing capability make it well-equipped to handle these challenging conditions while maintaining reliable performance.
For less demanding applications with moderate pressures and temperatures, traditional butterfly valves might suffice. They can offer a cost-effective solution for general flow control needs in industries such as water treatment or HVAC systems.
Safety and Reliability Considerations
Safety and reliability are paramount in valve selection, especially for critical processes in industries like oil and gas or chemical manufacturing. Triple offset butterfly valves generally offer superior safety features and reliability due to their design:
- Enhanced fire-safe capabilities with metal-to-metal sealing
- Better resistance to thermal expansion and contraction
- Improved fugitive emissions control
- Higher resistance to wear and erosion
These features make triple eccentric butterfly valve and triple offset valves the preferred choice in applications where valve failure could lead to significant safety risks or costly production interruptions. The consistent sealing performance of triple eccentric butterfly valve and triple offset valves also contributes to improved process stability and reduced risk of leakage.
While traditional butterfly valves can be designed with safety features, they may not match the inherent safety advantages of triple eccentric butterfly valve and triple offset valves in extreme conditions. However, for less critical applications, traditional valves with appropriate safety certifications can still provide adequate reliability.
Economic Factors and Long-term Value
When evaluating the economic aspects of valve selection, it's crucial to consider both initial costs and long-term value. Triple offset butterfly valves typically have a higher upfront cost compared to traditional butterfly valves. However, this initial investment often translates to long-term savings and value:
- Reduced maintenance frequency and associated costs
- Lower likelihood of unexpected failures and unplanned downtime
- Extended service life, delaying the need for replacement
- Improved energy efficiency due to better flow characteristics
For critical applications or harsh operating environments, the long-term benefits of triple offset valves can significantly outweigh the higher initial cost. The reduced total cost of ownership makes them an economically sound choice for many industrial processes.
Traditional butterfly valves, with their lower initial cost, can be more economical for applications with less demanding requirements. In scenarios where frequent valve replacement is not a major concern and operating conditions are moderate, traditional valves may offer a more cost-effective solution.
When making your decision, consider conducting a lifecycle cost analysis that takes into account factors such as initial purchase price, installation costs, maintenance requirements, energy efficiency, and expected service life. This comprehensive approach will help you determine which valve type offers the best long-term value for your specific application.
Conclusion
Choosing between a triple eccentric butterfly valve, a triple offset butterfly valve, and a traditional butterfly valve requires careful consideration of various factors, including operational requirements, safety considerations, and economic aspects. Triple eccentric butterfly valves and triple offset valves excel in high-pressure, high-temperature applications and offer superior sealing performance, making them ideal for critical processes in industries like oil and gas and chemical manufacturing. Traditional butterfly valves remain a cost-effective option for less demanding applications. By thoroughly assessing your specific needs and conducting a comprehensive lifecycle cost analysis, you can make an informed decision that ensures optimal performance, reliability, and value for your industrial valve applications.
