Understanding the Basics: Three Eccentric and Double Eccentric Butterfly Valves

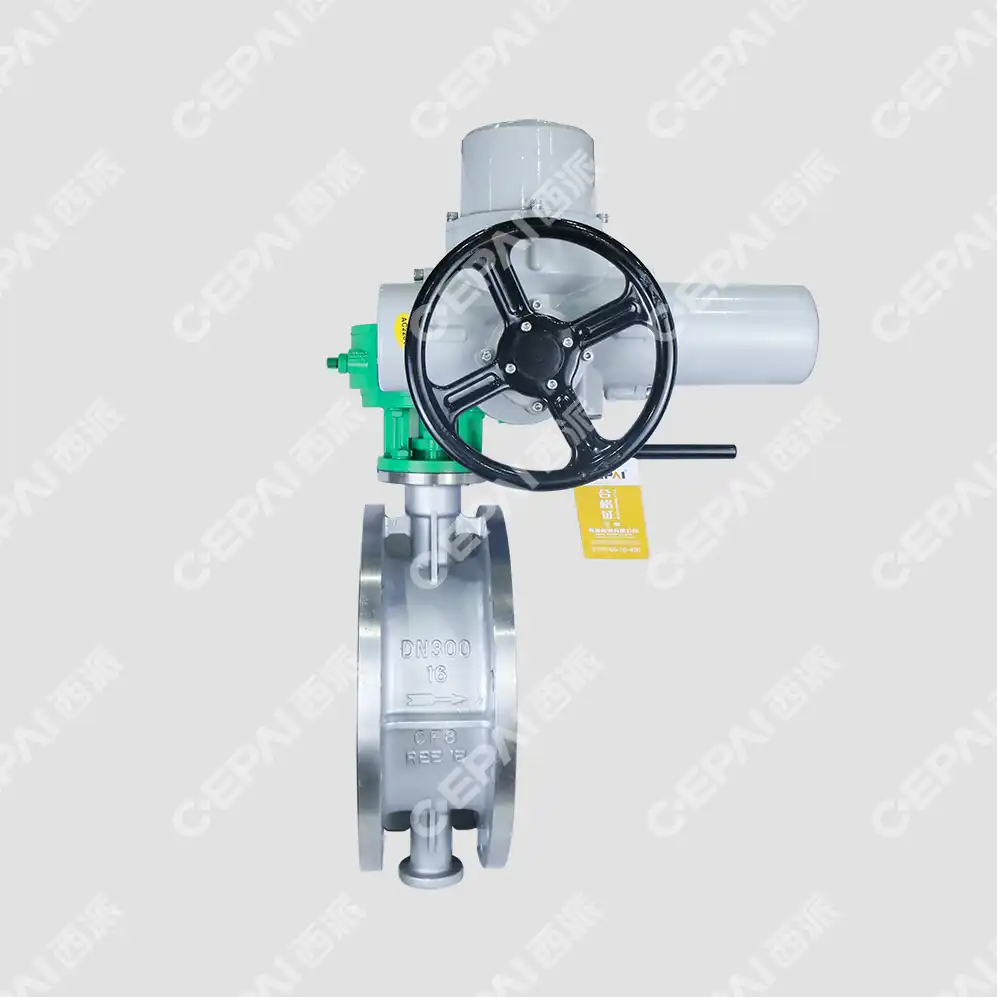

What Are Three Eccentric Butterfly Valves?
Three eccentric butterfly valves represent an advanced design in flow control technology. These valves feature a unique triple offset construction, where the disc rotates around three different axes. This configuration allows for improved sealing performance and reduced wear on the seat and disc. The first offset moves the shaft away from the centerline of the disc and pipe, the second offset moves the shaft away from the centerline of the valve bore, and the third offset is created by the geometry of the sealing surfaces.
Characteristics of Double Eccentric Butterfly Valves
Double eccentric butterfly valves, also known as double offset butterfly valves, incorporate two offsets in their design. The first offset positions the stem behind the disc's center, while the second offset places the stem to the side of the pipe's centerline. This configuration reduces friction during operation and improves sealing capabilities compared to concentric butterfly valves. Double eccentric valves offer enhanced performance in moderate pressure and temperature applications.
Key Differences in Design and Functionality
The primary distinction between three eccentric butterfly valves and double eccentric butterfly valves lies in their offset configuration. Three eccentric valves provide an additional offset, resulting in a cam-like action during operation. This design feature further reduces friction and wear, making three eccentric valves particularly suitable for high-pressure, high-temperature applications. Double eccentric valves, while offering improved performance over concentric designs, may not match the extreme operating conditions that three eccentric valves can handle.

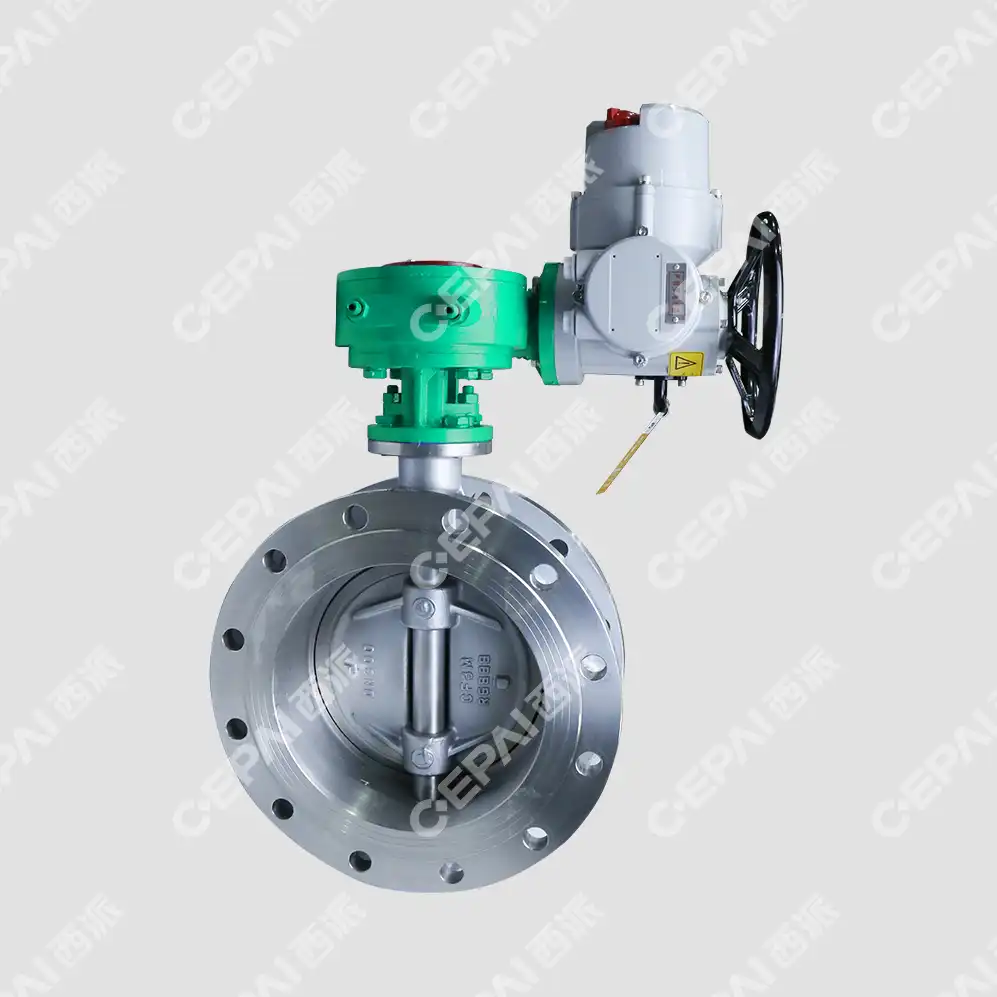

Performance Comparison: Three Eccentric vs Double Eccentric Butterfly Valves
Sealing Efficiency and Leak-Tightness
Three eccentric butterfly valves excel in sealing efficiency due to their unique triple offset design. The cam-like action of the disc allows for a tight, metal-to-metal seal that improves with increasing pressure. This design virtually eliminates friction between the seat and disc during operation, resulting in superior leak-tightness even in challenging conditions. Double eccentric valves also offer improved sealing compared to concentric designs, but may not achieve the same level of leak-tightness as their three eccentric counterparts, especially in high-pressure scenarios.
Operational Torque and Control Precision
The design of three eccentric butterfly valves contributes to lower operational torque requirements. The triple offset configuration minimizes friction during both opening and closing operations, resulting in smoother actuation and reduced wear on components. This characteristic not only extends the valve's service life but also allows for more precise flow control. Double eccentric valves, while offering improved performance over concentric designs, may require slightly higher operational torque and may not provide the same level of control precision in extreme conditions.
Durability and Maintenance Considerations
Three eccentric butterfly valves are engineered for exceptional durability, particularly in harsh environments. The reduced friction and wear resulting from the triple offset design translate to longer service intervals and decreased maintenance requirements. These valves are often the preferred choice for applications involving abrasive media or frequent cycling. Double eccentric valves also offer good durability, but may require more frequent maintenance in comparable conditions. The simpler design of double eccentric valves can be an advantage in terms of ease of maintenance when servicing is required.
Application Scenarios: Choosing Between Three Eccentric and Double Eccentric Butterfly Valves
High-Pressure and High-Temperature Applications
Three eccentric butterfly valves shine in high-pressure and high-temperature environments. Their robust design and superior sealing capabilities make them ideal for critical applications in oil and gas processing, power generation, and chemical manufacturing. These valves can maintain tight shut-off even under extreme pressure differentials and temperature fluctuations. While double eccentric valves perform well in moderate conditions, they may not be the optimal choice for the most demanding high-pressure or high-temperature scenarios.
Moderate Pressure and General Industrial Use
Double eccentric butterfly valves find their niche in moderate pressure applications and general industrial use. They offer a balance of performance and cost-effectiveness, making them suitable for a wide range of applications in water treatment, HVAC systems, and general process control. In these scenarios, the improved sealing and reduced friction of double eccentric valves provide significant advantages over concentric designs, while still being more economical than three eccentric valves for less demanding conditions.
Specialized Industry Requirements
Certain industries have specific requirements that may favor one valve type over the other. For instance, the oil and gas industry often prefers three eccentric butterfly valves for critical pipeline applications due to their superior sealing and ability to handle high-pressure gas and liquids. Conversely, the food and beverage industry might opt for double eccentric valves in certain processes where moderate control is sufficient and cost considerations are important. Understanding the unique demands of your industry is crucial in making the right choice between these two valve types.
Conclusion
In the comparison between three eccentric and double eccentric butterfly valves, each design offers distinct advantages. Three eccentric butterfly valves excel in high-pressure, high-temperature applications, providing superior sealing, lower operational torque, and exceptional durability. Double eccentric valves offer improved performance over concentric designs and are well-suited for moderate pressure applications and general industrial use. The choice between these two valve types depends on the specific requirements of your application, including pressure, temperature, media, and frequency of operation. By carefully considering these factors, you can select the optimal valve design to ensure efficient, reliable, and long-lasting performance in your industrial processes.
