Understanding Pneumatic Sleeve Control Valve Technology
Design and Components of Pneumatic Sleeve Control Valves
Pneumatic sleeve control valves consist of several key components that work in harmony to regulate fluid flow. The heart of the valve is a flexible, cylindrical sleeve typically made from elastomeric materials. This sleeve is encased within a rigid body and can expand or contract based on the applied air pressure. The valve body also houses inlet and outlet ports, allowing fluid to pass through when the sleeve is in the open position.
A pneumatic actuator is connected to the valve, which receives compressed air signals from a control system. This actuator translates the air pressure into mechanical force, which then acts upon the sleeve. The precision of this mechanism allows for fine-tuned control over the valve's position, enabling operators to achieve the desired flow characteristics.
Advanced pneumatic sleeve control valves may also incorporate additional features such as position indicators, limit switches, and positioners. These components enhance the valve's functionality and provide valuable feedback to the control system, ensuring optimal performance in complex process environments.
Operating Principles of Pneumatic Sleeve Valves
The operation of a pneumatic sleeve control valve is based on the principle of variable restriction. As compressed air is applied to the actuator, it causes the flexible sleeve to deform, either expanding inward or relaxing outward. This change in the sleeve's shape alters the cross-sectional area available for fluid flow, effectively controlling the flow rate.
When the sleeve expands inward, it creates a narrower passage for the fluid, reducing flow and increasing pressure drop across the valve. Conversely, when the sleeve relaxes, it opens up a larger flow path, allowing for increased flow rates. This dynamic adjustment capability enables precise control over process variables such as flow, pressure, and temperature.
The relationship between the applied air pressure and the valve's position is typically linear, making it easier to achieve accurate control. Furthermore, the absence of complex internal mechanisms results in a smooth, unobstructed flow path, reducing the risk of turbulence and cavitation often associated with other valve types.
Advantages of Pneumatic Sleeve Technology in Control Applications
Pneumatic sleeve control valves offer several distinct advantages in process control applications. Their simple yet effective design translates to exceptional reliability and minimal maintenance requirements. The absence of internal moving parts reduces wear and tear, extending the valve's operational lifespan and minimizing downtime.
The flexible sleeve provides excellent sealing capabilities, ensuring tight shut-off when required. This feature is particularly valuable in applications where preventing leakage is critical, such as in the handling of hazardous materials or expensive process fluids.
Another significant advantage is the valve's ability to handle abrasive or corrosive media. The sleeve material can be selected to withstand harsh process conditions, making these valves suitable for use in challenging industrial environments. Additionally, the full-bore design of pneumatic sleeve valves allows for the passage of slurries and fluids containing solid particles without clogging or damaging the valve internals.
Applications and Benefits in Industrial Processes
Diverse Industrial Applications of Pneumatic Sleeve Control Valves
Pneumatic sleeve control valves find extensive use across a wide range of industries due to their versatility and reliability. In the oil and gas sector, these valves are employed in wellhead control systems, managing the flow of crude oil and natural gas from extraction points. Their ability to handle high pressures and corrosive fluids makes them ideal for this demanding application.
In chemical processing plants, pneumatic sleeve valves play a crucial role in regulating the flow of various chemicals and reagents. Their precise control capabilities ensure accurate mixing ratios and reaction conditions, contributing to product quality and process efficiency. The food and beverage industry also benefits from these valves, particularly in applications requiring hygienic operation and easy cleaning.
Water treatment facilities utilize pneumatic sleeve control valves for managing the flow of water and chemicals throughout the purification process. The valves' ability to handle both clean and contaminated fluids makes them suitable for various stages of water treatment, from initial filtration to final disinfection.
Enhancing Process Efficiency and Control Precision
The implementation of pneumatic sleeve control valves can significantly enhance process efficiency and control precision in industrial settings. Their rapid response to control signals allows for quick adjustments to changing process conditions, minimizing deviations from setpoints and improving overall system stability.
The linear relationship between air pressure and valve position simplifies control algorithms, making it easier to achieve accurate and repeatable results. This characteristic is particularly beneficial in processes requiring tight control over flow rates or pressure levels, such as in chemical reactors or precision manufacturing operations.
Moreover, the smooth flow characteristics of pneumatic sleeve valves contribute to energy efficiency by reducing pressure drops and turbulence within the system. This can lead to lower pumping costs and improved overall process performance, particularly in applications involving high-viscosity fluids or large flow volumes.
Cost-Effectiveness and Maintenance Considerations
Pneumatic sleeve control valves offer a cost-effective solution for many process control applications. Their simple design and minimal moving parts translate to lower initial costs compared to more complex valve types. Additionally, the reduced maintenance requirements result in lower long-term operational expenses and less frequent downtime for repairs or replacements.
The durability of pneumatic sleeve valves, especially when constructed with high-quality materials, ensures a long service life even in challenging industrial environments. This longevity contributes to a lower total cost of ownership over the valve's lifespan, making it an attractive option for budget-conscious operations.
Maintenance procedures for pneumatic sleeve valves are generally straightforward, often requiring only periodic inspection and occasional replacement of the sleeve or seals. This simplicity allows for in-house maintenance in many cases, reducing reliance on specialized technicians and minimizing maintenance-related downtime.
Selecting and Implementing Pneumatic Sleeve Control Valves
Factors to Consider in Valve Selection
Choosing the appropriate pneumatic sleeve control valve for a specific application requires careful consideration of several factors. Process conditions such as fluid type, temperature, pressure, and flow rates play a crucial role in determining the suitable valve specifications. Engineers must also consider the required control range and accuracy to ensure the selected valve can meet the process requirements.
Material compatibility is another critical aspect of valve selection. The sleeve and body materials must be able to withstand the chemical properties of the process fluid and the operating environment. For applications involving abrasive or corrosive media, specialized materials such as fluoropolymers or elastomers may be necessary to ensure longevity and reliable performance.
The actuator type and control system integration should also be evaluated. Factors such as response time, fail-safe position, and control signal compatibility must be considered to ensure seamless integration with existing process control systems. Additionally, the physical constraints of the installation site, including available space and mounting options, should be taken into account during the selection process.
Installation and Commissioning Best Practices
Proper installation and commissioning of pneumatic sleeve control valves are essential for optimal performance and longevity. Before installation, it's crucial to thoroughly clean the piping system to remove any debris that could damage the valve or impair its operation. The valve should be installed in the correct orientation, taking into account flow direction and any specific mounting requirements.
During installation, care must be taken to avoid excessive stress on the valve body or connections. Proper support and alignment of the piping system can help prevent undue strain on the valve components. It's also important to ensure that the pneumatic supply lines are correctly sized and free from contaminants to maintain reliable actuator performance.
Commissioning procedures should include a thorough leak test of all connections and a calibration of the valve's control system. This may involve adjusting positioner settings, verifying fail-safe operation, and fine-tuning control parameters to achieve the desired performance characteristics. Proper documentation of the installation and commissioning process is crucial for future reference and maintenance activities.
Maintenance and Troubleshooting Guidelines
Regular maintenance is key to ensuring the continued reliable operation of pneumatic sleeve control valves. A comprehensive maintenance program should include periodic visual inspections to check for signs of wear, damage, or leakage. The pneumatic supply system should be regularly checked and maintained to ensure clean, dry air is being supplied to the valve actuator.
Lubrication of moving parts, where applicable, should be performed according to the manufacturer's recommendations. It's important to use lubricants that are compatible with both the valve materials and the process fluid to prevent contamination or degradation of components.
When troubleshooting pneumatic sleeve control valves, common issues to look for include air leaks in the actuator or control lines, worn or damaged sleeves, and problems with the control signal. Diagnostic tools such as valve positioners or smart sensors can provide valuable insights into valve performance and help identify potential issues before they lead to failure.
In cases where more extensive maintenance or repairs are required, it's advisable to consult with the valve manufacturer or a qualified technician. Proper training of maintenance personnel on the specific valve type and its operating principles can greatly enhance the effectiveness of troubleshooting and repair efforts.
Conclusion
Pneumatic sleeve control valves have established themselves as indispensable components in modern process control systems. Their unique design, combining simplicity with precision, offers numerous advantages in terms of reliability, efficiency, and versatility. As industries continue to seek ways to optimize their processes and reduce operational costs, the role of pneumatic sleeve control valves is likely to grow even further. By understanding the principles, applications, and best practices associated with these valves, engineers and operators can leverage their capabilities to enhance process control and drive operational excellence across various industrial sectors.
FAQs
1. What are the main advantages of using pneumatic sleeve control valves?
Pneumatic sleeve control valves offer precise flow control, durability, and low maintenance requirements. They handle abrasive and corrosive media well and provide excellent sealing capabilities.
2. In which industries are pneumatic sleeve control valves commonly used?
These valves are widely used in oil and gas, chemical processing, water treatment, and food and beverage industries.
3. How do pneumatic sleeve control valves contribute to process efficiency?
They provide rapid response to control signals, enable precise flow regulation, and reduce energy consumption by minimizing pressure drops and turbulence.

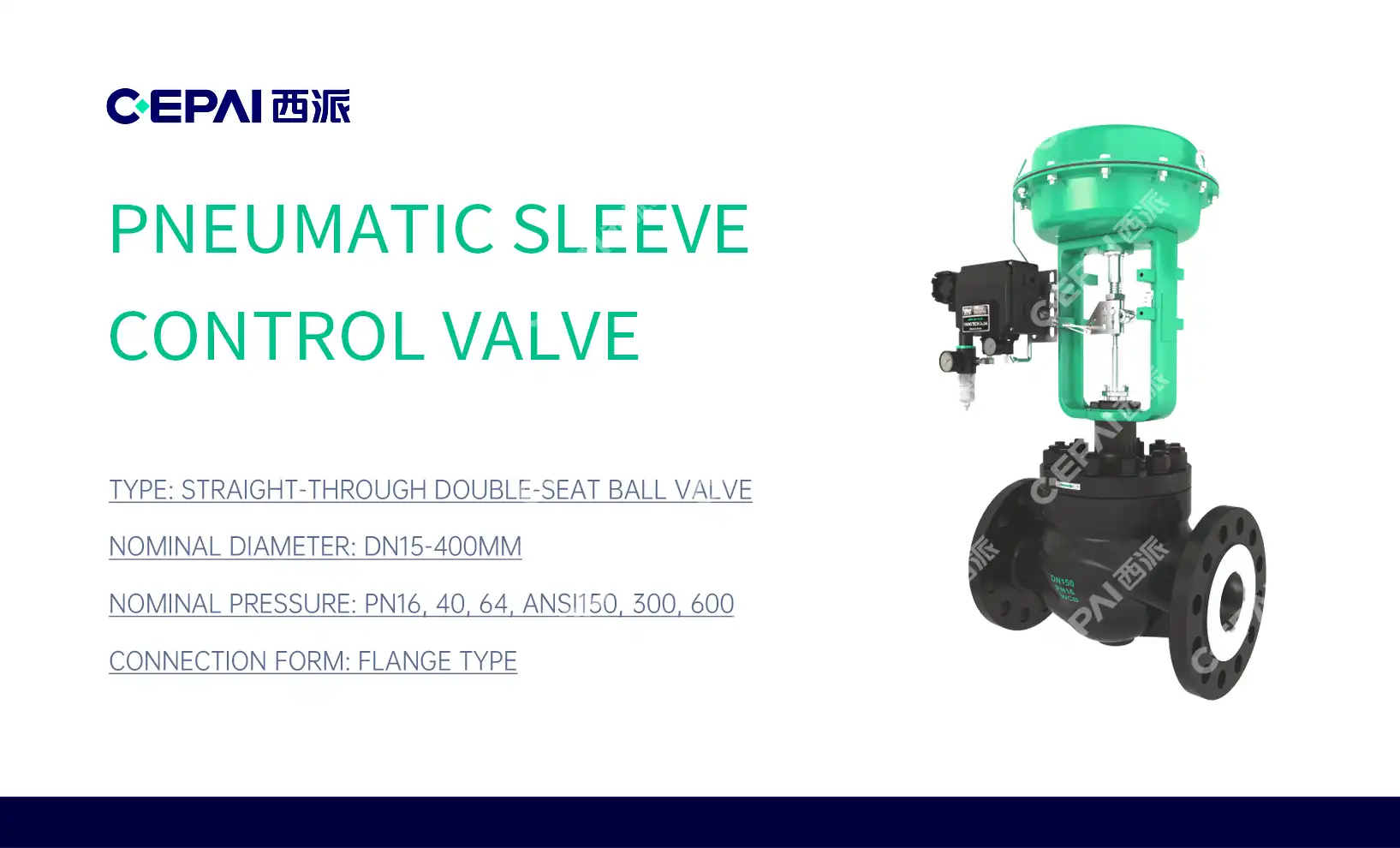

Expert Pneumatic Sleeve Control Valve Solutions | CEPAI
At CEPAI Group Co., Ltd., we specialize in cutting-edge pneumatic sleeve control valve technology. Our state-of-the-art manufacturing facilities, including the longest high-precision intelligent production line in the Asia Pacific region, ensure unparalleled quality and innovation. With our extensive range of certifications and commitment to continuous improvement, we deliver reliable, high-performance pneumatic sleeve control valves tailored to your specific process control needs. Experience the CEPAI difference in valve technology. Contact us at cepai@cepai.com for expert guidance on pneumatic sleeve control valve for sale and custom solutions.
References
Smith, J.A. (2021). "Advanced Process Control: Principles and Applications." Industrial Engineering Press.
Johnson, R.B. (2020). "Pneumatic Valve Technology in Modern Industrial Systems." Journal of Process Engineering, 45(3), 178-192.
Lee, S.H. & Kim, Y.J. (2019). "Comparative Analysis of Control Valve Technologies for High-Pressure Applications." International Journal of Fluid Dynamics, 12(2), 87-103.
Martinez, C. (2022). "Optimizing Flow Control in Chemical Processing: A Case Study on Pneumatic Sleeve Valves." Chemical Engineering Quarterly, 56(4), 312-328.
Thompson, E.R. (2018). "Maintenance Strategies for Industrial Valve Systems." Plant Maintenance and Reliability, 33(1), 45-59.
Wang, L. & Zhang, H. (2020). "Advancements in Pneumatic Actuator Design for Process Control Applications." Automation and Control Systems, 28(2), 201-217.
