Understanding Butterfly Valve Fundamentals

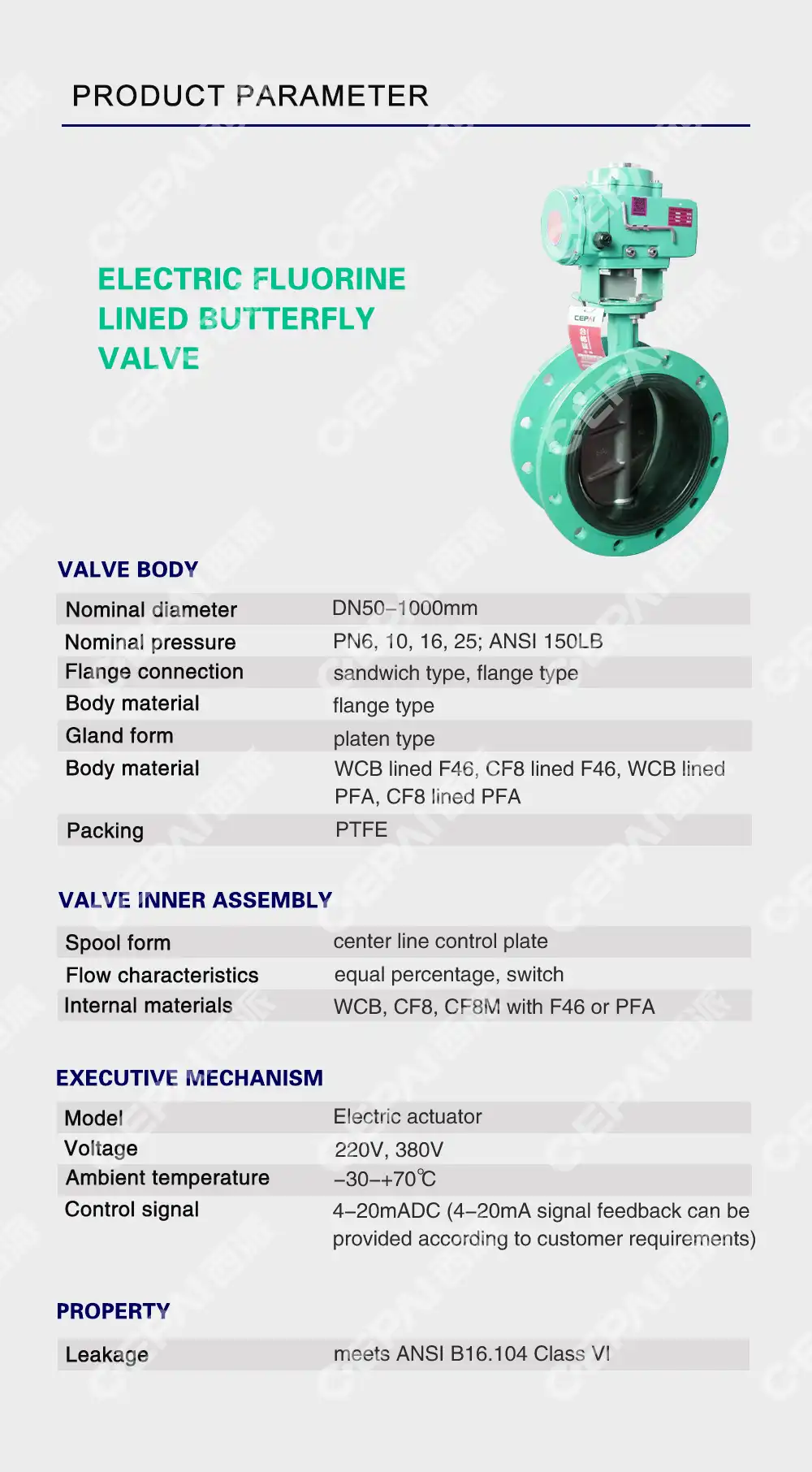

Butterfly Valve Design and Operation
Butterfly valves consist of a disc-shaped element that rotates on a shaft to control flow. The valve's name stems from the resemblance of the disc to a butterfly's wings when open. This simple yet effective design allows for quick opening and closing, making butterfly valves ideal for applications requiring rapid flow control. The disc, typically made of durable materials like stainless steel or cast iron, is positioned perpendicular to the flow when closed and parallel when fully open. This configuration enables precise regulation of flow rates, a feature highly valued in process control systems.
Types of Butterfly Valves
Various types of butterfly valves cater to different operational needs. Concentric butterfly valves, the most common type, feature a centrally positioned disc and shaft. Eccentric and double-eccentric designs offer improved sealing capabilities by offsetting the disc from the shaft center. Triple-eccentric butterfly valves, with their unique geometry, provide even better sealing performance, making them suitable for high-pressure and high-temperature applications. Each type has its specific advantages, allowing engineers to select the most appropriate valve for their particular system requirements.
Applications Across Industries
The versatility of butterfly valves has led to their adoption in numerous industries. In water treatment facilities, they regulate the flow of large volumes of water efficiently. The oil and gas sector relies on these valves for their ability to handle diverse fluids under varying pressure conditions. HVAC systems employ butterfly valves for their compact size and reliable performance in controlling air and water flow. The food and beverage industry appreciates their hygienic design, which facilitates easy cleaning and maintenance. This wide range of applications underscores the adaptability and utility of butterfly valves in modern industrial processes.
Advantages of Butterfly Valves
Space-Efficient Design
One of the most significant advantages of butterfly valves is their compact design. Unlike gate valves or globe valves, butterfly valves occupy minimal space in piping systems. This space efficiency is particularly beneficial in cramped industrial environments where real estate is at a premium. The slim profile of these valves allows for easier installation in tight spaces and reduces the overall footprint of the piping system. This characteristic not only simplifies installation but also facilitates maintenance access, a crucial factor in plant design and operation. The compact nature of butterfly valves also translates to reduced material costs and lighter overall system weight, which can be particularly advantageous in offshore or mobile applications.
Cost-Effectiveness
Butterfly valves offer a compelling cost advantage compared to many other valve types. Their simple construction, with fewer components, results in lower manufacturing costs. This cost-effectiveness extends beyond the initial purchase price to the entire lifecycle of the valve. The straightforward design means less material is required, reducing not only production costs but also transportation and handling expenses. Additionally, the simplicity of butterfly valves often translates to lower maintenance requirements and costs over time. For large-diameter applications, the cost savings become even more pronounced, as butterfly valves can be significantly less expensive than comparable large ball or gate valves while providing similar functionality.
Versatility in Flow Control
The versatility of butterfly valves in flow control applications is a key advantage. These valves excel in both on-off service and throttling applications, offering a wide range of flow control capabilities. The disc's position can be precisely adjusted to achieve the desired flow rate, making butterfly valves ideal for applications requiring fine control. This versatility is enhanced by the availability of various actuator types – manual, pneumatic, hydraulic, or electric – allowing for customization based on specific operational needs. The ability of butterfly valves to handle bidirectional flow adds to their flexibility, enabling their use in systems where flow reversal may occur. This adaptability makes butterfly valves suitable for a diverse array of applications, from simple isolation duties to complex process control scenarios.
Limitations and Considerations
Pressure and Temperature Constraints
While butterfly valves offer numerous advantages, they are not without limitations, particularly in high-pressure and extreme temperature environments. Standard butterfly valves may struggle to maintain effective sealing under high-pressure conditions, potentially leading to leakage or reduced performance. This limitation is particularly pronounced in applications where pressures exceed certain thresholds, typically around 1000 psi for most standard designs. Temperature extremes can also pose challenges, affecting the integrity of seals and the overall valve performance. Materials used in valve construction and sealing elements may degrade or lose effectiveness at very high or low temperatures, restricting the use of butterfly valves in certain industrial processes. Engineers must carefully consider these pressure and temperature constraints when selecting valves for specific applications, often necessitating the use of specialized high-performance butterfly valve designs or alternative valve types for extreme conditions.
Cavitation and Erosion Risks
Butterfly valves can be susceptible to cavitation and erosion, particularly in certain flow conditions. Cavitation occurs when the pressure drop across the valve causes the formation and subsequent collapse of vapor bubbles in the fluid. This phenomenon can lead to significant damage to the valve internals and downstream piping. The risk of cavitation is especially high when butterfly valves are used for severe throttling services or in applications with high-pressure differentials. Erosion, on the other hand, can result from high-velocity flows, particularly when handling abrasive fluids. The disc and seat of the valve are particularly vulnerable to erosive wear, which can compromise the valve's sealing ability over time. To mitigate these risks, proper sizing, material selection, and operational practices are crucial. In some cases, additional equipment like anti-cavitation trims or erosion-resistant coatings may be necessary to extend the valve's service life in challenging applications.
Sealing Challenges
Achieving and maintaining a reliable seal is a significant consideration with butterfly valves. The sealing mechanism in these valves relies on the contact between the disc edge and the seat, which can be subject to wear over time. This wear can lead to increased leakage rates, particularly in applications involving frequent cycling or exposure to abrasive media. The effectiveness of the seal can also be affected by temperature fluctuations, which may cause thermal expansion or contraction of valve components. In some designs, particularly in larger sizes, achieving uniform sealing pressure around the entire circumference of the disc can be challenging. This can result in uneven wear and potential leak points. To address these sealing challenges, advanced seat designs and materials have been developed, including reinforced elastomers and metal-to-metal seals for high-temperature applications. Regular maintenance and proper valve selection based on the specific application requirements are essential to ensure long-term sealing performance and reliability.
Conclusion
Butterfly valves present a balanced mix of advantages and challenges in fluid control applications. Their compact design, cost-effectiveness, and versatility make them an attractive option for many industrial processes. However, the limitations in high-pressure and extreme temperature environments, along with potential issues of cavitation, erosion, and sealing, necessitate careful consideration in their application. By understanding these factors, engineers and operators can make informed decisions, leveraging the strengths of butterfly valves while mitigating their weaknesses through proper selection, installation, and maintenance practices.
