Understanding Double Plate Check Valves
Design and Mechanism of Double Plate Check Valves
Double plate check valves, also known as dual plate check valves or wafer check valves, are engineered with a unique design that sets them apart in the world of fluid control. These valves feature two semi-circular plates hinged at the center, which open and close in response to fluid flow. The plates are typically spring-loaded, ensuring a quick and reliable closure when flow reverses.

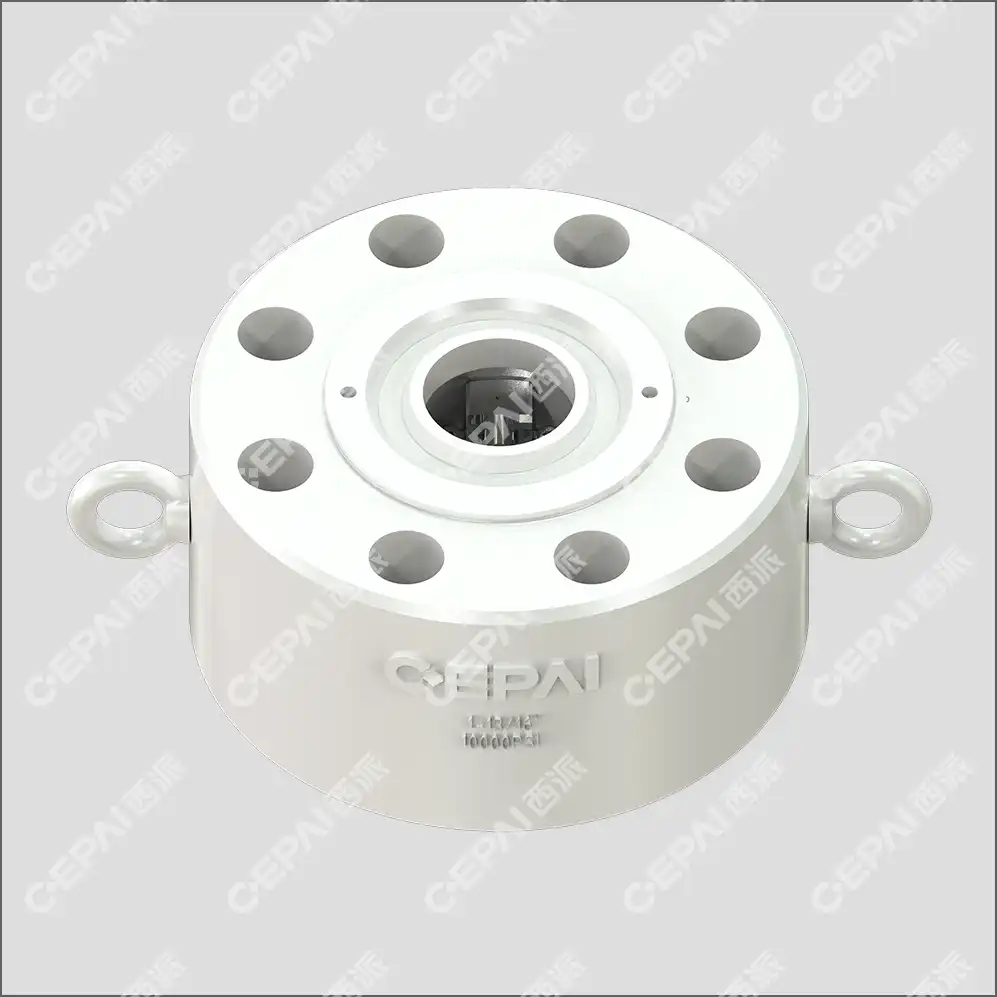

The valve body is compact and lightweight, often with a wafer-style design that fits between pipe flanges. This construction allows for easy installation and minimal space requirements. The internal components, including the plates, hinge pin, and springs, are carefully designed to minimize friction and wear, enhancing the valve's longevity and performance.
When fluid flows in the intended direction, it pushes against the plates, causing them to swing open and allow passage. As soon as the flow stops or attempts to reverse, the springs quickly snap the plates shut, creating a tight seal that prevents backflow. This rapid response time is a key advantage of double plate check valves, making them ideal for applications where swift closure is critical.
Applications and Benefits of Double Plate Check Valves
Double plate check valves find widespread use across various industries due to their versatility and efficiency. In the oil and gas sector, they are often employed in pipelines to prevent backflow of petroleum products. Water treatment facilities utilize these valves in pump discharge lines to maintain unidirectional flow. HVAC systems benefit from their compact design in preventing water hammer and protecting equipment.
One of the primary advantages of double plate check valves is their low pressure drop characteristics. The split disc design allows for a larger flow area compared to traditional swing check valves, resulting in reduced pressure loss and improved system efficiency. This feature is particularly valuable in applications where maintaining flow rate and pressure is crucial.
Additionally, the lightweight construction of these valves makes them suitable for vertical installations, where heavier alternatives might pose challenges. Their ability to operate in various orientations adds to their flexibility in system design. The dual plate configuration also provides redundancy, as even if one plate fails, the other can still offer some level of protection against backflow.
Maintenance and Longevity of Double Plate Check Valves
Proper maintenance is essential for ensuring the long-term performance of double plate check valves. Regular inspection of the valve internals, particularly the plates, springs, and sealing surfaces, is recommended to detect any signs of wear or damage. The simplicity of the design generally allows for easy disassembly and cleaning, which can be performed during scheduled maintenance shutdowns.
The choice of materials for the valve body and internal components plays a significant role in its durability. High-quality stainless steel or specialized alloys are often used to resist corrosion and erosion, especially in challenging environments like offshore oil platforms or chemical processing plants. Some manufacturers offer coatings or surface treatments to further enhance the valve's resistance to harsh conditions.
To maximize the lifespan of double plate check valves, it's crucial to consider factors such as fluid compatibility, temperature ranges, and pressure ratings during selection. Proper sizing is also critical; an undersized valve may experience excessive wear due to high velocities, while an oversized valve might not fully open, leading to increased pressure drop and potential damage to the plates.
Exploring Double Port Valves
Functionality and Design of Double Port Valves
Double port valves, distinct from double plate check valves, are a type of control valve designed to regulate flow through two separate ports. These valves are characterized by their ability to manage complex flow scenarios, making them invaluable in various industrial applications. The design typically incorporates two independent flow paths within a single valve body, each controlled by a separate closure member.
The internal structure of a double port valve often includes a pair of valve seats and corresponding plugs or discs. These components work in tandem to control the flow through each port. Depending on the specific design, the valve may allow for simultaneous flow through both ports, alternating flow, or complete shutoff of either port. This flexibility in flow control is achieved through precise actuation mechanisms, which can be manual, pneumatic, or electric.
One of the key features of double port valves is their ability to handle differential pressures between the two ports. This capability is particularly useful in mixing applications or scenarios where flow needs to be diverted between two different process lines. The valve's design often incorporates balancing elements to ensure smooth operation even under varying pressure conditions.
Industrial Applications of Double Port Valves
Double port valves find extensive use across a wide range of industries due to their versatile flow control capabilities. In chemical processing plants, these valves are often employed for blending different substances or directing reactants to various process streams. The oil and gas industry utilizes double port valves in refinery operations for managing product flows and in pipeline systems for flow diversion.
In the power generation sector, double port valves play a crucial role in steam distribution systems. They allow for precise control of steam flow to turbines or heat exchangers, contributing to overall plant efficiency. HVAC systems in large buildings also benefit from double port valves, particularly in applications where temperature control requires mixing of hot and cold water streams.
The food and beverage industry employs these valves in processing lines where ingredients need to be combined or where product flow needs to be directed to different packaging lines. Their ability to handle clean-in-place (CIP) processes makes them particularly suitable for applications requiring high levels of hygiene.
Advantages and Considerations for Double Port Valves
One of the primary advantages of double port valves is their space-saving design. By combining two flow control functions into a single valve body, they reduce the need for multiple valves and associated piping, leading to more compact and efficient system layouts. This consolidation can result in significant cost savings in terms of materials, installation, and maintenance.
The flexibility offered by double port valves in terms of flow control is another key benefit. They allow for precise regulation of flow rates and proportions, which is crucial in processes requiring accurate mixing or distribution. Some designs offer the ability to modulate flow through both ports independently, providing an even greater degree of control.
However, the complexity of double port valves necessitates careful consideration during selection and implementation. Factors such as pressure drop characteristics, flow coefficients, and response times must be thoroughly evaluated to ensure optimal performance. The choice of materials for valve components is critical, especially in applications involving corrosive or abrasive media.
Maintenance requirements for double port valves can be more demanding compared to simpler valve types. Regular inspection and servicing of seals, seats, and actuators are essential to maintain proper functionality and prevent leakage. Advanced diagnostics and monitoring systems are often employed in critical applications to ensure continuous reliable operation.
Comparative Analysis: Double Plate Check Valve vs Double Port Valve
Operational Differences and Use Cases
The fundamental difference between double plate check valves and double port valves lies in their primary functions. Double check valves are essentially one-way valves, designed to allow flow in one direction while preventing backflow. Their operation is passive, relying on the pressure of the fluid and spring action to open and close. In contrast, double port valves are active control valves, capable of regulating flow through two separate ports based on external actuation.
Double plate check valves excel in applications where preventing reverse flow is critical, such as protecting pumps from backflow or maintaining pressure in pipelines. Their rapid response time and reliable sealing make them ideal for scenarios where even momentary backflow could cause significant issues. On the other hand, double port valves are best suited for applications requiring complex flow control, such as mixing processes, flow diversion, or proportional flow regulation.
In terms of system integration, double plate check valves are generally simpler to incorporate due to their compact, self-contained design. They require no external power or control systems, making them a low-maintenance option for many applications. Double port valves, while more complex, offer greater flexibility in system design, allowing for sophisticated control strategies that can optimize process efficiency and product quality.
Performance Characteristics and Efficiency Comparison
When comparing the performance of these two valve types, several factors come into play. Double plate check valves are known for their low pressure drop characteristics, which can contribute to overall system efficiency. Their split disc design allows for a larger flow area compared to traditional check valves, resulting in reduced energy loss. However, they are limited to full open or full closed positions, offering no flow modulation capabilities.
Double port valves, with their ability to precisely control flow, can offer significant advantages in terms of process optimization. They allow for fine-tuning of flow rates and proportions, which can lead to improved product quality and reduced waste in manufacturing processes. However, the more complex internal structure of double port valves may result in higher pressure drops compared to simpler valve designs.
In terms of response time, double plate check valves typically have the edge due to their simple, spring-loaded mechanism. This rapid closure capability is crucial in preventing water hammer and protecting equipment from sudden pressure surges. Double port valves, while generally not as quick in response, offer the advantage of controlled actuation, allowing for smoother transitions in flow conditions.
Cost-Benefit Analysis and Long-Term Considerations
When evaluating the cost-effectiveness of double plate check valves versus double port valves, it's essential to consider both initial investment and long-term operational costs. Double plate check valves generally have a lower initial cost due to their simpler design and fewer components. They also tend to have lower maintenance requirements, which can translate to reduced lifecycle costs.
Double port valves, while typically more expensive upfront, can offer significant value in applications that require precise flow control. Their ability to manage complex flow scenarios can lead to process improvements and energy savings that may offset the higher initial investment over time. However, they do require more frequent maintenance and may have higher replacement part costs due to their complexity.
The durability and lifespan of both valve types depend heavily on proper selection, installation, and maintenance. Double plate check valves, with their fewer moving parts, can offer excellent longevity in appropriate applications. Double port valves, while potentially more susceptible to wear due to their active control elements, can provide extended service life when properly maintained and operated within their design parameters.
Ultimately, the choice between a double plate check valve and a double port valve should be based on a thorough analysis of the specific application requirements, system design constraints, and long-term operational goals. Both valve types have their strengths, and the optimal selection will depend on factors such as flow characteristics, control needs, maintenance capabilities, and budget considerations.
Conclusion
In conclusion, the choice between a double plate check valve and a double port valve depends on the specific requirements of your fluid control system. Double plate check valves excel in preventing backflow with their simple, efficient design, making them ideal for applications where unidirectional flow is critical. Double port valves, on the other hand, offer superior flow control capabilities, allowing for complex operations like mixing and diversion. By understanding the unique characteristics and applications of each valve type, engineers and system designers can make informed decisions to optimize their fluid control systems, enhancing efficiency, reliability, and overall performance.
