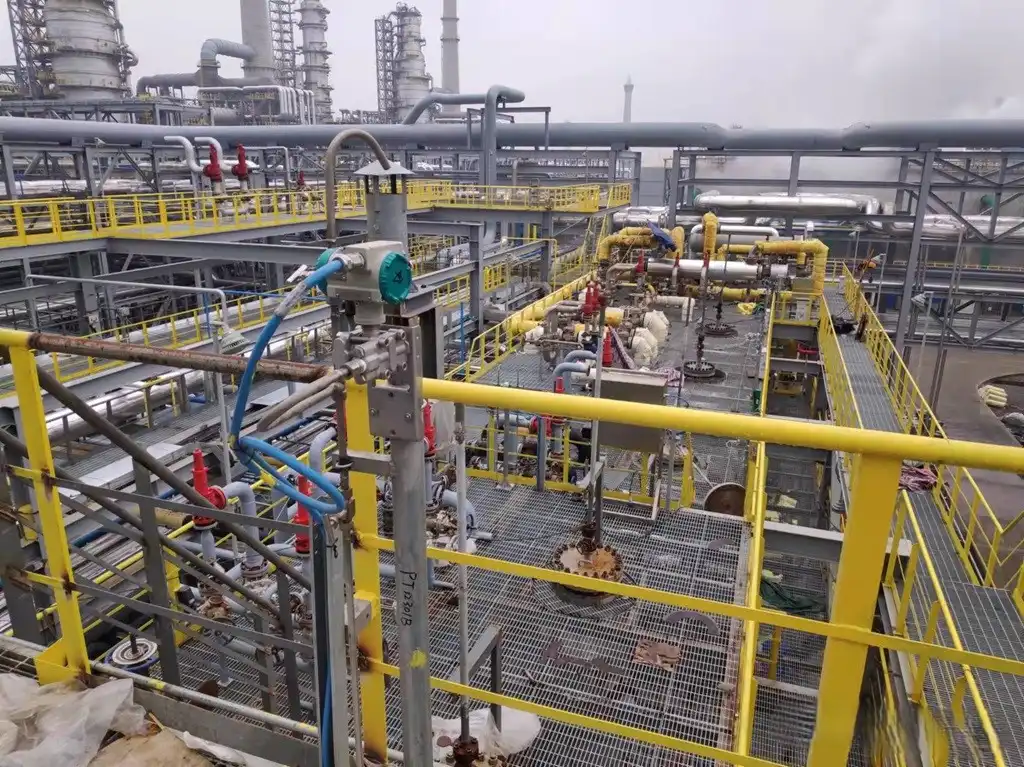

Understanding High-Temperature Control Valves
Definition and Purpose of High-Temperature Control Valves
High-temperature control valves are specialized valves designed to regulate the flow of steam or other fluids in extreme heat conditions. These valves are engineered to withstand temperatures that often exceed 1000°F (538°C) while maintaining precise control over flow rates and pressure. The primary purpose of these valves is to ensure safe and efficient operation of high-temperature processes in industries such as power generation, chemical processing, and oil refining.
These valves play a crucial role in maintaining process stability and protecting equipment from thermal stress. They help prevent issues like thermal shock, which can occur when rapid temperature changes cause materials to expand or contract quickly. By providing accurate control over steam flow, these valves contribute to optimal heat transfer and energy efficiency in industrial systems.
Key Components of High-Temperature Control Valves
High-temperature control valves consist of several critical components designed to withstand extreme conditions. The valve body, typically made from heat-resistant materials like stainless steel or specialized alloys, forms the main structure. Inside, the valve trim - including the plug, seat, and stem - is responsible for regulating flow. These components are often made from hardened materials to resist wear and maintain tight shutoff.
Specialized seals and packing materials are used to prevent leakage and maintain valve integrity at high temperatures. Many high-temperature control valves also feature thermal jackets or insulation to protect sensitive components and reduce heat loss. The actuator, which can be pneumatic, hydraulic, or electric, provides the force necessary to open and close the valve precisely.
Operating Principles in Steam Applications
In steam applications, high-temperature control valves operate on the principle of variable restriction. By adjusting the position of the valve plug relative to the seat, these valves can increase or decrease the flow area, thereby controlling the steam flow rate. This adjustment is typically made in response to signals from a control system that monitors process variables such as temperature, pressure, or flow rate.
These valves must be capable of handling the unique challenges posed by high-temperature steam, including rapid thermal expansion, potential water hammer effects, and the corrosive nature of steam at high temperatures. Advanced control algorithms and fast-acting actuators enable these valves to respond quickly to changing process conditions, maintaining tight control over steam parameters and ensuring safe, efficient operation.
Factors to Consider When Choosing Control Valves for High-Temperature Steam
Material Selection for Extreme Heat Resistance
Selecting the right materials for high-temperature control valves is paramount to ensure longevity and performance in extreme steam environments. Austenitic stainless steels, such as 316 or 347, are commonly used for their excellent corrosion resistance and strength at elevated temperatures. For even higher temperature applications, nickel-based alloys like Inconel or Hastelloy may be necessary.
The valve body and internals must be able to withstand not only high temperatures but also the potential for thermal cycling and corrosion. Materials should be chosen based on their ability to maintain dimensional stability and mechanical properties at the expected operating temperatures. Consideration must also be given to the potential for creep, a phenomenon where materials slowly deform under stress at high temperatures.
Valve Design Considerations for Steam Applications
The design of high-temperature control valves for steam applications requires careful consideration of several factors. Flow characteristics are crucial - linear or equal percentage trim characteristics may be preferred depending on the specific application. The valve's Cv (flow coefficient) must be properly sized to handle the required steam flow rates without causing excessive pressure drop or noise.
Stem sealing is another critical design aspect. Bellows seals or specialized packing materials may be necessary to prevent steam leakage around the valve stem. The valve's internal geometry should be designed to minimize erosion and cavitation, which can be particularly problematic in high-temperature steam applications. Some designs incorporate hardened or stellite-faced components in high-wear areas to extend valve life.
Performance Requirements and Safety Considerations
High-temperature control valves must meet stringent performance requirements to ensure safe and efficient operation. Tight shutoff is often crucial to prevent leakage and maintain process integrity. The valve should be capable of precise control throughout its operating range, with minimal hysteresis and deadband.
Safety is paramount in high-temperature steam applications. The valve design should incorporate features to prevent sudden failure or uncontrolled release of steam. This may include fail-safe positions, where the valve moves to a predetermined safe state upon loss of actuator power or control signal. Pressure relief mechanisms may also be integrated to protect against over-pressurization.
Thermal expansion must be accounted for in the valve design to prevent binding or leakage as components heat up. Additionally, the valve should be designed for ease of maintenance, with consideration given to how it can be safely isolated and serviced in a high-temperature environment.
Best Practices for Implementing High-Temperature Control Valves
Proper Installation and Commissioning Procedures
Correct installation of high-temperature control valves is crucial for optimal performance and longevity. The valve should be installed in a location that allows for easy access and maintenance. Proper alignment is essential to prevent undue stress on the valve body and connecting piping. Special attention should be paid to the orientation of the valve, as some designs may have specific requirements for vertical or horizontal installation.
During installation, it's important to use appropriate gaskets and bolting materials rated for high-temperature service. Thermal insulation should be applied carefully to ensure that critical components, such as actuators and position indicators, remain accessible and protected from excessive heat.
Commissioning procedures should include thorough leak testing and calibration of the valve and its associated instrumentation. This may involve gradual heating of the system to allow for controlled thermal expansion and settling of components. Initial operation should be closely monitored to ensure proper functioning and to identify any potential issues early on.
Maintenance and Inspection Routines for Longevity
Regular maintenance is essential for ensuring the continued reliability of high-temperature control valves. A comprehensive maintenance program should include periodic inspections to check for signs of wear, corrosion, or leakage. This may involve visual inspections during planned shutdowns, as well as online monitoring of valve performance metrics.
Preventive maintenance tasks may include lubrication of moving parts, adjustment of packing glands, and replacement of worn components. It's important to use lubricants and spare parts specifically designed for high-temperature applications. Periodic calibration of the valve and its actuator should be performed to maintain accurate control.
Advanced diagnostic techniques, such as valve signature analysis, can be employed to detect early signs of valve deterioration or performance issues. This proactive approach can help prevent unexpected failures and optimize maintenance schedules.
Troubleshooting Common Issues in Steam Applications
Even with proper installation and maintenance, high-temperature control valves may occasionally encounter issues in steam applications. Common problems include leakage, sticking or binding, and loss of control accuracy. Troubleshooting these issues requires a systematic approach and a thorough understanding of valve operation.
Leakage may be caused by worn seals, damaged seating surfaces, or thermal distortion. Careful inspection and measurement can help identify the root cause and determine the appropriate corrective action. Sticking or binding issues may be related to thermal expansion, contamination, or improper lubrication. Analyzing the valve's operating history and conducting detailed inspections can help pinpoint the source of the problem.
Loss of control accuracy may be due to wear of internal components, changes in process conditions, or issues with the control system. Diagnostic tools and performance data analysis can be valuable in identifying and resolving these types of problems. In some cases, upgrading to more advanced valve designs or materials may be necessary to address persistent issues in particularly challenging steam applications.
Conclusion
Selecting and implementing the best control valves for high-temperature steam applications is a critical task that requires careful consideration of various factors. From material selection and valve design to installation procedures and maintenance routines, each aspect plays a vital role in ensuring optimal performance and longevity. By understanding the unique challenges posed by high-temperature steam and following best practices, industries can enhance their process efficiency, improve safety, and reduce downtime. As technology continues to advance, the development of more robust and efficient high-temperature control valves will further improve the management of steam systems across various industrial sectors.
FAQs
What is the maximum temperature a high-temperature control valve can handle?
High-temperature control valves can typically handle temperatures up to 1500°F (815°C) or even higher, depending on the specific design and materials used.
How often should high-temperature control valves be inspected?
Inspection frequency depends on the application, but generally, a thorough inspection should be conducted at least annually, with more frequent visual checks.
Can standard control valves be used in high-temperature steam applications?
Standard control valves are not suitable for high-temperature steam applications as they lack the necessary heat resistance and specialized features required for safe and efficient operation in extreme conditions.
