Understanding the Fundamentals of Check Valves
What Are Check Valves and Their Purpose?
Check valves, also known as non-return valves or one-way valves, play a crucial role in various industrial applications. These valves are designed to allow fluid flow in one direction while preventing backflow. By doing so, they protect equipment, maintain system integrity, and ensure efficient operation in pipelines and fluid systems.
The primary purpose of check valves is to automatically control the direction of flow without external intervention. They rely on the pressure differential between the upstream and downstream sides of the valve to open and close. When the pressure on the inlet side exceeds that of the outlet side, the valve opens, allowing flow. Conversely, when the outlet pressure becomes greater, the valve closes to prevent reverse flow.
Key Components of Check Valves
Check valves consist of several essential components that work together to achieve their functionality. The main parts include:
- Body: The outer casing that houses the internal components and connects to the pipeline.
- Disc or Ball: The movable element that opens and closes to control flow, as seen in designs such as the swing check valve..
- Seat: The surface against which the disc or ball seals when the valve is closed.
- Spring (in some designs): Assists in closing the valve and enhancing sealing performance.
- Hinge or Guide: Supports the disc or ball and controls its movement.
Understanding these components is crucial for selecting the right check valve for your system, as different designs may offer varying benefits depending on the application.
Common Applications of Check Valves
Check valves find widespread use across numerous industries due to their versatility and reliability. Some common applications include:
- Oil and gas production: Preventing backflow in pipelines and wellhead equipment.
- Water treatment: Protecting pumps and ensuring unidirectional flow in distribution systems.
- Chemical processing: Maintaining process integrity and preventing contamination.
- HVAC systems: Controlling refrigerant flow and protecting compressors.
- Power generation: Safeguarding turbines and boilers from reverse flow damage.
- Marine industry: Preventing water ingress in bilge systems and engine cooling circuits.
The versatility of check valves makes them indispensable in ensuring safe and efficient operations across various industrial sectors.

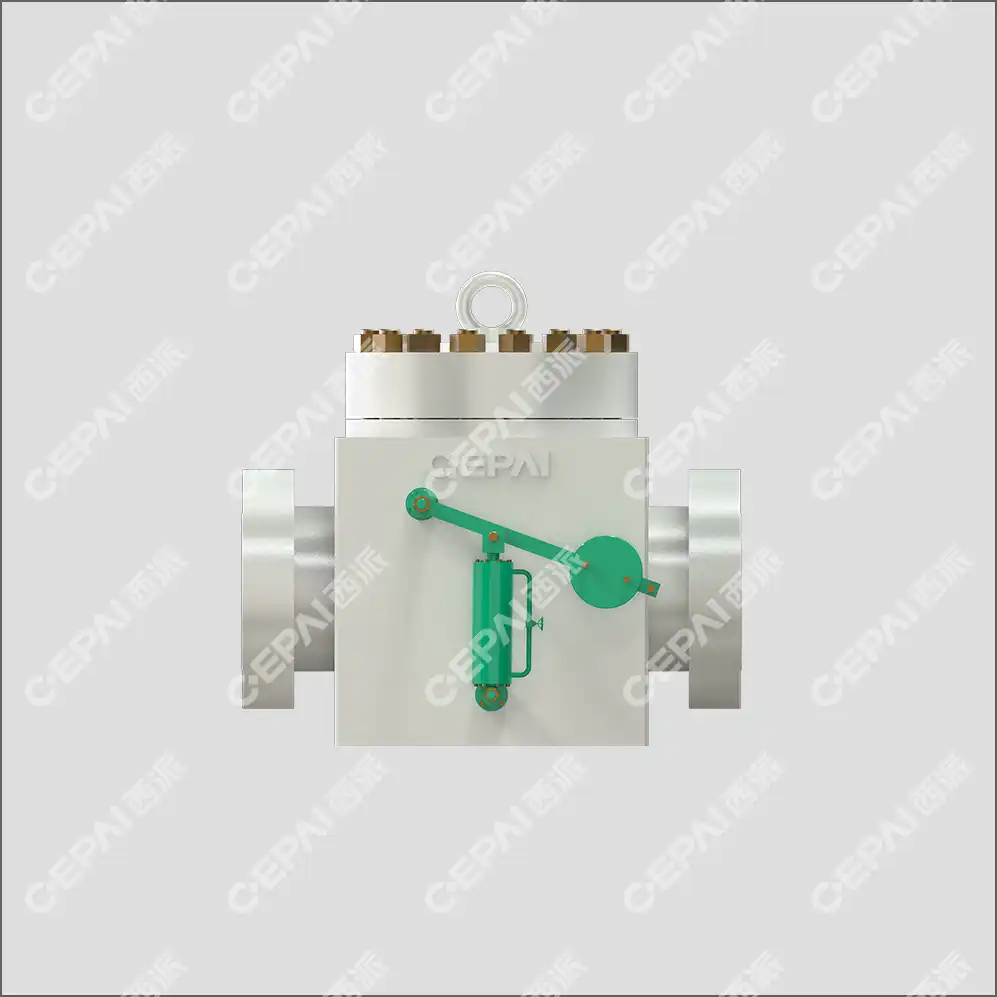

Swing Check Valve: Features, Advantages, and Limitations
Design and Operating Principle of Swing Check Valves
Swing check valves are characterized by their simple yet effective design. The key component is a hinged disc that swings open to allow flow and closes against a seat to prevent backflow. When fluid flows in the forward direction, it pushes the disc open, creating a passage. As the flow decreases or reverses, gravity and back pressure cause the disc to swing back and seal against the seat.
The disc is typically attached to the valve body by a hinge pin, allowing it to rotate freely. Some designs incorporate a spring to assist in closing, especially in horizontal installations where gravity may not be sufficient. The seat is usually angled at 45 degrees to the flow path, which helps reduce wear and improve sealing performance.
Advantages of Swing Check Valves
Swing check valves offer several benefits that make them popular in many applications:
- Low pressure drop: The full-bore design allows for minimal flow restriction when fully open.
- Simple maintenance: With fewer moving parts, these valves are easier to inspect and repair.
- Cost-effective: Their straightforward design often results in lower manufacturing costs.
- Suitable for large diameters: Swing check valves can be manufactured in sizes up to 48 inches or larger.
- Versatility: They can handle a wide range of fluids, including those with suspended solids.
- Quiet operation: The gradual opening and closing motion reduces water hammer and noise.
These advantages make swing check valves an excellent choice for applications requiring reliable backflow prevention with minimal pressure loss.
Limitations and Considerations for Swing Check Valves
While swing check valves excel in many scenarios, they do have some limitations to consider:
- Slower closure: The swinging motion can result in a slower response to flow reversal compared to other valve types.
- Space requirements: The swing arc of the disc necessitates more installation space, particularly in smaller pipe sizes.
- Sensitivity to orientation: Proper installation angle is crucial for optimal performance, especially in vertical pipes.
- Potential for water hammer: In rapid closure situations, the disc may slam shut, causing pressure spikes.
- Limited effectiveness in pulsating flow: The disc may flutter in applications with frequent flow reversals.
Understanding these limitations is essential for determining whether a swing check valve is the best fit for your specific system requirements.
Lift Check Valve: Characteristics, Benefits, and Drawbacks
Construction and Functionality of Lift Check Valves
Lift check valves, also known as piston check valves, feature a unique design that sets them apart from their swing check counterparts. The main component is a disc or piston that moves vertically to control flow. When fluid pressure exceeds the spring force and the weight of the disc, it lifts to allow flow. As the flow decreases or reverses, the spring and gravity force the disc back onto the seat, creating a seal.
The disc is typically guided by a center stem or by the body itself, ensuring proper alignment with the seat. The spring tension can often be adjusted to fine-tune the valve's opening and closing characteristics. This design results in a more compact valve body compared to swing check valves, making lift check valves suitable for applications with space constraints.
Advantages of Lift Check Valves
Lift check valves offer several distinct advantages that make them preferable in certain applications:
- Rapid closure: The vertical motion and spring assistance provide quick response to flow reversal, reducing the risk of water hammer.
- Excellent sealing: The direct seating action and spring force ensure a tight seal, even at low back pressures.
- Suitable for vertical flow: The design is inherently well-suited for vertical installations, where gravity assists closure.
- Compact design: The straight-through flow path allows for a more compact valve body, ideal for limited spaces.
- Consistent performance: Spring-loaded designs maintain consistent cracking pressures regardless of orientation.
- Good for high-pressure applications: The guided disc design can withstand higher pressures compared to swing check valves.
These benefits make lift check valves particularly suitable for high-pressure systems, vertical installations, and applications requiring fast closure times.
Drawbacks and Limitations of Lift Check Valves
Despite their advantages, lift check valves have some limitations to consider:
- Higher pressure drop: The more restrictive flow path typically results in greater pressure loss compared to swing check valves.
- Limited size range: Lift check valves are generally available in smaller sizes, typically up to 24 inches.
- Potential for chatter: In low-flow conditions, the disc may oscillate, causing wear and noise.
- More complex design: The additional components, such as springs and guides, can increase manufacturing costs and maintenance requirements.
- Less suitable for dirty fluids: The guided disc design may be prone to clogging or sticking with fluids containing suspended solids.
Understanding these drawbacks is crucial for determining whether a lift check valve is the optimal choice for your specific application needs.
Conclusion
Choosing between a swing check valve and a lift check valve requires careful consideration of your system's specific requirements. Swing check valves excel in applications with lower pressure drops, larger flow rates, and where minimizing turbulence is crucial. They're ideal for systems handling fluids with suspended solids and where cost-effectiveness is a priority. On the other hand, lift check valves are the go-to choice for high-pressure applications, vertical installations, and scenarios demanding rapid closure times. They offer superior sealing performance and compact design, making them suitable for space-constrained environments. Ultimately, the best valve for your system depends on factors such as flow characteristics, pressure ratings, installation orientation, and maintenance considerations.
