Understanding Butterfly Valve Seat Types
Soft Seat Butterfly Valves: Features and Benefits
Soft seat butterfly valves are engineered with resilient materials like PTFE, EPDM, or Nitrile rubber. These elastomeric seats are great at avoiding leaks because of their superior sealing capabilities. Even when the pressure is low, the soft seat will form a tight seal by adjusting to the valve disc's minor flaws. Applications where minimal leakage is critical, like the food and beverage sector or chemical processing plants, are ideal for soft seat valves because of this property.
The capacity to keep a bubble-tight seal is a major benefit of soft seat butterfly valves. In cases when even a small amount of leakage could cause product contamination or environmental issues, this feature becomes extremely essential. On top of that, the working torque required by soft seat valves is usually lower, which means smaller actuators and cheaper valve automation in general.
However, it's important to note that soft seat valves have limitations when it comes to temperature resistance. Most elastomeric materials begin to degrade at temperatures above 200°C (392°F), which can compromise the valve's sealing ability and longevity in high-temperature applications.
Metal Seat Butterfly Valves: Characteristics and Applications

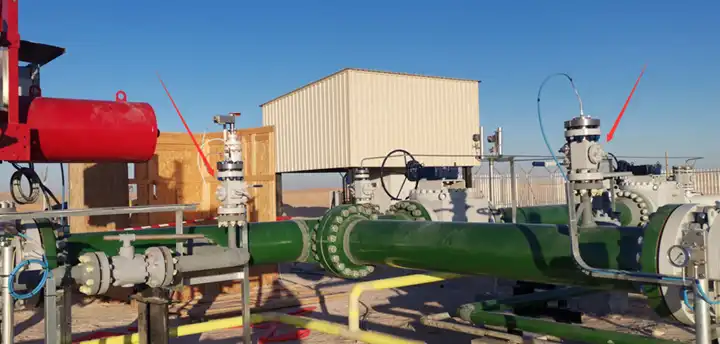

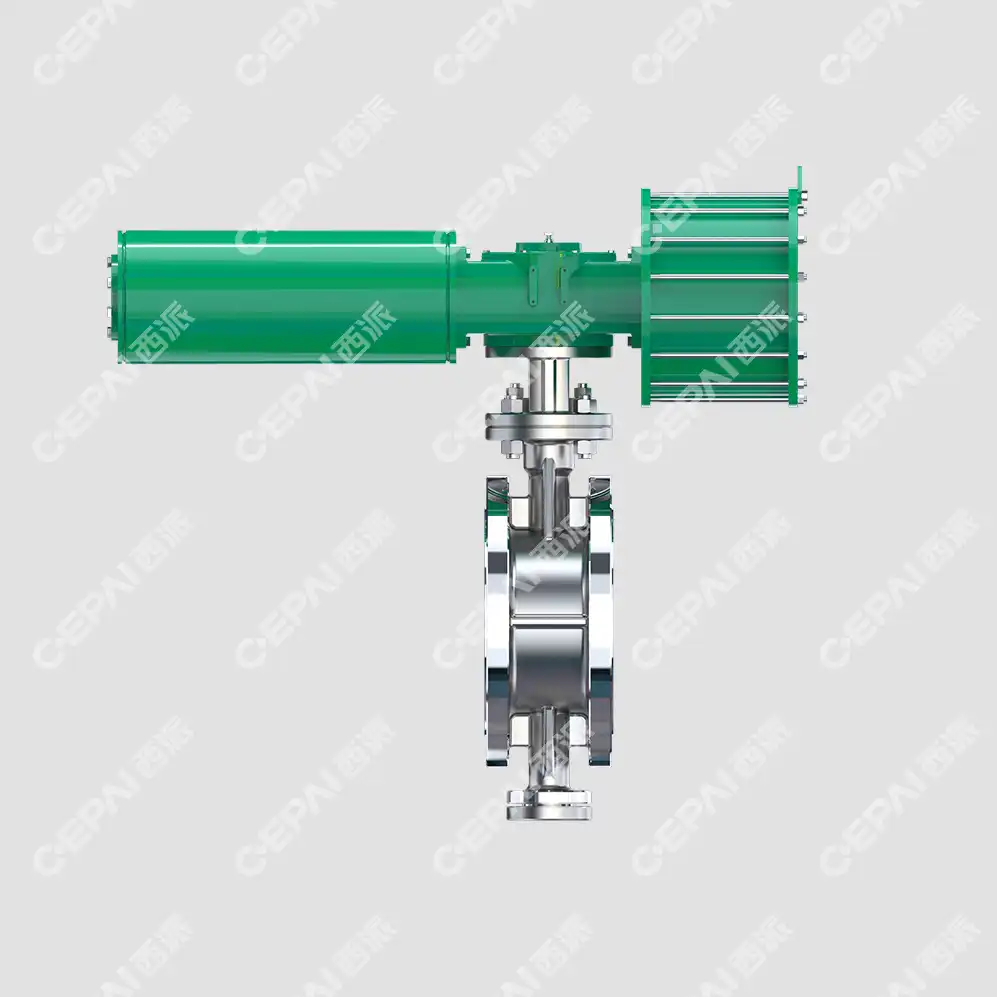

Metal seat butterfly valves are constructed using durable materials such as stainless steel, titanium, or specialized alloys. These valves are perfect for harsh industrial settings since they can endure high pressure and high temperatures. Applications where soft seats would rapidly degrade benefit greatly from the metal-to-metal sealing mechanism's robust performance.
The capacity of metal seat butterfly valves to keep their structural integrity and operation intact in environments with high temperatures is one of its main advantages. Their ability to function efficiently in environments above 500°C (932°F) makes them a good fit for high-heat operations, steam systems, and refineries. Metal seat valves also demonstrate superior resistance to abrasive media and can handle higher flow velocities compared to their soft seat counterparts.
However, it's worth noting that metal seat valves may not achieve the same level of tight shut-off as soft seat valves, especially at lower pressures. They often require higher operating torques, which can necessitate larger actuators and increase overall system costs. Despite these considerations, metal seat butterfly valves remain the go-to choice for applications involving extreme temperatures, pressures, or corrosive media.
Comparative Analysis: Soft Seat vs Metal Seat Performance
When comparing soft seat and metal seat butterfly valves, several performance factors come into play. Soft seat valves generally offer superior leakage control, with many designs achieving ANSI Class VI shut-off (zero visible leakage). Because of this, they are ideal for uses requiring very low emissions or where product purity is of the utmost importance, as is the case with environmental requirements.
However, metal seat valves are superior in terms of longevity and durability, particularly when subjected to severe working circumstances. In high-pressure settings, they may reduce maintenance needs and increase service intervals due to their superior resistance to mechanical stress and heat cycling compared to soft seat valves.
The choice between soft seat and metal seat butterfly valves also impacts the valve's cv (flow coefficient) and rangeability. Soft seat valves typically offer better rangeability due to their ability to provide tight shut-off at low pressures. However, metal seat valves may provide higher cv values, allowing for greater flow capacity in fully open positions.
Factors Influencing Seat Selection
Operating Temperature Considerations
Temperature is a critical factor in determining the appropriate seat material for butterfly valves. Soft seat materials have temperature limitations that must be carefully considered. For instance, PTFE seats can typically handle temperatures up to 200°C (392°F), while EPDM might be suitable for slightly higher temperatures. Beyond these limits, the seat material may begin to deform, lose its sealing properties, or even decompose.
Metal seat butterfly valves, constructed from materials like stainless steel or high-performance alloys, can operate reliably at much higher temperatures. Some specialized metal seat designs can withstand temperatures up to 815°C (1500°F) or even higher. Because of this, they are crucial in processes involving high temperatures, furnace isolation, and boiler systems.
When selecting a valve seat type, it's crucial to consider not just the normal operating temperature but also potential temperature spikes or thermal cycling that may occur during process upsets or maintenance procedures. The key to long-term dependability and avoiding premature valve failure is selecting a seat material with the right temperature rating.
Pressure Ratings and System Requirements
The system pressure is another vital consideration in the soft seat vs metal seat decision. Soft seat butterfly valves typically offer excellent sealing capabilities at low to moderate pressures. Many designs can provide bubble-tight shut-off up to ANSI Class 300 ratings (740 psi / 51 bar). The sealing capability of the valve could be compromised due to seat extrusion or distortion, which becomes more likely with increasing pressure.
Metal seat butterfly valves, due to their robust construction, can handle significantly higher pressures. Depending on the specific design and materials used, metal seat valves can be rated for pressures up to ANSI Class 2500 (6170 psi / 425 bar) or even higher. As a result, they can withstand the high pressures seen in the oil and gas industry, power generation, and other rigorous fields.
Considerations such as maximum operating pressure, pressure variations, water hammer effects, and vacuum conditions must be taken into account when assessing pressure requirements. The valve seat's durability and efficiency over time may be affected by these changing pressure situations.
Media Compatibility and Corrosion Resistance
The nature of the process media flowing through the valve plays a crucial role in seat selection. Because of their high degree of chemical compatibility, soft seat materials are ideal for use in situations involving reactive or corrosive substances. For instance, PTFE seats are highly resistant to most chemicals, while EPDM performs well with water, steam, and many alkaline solutions.
Metal seat butterfly valves, particularly those constructed from corrosion-resistant alloys like Hastelloy or Monel, can handle aggressive media that would quickly degrade soft seat materials. When dealing with caustic fluids, slurries, or gas streams at high temperatures, they are frequently the best option.
When selecting a seat type, it's important to consider not just the primary process media but also any potential contaminants or byproducts that may come into contact with the valve. Factors such as pH levels, presence of particulates, and the potential for material buildup should all be taken into account to ensure long-term valve performance and reliability.
Maintenance and Lifecycle Considerations
Wear Characteristics and Replacement Frequency
The wear characteristics of soft seat and metal seat butterfly valves differ significantly, impacting their maintenance requirements and overall lifecycle costs. Soft seat valves, while providing excellent sealing, may require more frequent seat replacements due to wear, especially in applications involving frequent cycling or abrasive media. The elastomeric materials used in soft seats can deform, erode, or harden over time, potentially compromising the valve's sealing ability.
Metal seat butterfly valves generally exhibit superior wear resistance, particularly in high-temperature or high-pressure applications. The robust nature of metal-to-metal sealing surfaces allows these valves to maintain their performance characteristics over extended periods, even under challenging operating conditions. However, metal seats may experience galling or scoring if not properly maintained, which can lead to increased leakage rates over time.
When evaluating lifecycle costs, it's essential to consider not just the initial purchase price but also the frequency and cost of seat replacements, as well as any associated downtime. In some cases, the longer service intervals of metal seat valves may offset their higher initial cost, especially in critical or hard-to-access installations.
Ease of Maintenance and Repair
The maintenance requirements and repair procedures for soft seat and metal seat butterfly valves can vary considerably. The seat inserts of soft seat valves are often changeable, making maintenance a breeze. In many designs, the seat can be replaced without removing the valve body from the pipeline, reducing downtime and labor costs. However, care must be taken during installation to avoid damaging the soft seat material.
When it comes to fixing or refurbishing the sealing surfaces of metal seat butterfly valves, specific maintenance methods may be necessary. To get the sealing back to how it should be, you might have to use techniques like lapping or machining. These methods may be more involved, but they usually pay off in the end with better reliability and longer service life.
Think about how much downtime valves could cause to overall process operations, how knowledgeable the service crew needs to be, and how readily available spare parts are when planning maintenance. To optimise valve performance and minimise lifecycle costs, it is necessary to develop a thorough maintenance strategy that matches with your individual application needs and operating restrictions.
Long-term Cost-Effectiveness Analysis
Conducting a thorough cost-effectiveness analysis is crucial when deciding between soft seat and metal seat butterfly valves. While soft seat valves often have a lower initial purchase price, their long-term costs can be influenced by factors such as more frequent replacements and potential limitations in extreme operating conditions. Alternatively, metal seat valves may be more expensive initially, but they last longer and require less maintenance even in harsh conditions.
You can't only look at the valve itself when calculating the whole cost in the long run. For instance, the impact on process efficiency, potential energy savings from better sealing, and the costs associated with unplanned downtime should all be taken into account. A higher-quality valve with modern materials or design elements may initially cost more, but in the long run, it may save a lot of money.
The possibility of process adjustments or expansions in the future is another important factor to think about. A valve that offers flexibility to adapt to evolving operational requirements may provide better value in the long run, even if it comes at a higher initial cost. Collaborating with experienced valve manufacturers or consultants can provide valuable insights into optimizing valve selection for maximum cost-effectiveness across the entire system lifecycle.
Conclusion
Considerations like as operating circumstances, media characteristics, and long-term performance requirements should be considered while choosing between metal seat and soft seat butterfly valves. When preventing leakage is of the utmost importance, soft seat valves are the way to go because of their excellent shut-off and versatility in handling various fluids. However, metal seat valves are the way to go for demanding industrial settings due to their exceptional performance and longevity in high-pressure and high-temperature conditions. By completely examining your particular needs and figuring in lifecycle costs, you can advance valve execution, unwavering quality, and framework effectiveness.
