Understanding Pneumatic and Electric Valve Technologies
Principles of Pneumatic Valve Operation
Pneumatic valves harness the power of compressed air to control fluid flow. These valves consist of a valve body, actuator, and control elements. When compressed air enters the actuator, it moves a diaphragm or piston, which in turn operates the valve mechanism. This simple yet effective design allows for quick opening and closing of the valve, making it ideal for applications requiring rapid response times.
One of the key advantages of pneumatic valves is their ability to generate significant force, enabling them to handle high-pressure applications with ease. They also offer excellent reliability in harsh environments, as the compressed air system is less susceptible to electrical interference or moisture-related issues.
Electric Valve Functionality and Components
Electric valves rely on electrical power to control fluid flow. These valves typically incorporate an electric motor or solenoid to actuate the valve mechanism. The motor or solenoid receives electrical signals from a control system, which then translates into precise valve positioning.
Electric valves offer exceptional control accuracy, allowing for fine-tuned adjustments in flow rates. They are also easily integrated into modern control systems, enabling remote operation and monitoring. The absence of compressed air requirements makes electric valves a popular choice in facilities where pneumatic infrastructure is not readily available.
Comparative Analysis of Performance Factors
When comparing pneumatic and electric valves, several performance factors come into play. Pneumatic valves generally offer faster actuation speeds, making them suitable for applications requiring quick response times. They also excel in providing fail-safe operation, as they can be designed to close or open automatically in case of power failure.
Electric valves, while typically slower in actuation, offer superior precision in flow control. They are also more energy-efficient over long periods of operation, as they only consume power during actuation. Electric valves are often preferred in applications where gradual and accurate control is necessary, such as in chemical dosing systems within water treatment plants.
Applications in Water Treatment Processes
Pneumatic Valves in Filtration Systems
In water treatment filtration systems, pneumatic valves play a crucial role in managing the flow of water through various filtration stages. Their rapid response times make them ideal for backwashing operations, where quick reversal of flow is necessary to clean filter media. Pneumatic valves are particularly effective in handling the high pressures often encountered in large-scale filtration processes.
The robustness of pneumatic valves also makes them suitable for controlling the flow of abrasive slurries or water containing suspended solids, which are common in early stages of water treatment. Their simple design and resistance to harsh environments contribute to reduced maintenance requirements in these challenging applications.
Electric Valves in Chemical Dosing and Disinfection
Electric valves excel in chemical dosing and disinfection processes within water treatment plants. Their precise control capabilities allow for accurate metering of chemicals such as chlorine, fluoride, or pH adjusters. This precision is crucial for maintaining water quality and compliance with regulatory standards.
The ability to integrate electric valves with digital control systems enables automated and responsive chemical dosing based on real-time water quality measurements. This level of control helps optimize chemical usage, reduce waste, and ensure consistent water quality output.
Hybrid Systems Utilizing Both Valve Types
Many modern water treatment facilities employ hybrid systems that leverage the strengths of both pneumatic and electric valves. For instance, pneumatic valves might be used in high-pressure, high-flow applications like raw water intake or backwash systems, while electric valves handle precise chemical dosing and final quality control stages.
This hybrid approach allows plant operators to optimize performance and efficiency across different treatment stages. It also provides flexibility in system design, enabling the use of the most suitable valve type for each specific application within the treatment process.
Factors Influencing Valve Selection in Water Treatment
Environmental Considerations and Safety Standards
When selecting valves for water treatment applications, environmental factors play a significant role. Pneumatic valves are often preferred in potentially explosive atmospheres due to their inherent safety, as they do not require electrical components in the hazardous area. This makes them suitable for applications involving ozone generation or methane-producing processes in wastewater treatment.
Electric valves, while requiring careful selection in hazardous areas, offer advantages in terms of reduced noise pollution and elimination of air compressor systems, which can be beneficial in urban or noise-sensitive environments. Both valve types must comply with relevant safety standards and regulations specific to water treatment facilities.
Maintenance Requirements and Long-term Reliability
Maintenance considerations are crucial in valve selection for water treatment plants. Pneumatic valves generally have simpler mechanisms and fewer moving parts, potentially leading to reduced maintenance requirements. However, they rely on a compressed air system, which itself requires regular maintenance and monitoring.
Electric valves, while potentially more complex, often feature advanced diagnostics capabilities that can predict and prevent failures. This predictive maintenance approach can lead to reduced downtime and more efficient overall operations. The choice between pneumatic and electric valves should consider the availability of maintenance expertise and spare parts in the facility's location.
Cost Analysis: Initial Investment vs. Operational Expenses
The cost implications of valve selection extend beyond the initial purchase price. Pneumatic valves often have lower upfront costs but require investment in compressed air infrastructure. They may also incur ongoing operational costs related to air compression and potential air leaks in the system.
Electric valves typically have higher initial costs but can offer savings in energy consumption over time, especially in applications with frequent valve operations. The decision should consider the total cost of ownership, including installation, energy consumption, maintenance, and expected lifespan of the valves.
In water treatment applications, the choice between pneumatic and electric valves requires careful consideration of various factors. Each type offers unique advantages, and the optimal selection depends on the specific requirements of the application, environmental conditions, safety considerations, maintenance capabilities, and long-term cost implications. By thoroughly evaluating these factors, water treatment facilities can ensure they select the most appropriate valve technology to support efficient, reliable, and safe operations.
Conclusion
The choice between pneumatic and electric valves in water treatment applications is not a one-size-fits-all decision. Each technology offers distinct advantages that can significantly impact the efficiency and reliability of water treatment processes. Pneumatic valves excel in rapid response times and high-pressure applications, while electric valves offer precise control and seamless integration with digital systems. The optimal choice depends on factors such as specific application requirements, environmental conditions, safety standards, maintenance capabilities, and long-term cost considerations. By carefully evaluating these factors and potentially considering hybrid solutions, water treatment facilities can optimize their valve selection to ensure efficient, reliable, and compliant operations.
FAQs
1. What are the main advantages of pneumatic valves in water treatment?
Pneumatic valves offer rapid response times, excel in high-pressure situations, and provide fail-safe operation. They are well-suited for environments with explosive atmospheres and can handle abrasive slurries effectively.
2. When are electric valves preferred in water treatment applications?
Electric valves are preferred for applications requiring precise control, such as chemical dosing and disinfection processes. They offer easy integration with digital systems and are energy-efficient for long-term operation.
3. Can pneumatic and electric valves be used together in a water treatment system?
Yes, many modern water treatment facilities employ hybrid systems that utilize both pneumatic and electric valves, leveraging the strengths of each type in different stages of the treatment process.
Reliable Valve Solutions for Water Treatment | CEPAI

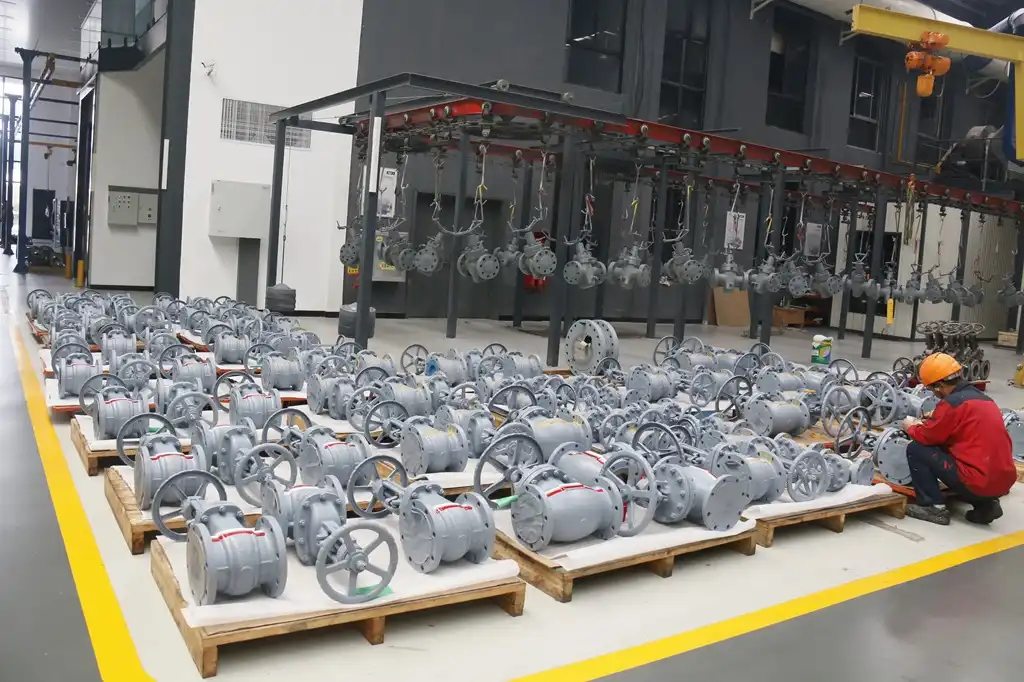

At CEPAI Group Co., Ltd., we specialize in providing high-quality pneumatic and electric valves for water treatment applications. Our extensive range of valves is designed and manufactured to meet the highest international standards, ensuring reliability and efficiency in your operations. As a leading valve supplier, factory, and manufacturer, we understand the critical role our products play in industrial automation and the safety of water treatment processes. Our commitment to quality is reflected in our ISO-certified manufacturing processes and rigorous testing procedures. For expert advice on selecting the right valve for your specific water treatment needs, contact us at cepai@cepai.com.
