Understanding Pneumatic Butterfly Valve Technology
Basic Principles of Pneumatic Actuation
Pneumatic actuation in butterfly valves relies on the fundamental principle of using compressed air to generate mechanical motion. An air compressor starts this process by putting pressure on air, which is then kept in a reservoir. When activation is required, the compressed air is released through a series of control valves and pneumatic lines, ultimately reaching the valve actuator.
The actuator, typically a piston or diaphragm mechanism, converts the energy of the compressed air into rotational motion. This rotation is transmitted to the valve disc via a shaft, allowing it to pivot between open and closed positions. While this system is beautiful, it is also very simple and reliable. It has very few moving parts and can work well in a lot of different environments.
Components of a Pneumatic Butterfly Valve System

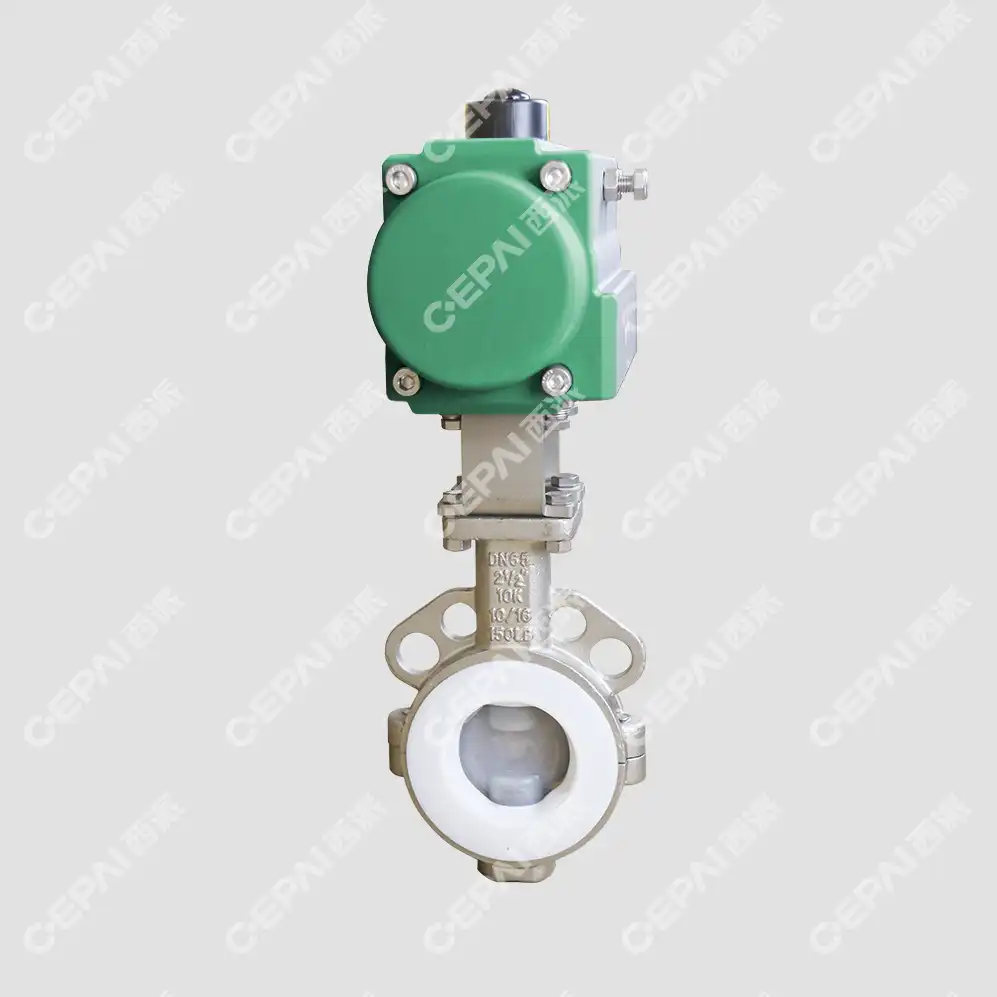

A complete pneumatic butterfly valve system comprises several key components working in harmony. At its core is the butterfly valve itself, featuring a disc-shaped closure element that rotates on a central axis. The pneumatic actuator, mounted on top of the valve body, provides the necessary force for operation.
Auxiliary parts include limit switches to specify the range of motion, position indicators to monitor the status of the valves, and solenoid valves to control the air flow. The correct distribution of compressed air throughout the system is ensured by the air supply lines and fittings. Smart positioners, which are a common component of contemporary installations, allow for digital control system integration and improve control precision.
Advantages of Pneumatic Actuation in Butterfly Valves
There are several advantages of using pneumatic actuation for butterfly valves. Compressed air is a clean, easily accessible, and inexpensive power medium that can be used as an energy source. When it comes to operations that demand quick valve responses, pneumatic systems truly shine when it comes to achieving rapid cycling speeds.
Pneumatic actuators are able to manage large loads despite their small size because of their high force-to-size ratio. Improving system safety as a whole, they show remarkable reliability even when subjected to very high or low temperatures, and they are simple to set up for fail-safe operation. The simplicity of pneumatic systems also translates to lower maintenance requirements and longer operational lifespans compared to some alternative actuation methods.
Applications and Industries Utilizing Pneumatic Butterfly Valves
Oil and Gas Sector Applications
There are several procedures in the oil and gas sector that rely on pneumatic butterfly valves. They play a crucial role in pipeline networks, which regulate the movement of refined products, natural gas, and crude oil. Refineries and processing plants rely on these valves for emergency shutdown systems because of how quickly they shut off.
Pneumatic butterfly valves are also utilised in gas distribution networks, where they regulate pressure and flow in transmission lines. Offshore platforms and distant production facilities are perfect for their dependable operation in difficult settings. Terminal loading and unloading processes and product isolation in tank farms are two other applications for these valves.
Water and Wastewater Treatment Facilities
Water and wastewater treatment plants rely heavily on pneumatic butterfly valves for efficient process control. These valves are utilized in diverse parts of the water treatment prepare, like the admissions framework, the filtration prepare, and the conveyance arrange. Their capacity to handle expansive sums of liquid with small weight misfortune makes them idealize for utilize in pump stations and major water lines.
When wastewater is treated, pneumatic butterfly valves are used in aeration systems, to move sludge, and to control the flow of sewage. Because they are made so that they don't rust, they can handle the harsh chemicals that are often found in these buildings. The fast response time of pneumatic action also helps stop backflow and handle sudden changes in flow conditions.
Chemical Processing and Manufacturing
The chemical processing industry utilizes pneumatic butterfly valves extensively due to their versatility and reliability. There are these valves in reactors, distillation columns, and storage tanks. They control the flow of different chemicals and intermediates. Their ability to provide tight shutoff is very important for keeping process lines from getting contaminated with each other.
Pneumatic butterfly valves are a crucial part of batch processing systems in manufacturing because they make it easier to mix and move materials precisely. They are also used in networks that distribute steam and cool water and to move chemicals and other industrial fluids. Because explosion-proof requirements can be met by pneumatic systems, these valves are perfect for use in dangerous parts of chemical plants.
Automation and Control Strategies for Pneumatic Butterfly Valves
Integration with Industrial Control Systems
A big part of current automation strategies is adding pneumatic butterfly valves to control systems for factories. To do this, the control parts of the valve are usually linked to programmable logic controllers (PLCs) or distributed control systems (DCS). With these links, operators can check on and change the positions of valves from afar, which improves process control and efficiency as a whole.
Advanced integration techniques often incorporate fieldbus technologies such as PROFIBUS, FOUNDATION Fieldbus, or HART, enabling seamless communication between the valve and the control room. This level of interaction lets data be sent and received in real time, which helps with planned maintenance and makes valve performance better based on process conditions.
Smart Positioners and Feedback Mechanisms
Smart positioners represent a significant advancement in pneumatic butterfly valve control. These tools make sure that the valve disc is precisely placed, which allows for accurate flow control even when process conditions change. Smart positioners typically incorporate microprocessors that continuously monitor and adjust the valve position based on input signals and feedback from sensors.
A lot of what makes valve automation work is feedback devices like limit switches and position transmitters. They give real-time information on the state of the valves, so operators can check the positions of the valves and find any problems. More advanced feedback systems might be able to diagnose problems and let repair teams know about them before they become major problems.
Implementing Fail-Safe and Emergency Shutdown Systems
Implementing fail-safe and emergency shutdown systems is critical in many industries using pneumatic butterfly valves. These systems ensure that valves move to a predetermined safe position (either fully open or fully closed) in the event of power loss or system failure. This is typically achieved through the use of spring-return actuators or accumulator systems that store energy for emergency operation.
In high-risk environments, such as chemical plants or offshore platforms, pneumatic butterfly valves are often integrated into larger safety instrumented systems (SIS). These systems keep an eye on a lot of different process factors and can shut down automatically if they find anything dangerous. The rapid response time of pneumatic actuation is particularly valuable in these safety-critical applications, allowing for swift isolation of process areas in emergency situations.
Conclusion
Pneumatic butterfly valves are an important part of modern industrial technology because they are easy to use, reliable, and good at what they do. These valves utilize the control of compressed discuss to absolutely control stream in a wide extend of circumstances, from handling oil and gas to treating water and making chemicals. They are very important in today's automatic industrial world because they can work with complex control systems without any problems and have features like smart positioning and fail-safe operation. As businesses alter, pneumatic butterfly valves will proceed to be an critical portion of making liquid dealing with forms more secure, more productive, and more imaginative.
