Understanding Pneumatic Butterfly Valve Basics

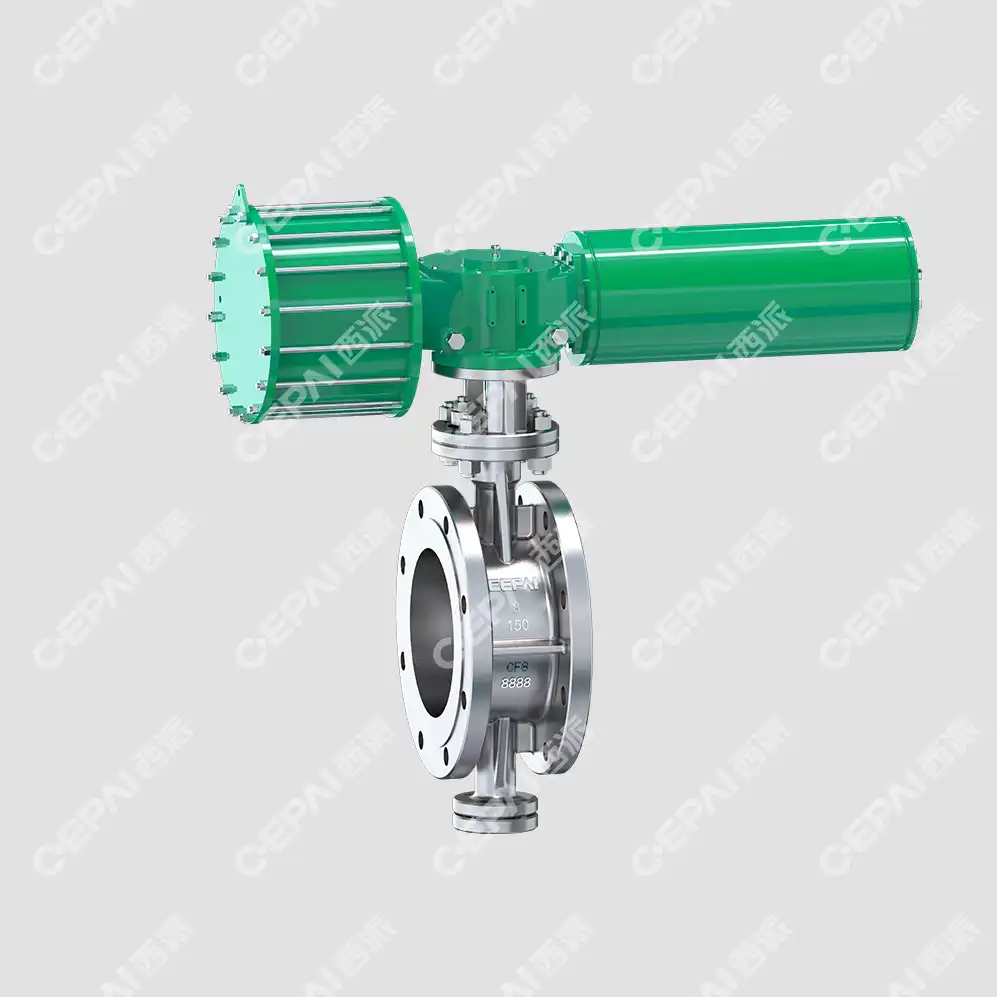

What is a Pneumatic Butterfly Valve?
A pneumatic butterfly valve is a quarter-turn rotational motion valve used to regulate flow in various industrial processes. It consists of a disc mounted on a rotating shaft, which opens or closes the valve based on pneumatic actuator signals. These valves are popular due to their compact design, quick operation, and ability to handle a wide range of fluids and gases.
Components of a Pneumatic Butterfly Valve
To properly size a pneumatic butterfly valve, it's essential to understand its main components:
- Valve body: Houses the internal parts and connects to the piping system.
- Disc: The circular plate that rotates to control flow.
- Seat: Provides a seal between the disc and body when closed.
- Stem: Connects the disc to the actuator for rotation.
- Pneumatic actuator: Provides the force to open or close the valve using compressed air.
Applications of Pneumatic Butterfly Valves
Pneumatic butterfly valves find use in numerous industries, including:
- Oil and gas production
- Water treatment facilities
- Chemical processing plants
- HVAC systems
- Food and beverage manufacturing
Understanding your specific application is crucial for proper valve sizing.
Key Factors in Pneumatic Butterfly Valve Sizing
Flow Coefficient (Cv) Calculation
The flow coefficient, or Cv, is a critical factor in valve sizing. It represents the amount of water in US gallons per minute that will flow through a fully open valve with a pressure drop of 1 psi. To calculate Cv, use the following formula: Cv = Q / (√ΔP / SG) Where: Q = Flow rate (gpm) ΔP = Pressure drop across the valve (psi) SG = Specific gravity of the fluid Accurately determining the Cv helps ensure proper valve selection for your flow requirements.
Pressure Drop Considerations
Pressure drop across the valve is another crucial factor in sizing. Too high a pressure drop can lead to cavitation, noise, and reduced valve life. For a pneumatic butterfly valve, consider these points when evaluating pressure drop:
- Maximum allowable pressure drop for your system
- Relationship between valve opening percentage and pressure drop
- Impact of fluid velocity on pressure drop
Aim for a pressure drop that balances flow control and energy efficiency.
Fluid Properties and Operating Conditions
The characteristics of the fluid and the operating conditions significantly impact valve sizing:
- Viscosity: Higher viscosity fluids may require larger valve sizes
- Temperature: Extreme temperatures can affect valve materials and sealing
- Corrosiveness: Choose appropriate valve materials for corrosive fluids
- Flow rate variations: Consider both minimum and maximum flow rates
- Pressure rating: Ensure the valve can withstand system pressures
Accurately assessing these factors will lead to optimal valve performance and longevity.
Step-by-Step Pneumatic Butterfly Valve Sizing Process
Gathering System Data
Before sizing your pneumatic butterfly valve, collect the following information:
- Maximum and minimum flow rates
- Operating pressure range
- Temperature range
- Fluid properties (viscosity, specific gravity, etc.)
- Pipe size and schedule
- Required valve function (on/off or modulating)
Having this data on hand will streamline the sizing process and improve accuracy.
Determining Valve Size and Cv
Follow these steps to determine the appropriate valve size and Cv:
- Calculate the required Cv using the flow coefficient formula mentioned earlier.
- Consult manufacturer's valve sizing charts to find a valve with a Cv close to your calculated value.
- Consider the pipe size and ensure the valve size is compatible.
- Verify that the selected valve can handle the maximum flow rate without excessive pressure drop.
- Check that the valve can provide adequate control at minimum flow rates.
Remember that sizing charts may vary between manufacturers, so always refer to the specific documentation for your chosen valve.
Actuator Selection and Sizing
Proper actuator sizing is crucial for efficient valve operation. Consider these factors:
- Required torque: Calculate the torque needed to operate the valve under maximum differential pressure.
- Actuator type: Choose between spring-return or double-acting actuators based on fail-safe requirements.
- Air supply pressure: Ensure your compressed air system can provide adequate pressure for valve operation.
- Speed of operation: Determine if you need quick-opening or slow-acting valves for your application.
- Environmental conditions: Select actuators suitable for your operating environment (temperature, humidity, etc.).
Consult with the valve manufacturer for specific actuator sizing guidelines and recommendations.
Conclusion
Proper sizing of pneumatic butterfly valves is essential for optimal performance in industrial applications. By considering factors such as flow coefficient, pressure drop, and fluid properties, you can select the right valve size for your specific needs. Remember to gather all necessary system data, calculate the required Cv, and choose an appropriate actuator. With this comprehensive guide, you're now equipped to make informed decisions when sizing pneumatic butterfly valves, ensuring efficient operation and extended equipment life in your industrial processes.
