Understanding Motorized Butterfly Valve Technology

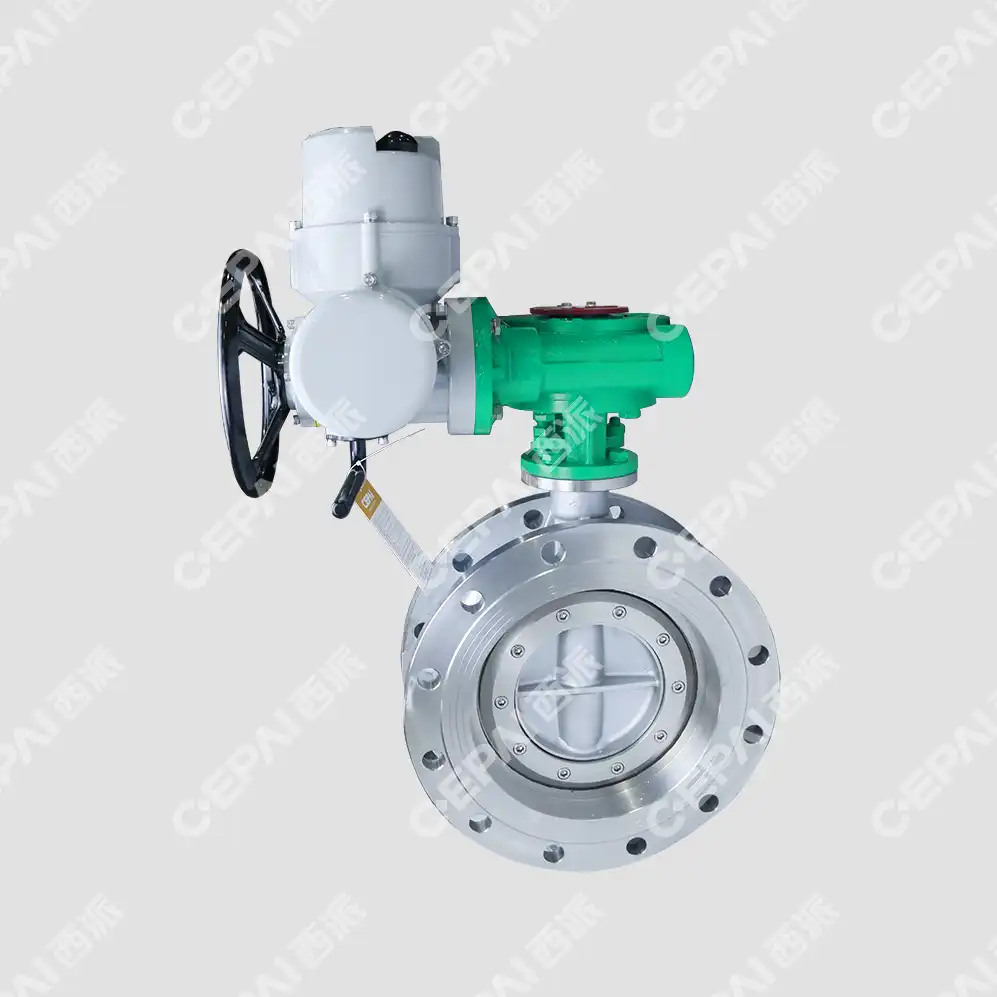

Core Components and Design
Motorized butterfly valves consist of several key components that work in harmony to provide efficient flow control. At the heart of the valve is the disc, a circular plate that rotates perpendicular to the flow. This disc is connected to a stem, which is in turn coupled to an electric actuator. The actuator provides the rotational force necessary to open, close, or modulate the valve position.
The valve body houses these components and is typically made from durable materials such as cast iron, stainless steel, or high-performance alloys, depending on the application requirements. A resilient seat lines the inner circumference of the valve body, ensuring a tight seal when the valve is closed. This seat is often made from elastomers like EPDM, NBR, or PTFE, chosen based on compatibility with the process fluid and operating conditions.
An important thing that makes motorised butterfly valves different from manual ones is the electric actuator. It has a control system, an electric motor, and gears. To make them more useful and safe, more advanced models might have things like position sensors, torque limiters, and human override mechanisms.
Operating Principles
The operation of a motorized butterfly valve is based on the rotation of the disc within the valve body. When the valve is fully open, the disc is parallel to the flow, offering minimal obstruction. As the actuator rotates the stem, the disc turns perpendicular to the flow, gradually reducing the flow rate until it completely stops when fully closed.
This quarter-turn operation is controlled by the electric actuator, which can be programmed for precise positioning. The actuator can be set to operate the valve in an on-off manner or to modulate the flow by positioning the disc at any angle between fully open and fully closed. This flexibility allows for fine-tuned control over flow rates and pressure drops within the system.
Modern motorized butterfly valves often incorporate smart features such as digital communication protocols (e.g., HART, Profibus, or Modbus), allowing for remote operation and integration with plant control systems. This capability enhances process automation and enables real-time monitoring of valve performance and diagnostics.
Advantages Over Traditional Valve Types
Because of their many benefits over more conventional valve types, motorised butterfly valves are finding increasing use in a wide variety of settings. Their lightweight and compact shape makes them more space-efficient than globe or gate valves with the same capacity. This feature lessens the need for structural support and also frees up space in piping systems.
Manufacturing costs are reduced and there are fewer possible sources of failure due to the butterfly valve's simple design. Motorised butterfly valves are more reliable and require less maintenance than many other valve types since they have fewer moving parts. Quick process adjustments or emergency shutdowns can be greatly improved by the quarter-turn operation's shorter actuation times.
Another significant advantage is the low pressure drop across the valve when fully open. The disc's smooth shape means that it doesn't block flow much, which saves energy and money on pumping costs over time. Motorised butterfly valves are also useful for a variety of control applications, from straightforward on-off jobs to intricate flow regulation tasks, thanks to their high precision flow modulation.
Key Features of Motorized Butterfly Valves
Precision Flow Control
One of the standout features of motorized butterfly valves is their ability to provide precise flow control. The electric actuator lets workers finetune the position of the disc, which lets them get exact flow rates and pressure differences. This level of control is very helpful in processes where keeping certain flow factors is important for the quality of the product or the efficiency of the system.
Advanced motorized butterfly valves incorporate position feedback sensors that continuously monitor the disc angle. Process control systems can use this real-time data to do closed-loop control and make changes automatically as the process variables change. Some models even let you change the flow characteristics by using specially designed disc shapes or smart control methods. This makes them even more accurate in tough situations.
The precision offered by motorized butterfly valves extends to their ability to maintain a set position over time, even in the presence of varying pressure conditions. This stability is very important for keeping process parameters consistent and lowering the number of times that changes need to be made by hand.
Durability and Reliability
Motorized butterfly valves are engineered for durability and reliability in demanding industrial environments. The robust construction of the valve body and disc, often using corrosion-resistant materials, ensures longevity even when handling aggressive fluids or operating in harsh conditions. The butterfly valve is very reliable because it has few moving parts and is designed to be simple.
The electric actuators in these valves are usually made to work with a lot of cycles. In fact, many types can handle hundreds of thousands of cycles before they need to be serviced. The actuator is more reliable in a variety of environmental situations thanks to features like thermal overload protection, IP-rated enclosures, and anti-condensation heaters.
Many motorized butterfly valves incorporate fail-safe mechanisms, such as spring-return actuators or battery backup systems, ensuring that the valve moves to a predetermined safe position in the event of power failure. This feature is very important in safety-critical scenarios where the valve needs to be closed or opened to avoid dangerous situations.
Versatility in Application
One of the best things about motorised butterfly valves is that they can be used in a lot of different situations and businesses. They can handle different kinds of fluids, like liquids, gases, and slurries, which lets them adapt to different process needs. Because valve bodies, discs, and seats can be made from a variety of materials, they can be customised to meet specific temperature and chemical compatibility needs.
Motorized butterfly valves can be designed for high-pressure applications, with some models capable of handling pressures up to 740 psi or more. In the same way, they can be designed to work in settings with very low or very high temperatures. This adaptability extends to their size range, with valves available from small diameters suitable for instrumentation to large sizes used in water treatment plants or power generation facilities.
Another layer of flexibility is provided by the motorised butterfly valve's ability to integrate with different control systems. Whether it's simple on-off control or complex modulating duties integrated into a plant-wide distributed control system, these valves can be configured to meet diverse operational requirements. Because they are so versatile, they are useful in many fields, from making chemicals and oil and gas to processing food and drinks.
Applications of Motorized Butterfly Valves

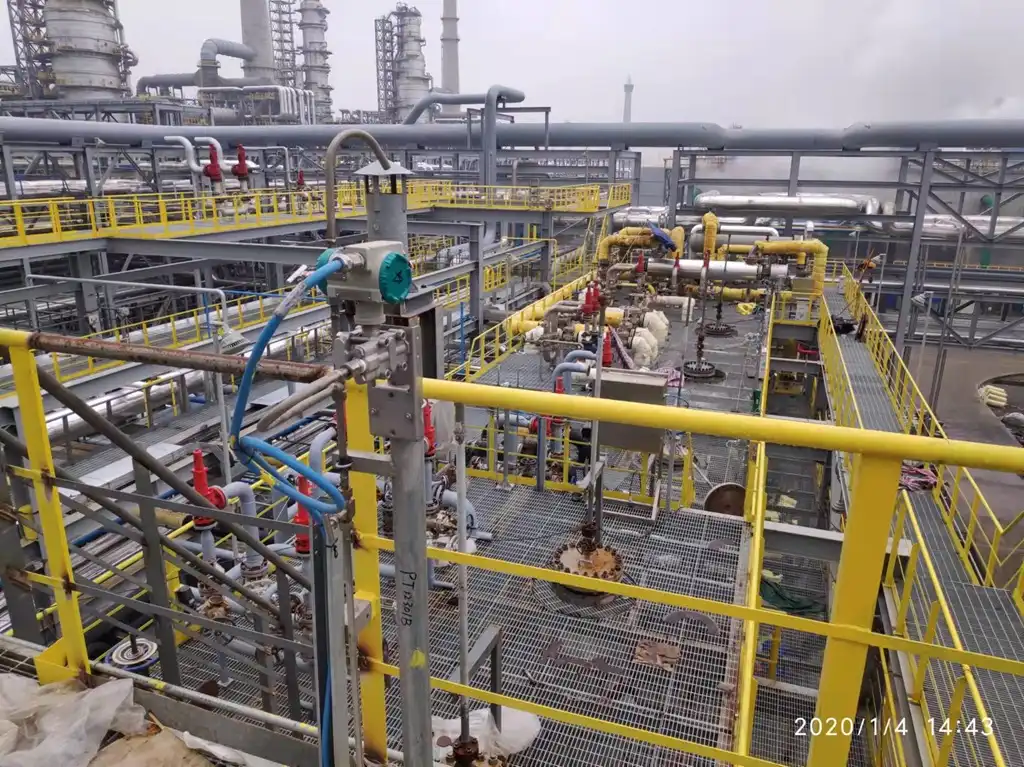

Industrial Process Control
Motorised butterfly valves are essential in industrial process control because they control the flow of fluids in many manufacturing and processing operations. Because they can be precisely controlled, they are perfect for situations where keeping certain flow rates or pressure levels is important for the quality of the product or the speed of the process.
There are a lot of chemical plants that use these valves to manage the flow of ingredients, catalysts, and finished products. Their tight shut-off features and ability to handle toxic substances make sure that they can be used safely and effectively. In the pharmaceutical industry, motorized butterfly valves are utilized in clean-in-place (CIP) systems, where their sanitary design and ability to achieve full port opening facilitate thorough cleaning and sterilization processes.
In particular, motorised butterfly valves are useful in processes involving liquid ingredients or cleaning systems in the food and beverage business. Because they are made of FDA-approved materials and have smooth insides, they can handle food-grade items while still meeting strict cleanliness standards.
Water and Wastewater Management
Water and wastewater management systems extensively utilize motorized butterfly valves due to their reliability and efficiency in handling large volumes of water. When water is cleaned in a water treatment plant, these valves control how the water goes through the different steps, like filtering, chemical treatment, and distribution.
Because they are strong, motorised butterfly valves work well in wastewater treatment plants, where conditions are often very tough. Controlling the flow of effluents, handling aeration processes in biological treatment systems, and controlling the release of treated water are some of the things they are used for. In large-scale water management systems, being able to control flow across huge networks from central control rooms is very helpful because these valves can be operated directly.
The spread and control of water in flood control and irrigation systems is crucial thanks to the motorised butterfly valve. Because they work quickly and can handle big pipe diameters, they can be used to meet changing water needs or in emergencies.
HVAC and Building Services
In HVAC (Heating, Ventilation, and Air Conditioning) systems, motorized butterfly valves are essential components for controlling the flow of chilled or hot water in large-scale cooling and heating applications. Because they are small and have low pressure drop, they can be installed in tight places like those found in building service areas.
These valves are often used in chiller systems to control the flow of water through heat exchangers. This makes sure that the best thermal transfer and energy economy happen. In district heating and cooling systems, motorized butterfly valves control the distribution of thermal energy to different buildings or zones, allowing for precise temperature management and load balancing.
Fire protection systems in buildings also benefit from motorized butterfly valves. They are ideal for managing the flow in fire main networks or separating water supplies in sprinkler systems due to their dependable sealing properties and quick-acting nature. Modern structures are safer and more efficient thanks to these valves' ability to be connected to building control systems.
Conclusion
Among the different applications where exact and flexible stream control is required, motorized butterfly valves stand out. Their long life, responsiveness, and sensibility make them profitable in a grouping of settings, tallying the organization of water resources, advancement organizations, and mechanical works out. As technology keeps getting better, these valves will probably get even better at their jobs, being able to work with other devices, and being smart. Engineers and plant managers looking for reliable, effective, and cost-effective ways to control flow can't go wrong with motorized butterfly valves. They can make operations much more efficient and improve process control by a large amount.
