Motorized Ball Valve vs Manual Ball Valve - Efficiency and Cost Comparison

​​​​​​​In demanding oil and gas systems, the choice between a motorized ball valve and a manual ball valve directly affects efficiency, operating cost, and safety. A motorized valve offers automatic control, consistent operation, and better integration with digital systems, which improves efficiency over time but requires higher initial investment and some maintenance of actuators. Manual valves have low purchase cost and very simple design, but they depend on human operation, which limits response speed and may increase labor costs and risk in critical service. In most medium to large facilities, motorized ball valves deliver higher lifecycle efficiency, while manual valves remain useful in low-critical and local isolation points.

​​​​​​​

Core Differences Between Motorized and Manual Ball Valves

How Each Type Works in Real Operations?

A manual ball valve uses a handle or gear operator. The operator turns the ball one quarter turn to open or close the flow. Torque comes from the person in front of the valve. This design is simple and robust. In small lines and non-critical service, a manual valve can run for years with minimal attention.

A motorized ball valve adds an electric actuator. The actuator drives the stem and ball when it receives a control signal. The signal can be on/off or modulating. Operators can control the valve from a control room, remote terminal, or automation system. This design fits modern oil and gas plants that rely on digital control, remote monitoring, and high uptime.

Control, Automation, and Process Stability

Manual valves provide only local, on-site control. An operator must walk to the valve and operate the lever or gearbox. For infrequent operations or safe locations, this is acceptable. In emergency conditions or remote sites, it can cause delays and safety risks.

A motorized ball valve fits directly into DCS or PLC systems. It can open, close, or modulate according to process signals. This improves process stability and reduces variation. Studies in process industries show that automated valves help maintain tighter control bands, which reduces energy waste and increases production efficiency. The ability to operate valves remotely is also vital in remote well pads, pipeline stations, and hazardous areas.

When Simplicity Wins and When It Does Not?

A manual ball valve wins when the system is simple, the medium is not critical, and the valve does not move often. In these cases, the low cost and simple design are attractive. Many small utility lines in plants still use manual isolation valves for this reason.

However, simplicity can become a weakness when the process demands fast or frequent adjustments. Motorized ball valves support automatic sequences, remote shutdown, and real-time optimization. For oil and gas operators who want to reduce manpower in the field and improve safety, the automation advantage usually outweighs the simplicity of manual operation. The choice depends on the risk level and operating pattern of each line.

Efficiency and Lifecycle Cost: Motorized vs Manual

Operational Efficiency and Response Time

Manual ball valves depend on human availability. In a large field, an operator may need several minutes or more to reach a valve. During an upset, these minutes can cause product loss, equipment damage, or safety incidents. In daily operation, manual steps slow down startup and shutdown sequences.

A motorized ball valve can respond in seconds. Electric actuators often operate between 5-30 seconds depending on size and torque needs, and they start at once when the control system sends a command. This speed improves safety for emergency shutdown and supports optimized sequences during normal operation. Faster, automated response reduce.

Labor, Safety, and Human Error

Manual operation needs people in the field. In safe environments, this is manageable, but in high-pressure or sour service, every trip to a valve adds risk. Workers must wear protective equipment, follow procedures, and work near potential hazards. Human error can lead to incorrect valve position, which impacts safety and product quality.

Motorized ball valves reduce the number of site visits. Operators control many valves from a protected control room. This lowers exposure to hazardous areas and reduces the chance of wrong operation. Risk studies in process plants show that automation, when combined with proper safeguards, lowers human-factor incidents. For global oil and gas projects, this safety benefit is a key driver for choosing automated valves.

Total Cost of Ownership: Beyond Purchase Price

A manual ball valve normally has the lowest purchase price. It has fewer parts and no actuator. For small or non-critical services, this may be the economical choice. However, the cost of repeated manual operation, field inspections, and emergency response grows over time.

A motorized ball valve has higher initial cost because of the actuator and control accessories. Yet, it can cut operational expenditure. It saves labor hours, improves process yield, and reduces downtime. For remote sites, the savings from fewer trips can be substantial. Total cost of ownership should include purchase price, installation, power use, maintenance, and the financial impact of reliability. In many medium and large facilities, automated ball valves deliver a lower cost per year over their full service life.

Technical Selection for Oil and Gas Systems

Key Criteria: When to Choose Motorized vs Manual?

In high-risk and high-value lines, such as wellhead flow lines, export pipelines, and critical process units, a motorized ball valve is usually preferable. These lines need fast isolation, remote control, and integration with safety systems. The additional investment in automation protects people and assets.

Manual ball valves remain suitable for drain lines, vents, and local isolation that are not part of safety instrumented functions. If a valve operates rarely and failure has limited impact, manual control may be enough. A good practice is to use motorized valves for critical control and shutdown points and manual valves for simple, low-risk duties along the same network.

Materials, Standards, and Performance Testing

Regardless of actuation type, the ball valve itself must meet strict technical requirements. In oil and gas service, valves must handle high pressure, variable temperatures, and corrosive or erosive media. Materials for body, ball, stem, and seats must match these conditions to maintain tight shutoff and long life.

International standards and performance tests confirm this capability. Pressure tests, fugitive emission tests, and endurance cycles are used to validate design. Advanced performance tests under varying pressure and temperature help ensure stable operation across the full envelope. Selecting valves built under recognized quality systems and certified product standards reduces the risk of premature failure and leakage.

Why Your Valve Manufacturer Matters?

The difference between a reliable motorized ball valve and a weak one often lies in the manufacturer's expertise. A supplier that focuses on oil and gas applications understands wellhead service, pipeline operation, and control system integration. They can propose the right actuator sizing, torque margins, and fail-safe logic.

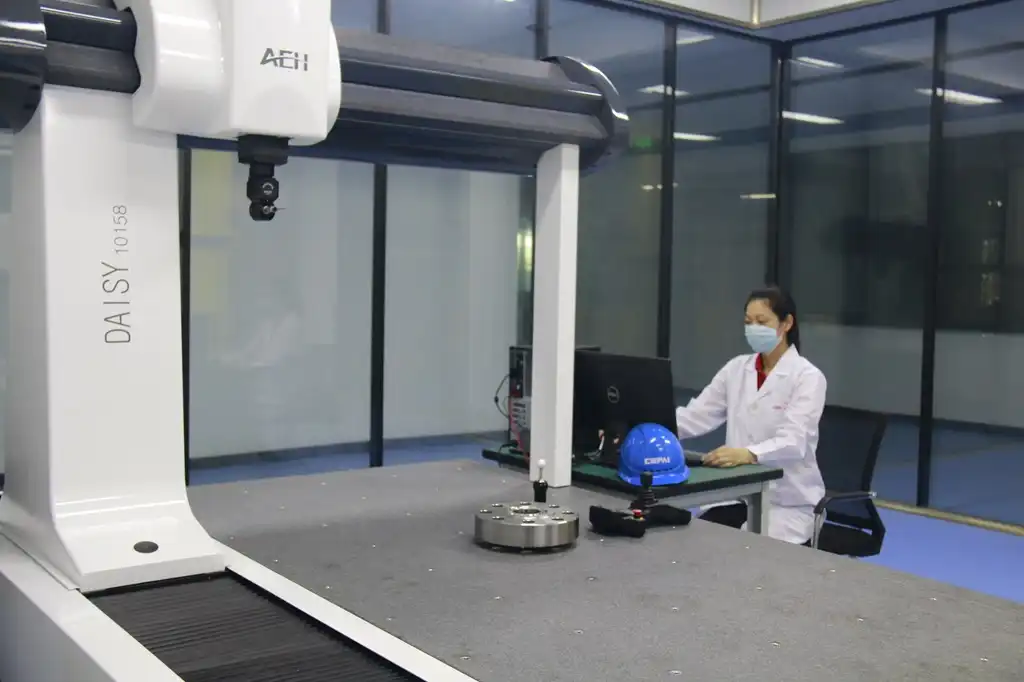

A strong factory also maintains modern machining, assembly, and testing facilities. It operates under strict management systems and holds recognized product certifications. For operators, this means consistent performance, traceability, and technical support during the whole lifecycle. When you choose a ball valve, you are not only buying a component, you are choosing an engineering partner for your project.

Conclusion

A motorized ball valve offers clear advantages in efficiency, safety, and automation, especially in critical oil and gas applications and remote sites. Manual ball valves still play an important role in low-risk, local isolation, and simple systems. The best solution balances purchase cost, operational efficiency, labor savings, and risk. Reliability and lifecycle value depend not only on actuation type but also on correct selection, standards compliance, and the strength of the valve manufacturer.

FAQs

Is a motorized ball valve always more cost-effective than a manual valve?

Not always. For small lines with rare operation and low risk, a manual valve may be more economical. As soon as you need frequent operation, remote control, or safety integration, a motorized design usually gives better long-term value.

Do motorized ball valves require a complex control system?

No. They can work with simple on/off control or with advanced DCS and PLC systems. The level of complexity depends on your process and automation goals.

How does a motorized valve improve safety?

It allows remote operation from a safe area. It can also link to emergency shutdown logic and sensors. This reduces exposure of personnel and shortens response time.

Are manual ball valves still used in modern plants?

Yes. They are common for drains, vents, and non-critical isolation points. They are simple and cost-effective for these duties.

What information should I prepare before choosing between motorized and manual?

You should know pressure, temperature, medium, pipe size, location, frequency of operation, and whether the valve will be part of a safety or control system. This helps an engineering team design the most suitable solution.

Work With a Qualified Manufacturer | CEPAI

For global oil and gas projects, the right balance between motorized ball valve solutions and manual ball valves depends on both technical and economic factors. CEPAI acts as a professional valve manufacturer, factory, and supplier, focused on wellhead equipment, pipeline valves, and regulating valves. We help you evaluate efficiency, cost, and risk for each application and provide engineered ball valve packages matched to your standards and operating conditions. For technical support or inquiries, please contact cepai@cepai.com.
