Maintenance Checklist for Pneumatic Butterfly Valves

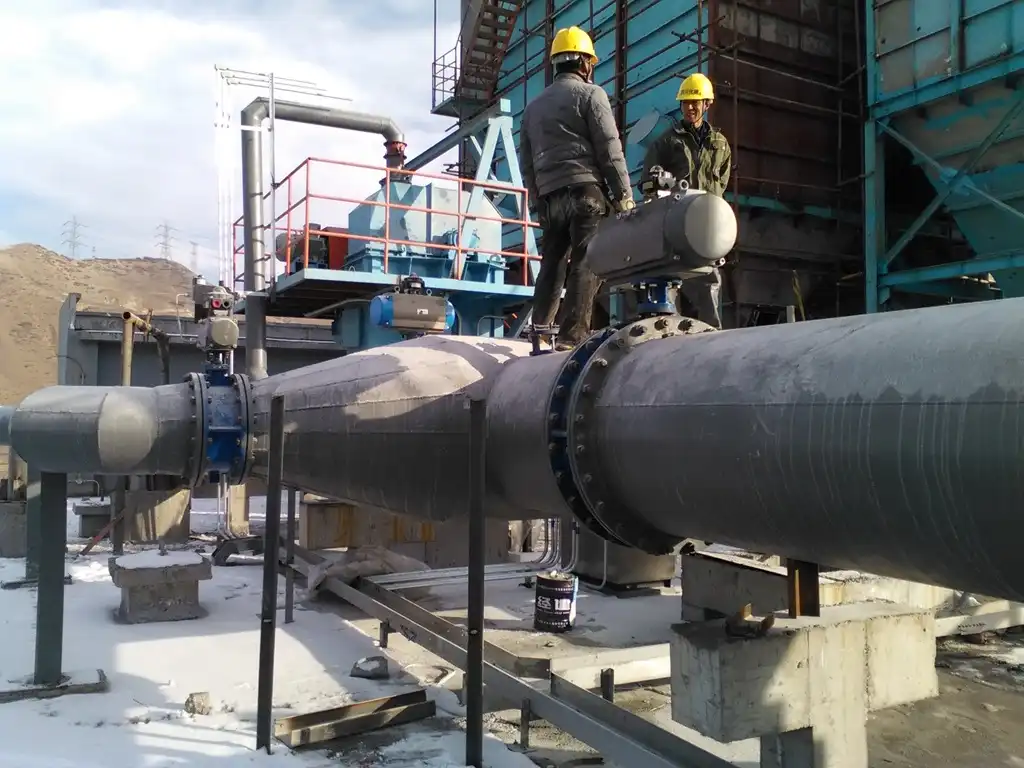

Pneumatic butterfly valves demand regular upkeep to perform reliably in demanding environments like oil drilling sites. Start with visual inspections for leaks or damage every month. Check actuator air pressure and lubricate moving parts quarterly. Test operation cycles to ensure smooth disc rotation. Clean internal components to remove debris, and verify seals for wear. Monitor pneumatic lines for blockages or corrosion. Replace filters in the air supply system as needed. Calibrate controls to match system requirements. Document all actions for compliance. This checklist prevents breakdowns, extends valve life, and maintains safety. In global operations, sticking to these steps avoids costly interruptions. Adapt the routine based on usage intensity - harsh conditions might call for more frequent checks. By following this guide, you keep your pneumatic butterfly valve efficient and dependable.

​​​​​​​

Essential Components and Their Maintenance Needs

Pneumatic butterfly valves rely on several key parts that work together for effective flow control. Understanding these elements helps in crafting a solid maintenance plan. The disc, stem, body, and actuator each play unique roles, especially in pipeline systems for oil and gas. Neglect can lead to failures, so targeted care is vital. This section outlines what to watch for and how to maintain them. With insights from valve research, you'll gain practical knowledge to enhance durability.

Inspecting the Valve Disc and Stem

The disc in a pneumatic butterfly valve pivots to regulate fluid passage, while the stem connects it to the actuator. Over time, abrasion from gritty media can cause scoring on the disc surface, leading to inefficient sealing. Examine the disc for pitting or uneven wear during shutdowns. Use non-destructive testing methods like ultrasonic checks to detect hidden flaws. The stem requires alignment verification to prevent binding, which strains the actuator. Apply anti-seize compounds sparingly to threads. In high-vibration settings, such as wellhead installations, secure fasteners to avoid loosening. Professional servicing involves torque specifications from certified guidelines, ensuring the assembly withstands pressures up to 1500 psi. This detailed approach minimizes operational risks and supports consistent performance in industrial flows.

Maintaining the Valve Body and Seals

The body houses the internal mechanisms, often crafted from alloys resistant to corrosion in chemical-laden environments. Seals prevent leaks by forming a barrier around the disc edges. Check the body for cracks or erosion, particularly in areas exposed to turbulent flows. Elastomer seals degrade from temperature fluctuations, so assess their elasticity and replace if hardened. Use compatible materials like Viton for hydrocarbon resistance. Cleaning involves flushing with mild solvents to clear residues without damaging surfaces. In manufacturing contexts, hydrostatic testing post-maintenance confirms integrity under simulated conditions. This rigorous process, aligned with API standards, safeguards against failures in critical pipeline valves, promoting longevity and reliability across global applications.

Caring for the Pneumatic Actuator

The actuator uses compressed air to drive valve movement, featuring pistons, springs, and solenoids. Air quality issues, like moisture or particulates, can impair function. Drain condensate from supply lines weekly and inspect filters for clogging. Test solenoid response times to ensure rapid actuation, crucial for emergency shutoffs. Lubricate cylinder walls with approved oils to reduce friction. Calibration involves adjusting limit switches for precise positioning. In research-driven designs, actuators incorporate fail-safe mechanisms that default to closed positions during power loss. Detailed logs of pressure readings help predict wear patterns, allowing preemptive replacements. This methodical upkeep enhances actuator efficiency in automated control systems for oil production.

Step-by-Step Maintenance Procedures

Implementing a structured maintenance routine for pneumatic butterfly valves turns potential problems into manageable tasks. These procedures draw from proven practices in valve manufacturing and service. They cover daily, weekly, and annual activities to keep systems humming. Adapt them to your specific setup, whether in remote drilling rigs or processing plants. This hands-on guidance boosts confidence in handling these devices.

Daily and Weekly Checks

Begin each day with a quick scan for external leaks around the valve body and connections. Listen for unusual hissing from pneumatic lines, indicating air escapes. Weekly, cycle the valve through open and closed positions, noting any hesitation. Measure air pressure at the actuator inlet, ensuring it stays within 60-100 psi for most models. Wipe down exposed surfaces to remove dust that could enter seals. In seller networks, these habits extend warranty periods by demonstrating proper care. Detailed checklists with timestamps encourage team accountability, reducing oversight in busy operations. This consistent vigilance catches minor issues before they escalate, preserving flow control accuracy in gas production lines.

Quarterly Deep Inspections

Every three months, isolate the valve and disassemble for internal review. Examine the disc for alignment and clean off any buildup using soft brushes. Test seal compression with feeler gauges to confirm tightness. For the actuator, disassemble and inspect O-rings for tears, replacing as necessary. Run diagnostic tests on control signals to verify response accuracy. In service provider roles, these inspections often include thermal imaging to spot hot spots from friction. Reassemble with fresh gaskets and torque bolts to specified values. This thorough protocol, rooted in engineering standards, fortifies the valve against harsh conditions, ensuring seamless integration in wellhead devices.

Annual Overhauls and Testing

Once a year, conduct a full overhaul, including pressure testing to rated limits. Remove the actuator for bench testing, simulating operational cycles. Replace worn components like springs or diaphragms proactively. Hydrotest the assembly to detect leaks under high pressure. Calibrate instrumentation linked to the valve for precise feedback. In global manufacturing, these overhauls align with certification renewals, verifying compliance. Document findings in detailed reports for trend analysis. This comprehensive strategy not only extends service life but also optimizes performance in regulating valves for energy sectors, minimizing unexpected downtimes.

Best Practices for Long-Term Reliability

To achieve enduring performance from pneumatic butterfly valves, adopt habits that go beyond basic maintenance. These practices stem from innovation in valve development and real-world applications. They focus on prevention, training, and technology integration. By embedding them into your operations, you elevate efficiency and safety. This section shares actionable insights for sustained success.

Training and Safety Protocols

Equip teams with knowledge on valve mechanics through hands-on workshops. Cover safe disassembly techniques to avoid injury from pressurized components. Emphasize lockout-tagout procedures during maintenance. Simulate failure scenarios to build troubleshooting skills. In researcher communities, ongoing education incorporates latest advancements in materials. Certify personnel under industry standards to handle complex setups. This investment in human capital reduces errors, fostering a culture of precision in oilfield services. Detailed protocols ensure compliance with occupational safety norms, protecting both workers and equipment in high-stakes environments.

Using Quality Parts and Tools

Opt for replacement parts that match original specifications, sourced from certified suppliers. Tools like calibrated torque wrenches prevent over-tightening. Invest in diagnostic equipment for accurate measurements. In factory settings, quality assurance involves traceability of components. Avoid generic substitutes that compromise integrity. This approach, backed by rigorous testing, upholds valve performance in demanding applications. Proper tooling minimizes damage during repairs, extending operational spans in pipeline systems.

Monitoring and Record-Keeping

Deploy sensors to track valve metrics in real-time, alerting to anomalies. Maintain digital logs of all maintenance activities, including photos of conditions. Analyze data for patterns that predict failures. In service networks, cloud-based systems enable remote oversight. This proactive monitoring, integrated with IoT, enhances predictive maintenance. Accurate records support warranty claims and regulatory audits, building trust in global markets. Such diligence ensures pneumatic butterfly valves remain reliable assets in energy production.

Conclusion

Pneumatic butterfly valves thrive with consistent maintenance, from daily checks to annual overhauls. Focus on components like discs, seals, and actuators to prevent issues. Adopt best practices in training and monitoring for lasting reliability. These steps cut costs and boost safety in oil and gas operations. Remember, quality parts and thorough records make all the difference. For expert guidance or superior valves, connect with specialists dedicated to innovation. Your systems will thank you with uninterrupted performance.

FAQs

1. How often should I inspect a pneumatic butterfly valve?

Daily for basics, quarterly for deeper checks, and annually for overhauls.

2. What signs indicate actuator problems?

Hissing sounds or slow responses point to air leaks or blockages.

3. Can I use any lubricant on the stem?

Stick to manufacturer-recommended types to avoid contamination.

4. Are these valves good for high-temperature gas lines?

Yes, with proper materials, they handle elevated conditions effectively.

5. How do I test for leaks?

Pressurize the system and watch for drops or visible escapes.

6. What's the role of seals in maintenance?

They prevent leaks, so check and replace regularly.
