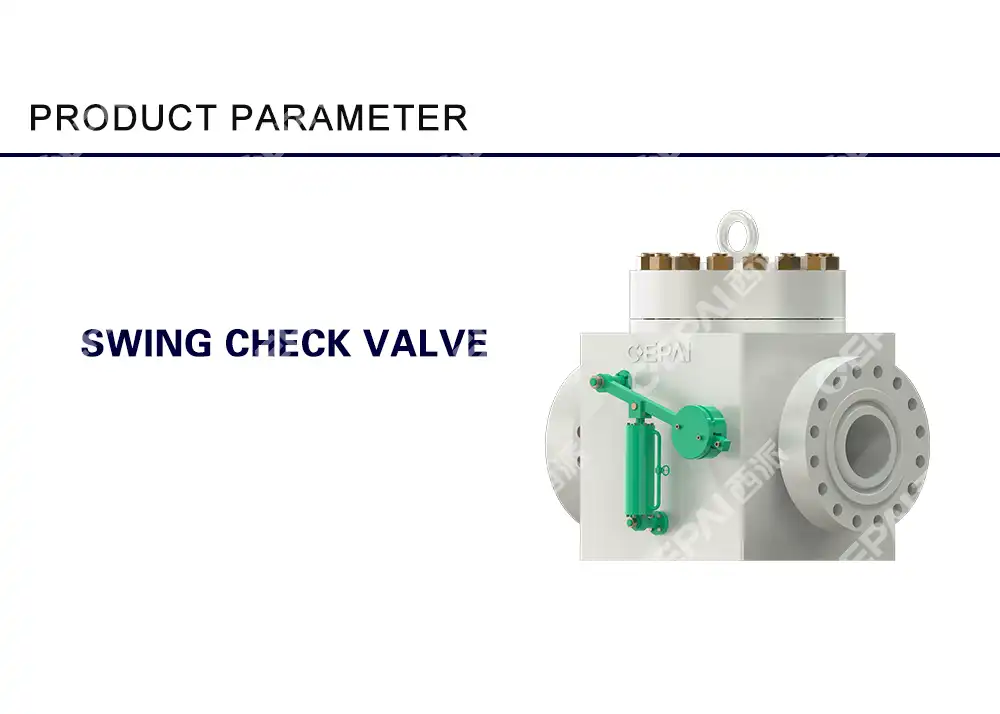

Design and Construction Standards for Swing Check Valves
Material Selection and Compatibility
The selection of appropriate materials for swing check valve construction is paramount to ensure longevity and performance in diverse operating conditions. Industry standards dictate the use of corrosion-resistant alloys, such as stainless steel or bronze, for valve bodies and internals. These materials must be compatible with the fluids they will encounter, resisting chemical attack and erosion. For instance, in oil and gas applications, valves may need to withstand hydrogen sulfide, requiring compliance with NACE MR0175 standards for sulfide stress cracking resistance.
Moreover, the chosen materials must maintain their integrity across a wide range of temperatures and pressures. This necessitates careful consideration of factors like thermal expansion coefficients and yield strengths. High-temperature applications may call for special alloys or coatings to prevent seizing or galling of moving parts. The valve's pressure class, typically specified in accordance with ASME B16.34, further influences material selection to ensure structural integrity under maximum operating conditions.
Dimensional Requirements and Tolerances
Precision in manufacturing is critical for swing check valves to function properly and integrate seamlessly into piping systems. Industry standards such as API 6D and ASME B16.10 establish strict dimensional requirements and tolerances for valve end-to-end dimensions, flange-to-flange lengths, and bore diameters. These standards ensure interchangeability and compatibility with other components in the pipeline system.
Tolerances for critical dimensions, such as seat angles and disc travel, are tightly controlled to guarantee proper sealing and flow characteristics. The clearance between the disc and body must be carefully engineered to minimize turbulence while allowing for smooth operation. Additionally, standards may specify requirements for internal geometries, such as flow path contours, to optimize hydraulic performance and reduce pressure drop across the valve.
Pressure Ratings and Wall Thickness Calculations
The pressure-retaining capability of swing check valves is a critical safety consideration governed by industry standards. ASME B16.34 provides guidelines for determining the minimum wall thickness required for valve bodies based on design pressure, temperature, and material properties. These calculations ensure that the valve can withstand the maximum allowable working pressure (MAWP) with an appropriate safety factor.
Pressure ratings are typically categorized into classes, such as ANSI 150, 300, or 600, which define the maximum allowable non-shock pressures at various temperatures. The valve's pressure-temperature ratings must be clearly marked on the body, as mandated by standards like API 6D. Furthermore, hydrostatic shell testing is required to verify the valve's ability to withstand pressures well above its rated working pressure, typically at 1.5 times the maximum allowable pressure at room temperature.
Performance and Testing Requirements for Swing Check Valves
Seat Leakage Classification and Testing
Seat leakage is a critical performance parameter for swing check valves, as it directly impacts their ability to prevent backflow. The ANSI/FCI 70-2 standard establishes leakage classifications ranging from Class I (most permissive) to Class VI (most stringent). Each class specifies the maximum allowable leakage rate under various test conditions. For example, a Class IV valve might allow up to 0.01% of the rated capacity, while a Class VI valve must exhibit zero visible leakage.
Testing procedures for seat leakage typically involve applying air or water pressure against the closed disc and measuring any fluid passage over a specified time period. The test pressure and duration are determined by the valve's pressure class and intended service. For high-performance applications, such as in critical process control systems, manufacturers may need to demonstrate compliance with more stringent leakage criteria than the standard classifications.
Flow Coefficient (Cv) Determination
The flow coefficient, or Cv, is a crucial performance metric for swing check valves, indicating the valve's capacity to pass fluid. Industry standards, such as ISA 75.02, provide guidelines for determining and reporting Cv values. This coefficient is typically measured by flowing water through the fully open valve at a specified pressure differential and comparing the flow rate to a reference orifice.
Accurate Cv values are essential for proper valve sizing and system design. They allow engineers to calculate pressure drops, flow rates, and velocity profiles within the piping system. Standards may require manufacturers to provide Cv data across various disc positions, from fully open to near-closed, to facilitate comprehensive system analysis. Additionally, some applications may necessitate specific Cv requirements to ensure optimal system performance and energy efficiency.
Cyclic Life and Durability Testing
Swing check valves in demanding applications must withstand repeated cycling without performance degradation. Industry standards often specify cyclic life testing requirements to validate the valve's durability. These tests involve subjecting the valve to a predetermined number of open-close cycles under various pressure and temperature conditions.
For example, API 6D may require valves to undergo a minimum number of cycles without exhibiting excessive wear or leakage. The specific test parameters, such as cycle count and operating conditions, are often tailored to the valve's intended service. High-cycle applications, like those in pump discharge lines, may necessitate more rigorous testing protocols. Manufacturers must demonstrate that critical components, such as hinge pins, bearings, and sealing surfaces, maintain their integrity throughout the valve's expected service life.
Quality Assurance and Certification Standards for Swing Check Valves
Manufacturing Process Controls
Ensuring consistent quality in swing check valve production requires stringent manufacturing process controls. Industry standards like ISO 9001 provide a framework for quality management systems that manufacturers must implement. These controls encompass every aspect of production, from raw material inspection to final assembly and testing.
Key process control measures include material traceability, where each component's origin and properties are documented throughout the manufacturing process. Welding procedures must be qualified according to standards such as ASME Section IX, with welders certified to perform specific processes. Precision machining operations are monitored using statistical process control (SPC) techniques to maintain dimensional accuracy within specified tolerances. Heat treatment processes, critical for achieving the required material properties, are carefully controlled and documented to ensure consistency.
Non-Destructive Examination (NDE) Requirements
Non-destructive examination techniques play a vital role in verifying the integrity of swing check valves without compromising their functionality. Industry standards specify the types and extent of NDE required based on the valve's pressure class, material, and intended service. Common NDE methods include radiographic testing (RT), ultrasonic testing (UT), magnetic particle inspection (MPI), and liquid penetrant testing (PT).
For example, API 6D mandates specific NDE requirements for different valve components. Pressure-retaining castings may require 100% radiographic examination to detect internal defects. Critical areas such as weld joints and sealing surfaces often undergo surface examination using MPI or PT to identify surface-breaking flaws. The acceptance criteria for these examinations are rigorously defined, ensuring that only valves meeting the highest quality standards enter service. Additionally, some industries may require supplementary NDE, such as positive material identification (PMI), to verify the chemical composition of critical components.
Documentation and Traceability Standards
Comprehensive documentation and traceability are essential aspects of quality assurance for swing check valves. Industry standards mandate the creation and maintenance of detailed records throughout the valve's lifecycle. This documentation serves multiple purposes, including regulatory compliance, quality verification, and facilitating future maintenance or replacement.
Manufacturers must provide material test reports (MTRs) for all pressure-retaining components, certifying their chemical composition and mechanical properties. These reports ensure that the materials used meet the specified requirements and are traceable to their origin. Valves are typically marked with unique serial numbers that link them to their manufacturing and testing records. The documentation package may include dimensional reports, NDE results, pressure test certificates, and performance test data.
Standards such as API 6D and ASME B16.34 specify the minimum documentation requirements for different valve types and pressure classes. For critical applications, end-users may require additional documentation, such as weld maps, heat treatment charts, or specific material certifications. This comprehensive documentation not only demonstrates compliance with industry standards but also provides valuable information for installation, operation, and maintenance throughout the valve's service life.
Conclusion
Adherence to key industry standards is paramount for swing check valves to ensure safety, reliability, and performance across various applications. From design and construction to performance testing and quality assurance, these standards provide a comprehensive framework for manufacturers and end-users alike. By meeting these rigorous requirements, swing check valves can effectively fulfill their critical role in preventing backflow and maintaining system integrity. As technology and industry needs evolve, these standards continue to be refined, driving ongoing improvements in valve design and manufacturing processes.
