Evolution of Triple Offset Valve Design
Advancements in Sealing Technology
The heart of triple offset valve innovation lies in its sealing technology. Modern designs incorporate advanced materials like graphite-reinforced PTFE and metal-to-metal seals with nano-surface treatments. These improvements have drastically reduced leakage rates, even in high-pressure and high-temperature environments. The use of specialized alloys in seal construction has also extended valve lifespan, reducing maintenance frequency and associated costs.
Optimized Flow Characteristics
Engineers have refined the internal geometry of triple offset valves to optimize flow characteristics. By employing computational fluid dynamics (CFD) simulations, valve designers have created contours that minimize turbulence and pressure drop. This optimization not only improves overall system efficiency but also reduces wear on valve components, extending operational life and reliability.
Weight Reduction and Compact Design
Innovation in materials and manufacturing processes has led to lighter yet stronger valve bodies. The use of high-strength alloys and advanced casting techniques has resulted in more compact designs without compromising structural integrity. These lighter valves are easier to install and maintain, particularly in offshore or remote installations where space and weight constraints are critical factors.
Integration of Smart Technologies in Valve Operations
Advanced Monitoring and Diagnostics
The integration of smart sensors and IoT technology has transformed triple offset valves into intelligent components within industrial systems. These sensors continuously monitor valve position, temperature, and pressure, providing real-time data on valve performance. Advanced algorithms analyze this data to predict maintenance needs, optimize operation, and prevent unexpected failures. This predictive maintenance approach significantly reduces downtime and enhances overall plant reliability.
Remote Operation and Control

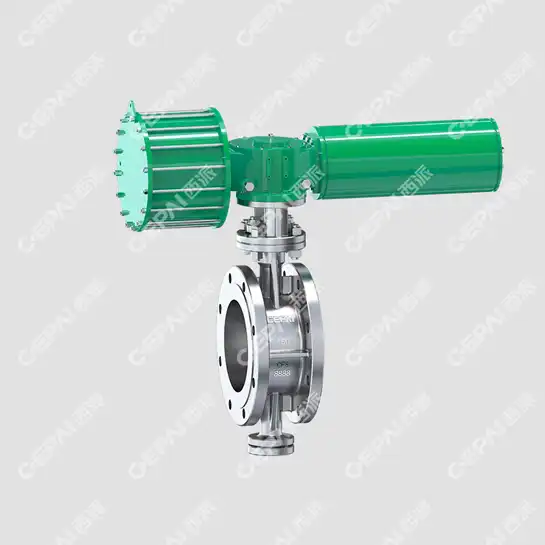

Modern triple offset valves now feature sophisticated actuators that enable remote operation and precise control. These actuators, often pneumatic or electric, can be integrated with plant-wide control systems, allowing for centralized management of valve operations. The ability to remotely adjust valve settings in response to changing process conditions enhances operational flexibility and safety, particularly in hazardous environments.
Energy Efficiency and Environmental Impact
Smart technologies have also contributed to improving the energy efficiency of triple offset valves. Advanced control algorithms optimize valve positioning to reduce energy consumption in pumping and compression systems. Additionally, improved sealing and control capabilities minimize fugitive emissions, aligning with stringent environmental regulations and sustainability goals in industries like oil and gas and chemical processing.
Material Innovations Enhancing Valve Performance
High-Performance Alloys
The development of high-performance alloys has revolutionized the capabilities of triple offset valves in demanding environments. Nickel-based superalloys, duplex, and super duplex stainless steels provide exceptional resistance to oxidation, corrosion, and creep at elevated temperatures. These properties are essential in applications involving aggressive chemicals or extreme thermal cycling, such as petrochemical refining, steam distribution, and nuclear power generation. The improved strength-to-weight ratio and enhanced durability of these materials also reduce maintenance intervals, extend service life, and lower the total cost of ownership over time.
Composite Materials in Valve Components
The introduction of composite materials, particularly carbon fiber reinforced polymers (CFRP), has opened new frontiers in valve engineering. These materials are now used for non-pressure retaining components, such as actuators, yokes, and housings, offering substantial weight savings without sacrificing structural integrity. Their inherent resistance to thermal expansion and excellent fatigue performance make them ideal for valves exposed to rapid temperature fluctuations. Additionally, composites allow for greater design flexibility, enabling more efficient and compact valve geometries that improve performance while simplifying installation and handling in complex systems.
Surface Engineering and Coatings
Advanced surface engineering techniques have greatly enhanced the durability and performance of triple offset valve components. Coatings like diamond-like carbon (DLC), tungsten carbide, and ceramic composites are applied through processes such as PVD or thermal spraying to critical surfaces, including sealing edges and shafts. These ultra-hard coatings reduce wear, prevent galling, and minimize friction under severe operating conditions. In metal-to-metal seated valves, such treatments significantly improve sealing reliability and resistance to erosion, especially in abrasive or corrosive media, ultimately ensuring longer operational life and reduced maintenance frequency.
Conclusion
The continuous innovation in triple offset valve technology represents a significant leap forward in industrial flow control. From enhanced sealing capabilities and optimized flow characteristics to the integration of smart technologies and advanced materials, these innovations have elevated the performance, reliability, and efficiency of industrial processes. As industries continue to evolve, triple offset valves are poised to play an increasingly critical role in meeting the demands for precision, safety, and sustainability in fluid handling applications.
