Understanding HVAC Butterfly Valves: Types and Applications
Butterfly Valve Basics: Design and Operation
Butterfly valves are quarter-turn rotational valves that consist of a disc mounted on a rotating shaft. When the valve is fully open, the disc is parallel to the flow, allowing maximum passage of air or fluid. As the disc rotates to the closed position, it gradually restricts flow until it completely seals the pipe. This simple yet effective design makes butterfly valves popular in HVAC systems for their compact size, quick operation, and ability to handle large flow volumes.

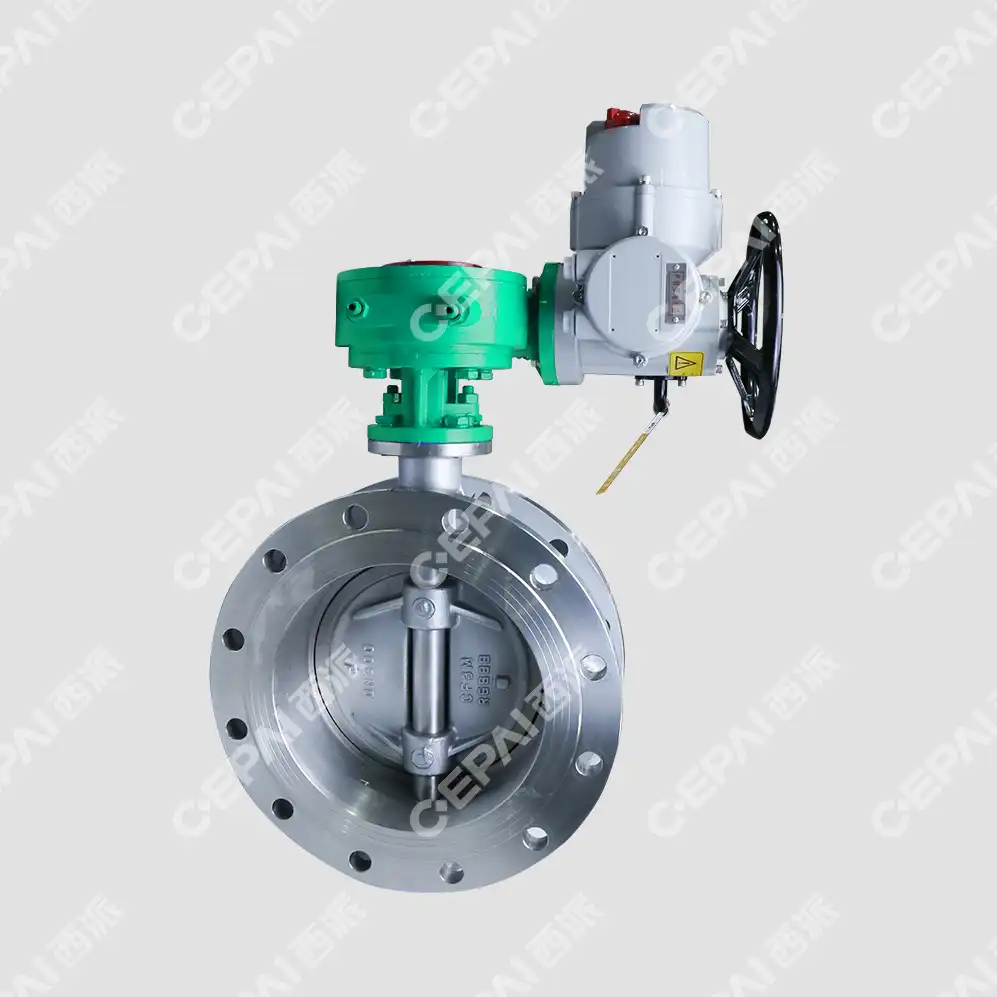

The key components of a butterfly valve include the body, disc, seat, stem, and actuator. The body houses the internal parts and connects to the piping system. The disc is the primary flow control element, while the seat provides a seal when the valve is closed. The stem transmits rotational force to the disc, and the actuator controls the valve's position.
Common Types of HVAC Butterfly Valves
Several types of HVAC butterfly valve are used in HVAC applications, each with unique characteristics suited for specific requirements:
- Concentric Butterfly Valves: These valves have a centered disc that rotates on a shaft passing through its center. They are cost-effective and suitable for low-pressure applications.
- Double-Offset Butterfly Valves: Also known as double-eccentric valves, these feature a slightly offset disc and shaft arrangement, reducing wear and providing better sealing.
- Triple-Offset Butterfly Valves: These valves offer the highest level of sealing and are ideal for high-pressure and high-temperature applications.
- Resilient Seated Butterfly Valves: These valves use a flexible seat material, typically rubber or elastomer, to provide a tight seal and are commonly used in HVAC systems.
- High-Performance Butterfly Valves: Designed for demanding applications, these valves offer enhanced durability, precision control, and tight shut-off capabilities.
Applications in HVAC Systems
Butterfly valves serve various functions in HVAC systems, including:
- Isolation: Butterfly valves can quickly shut off flow for maintenance or emergency situations.
- Flow Control: By adjusting the disc position, these valves regulate the flow rate in air handling units, chillers, and cooling towers.
- Balancing: Butterfly valves help balance flow distribution in complex HVAC networks, ensuring proper system performance.
- Zone Control: In large buildings, butterfly valves can control airflow to different zones or floors, optimizing comfort and energy efficiency.
- Mixing: In some applications, butterfly valves are used to mix hot and cold water streams for temperature control.
Understanding these applications helps in selecting the most appropriate butterfly valve for specific HVAC requirements, ensuring optimal system performance and longevity.
Key Factors in Selecting the Right HVAC Butterfly Valve
Sizing and Pressure Considerations
Proper sizing is critical when selecting an HVAC butterfly valve. The valve size should match the pipe diameter and be capable of handling the required flow rate without excessive pressure drop. Undersized valves can restrict flow and cause system inefficiencies, while oversized valves may lead to poor control and increased costs.
Consider the following factors when sizing butterfly valves:
- Flow Rate: Determine the maximum and minimum flow rates the valve needs to handle.
- Pressure Drop: Calculate the acceptable pressure loss across the valve to maintain system efficiency.
- Velocity: Ensure the flow velocity through the valve is within recommended limits to prevent erosion and noise.
- Cv Value: This coefficient represents the valve's flow capacity and is essential for accurate sizing.
Pressure rating is another crucial consideration. HVAC butterfly valves must withstand the maximum system pressure, including any potential pressure surges. Common pressure classes for HVAC applications include ANSI 150, 300, and 600. Always choose a valve with a pressure rating that exceeds the maximum expected system pressure to ensure safety and reliability.
Material Selection and Compatibility
Selecting the right materials for butterfly valve components is essential for longevity and performance in HVAC applications. The choice of materials depends on factors such as the fluid being controlled, temperature range, and environmental conditions.
Common materials used in HVAC butterfly valves include:
- Body: Cast iron, ductile iron, carbon steel, or stainless steel
- Disc: Aluminum bronze, stainless steel, or ductile iron with corrosion-resistant coating
- Seat: EPDM, PTFE, or other elastomers suitable for the specific application
- Stem: Stainless steel or other corrosion-resistant alloys
Consider the following when selecting materials:
- Corrosion Resistance: Choose materials that can withstand the potentially corrosive nature of the fluid or environment.
- Temperature Range: Ensure all components can handle the expected temperature extremes without degradation.
- Chemical Compatibility: Verify that the seat material is compatible with the fluid to prevent swelling, deterioration, or leakage.
- Wear Resistance: Select materials that can withstand the wear and tear of frequent operation, especially for modulating applications.
Actuation and Control Options
The method of actuating and controlling HVAC butterfly valves significantly impacts system performance and energy efficiency. Various actuation options are available, each suited to different applications and control requirements:
- Manual Operators: Handwheels or levers are suitable for infrequently adjusted valves or backup operation.
- Electric Actuators: These provide precise control and are ideal for remote operation and integration with building management systems.
- Pneumatic Actuators: Offer fast response times and are suitable for applications requiring fail-safe operation.
- Hydraulic Actuators: Provide high torque output and are typically used in large valve applications.
When selecting an actuation method, consider:
- Response Time: How quickly the valve needs to open or close.
- Control Precision: The level of accuracy required for flow control.
- Fail-Safe Requirements: Whether the valve should fail open, closed, or in its last position during power loss.
- Integration: Compatibility with existing control systems and protocols.
- Environmental Factors: Temperature, humidity, and potential exposure to corrosive elements.
Additionally, consider the control interface and functionality:
- On/Off Control: Simple open/close operation for isolation applications.
- Modulating Control: Allows for precise flow adjustment, often using 4-20mA or 0-10V control signals.
- Smart Positioners: Provide advanced diagnostics and precise control in critical applications.
- Networked Control: Integration with building automation systems for centralized monitoring and control.
By carefully evaluating these factors, you can select an HVAC butterfly valve that not only meets your immediate flow control needs but also provides long-term reliability and efficiency in your HVAC system.
Installation, Maintenance, and Troubleshooting of HVAC Butterfly Valves
Proper Installation Techniques
Correct installation of HVAC butterfly valves is crucial for optimal performance and longevity. Follow these best practices:
- Alignment: Ensure the valve is properly aligned with the pipe to prevent stress and potential leakage.
- Flange Compatibility: Verify that the valve's flange type and rating match the piping system.
- Clearance: Provide sufficient space around the valve for operation, maintenance, and potential removal.
- Support: Install adequate pipe supports to prevent excessive weight on the valve body.
- Orientation: Mount the valve in the recommended orientation, considering flow direction and actuator position.
- Torque Requirements: Ensure the actuator can provide sufficient torque throughout the valve's operating range.
During installation, avoid common pitfalls such as over-tightening bolts, misaligning gaskets, or installing the valve too close to pipe bends or other fittings that may disrupt flow patterns.
Maintenance Strategies for Longevity
Regular maintenance is essential to ensure the continued performance and reliability of HVAC butterfly valves. Implement a comprehensive maintenance strategy that includes:
- Periodic Inspections: Regularly check for signs of wear, corrosion, or leakage.
- Lubrication: Apply appropriate lubricants to moving parts as recommended by the manufacturer.
- Seat and Seal Checks: Inspect and replace seals and seats as needed to maintain tight shut-off.
- Actuator Maintenance: Service actuators according to manufacturer guidelines, including checking electrical connections and pneumatic systems.
- Cleaning: Remove any buildup or debris that could affect valve operation or flow characteristics.
- Functional Testing: Regularly cycle the valve through its full range of motion to ensure smooth operation.
Implement a preventive maintenance schedule based on valve criticality, operating conditions, and manufacturer recommendations. This proactive approach can significantly extend valve life and reduce the risk of unexpected failures.
Troubleshooting Common Issues
Even with proper installation and maintenance, HVAC butterfly valves may occasionally experience issues. Here are some common problems and troubleshooting steps:
Leakage:
- Check for proper disc alignment and seating
- Inspect seat and disc for damage or wear
- Verify correct torque on body bolts
- Ensure the valve is fully closed when shut off
Difficulty in Operation:
- Check for obstructions in the valve or pipeline
- Verify actuator functionality and power supply
- Inspect for stem damage or misalignment
- Lubricate moving parts if necessary
Excessive Noise or Vibration:
- Ensure the valve is properly sized for the application
- Check for cavitation or flashing conditions
- Verify correct installation orientation
- Inspect for loose components or mounting hardware
Control Issues:
- Calibrate actuator and control signals
- Check for electrical or pneumatic supply problems
- Verify proper valve characteristic for the application
- Ensure control system is properly tuned
When troubleshooting, always consult the manufacturer's documentation and follow proper safety procedures. For complex issues or when in doubt, seek assistance from qualified technicians or the valve manufacturer to ensure proper resolution and maintain system integrity.
Conclusion
Choosing the right HVAC butterfly valve is crucial for maintaining optimal flow control in heating, ventilation, and air conditioning systems. By understanding the types, applications, and key selection factors of butterfly valves, you can make informed decisions that enhance system performance and energy efficiency. Proper installation, regular maintenance, and effective troubleshooting practices ensure the longevity and reliability of these essential components. As HVAC technology continues to evolve, staying informed about the latest advancements in butterfly valve design and control strategies will help you maximize the benefits of these versatile flow control devices in your HVAC applications.
