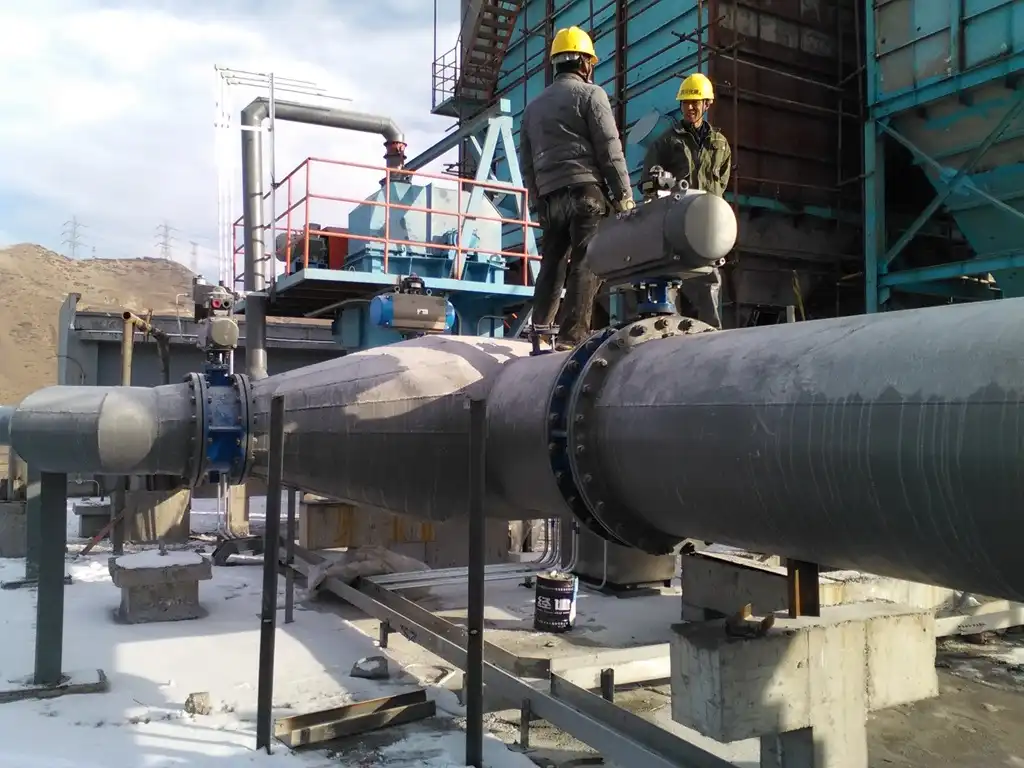

Understanding Electric V-type Ball Valve Basics
Design and Operation Principles
Electric V-type ball valves are sophisticated flow control devices that combine the benefits of traditional ball valves with advanced V-port technology. The V-shaped opening in the ball allows for more precise flow control compared to standard ball valves. These valves operate by rotating a ball with a V-shaped notch, which gradually increases or decreases the flow area as the valve opens or closes. This design enables better throttling capabilities and improved flow characteristics across various operating conditions.
Advantages in Precision Systems
In precision systems, electric V-type ball valves offer several advantages. Their unique design allows for excellent flow control even at low flow rates, making them ideal for applications requiring fine adjustments. The V-port configuration provides a more linear flow characteristic, which enhances controllability and reduces the risk of cavitation. Additionally, these valves typically have a lower pressure drop compared to other valve types, contributing to overall system efficiency.
Key Components and Features
Electric V-type ball valves consist of several critical components that contribute to their performance. The valve body houses the ball and seats, while the V-port ball itself is the primary flow control element. High-quality seals ensure leak-tight shutoff, and the electric actuator provides precise positioning of the ball. Advanced features may include position feedback sensors, fail-safe mechanisms, and smart diagnostics capabilities. Understanding these components is crucial when sizing the valve, as each element plays a role in determining the valve's overall performance and suitability for specific applications.
Factors Influencing Valve Sizing
Flow Rate and Pressure Considerations
When sizing an electric V-type ball valve, flow rate and pressure are paramount considerations. The valve must be capable of handling the maximum expected flow rate while maintaining the desired pressure drop across the valve. It's essential to consider both normal operating conditions and potential peak demands. Undersizing can lead to excessive pressure drop and reduced flow capacity, while oversizing may result in poor control and increased costs. Analyzing historical flow data and future projections helps in determining the optimal valve size that can accommodate varying system demands.
Fluid Properties and System Requirements
The properties of the fluid being controlled significantly impact valve sizing. Viscosity, density, and temperature all affect how the fluid behaves as it passes through the valve. Highly viscous fluids may require larger valve sizes to maintain acceptable pressure drops. Corrosive or abrasive fluids necessitate careful material selection to ensure valve longevity. System-specific requirements, such as cleanliness standards in pharmaceutical applications or high-temperature resistance in industrial processes, must also be factored into the sizing equation. Considering these fluid properties and system requirements ensures that the selected valve can perform reliably under all operating conditions.
Rangeability and Control Characteristics
Rangeability, which refers to the ratio between the maximum and minimum controllable flow rates, is a critical factor in valve sizing for precision systems. Electric V-type ball valves typically offer excellent rangeability, allowing for accurate control across a wide range of flow conditions. The control characteristic of the valve, whether it's equal percentage, linear, or modified, must match the system requirements. Equal percentage characteristics are often preferred in process control applications, providing more precise control at lower flow rates. Understanding and matching these characteristics to your system needs ensures optimal performance and control stability throughout the valve's operating range.
Step-by-Step Sizing Methodology
Calculating Flow Coefficient (Cv)
The flow coefficient (Cv) is a crucial parameter in valve sizing, representing the flow capacity of the valve. To calculate Cv, you need to consider the maximum flow rate, pressure differential, and fluid specific gravity. The formula for Cv is: Cv = Q / (N * √(ΔP/G)), where Q is the flow rate, N is a numerical constant based on units, ΔP is the pressure drop, and G is the specific gravity of the fluid. For precision systems, it's often beneficial to select a valve with a Cv slightly higher than the calculated value to allow for future capacity increases and to ensure smooth operation at various flow rates.
Determining Valve Size and Trim
Once the Cv is calculated, the next step is to determine the appropriate valve size and trim. The valve size should be selected based on the calculated Cv and the valve's flow characteristics. It's important to choose a size that allows the valve to operate within its optimal control range, typically between 20% and 80% open. The trim, which includes the ball and seat assembly, should be selected based on the specific application requirements. For precision control, consider opting for a characterized trim that provides more linear flow control across the valve's range of motion.
Selecting the Appropriate Actuator
Choosing the right actuator is essential for achieving precise control with an electric V-type ball valve. The actuator must provide sufficient torque to operate the valve under all conditions, including maximum differential pressure. Consider factors such as required positioning accuracy, speed of response, and duty cycle when selecting an actuator. For precision systems, electric actuators with high-resolution positioning capabilities are often preferred. Additionally, consider features like fail-safe operation, manual override, and compatibility with your control system to ensure seamless integration and reliable performance in your precision application.
Conclusion
Sizing an electric V-type ball valve for precision systems is a critical process that requires careful consideration of multiple factors. By understanding the valve's design principles, analyzing system requirements, and following a structured sizing methodology, you can select a valve that provides optimal performance and control. Remember to account for flow rates, pressure differentials, fluid properties, and system-specific needs when calculating the valve size. Proper sizing not only enhances system efficiency but also extends the valve's lifespan and reduces maintenance costs. With the right approach, you can ensure that your electric V-type ball valve becomes an integral and reliable component of your precision system.
FAQs
1. What makes electric V-type ball valves suitable for precision systems?
Electric V-type ball valves offer excellent throttling capabilities, precise flow control, and a more linear flow characteristic, making them ideal for precision applications.
2. How often should I reassess the sizing of my electric V-type ball valve?
It's recommended to reassess valve sizing whenever there are significant changes in system requirements, flow rates, or fluid properties, typically every 3-5 years or during major system upgrades.
3. Can undersizing or oversizing an electric V-type ball valve affect system performance?
Yes, undersizing can lead to insufficient flow and excessive pressure drop, while oversizing may result in poor control and increased costs. Proper sizing is crucial for optimal system performance.
