How to Select the Triple Eccentric Butterfly Valve and Double Eccentric Butterfly Valve?

Comparative analysis
Jul 19, 2025
|
0

Selecting the right triple eccentric butterfly valve or double eccentric butterfly valve is crucial for optimal performance in oil and gas operations. The choice depends on factors such as operating conditions, pressure ratings, and specific application requirements. For triple eccentric butterfly valves, consider their zero-leakage capabilities, higher pressure ratings, and suitability for extreme temperatures. Double eccentric butterfly valves offer lower torque requirements and improved sealing compared to concentric designs. Evaluate material compatibility, actuation methods, and maintenance needs. Consult with valve experts to ensure the selected valve meets industry standards and your specific operational demands.

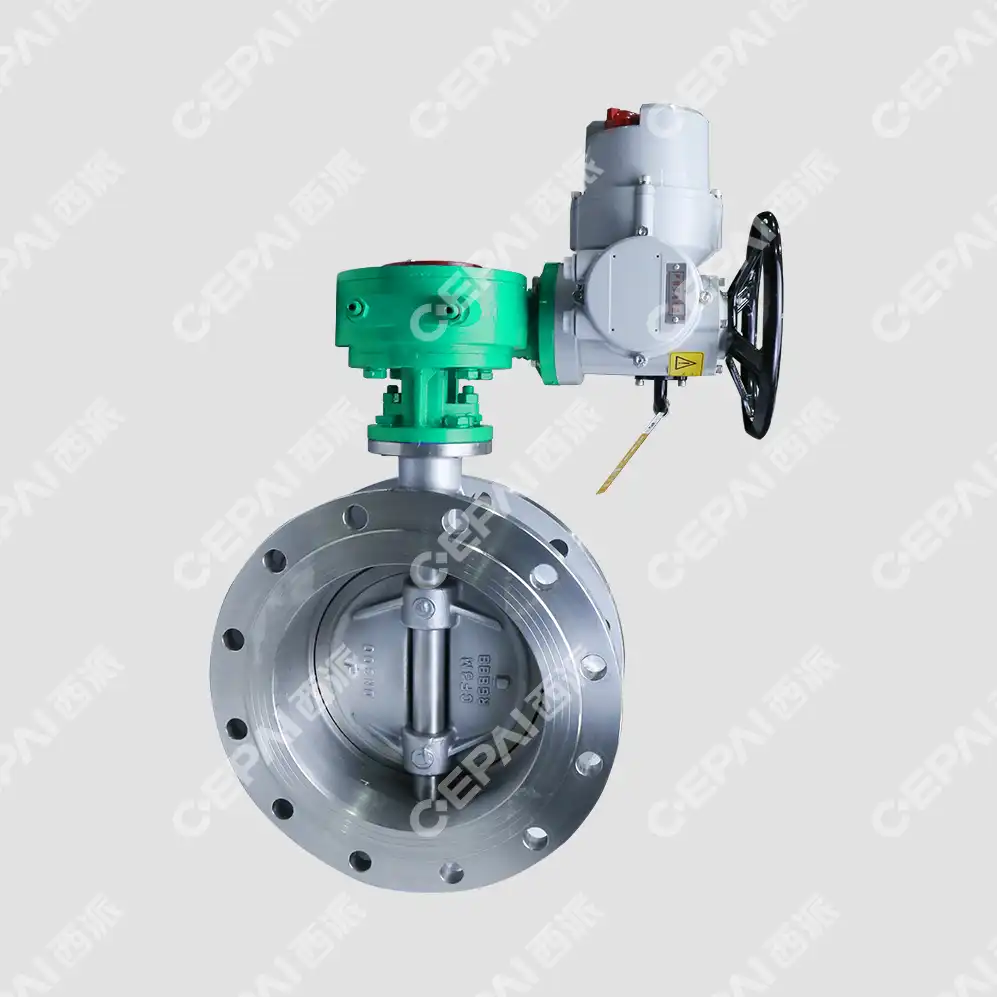

blog-1-1

Understanding Triple Eccentric and Double Eccentric Butterfly Valves

Design Principles of Triple Eccentric Butterfly Valves

Triple eccentric butterfly valves represent a significant advancement in valve technology. The term "triple eccentric" refers to three distinct offsets in the valve's design. The first offset moves the shaft away from the centerline of the pipe and valve body. The second offset positions the shaft behind the plane of the sealing surface. The third offset creates a conical sealing surface, allowing for a cam-like action during closure.

This unique design offers several advantages. The valve provides bubble-tight shutoff capabilities, making it ideal for applications requiring zero leakage. The conical sealing surface reduces wear on the seat, extending the valve's lifespan. Additionally, the triple eccentric design minimizes friction during operation, reducing torque requirements and improving overall efficiency.

Characteristics of Double Eccentric Butterfly Valves

Double eccentric butterfly valves, while similar to their triple eccentric butterfly valve counterparts, feature two offsets in their design. The first offset moves the shaft away from the pipe centerline, while the second positions it behind the sealing plane. This configuration offers improved sealing capabilities compared to concentric butterfly valves.

The double eccentric design reduces seat wear by minimizing contact between the disc and seat during operation. This results in lower torque requirements and extended valve life. Double eccentric valves provide reliable performance in moderate pressure and temperature applications, making them versatile choices for various industrial settings.

Comparing Performance and Applications

When comparing triple eccentric and double eccentric butterfly valves, several factors come into play. Triple eccentric valves excel in high-pressure, high-temperature environments and applications requiring absolute zero leakage. They're often used in critical processes within the oil and gas industry, chemical plants, and power generation facilities.

Double eccentric valves, while not offering the same level of sealing as triple eccentric designs, provide excellent performance in a wide range of applications. They're particularly well-suited for moderate pressure and temperature conditions, making them popular choices in water treatment plants, HVAC systems, and general industrial processes.

Key Factors in Valve Selection

Pressure and Temperature Considerations

When selecting between triple eccentric and double eccentric butterfly valves, pressure and temperature ratings are paramount. Triple eccentric valves typically handle higher pressures and more extreme temperatures due to their robust design and superior sealing capabilities. They're often the go-to choice for applications exceeding 740 psi (50 bar) or temperatures beyond 400°F (204°C).

Double eccentric valves, while capable of handling moderate pressures and temperatures, may not be suitable for extreme conditions. They generally perform well in applications up to 580 psi (40 bar) and temperatures ranging from -20°F to 400°F (-29°C to 204°C). Always consult manufacturer specifications and industry standards to ensure the chosen valve meets your operational requirements.

Material Selection and Compatibility

The materials used in valve construction play a crucial role in their performance and longevity. For both triple eccentric butterfly valves and double eccentric butterfly valves, common body materials include carbon steel, stainless steel, and alloy steels. The choice depends on the corrosiveness of the media and environmental conditions.

Disc and seat materials require careful consideration. For triple eccentric butterfly valves, metal-to-metal seating is common, often utilizing materials like stainless steel or nickel alloys. Double eccentric valves may use elastomeric seats for improved sealing in less demanding applications. Ensure the selected materials are compatible with the process media to prevent corrosion, erosion, or chemical attack.

Actuation and Control Requirements

The method of valve actuation significantly impacts overall system performance. Both triple eccentric and double eccentric butterfly valves can be equipped with various actuation systems, including manual, pneumatic, hydraulic, and electric actuators. The choice depends on factors such as required operating speed, frequency of operation, and available power sources.

Consider the control requirements of your application. If precise flow control is necessary, look for valves with high-resolution positioning capabilities. For critical applications, redundant control systems or fail-safe configurations may be essential. Evaluate the integration of the valve and actuator with your existing control systems to ensure seamless operation and monitoring.

Maintenance and Lifecycle Considerations

Maintenance Requirements and Procedures

Proper maintenance is crucial for ensuring the longevity and reliability of both triple eccentric and double eccentric butterfly valves. Triple eccentric valves, with their more complex design, may require specialized maintenance procedures. Regular inspection of the sealing surfaces, shaft bearings, and packing is essential. The metal-to-metal seating in these valves may necessitate periodic lapping or refinishing to maintain zero-leakage performance.

Double eccentric valves typically have simpler maintenance requirements. Regular lubrication of moving parts, inspection of seat integrity, and checking for signs of wear or corrosion are standard procedures. In both cases, adherence to manufacturer-recommended maintenance schedules and procedures is crucial for optimal performance and extended service life.

Lifecycle Cost Analysis

When selecting between triple eccentric butterfly valves and double eccentric butterfly valves, consider the total lifecycle cost, not just the initial purchase price. Triple eccentric butterfly valves often have a higher upfront cost due to their advanced design and materials. However, their superior sealing capabilities and durability can result in lower long-term costs through reduced leakage, improved efficiency, and extended service life.

blog-1-1

Double eccentric valves may offer a more economical initial investment, making them attractive for less demanding applications. Evaluate factors such as expected operational life, maintenance requirements, potential downtime costs, and energy efficiency to make an informed decision. A comprehensive lifecycle cost analysis will help determine the most cost-effective solution for your specific application.

Future-Proofing and Scalability

When selecting valve technology, consider future operational needs and potential system expansions. Triple eccentric butterfly valves offer greater flexibility in handling varying process conditions, making them adaptable to changing operational requirements. Their ability to withstand high pressures and temperatures provides a margin for future process intensification.

Double eccentric valves, while more limited in extreme conditions, offer scalability in terms of size ranges and actuation options. They can be easily integrated into existing systems and upgraded with advanced control features as needed. Evaluate your long-term operational strategy and choose a valve technology that aligns with your future goals and potential system modifications.

Conclusion

Selecting the right butterfly valve, whether triple eccentric butterfly valve or double eccentric, requires careful consideration of various factors. Triple eccentric butterfly valves excel in demanding applications requiring zero leakage and high-performance sealing. Double eccentric valves offer versatility and cost-effectiveness for moderate conditions. Consider pressure and temperature requirements, material compatibility, actuation needs, and lifecycle costs. Regular maintenance and future-proofing are essential for long-term success. By thoroughly evaluating these aspects, you can choose the optimal valve solution that ensures efficient, reliable, and safe operations in your oil and gas applications.

Contact Us

For expert guidance on selecting the perfect triple eccentric or double eccentric butterfly valve for your specific needs, contact CEPAI Group today. Our team of valve specialists will help you find the ideal solution, ensuring optimal performance, longevity, and compliance with industry standards. Reach out to us at cepai@cepai.com to discuss your valve requirements and benefit from our extensive experience in oil and gas equipment manufacturing.
