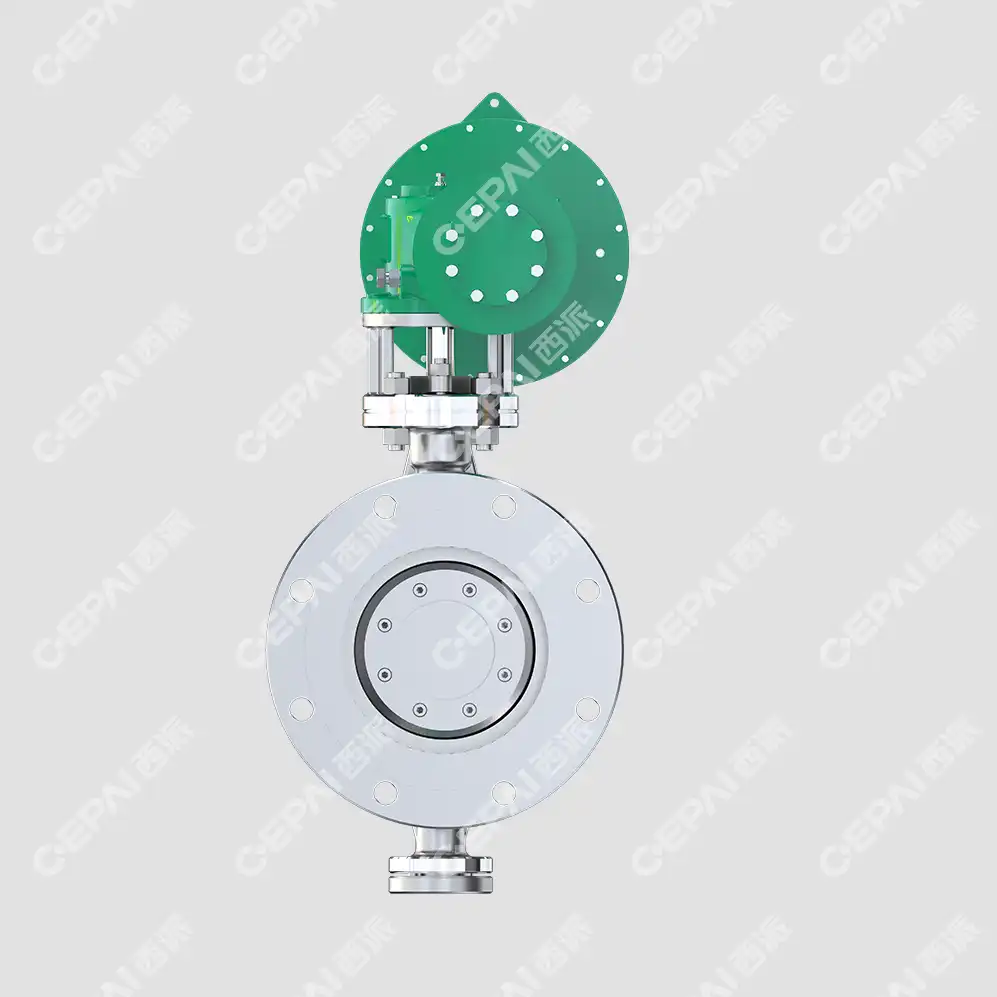

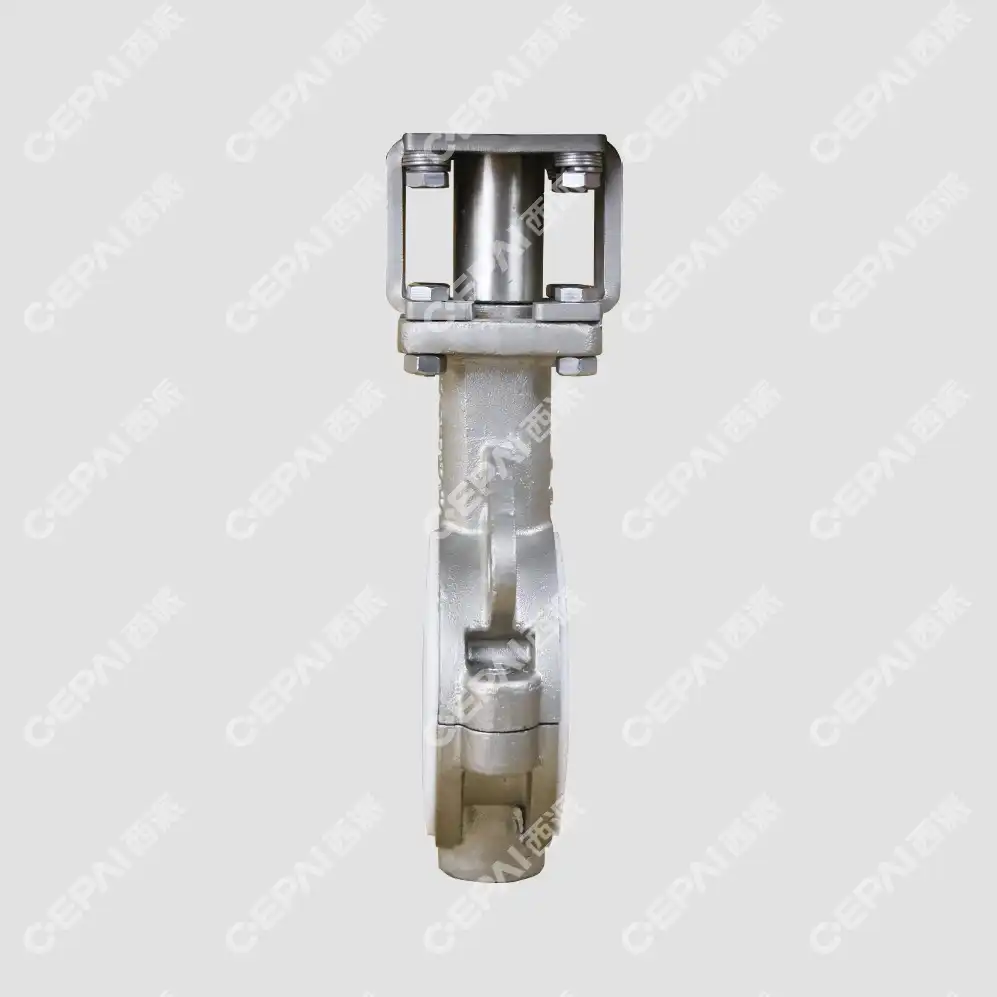

Essential Maintenance Practices for Pneumatic Butterfly Valves
Regular Inspection and Cleaning
Conducting consistent, detailed visual inspections is absolutely critical for the reliable upkeep of pneumatic butterfly valves. Systematically examine the entire valve body, the pivotal disc, and the critical sealing seat surfaces for any indications of wear, pitting, corrosion, or physical damage. Vigilantly check for any accumulation of dirt, scale, or foreign debris within the valve body or around the disc that could obstruct movement or compromise sealing integrity. Thoroughly clean all accessible valve components using manufacturer-approved solvents or specialized cleaning agents, meticulously ensuring all residues, grease, and contaminants are completely removed. Pay particularly close attention to cleaning and inspecting the precision sealing surfaces, as even minute scratches or embedded particles can lead to significant leaks and operational failure over time.
Lubrication and Sealing
Applying the correct lubrication at appropriate intervals is fundamental for ensuring consistently smooth and low-friction operation of pneumatic butterfly valves. Carefully apply suitable, compatible lubricants specifically designed for pneumatic systems to all essential moving parts, such as the valve shaft and its supporting bearings, strictly adhering to the manufacturer's specifications and schedules. Crucially, avoid over-lubrication, as excess grease or oil can harden, attract abrasive contaminants, and ultimately hinder valve function. Proactively inspect, and promptly replace when necessary, all elastomeric seals and gaskets to effectively prevent potential leakage pathways. Additionally, ensure that the stem packing gland is correctly adjusted and adequately tightened to maintain a reliable seal without inducing excessive friction that could impede stem movement or cause premature wear.
Actuator Maintenance
Maintaining the pneumatic actuator, a vital component responsible for valve positioning, requires dedicated attention. Routinely inspect all compressed air supply lines and fittings for leaks, cracks, abrasions, or other damage that could reduce operating pressure or efficiency. Verify that the supplied air pressure consistently falls within the actuator's specified operating range to guarantee correct torque output and response times. Clean or replace inlet air filters and regulators regularly to prevent damaging dirt, moisture, or oil from entering the actuator mechanism and causing internal wear or seizure. Periodically check for and meticulously correct any misalignment between the actuator output drive and the valve stem, as misalignment imposes undue stress and can lead to premature component failure. Finally, diligently lubricate designated actuator internal components, such as gears or linkages, according to the manufacturer's precise guidelines to sustain optimal, smooth, and responsive performance throughout the valve's service life.
Troubleshooting Common Issues in Pneumatic Butterfly Valves
Leakage Detection and Resolution
Leaks are a common issue in pneumatic butterfly valves and can significantly impact performance. Use leak detection solutions or ultrasonic equipment to identify the source of leaks. Check valve seat integrity and replace if damaged. Inspect and tighten flange connections, ensuring proper gasket compression. For stem leaks, adjust or replace packing as needed. In cases of severe leakage, disassemble the valve to examine internal components for damage or misalignment.
Addressing Valve Sticking or Seizure
Pneumatic butterfly valve sticking can occur due to various factors, including corrosion, contamination, or improper lubrication. Begin by verifying that the actuator is receiving sufficient air pressure. Clean and lubricate all moving parts, paying special attention to the valve stem and disc. If sticking persists, check for misalignment between the disc and seat, adjusting as necessary. In severe cases, disassemble the valve to inspect for internal damage or excessive wear that may require component replacement.
Resolving Actuator-related Problems
Actuator issues can manifest as slow or erratic valve movement. Start by checking the air supply pressure and flow rate, ensuring they meet specifications. Inspect air lines for kinks or blockages that could restrict flow. Verify proper solenoid valve operation and electrical connections. If problems persist, disassemble the actuator to check for internal damage or wear. Replace seals, diaphragms, or other components as needed to restore proper functionality.
Preventive Measures and Best Practices for Long-term Reliability
Implementing a Comprehensive Maintenance Schedule
Develop a detailed maintenance plan tailored to your specific pneumatic butterfly valve applications. Include regular inspection intervals, lubrication schedules, and component replacement timelines. Document all maintenance activities and observations to track valve performance over time. Use this data to identify patterns or recurring issues that may require more frequent attention or system modifications.
Training and Skill Development
Invest in proper training for maintenance personnel to ensure they understand the intricacies of pneumatic butterfly valve systems. Cover topics such as valve construction, operation principles, and troubleshooting techniques. Encourage ongoing skill development through workshops, seminars, or manufacturer-provided training programs. Well-trained staff can identify potential issues early and perform maintenance tasks more effectively, reducing the likelihood of unexpected failures.
Utilizing Advanced Monitoring and Diagnostic Tools
Implement modern monitoring technologies to enhance maintenance efforts. Consider installing valve position indicators or limit switches to provide real-time feedback on valve status. Utilize predictive maintenance techniques, such as vibration analysis or thermal imaging, to detect potential issues before they escalate. Integrate valve monitoring data into broader plant management systems for comprehensive oversight and trend analysis.
Conclusion
Effective maintenance and troubleshooting of pneumatic butterfly valves are essential for ensuring reliable operation in industrial settings. By implementing regular inspection routines, addressing common issues promptly, and adopting preventive measures, operators can significantly extend valve life and minimize downtime. Emphasizing proper training and leveraging advanced diagnostic tools further enhances maintenance efforts. With a proactive approach to valve care, businesses can optimize their processes, reduce costs, and maintain high standards of operational efficiency.
FAQs
1. How often should pneumatic butterfly valves be inspected?
Regular inspections should be conducted at least quarterly, with more frequent checks in harsh environments.
2. What are signs that a pneumatic butterfly valve needs maintenance?
Signs include slow operation, unusual noises, visible leaks, or inconsistent flow control.
3. Can pneumatic butterfly valves be repaired on-site?
Many minor issues can be addressed on-site, but major repairs may require valve removal and specialized equipment.
4. How long do pneumatic butterfly valves typically last?
With proper maintenance, these valves can last 10-15 years, depending on the application and operating conditions.
