Understanding Ball Valve Basics for Chemical Applications

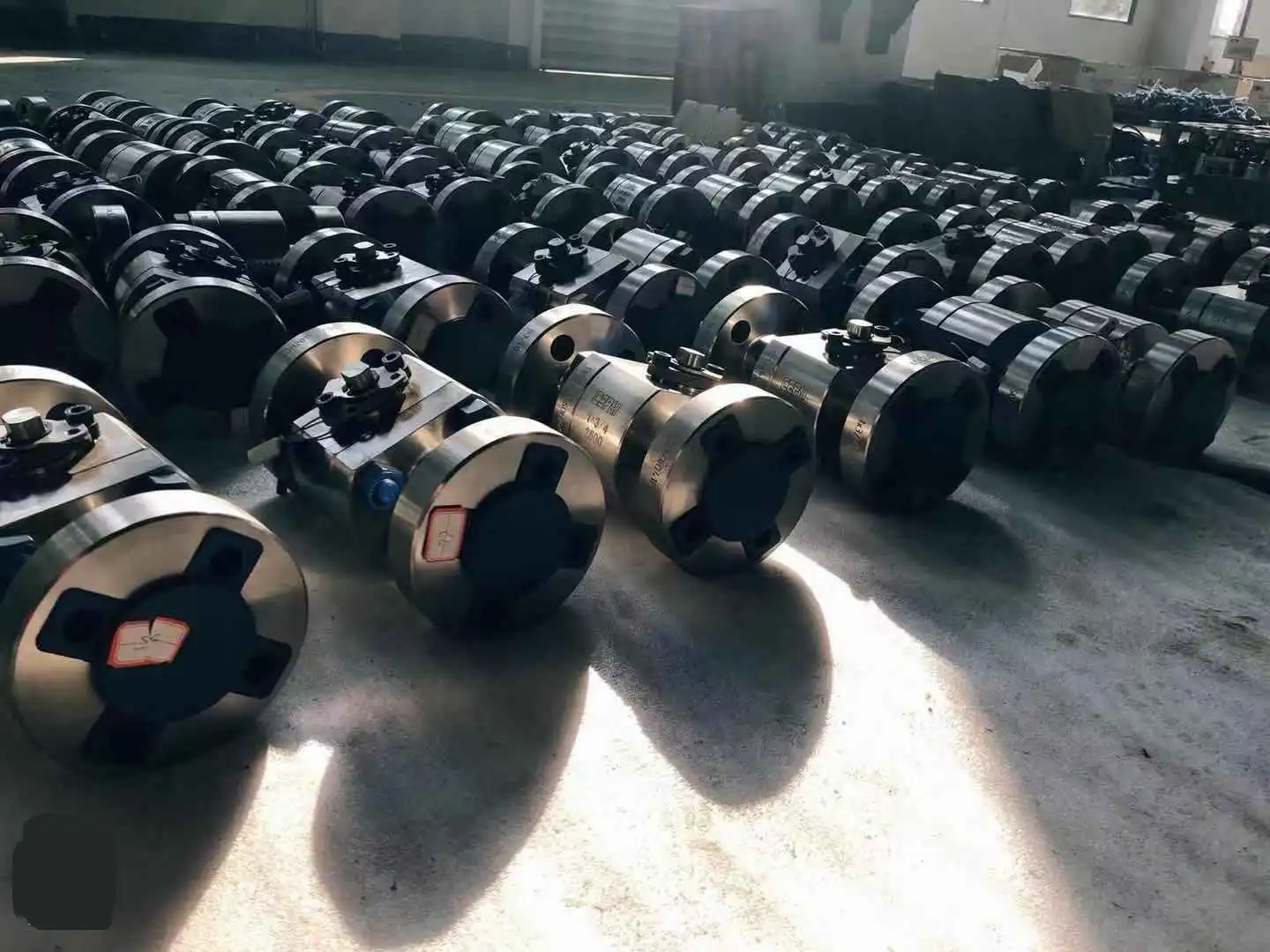

Types of Ball Valves Suitable for Chemical Plants
Ball valves come in various types, each designed to meet specific requirements in chemical plants. Floating ball valves are popular for their simplicity and effectiveness in handling a wide range of chemicals. Trunnion-mounted ball valves offer enhanced stability and are preferred for high-pressure applications. Three-piece ball valves provide easy maintenance and are ideal for processes requiring frequent cleaning or replacement. For particularly corrosive environments, fully-lined ball valves with protective coatings such as PTFE or PFA are excellent choices. Multi-port ball valves allow for complex flow control, making them suitable for intricate chemical processes. Understanding these variations helps in selecting the most appropriate valve for your specific chemical application.
Material Considerations for High-Temperature Environments
The material composition of a ball valve is critical when dealing with high-temperature chemical environments. Stainless steel, particularly grades 316 and 317, offers excellent corrosion resistance and strength at elevated temperatures. For extremely corrosive conditions, special alloys like Hastelloy, Monel, or Inconel may be necessary. The valve's seals and seats require equally careful consideration. PTFE (Teflon) is a common choice for its chemical inertness, but it has temperature limitations. For higher temperatures, reinforced PTFE, PEEK, or metal seats might be more suitable. The valve stem packing material should also be selected based on temperature and chemical compatibility, with options ranging from graphite to specialized polymers. Careful material selection ensures the longevity and reliable performance of the ball valve in challenging chemical plant conditions.
Key Features to Look for in High-Temperature Ball Valves
When selecting ball valves for high-temperature chemical applications, certain key features are essential. Look for valves with fire-safe designs, which maintain their integrity even in extreme heat. Anti-static features are crucial in potentially explosive environments. Valves with blow-out proof stems provide an additional layer of safety. Consider ball valves with extended bonnets or stem extensions to isolate sensitive components from high heat. Double block and bleed configurations offer enhanced leak protection, which is vital in hazardous chemical environments. Valves with live-loaded packing systems maintain seal integrity over time, reducing maintenance needs. Additionally, valves with high-cycle capabilities ensure longevity in frequently operated systems. These features, combined with proper material selection, contribute to a ball valve's ability to perform reliably in the demanding conditions of high-temperature chemical plants.
Evaluating Performance Factors for Chemical Plant Ball Valves
Pressure and Temperature Ratings
Understanding pressure and temperature ratings is fundamental when selecting ball valves for chemical plants. These ratings indicate the maximum conditions under which the valve can operate safely. In high-temperature environments, it's crucial to consider the valve's pressure-temperature curve, which shows how the maximum allowable pressure decreases as temperature increases. Look for valves with ANSI or API ratings that match or exceed your plant's operational requirements. Pay attention to both the body rating and the seat rating, as the latter often has more restrictive temperature limits. For instance, a valve might have a body rated for 300°F, but its PTFE seats may only be suitable up to 250°F. Always factor in safety margins, considering both normal operating conditions and potential upset scenarios. Proper evaluation of these ratings ensures that the selected ball valve can withstand the rigors of your chemical process without compromising safety or performance.
Flow Characteristics and Control Precision
The flow characteristics of a ball valve play a significant role in its suitability for chemical plant applications. Standard ball valves offer quick on-off control with a 90-degree turn, which is ideal for isolation purposes. However, for more precise flow control, consider V-port or characterized ball valves. These valves have specially designed ball openings that provide more linear or equal percentage flow characteristics, allowing for better regulation of chemical processes. The Cv value (flow coefficient) of the valve is another crucial factor, indicating the valve's capacity to pass fluid. A higher Cv generally means less pressure drop across the valve, which can be important in energy-efficient plant designs. For applications requiring tight shut-off, look for valves with high-performance seats and precision-machined balls. The ability to control flow accurately and maintain a tight seal is particularly important when dealing with hazardous or expensive chemicals in high-temperature environments.
Maintenance and Longevity Considerations
Maintenance requirements and longevity are critical factors when choosing ball valves for chemical plants, especially in high-temperature applications. Opt for valves designed for easy maintenance, such as top-entry or split-body designs that allow for in-line repairs. This feature can significantly reduce downtime and maintenance costs. Consider valves with replaceable seats and seals, which extend the valve's useful life without requiring complete replacement. The quality of stem seals is particularly important in high-temperature environments; look for valves with adjustable packing or spring-loaded seals that can compensate for wear over time. Valves with hard-faced or coated balls and seats can offer extended service life in abrasive or corrosive media. Additionally, consider the availability of spare parts and the manufacturer's support for long-term serviceability. While high-quality valves may have a higher initial cost, their longevity and reduced maintenance needs often result in lower total cost of ownership over the life of the chemical plant.
Implementing Ball Valves in High-Temperature Chemical Processes
Installation Best Practices for Optimal Performance
Proper installation of ball valves is crucial for their optimal performance in high-temperature chemical processes. Begin by ensuring that the piping system is clean and free from debris that could damage the valve or impair its function. Align the valve correctly with the piping to prevent stress on the valve body. Use appropriate gaskets and bolting materials compatible with both the valve and the process conditions. In high-temperature applications, consider thermal expansion and provide adequate support to prevent strain on the valve. Install valves in accessible locations for ease of operation and maintenance. For automated valves, ensure proper mounting of actuators and calibration of control systems. In potentially explosive environments, adhere to proper grounding and bonding procedures. Implement proper insulation techniques to protect operators from high surface temperatures and maintain process efficiency. Following these best practices ensures that the ball valve performs as intended, maximizing its lifespan and reliability in the demanding environment of a chemical plant.
Monitoring and Maintenance Strategies
Effective monitoring and maintenance strategies are essential for ensuring the longevity and reliability of ball valves in high-temperature chemical plants. Implement a regular inspection schedule to check for signs of wear, corrosion, or leakage. Utilize non-invasive monitoring techniques such as acoustic emission testing or thermal imaging to detect potential issues without disrupting operations. For critical valves, consider implementing online monitoring systems that can provide real-time data on valve performance and health. Regularly test valve actuation to ensure smooth operation and identify any sticking or excessive friction. In high-temperature applications, pay special attention to the condition of seals and packing, as these components are often the first to degrade. Develop a preventive maintenance plan that includes periodic lubrication, seal replacement, and recalibration of automated systems. Keep detailed records of maintenance activities and valve performance to identify trends and predict potential failures. By adopting a proactive approach to monitoring and maintenance, plant operators can maximize the service life of their ball valves and minimize unexpected downtime in their high-temperature chemical processes.
Troubleshooting Common Issues in High-Temperature Applications
Troubleshooting ball valve issues in high-temperature chemical applications requires a systematic approach and understanding of common problems. One frequent issue is leakage, which can occur due to thermal expansion, seat wear, or packing degradation. If leakage is detected, first identify the source – whether it's through the stem, body joints, or across the closed valve. For stem leaks, adjusting or replacing the packing may resolve the issue. Seat leaks might require cleaning, resurfacing, or replacement of the ball and seats. Another common problem in high-temperature environments is valve seizure, often caused by thermal expansion or chemical deposits. In such cases, careful cycling of the valve or application of appropriate lubricants may help. If automated valves fail to operate correctly, check for issues with the actuator, control system, or power supply. Erratic flow control could indicate cavitation or flashing, which might require adjustments to the process conditions or valve selection. When troubleshooting, always prioritize safety and consult the valve manufacturer's guidelines. For persistent or complex issues, seeking expert assistance can help resolve problems efficiently and prevent potential hazards in the high-stakes environment of chemical processing.
Conclusion
Selecting the right ball valve for high-temperature chemical plants is a critical decision that impacts safety, efficiency, and operational costs. By carefully considering factors such as material compatibility, pressure and temperature ratings, flow characteristics, and maintenance requirements, plant operators can ensure optimal valve performance in challenging environments. Remember to prioritize valves with features suited for high-temperature applications, such as fire-safe designs and specialized sealing materials. Proper installation, regular monitoring, and proactive maintenance are key to maximizing the longevity and reliability of these crucial components. With the right approach to selection and management, ball valves can significantly enhance the safety and productivity of high-temperature chemical plant operations.
FAQs
1. What materials are best for ball valves in high-temperature chemical plants?
Stainless steel grades 316 and 317, as well as specialized alloys like Hastelloy, Monel, or Inconel are often suitable.
2. How often should ball valves be inspected in chemical plants?
Regular inspections should be conducted, typically quarterly or semi-annually, depending on the specific application and operating conditions.
3. Can standard ball valves be used in high-temperature chemical processes?
Standard ball valves may not be suitable; specialized high-temperature valves with appropriate materials and ratings are usually required.
4. What are the signs that a ball valve needs replacement in a chemical plant?
Signs include persistent leakage, difficulty in operation, visible corrosion or damage, and inability to maintain proper flow control.
5. How do you prevent leakage in ball valves used in high-temperature applications?
Use valves with high-temperature seals, implement proper installation techniques, and conduct regular maintenance and seal replacements.
