Understanding Pneumatic Actuation
Principles of Pneumatic Actuation

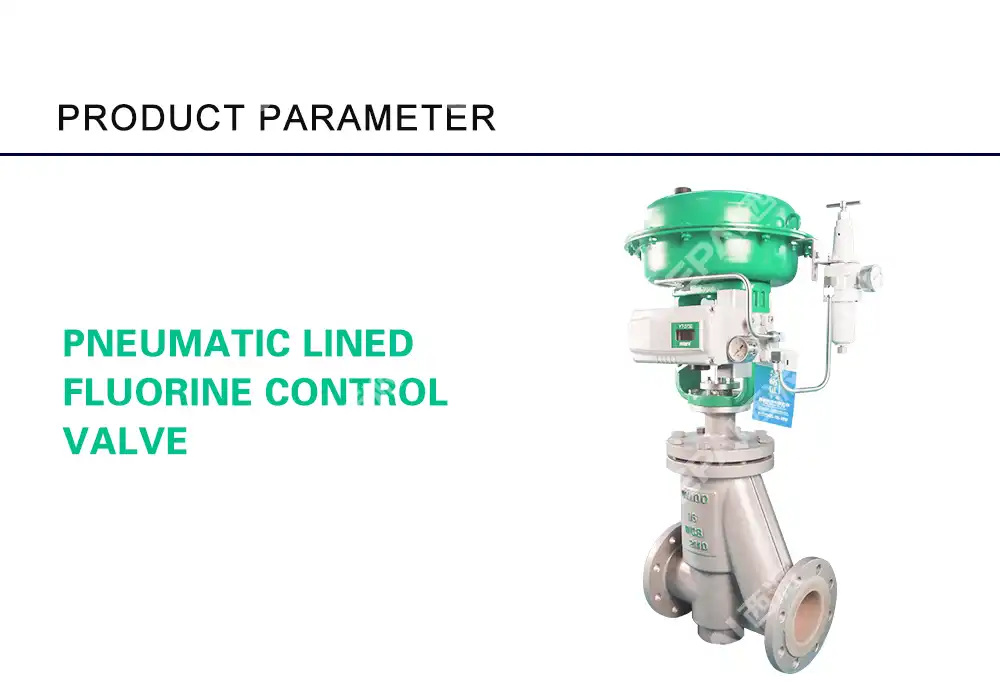

Pneumatic actuation harnesses the power of compressed air to generate mechanical motion. This technology relies on the principle of pressure differentials to create force. When compressed air is introduced into the actuator chamber, it expands, pushing against a piston or diaphragm. This movement is then transferred to the valve stem, opening or closing the valve. The simplicity of this mechanism makes pneumatic actuators highly reliable and suitable for a wide range of applications, particularly in the oil and gas industry where robustness is paramount.
Advantages of Pneumatic Actuators
Pneumatic actuators offer several compelling advantages that make them a popular choice in many industrial settings. Their inherent simplicity translates to lower maintenance requirements and increased longevity. These actuators are intrinsically safe, making them ideal for hazardous environments where electrical sparks could pose a risk. They also excel in providing rapid response times, crucial in emergency shutdown scenarios. Moreover, pneumatic systems can generate substantial force, making them suitable for large valves that require significant torque to operate.
Limitations of Pneumatic Systems
While pneumatic actuators have numerous strengths, they also come with certain limitations. One primary concern is the need for a reliable compressed air supply, which can be energy-intensive to maintain. Air leaks in the system can lead to efficiency losses and increased operational costs. Additionally, pneumatic systems may struggle with precise positioning control compared to their electric counterparts. In environments with extreme temperature fluctuations, the performance of pneumatic actuators can be affected due to changes in air density and viscosity. These factors must be carefully considered when evaluating pneumatic actuation for valve control applications.
Exploring Electric Actuation
Fundamentals of Electric Actuation

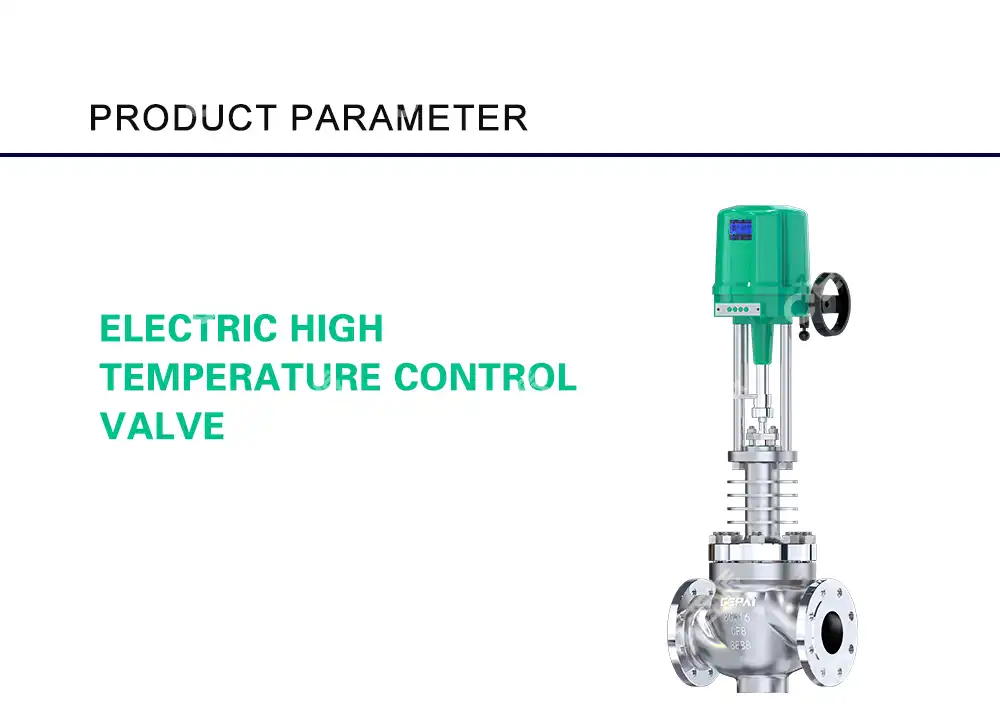

Electric actuation utilizes electrical energy to drive mechanical motion in valves. At its core, an electric actuator consists of an electric motor, a gear train, and control circuitry. When energized, the motor rotates, and this rotational motion is transferred through the gear system to the valve stem. The gear ratio can be adjusted to provide the necessary torque for valve operation. Advanced electric actuators often incorporate sophisticated control systems, allowing for precise positioning and feedback. This technology has evolved significantly, offering enhanced reliability and performance in various industrial applications, including oil and gas operations.
Benefits of Electric Actuators
Electric actuators bring a host of benefits to valve control applications. Their standout feature is the ability to provide precise control over valve position, which is crucial in processes requiring fine-tuned flow regulation. These actuators offer excellent energy efficiency, particularly in applications with frequent cycling. They are also highly adaptable, easily integrating with modern control systems and allowing for remote operation and monitoring. Electric actuators generally have a smaller footprint compared to pneumatic systems, making them suitable for installations with space constraints. Furthermore, they operate quietly, contributing to a better working environment in industrial settings.
Challenges with Electric Systems
Despite their advantages, electric actuators face certain challenges that need consideration. One primary concern is their performance in hazardous environments, where intrinsic safety is paramount. While explosion-proof designs are available, they often come at a higher cost. Electric actuators may also struggle in applications requiring very high torque or rapid cycling, where pneumatic systems might be more suitable. In extreme temperature conditions, the electronic components in electric actuators can be vulnerable to failure. Additionally, the initial cost of electric actuators is typically higher than their pneumatic counterparts, although this may be offset by lower operational costs over time.
Factors Influencing the Choice Between Pneumatic and Electric Actuation
Environmental Considerations
The operating environment plays a crucial role in determining the most suitable actuation method. In hazardous areas with potentially explosive atmospheres, pneumatic actuators have a natural advantage due to their inherent safety. They don't generate sparks or heat, making them ideal for oil and gas applications where flammable gases may be present. Electric actuators, while available in explosion-proof variants, require additional certifications and protective measures. Temperature extremes also factor into the decision. Pneumatic actuators generally handle a wider temperature range, whereas electric actuators may require special considerations for both very high and very low temperatures to protect their electronic components.
Performance Requirements
The specific performance needs of the application greatly influence the choice between pneumatic and electric actuation. For applications requiring precise positioning and modulating control, electric actuators often have the edge. They can provide accurate feedback on valve position and allow for fine adjustments. Pneumatic actuators, while less precise, excel in applications demanding quick response times or high cycle rates. They can also typically generate higher torque more economically than electric actuators, making them suitable for large valves or those requiring significant force to operate. The required operating speed and the frequency of valve actuation are also important factors to consider when choosing between these two technologies.
Cost and Maintenance Implications
The economic aspect of choosing between pneumatic and electric actuation extends beyond the initial purchase price. Pneumatic actuators generally have a lower upfront cost but may incur higher operational expenses due to the need for compressed air supply and potential air leaks. Electric actuators, while more expensive initially, often prove more cost-effective in the long run due to their energy efficiency and lower maintenance requirements. Maintenance considerations also differ: pneumatic systems require regular checks for air leaks and lubrication, while electric actuators need periodic checks on their electrical components and gear systems. The availability of skilled personnel for maintenance and troubleshooting should also be factored into the decision-making process.
Conclusion
Choosing between pneumatic and electric actuation for valve control is a nuanced decision that requires careful consideration of various factors. Pneumatic actuators offer simplicity, robustness, and intrinsic safety, making them ideal for hazardous environments and applications requiring quick response times. Electric actuators, on the other hand, provide precision control, energy efficiency, and easy integration with modern control systems. The choice ultimately depends on your specific application requirements, environmental conditions, performance needs, and long-term cost considerations. By thoroughly evaluating these factors, you can select the actuation method that best optimizes your valve operations, enhancing efficiency and reliability in your industrial processes.
