Understanding the Fundamentals of Control Valves
Definition and Purpose of Control Valves
Control valves are essential components in industrial processes, regulating the flow of fluids or gases through a system. These precision instruments modulate the flow rate, pressure, or temperature of the medium passing through them. By adjusting their position based on signals from process controllers, control valves maintain desired process variables, ensuring efficient and safe operations across various industries.
Key Components of Control Valves
A typical high-temperature control valve consists of several crucial parts working in harmony. The valve body houses the internal components and provides the primary pressure boundary. The valve trim, comprising the plug and seat, is responsible for controlling the flow. Actuators, whether pneumatic, hydraulic, or electric, supply the motive force to position the valve. Positioners ensure accurate valve stem positioning, while accessories like limit switches and solenoid valves enhance functionality and safety.
Types of Control Valves and Their Applications
Control valves come in various designs to suit different process requirements. Globe valves offer excellent throttling capabilities and are widely used in general service. Butterfly valves provide quick operation and are suitable for large diameter pipes. Ball valves excel in on-off applications and offer tight shutoff. Diaphragm valves are ideal for handling corrosive or high-purity fluids. Each type has its strengths, and selecting the right one depends on factors such as flow characteristics, pressure drop, and the nature of the process medium.

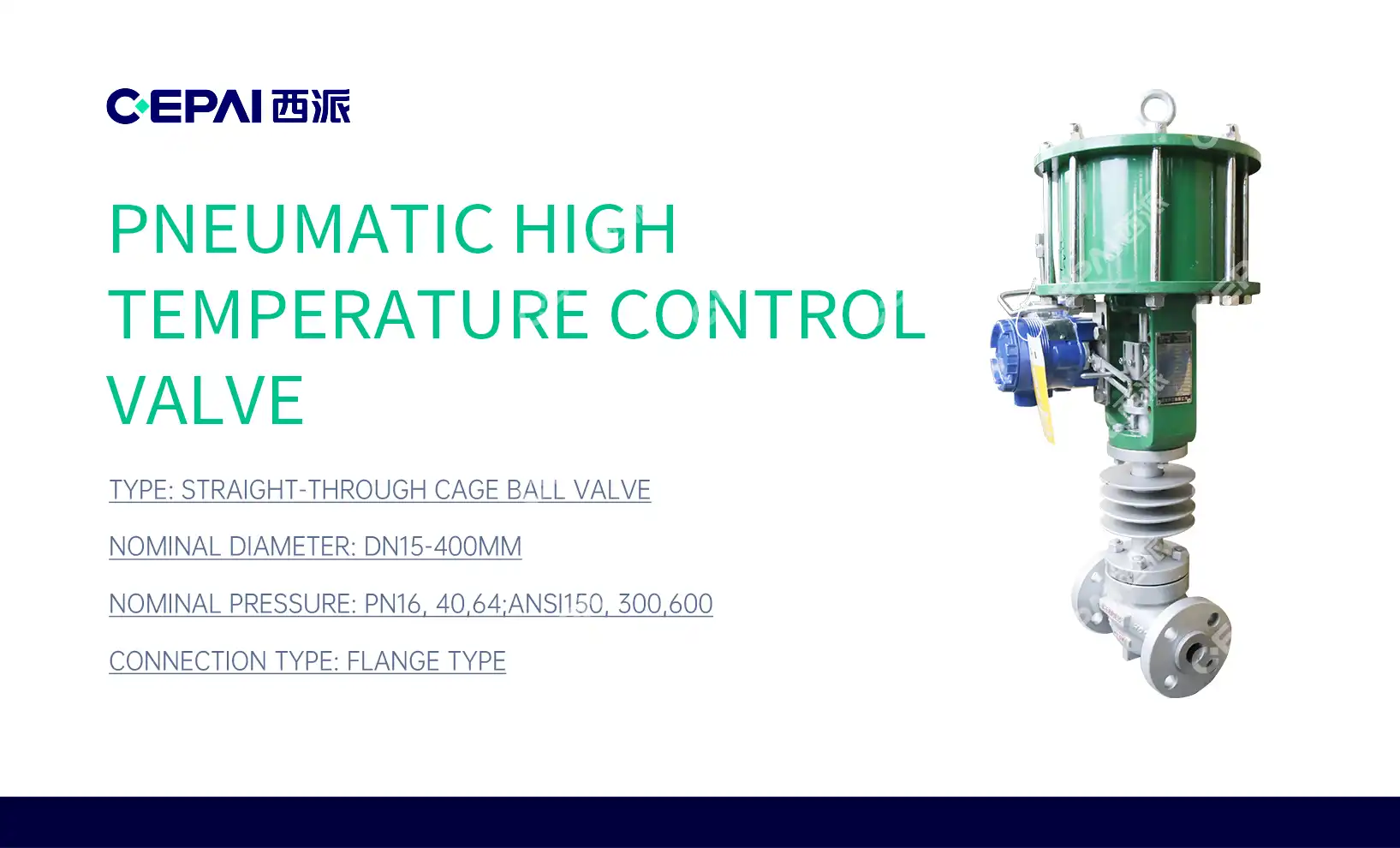

Characteristics of High-Temperature Control Valves
Design Features for Extreme Heat Resistance
High-temperature control valves are engineered to withstand extreme thermal conditions without compromising performance or integrity. These valves often incorporate extended bonnets to distance critical components from the heat source. Specialized heat-dissipating fins may be integrated into the valve body design to enhance cooling. Advanced metallurgy plays a crucial role, with materials like high-nickel alloys or exotic metals chosen for their superior heat resistance and strength retention at elevated temperatures.
Materials Used in High-Temperature Valve Construction
The selection of materials for high-temperature control valves is paramount to their longevity and reliability. Common materials include stainless steel grades like 316 or 321 for moderate temperatures, while more extreme conditions may call for alloys such as Inconel, Hastelloy, or even ceramic components. These materials offer exceptional resistance to thermal expansion, creep, and oxidation. Valve seats and seals often utilize graphite or metal-to-metal designs to maintain tight shutoff under high heat.
Applications and Industries Requiring High-Temperature Valves
High-temperature control valves find extensive use across various industrial sectors. In the petrochemical industry, they regulate the flow of hot hydrocarbons in refining processes. Power generation plants rely on these valves for steam control in turbines and boiler systems. The steel industry employs them in furnaces and hot rolling mills. Chemical processing plants use high-temperature valves in reactors and heat exchangers. These specialized valves are also crucial in waste incineration facilities and high-temperature solar energy systems, showcasing their versatility in managing extreme thermal environments.

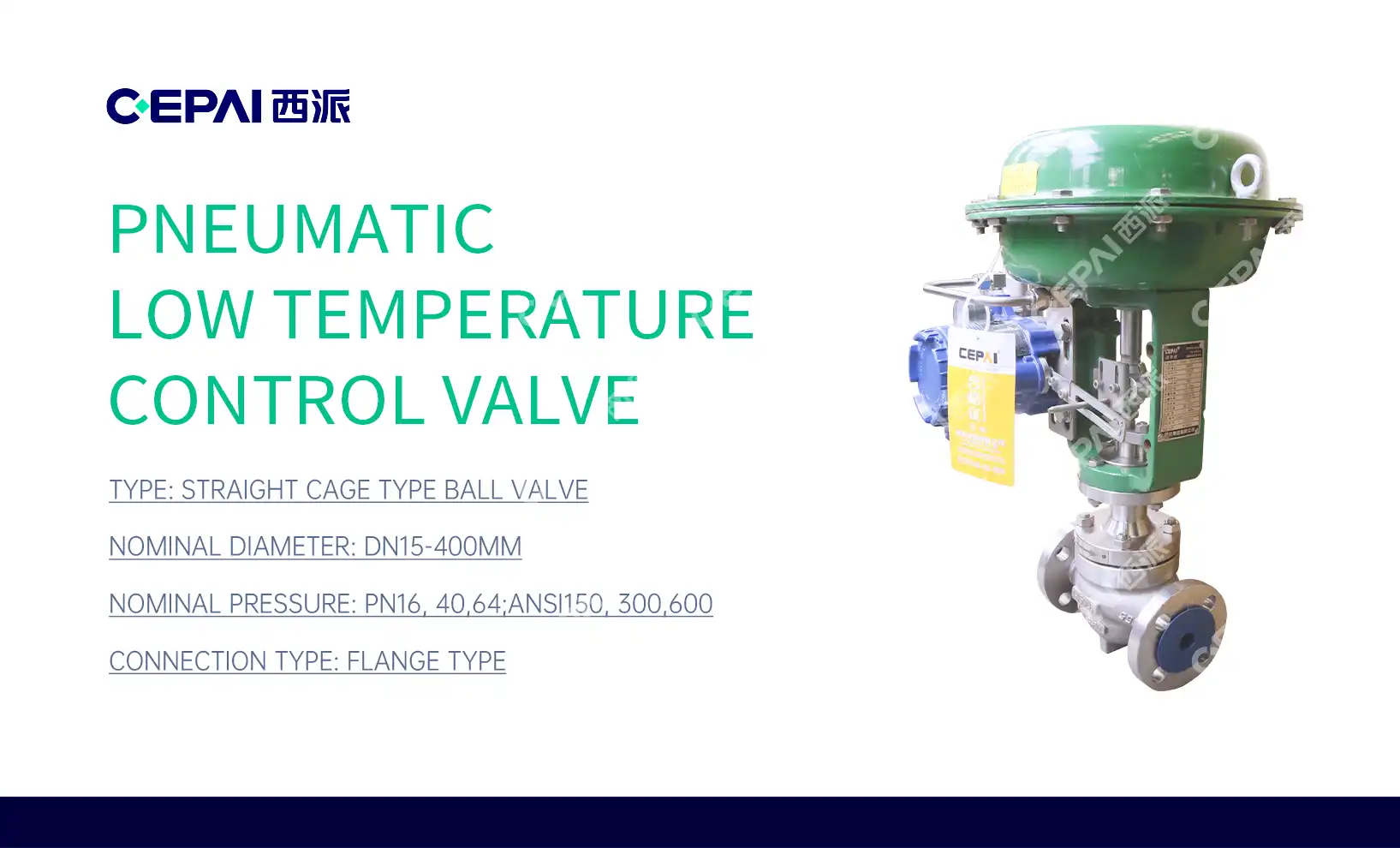

Characteristics of Low-Temperature Control Valves
Design Considerations for Cryogenic Applications
Low-temperature control valves are meticulously engineered to maintain functionality and integrity in cryogenic environments. These valves often feature extended bonnet designs to create a thermal barrier, protecting sensitive components from extreme cold. Specialized stem seals and packing materials are employed to prevent leakage and ensure smooth operation at sub-zero temperatures. The valve body may incorporate insulation jackets or vacuum-jacketed designs to minimize heat transfer and prevent frost formation, which could impede valve movement or compromise process efficiency.
Materials Suited for Low-Temperature Valve Fabrication
The selection of materials for low-temperature control valves is critical to prevent brittleness and maintain ductility in frigid conditions. Austenitic stainless steels, particularly grades like 316L or 304L, are commonly used due to their excellent low-temperature toughness. For more extreme cryogenic applications, materials such as aluminum bronze, Monel, or specialized nickel alloys may be employed. Valve seats and seals often utilize materials like PTFE (Teflon) or PCTFE (Kel-F) for their ability to maintain flexibility and sealing properties at extremely low temperatures. The careful selection of these materials ensures reliable performance and longevity in challenging cryogenic environments.
Industries and Processes Utilizing Low-Temperature Valves
Low-temperature control valves play a crucial role in various industries that deal with cryogenic fluids or require precise temperature control in sub-zero conditions. The liquefied natural gas (LNG) industry heavily relies on these valves for storage, transfer, and regasification processes. In the aerospace sector, they are essential for handling liquid oxygen and hydrogen in rocket propulsion systems. The pharmaceutical and biotechnology industries utilize low-temperature valves in freeze-drying processes and cold storage facilities. Food processing plants employ them in flash freezing operations and refrigeration systems. Additionally, these specialized valves are vital in industrial gas production, superconductivity research, and cryogenic medical equipment, demonstrating their wide-ranging applications across various fields.
Conclusion
Selecting between a high-temperature and a low-temperature control valve requires careful consideration of your specific application requirements. High-temperature valves excel in environments with extreme heat, utilizing specialized materials and designs to maintain performance. Low-temperature valves, conversely, are engineered to operate efficiently in cryogenic conditions, employing unique materials and construction techniques. By understanding the distinct characteristics and applications of each valve type, you can make an informed decision that ensures optimal process control, safety, and efficiency in your industrial operations. Remember to consult with valve experts and consider factors such as temperature range, pressure requirements, and fluid properties to choose the most suitable control valve for your needs.
FAQs
1. What is the main difference between high-temperature and low-temperature control valves?
High-temperature valves are designed for extreme heat conditions above 450°F, while low-temperature valves operate efficiently below 0°F.
2. Can a standard control valve be used in high-temperature applications?
Standard valves are not recommended for high-temperature use as they lack the specialized materials and design features necessary for extreme heat resistance.
3. What industries typically use high-temperature control valves?
High-temperature valves are commonly used in petrochemical plants, power generation facilities, and steel mills.
4. Are there any special maintenance requirements for low-temperature control valves?
Low-temperature valves require regular inspection of seals and insulation to prevent frost buildup and ensure proper operation in cryogenic conditions.
5. How do I determine the right temperature rating for my control valve?
Consider the maximum and minimum operating temperatures of your process, including any potential temperature spikes, and consult with valve manufacturers for appropriate specifications.
