Understanding Ball Valves and Butterfly Valves
Ball Valve Characteristics and Applications
Ball valves are quarter-turn valves that utilize a spherical disc to control flow. The ball, which has a hole through its center, rotates to align or misalign with the flow path, enabling or blocking fluid passage. These valves are renowned for their excellent sealing capabilities, making them ideal for applications requiring tight shut-off. Ball valves are commonly used in pipelines transporting gases, oils, and other fluids where leak-tight sealing is paramount.
One of the key advantages of ball valves is their ability to handle high pressures and temperatures. They're particularly suitable for systems operating under extreme conditions, such as those found in oil and gas exploration and production. The robust construction of ball valves allows them to withstand harsh environments and provide reliable performance over extended periods.
Ball valves also offer quick operation, typically requiring only a quarter turn to fully open or close. This feature makes them ideal for emergency shutoff situations where rapid response is crucial. Additionally, their full-bore design allows for minimal pressure drop and high flow capacity when fully open, contributing to efficient fluid transfer in various industrial processes.
Butterfly Valve Design and Functionality
Butterfly valves consist of a disc that rotates on a shaft to control flow. When the valve is fully open, the disc is parallel to the flow, offering minimal obstruction. As the disc rotates to the closed position, it gradually restricts flow until it completely blocks the pipeline. This design makes butterfly valves exceptionally versatile in flow control applications.
One of the most notable features of butterfly valves is their compact and lightweight design. This characteristic makes them particularly suitable for installations where space is limited or weight restrictions apply. Their slim profile allows for easy integration into existing piping systems without requiring significant modifications.
Butterfly valves excel in applications requiring precise flow control. The relationship between disc position and flow rate is nearly linear, allowing for accurate adjustment of flow volumes. This property makes butterfly valves popular in industries such as water treatment, HVAC systems, and chemical processing, where precise flow regulation is essential for process control and efficiency.
Comparative Analysis of Valve Types
When comparing ball valves and butterfly valves, several factors come into play. Ball valves generally provide better sealing performance, especially in high-pressure applications. Their design allows for bi-directional sealing, making them suitable for reverse flow scenarios. Butterfly valves, while capable of providing adequate sealing in many applications, may not match the leak-tight performance of ball valves in extreme conditions.
In terms of flow characteristics, butterfly valves often have an advantage in larger pipe sizes. Their design allows for less turbulence and lower pressure drop across the valve when fully open, which can be beneficial in high-flow applications. Ball valves, particularly in full-bore configurations, also offer excellent flow characteristics but may become less practical or cost-effective in very large sizes.
Maintenance considerations also differ between the two valve types. Ball valves typically require less frequent maintenance due to their simple design and robust sealing mechanism. Butterfly valves, with their exposed disc and seat, may require more regular inspection and maintenance, especially in applications involving abrasive or corrosive media.
Key Factors in Valve Selection
Pressure and Temperature Considerations
When selecting between ball valves and butterfly valves, pressure and temperature ratings are crucial factors to consider. Ball valves generally excel in high-pressure applications, with some designs capable of handling pressures up to 10,000 psi or more. This makes them particularly suitable for oil and gas pipelines, where high-pressure fluids are common. Ball valves also tend to perform well across a wide temperature range, from cryogenic applications to high-temperature processes.
Butterfly valves, while capable of handling moderate pressures, are typically more limited in their pressure ratings compared to ball valves. However, they can still be effectively used in many industrial applications with pressures up to 1,000 psi or more, depending on the specific design and materials used. In terms of temperature resistance, butterfly valves can be engineered to handle a broad range of temperatures, but may require special materials or designs for extreme temperature applications.
It's important to note that the interaction between pressure and temperature can affect valve performance. As temperatures increase, the maximum allowable working pressure of a valve often decreases. This relationship is critical in valve selection and must be carefully evaluated based on the specific operating conditions of the system.
Flow Control and Regulation Requirements
The nature of flow control required in a system plays a significant role in valve selection. Ball valves are primarily designed for on-off service, providing excellent shut-off capabilities. While they can be used for throttling in some applications, their flow characteristics are not ideal for precise flow control over a wide range of positions. The relationship between valve position and flow rate in a ball valve is non-linear, which can make fine adjustments challenging.
Butterfly valves, on the other hand, offer superior performance in applications requiring precise flow control and regulation. The nearly linear relationship between disc position and flow rate allows for accurate adjustment of flow volumes. This characteristic makes butterfly valves particularly suitable for applications in the water treatment industry, HVAC systems, and processes requiring frequent flow adjustments.
For applications requiring both tight shut-off and precise flow control, a combination of valve types or specialized valve designs may be necessary. Some advanced ball valve designs incorporate features to improve their throttling capabilities, while high-performance butterfly valves can offer improved sealing for critical shut-off applications.
Space and Weight Limitations
Space constraints and weight considerations can significantly influence the choice between ball valves and butterfly valves. Butterfly valves have a distinct advantage in situations where installation space is limited. Their compact design, with the disc and actuator typically contained within the face-to-face dimension of the valve body, makes them ideal for tight spaces. This characteristic is particularly beneficial in crowded pipe racks, compact skid-mounted systems, or retrofitting existing piping systems where minimal modifications are desired.
Ball valves, while generally more compact than gate or globe valves, typically require more space than butterfly valves of equivalent size. The valve body of a ball valve needs to accommodate the full diameter of the ball, which can result in a larger overall package. However, this difference becomes less significant in smaller pipe sizes.
Weight is another crucial factor, especially in applications such as offshore platforms or mobile equipment where every pound matters. Butterfly valves are generally lighter than ball valves of the same size, which can lead to reduced structural support requirements and easier handling during installation and maintenance. The weight difference becomes more pronounced as the valve size increases, making butterfly valves particularly attractive for large diameter applications where weight savings can be substantial.
Application-Specific Considerations
Oil and Gas Industry Applications

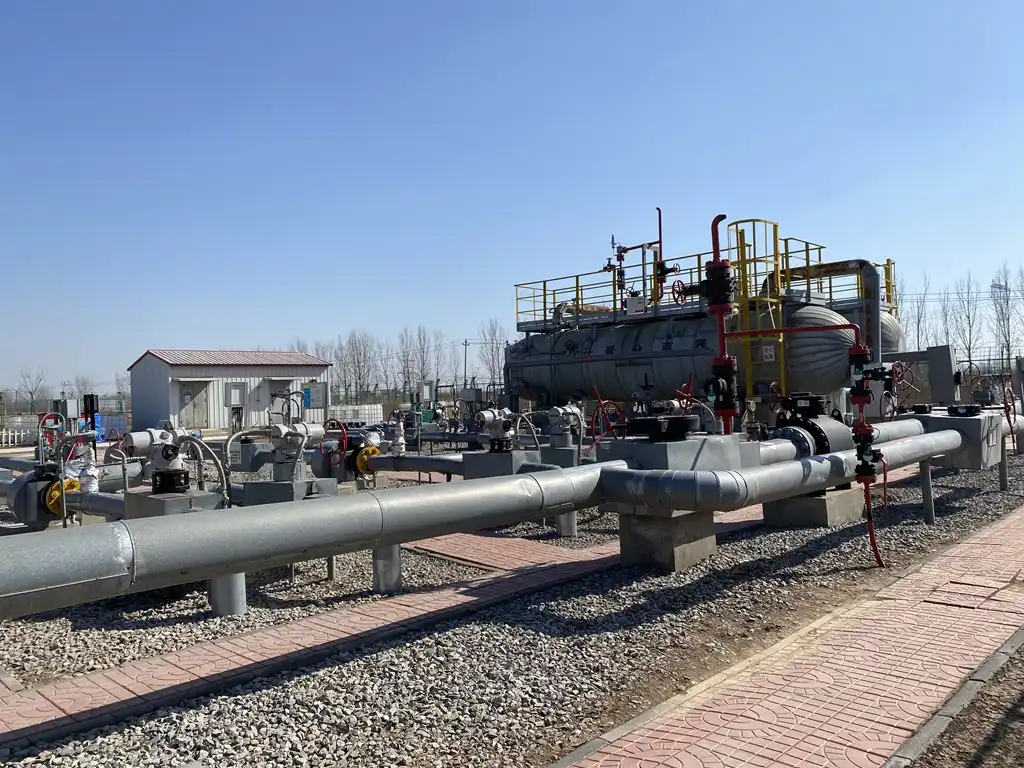

In the oil and gas industry, both ball valves and butterfly valves find extensive use, but their applications often differ based on specific requirements. Ball valves are widely favored in upstream and midstream operations due to their excellent sealing properties and ability to handle high pressures. They are commonly used in wellhead assemblies, pipeline isolation, and emergency shutdown systems where reliable, tight shut-off is critical.
Ball valves' resilience to harsh environments makes them suitable for subsea applications and remote locations where maintenance access is limited. Their ability to handle diverse fluids, including those with suspended solids, adds to their versatility in oil and gas operations. High-performance ball valves with metal seats are often employed in severe service applications, such as handling abrasive or high-temperature fluids in refineries.

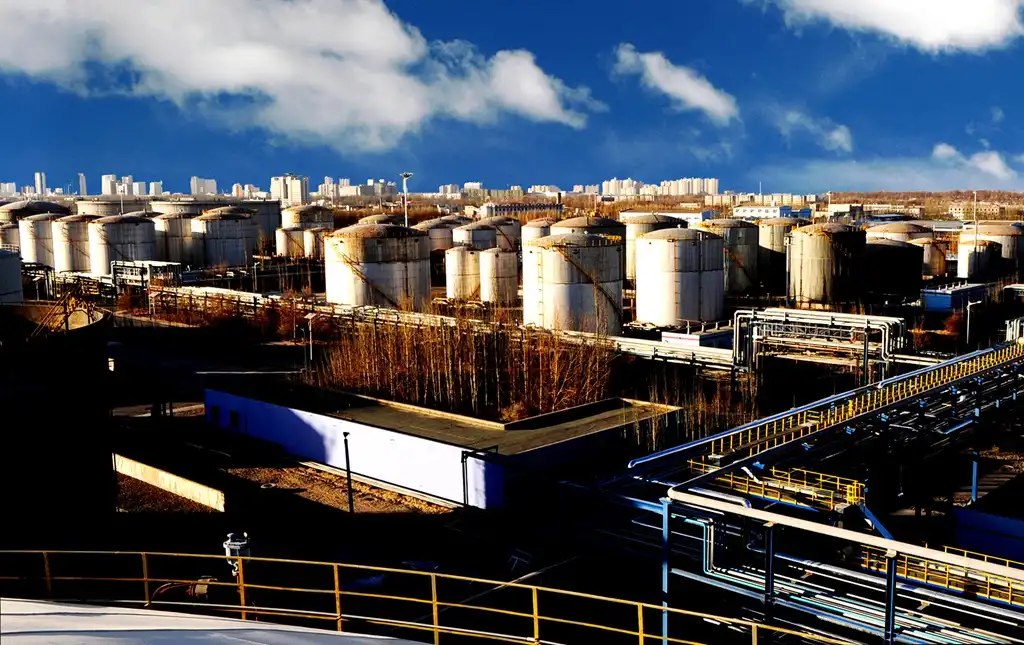

Butterfly valves, while less common in high-pressure oil and gas applications, find their niche in certain areas of the industry. They are frequently used in lower-pressure systems, such as water injection lines, storage tank farms, and some downstream processing facilities. Their excellent flow characteristics and control capabilities make them valuable in applications where precise flow regulation is needed, such as in blending operations or in controlling the flow of cooling water in refineries.
Water and Wastewater Treatment Systems
In water and wastewater treatment systems, the choice between ball valves and butterfly valves often leans towards butterfly valves. The nature of these systems, typically involving large pipe diameters and moderate pressures, aligns well with the strengths of butterfly valves. Their compact design and lower cost in larger sizes make them economically attractive for water treatment plants and distribution networks.
Butterfly valves excel in applications requiring frequent operation and precise flow control, such as filter backwash systems, chemical feed lines, and effluent control. Their ability to provide accurate flow regulation is crucial in maintaining proper chemical dosing and process control in treatment plants. Additionally, the resilience of butterfly valves to suspended solids in water makes them suitable for handling raw water and partially treated wastewater.
Ball valves, while less common in large-scale water systems, find applications in specific areas of water treatment. They are often used in smaller diameter lines, such as those for chemical injection or sampling points, where their excellent sealing properties are beneficial. Ball valves are also preferred in areas where complete media isolation is critical, such as in laboratory or analytical systems within treatment facilities.
Chemical and Process Industries
In chemical and process industries, the selection between ball valves and butterfly valves is highly dependent on the specific application and media being handled. Ball valves are often chosen for their superior sealing capabilities and resistance to a wide range of chemicals. They are particularly valuable in applications involving corrosive or hazardous materials where leak-free operation is paramount.
Ball valves' ability to handle high pressures and temperatures makes them suitable for reactor systems, high-purity chemical lines, and processes involving extreme conditions. Their full-bore design allows for pigging operations, which is beneficial in maintaining cleanliness in chemical processing lines. Specialized ball valves with exotic materials or coatings are used to handle aggressive chemicals that would degrade standard valve materials.
Butterfly valves find extensive use in the chemical industry, particularly in applications requiring frequent operation and precise flow control. They are commonly employed in mixing and blending operations, where their ability to provide accurate flow regulation is crucial. Butterfly valves are also preferred in large diameter lines carrying less aggressive chemicals, such as in storage and distribution systems.
The choice of valve materials is critical in chemical applications. Both ball and butterfly valves can be manufactured with a variety of corrosion-resistant materials and linings to suit specific chemical environments. This flexibility allows for tailored solutions that ensure long-term reliability and safety in diverse chemical processing applications.
Conclusion
Selecting between a ball valve and a butterfly valve requires careful consideration of various factors including the specific application requirements, operating conditions, and system constraints. Ball valves excel in providing tight shut-off and handling high-pressure applications, making them ideal for critical isolation and safety functions, particularly in the oil and gas industry. Butterfly valves offer advantages in terms of compact design, precise flow control, and cost-effectiveness in larger sizes, making them suitable for applications in water treatment and certain chemical processes. Ultimately, the choice depends on a thorough understanding of the system requirements and the unique strengths of each valve type. By carefully evaluating these factors, engineers and system designers can make informed decisions that optimize performance, reliability, and efficiency in their fluid control systems.
FAQs
1. What are the main differences between ball valves and butterfly valves?
Ball valves offer excellent sealing and handle high pressures, while butterfly valves are compact and provide precise flow control.
2. In which industries are ball valves commonly used?
Ball valves are widely used in oil and gas, chemical processing, and high-pressure applications.
3. What are the advantages of butterfly valves in large pipelines?
Butterfly valves are lightweight, cost-effective, and offer good flow characteristics in large diameter pipes.
4. Can ball valves be used for throttling applications?
While primarily designed for on-off service, some specialized ball valves can be used for limited throttling.
5. How do maintenance requirements differ between ball and butterfly valves?
Ball valves typically require less frequent maintenance due to their simple design, while butterfly valves may need more regular inspection, especially in harsh environments.
Expert Valve Solutions for Your Industry | CEPAI

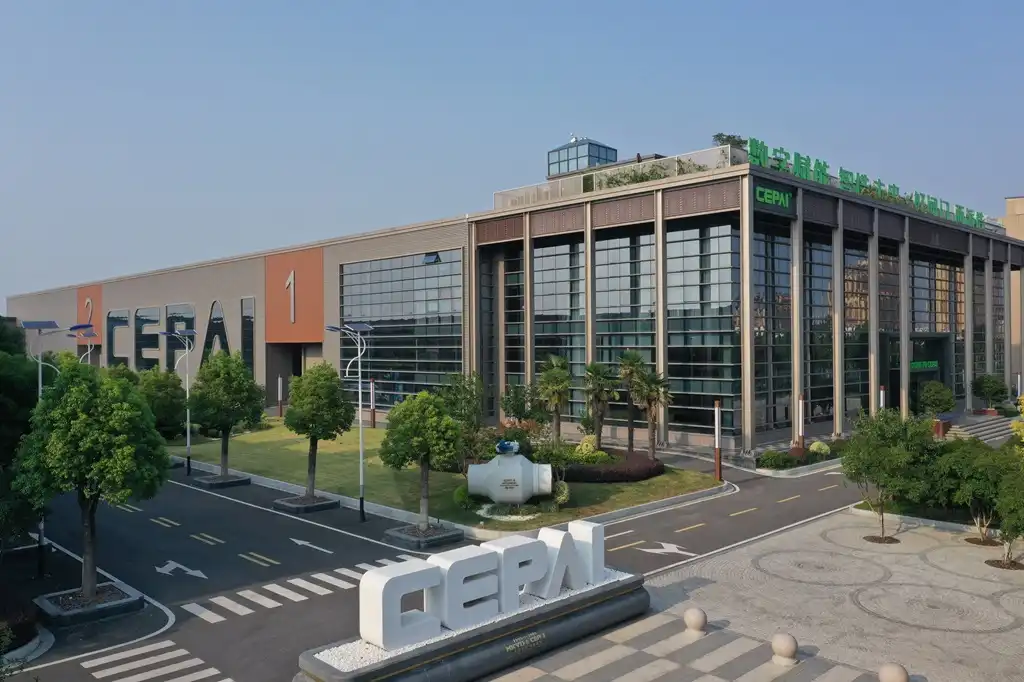

At CEPAI, we specialize in providing cutting-edge valve solutions for diverse industrial applications. Our state-of-the-art manufacturing facility, equipped with the longest high-precision intelligent manufacturing flexible production line in the Asia Pacific region, ensures unparalleled quality and precision in every valve we produce. As a leading valve supplier and manufacturer, we offer expertise in both ball and butterfly valves, tailored to meet the specific needs of your industry. For expert guidance on selecting the right valve for your application, contact our team at cepai@cepai.com.
