Understanding Pneumatic Control Valves and Their Importance

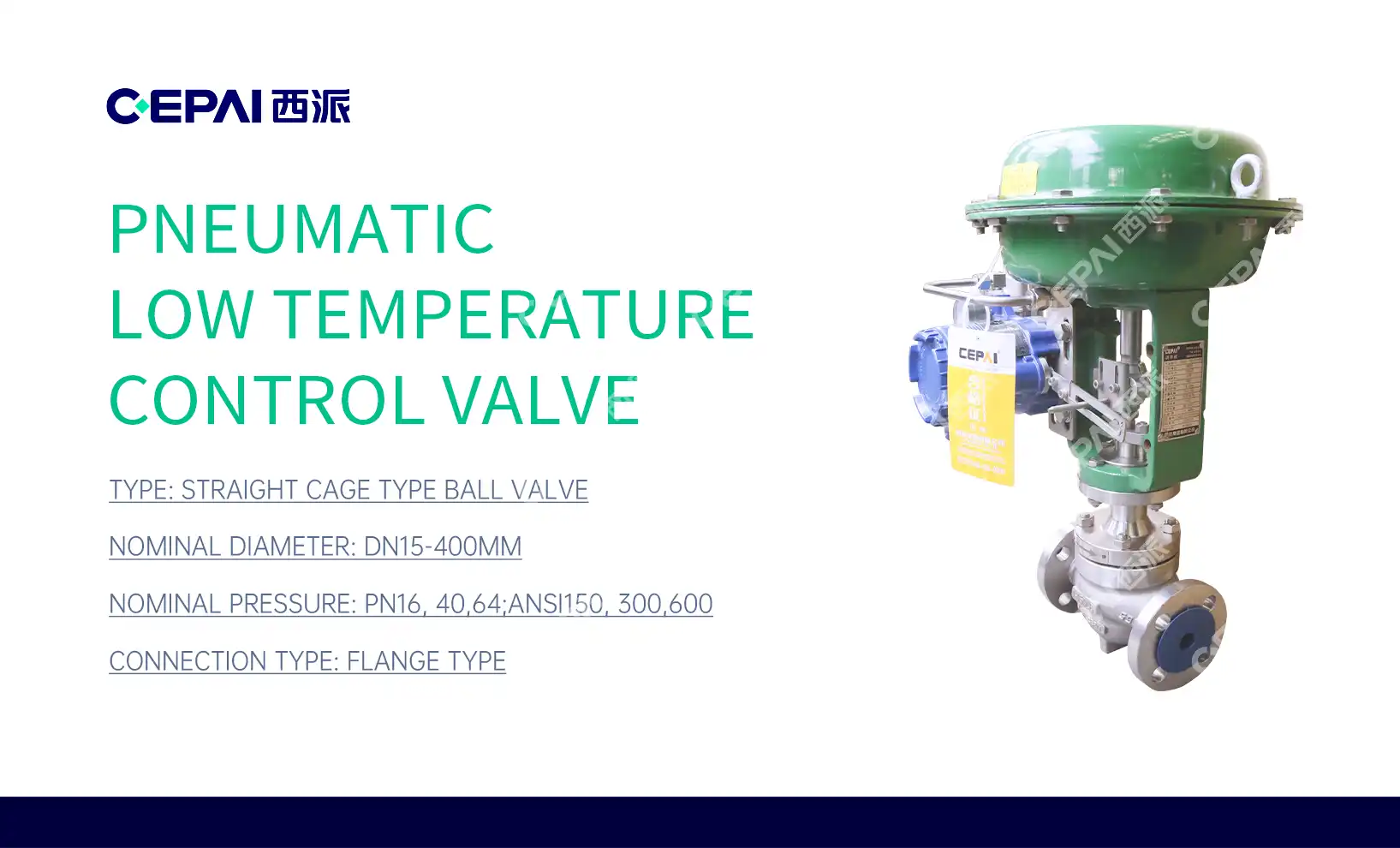

What is a Pneumatic Control Valve?
A pneumatic control valve is a critical component in many industrial processes, utilizing compressed air to regulate the flow of fluids or gases. These valves are designed to maintain precise control over various parameters such as pressure, temperature, and flow rate. By responding to pneumatic signals from a controller, they adjust their position to achieve the desired process conditions.
Key Components of a Pneumatic Control Valve
To fully grasp the calibration process, it's essential to understand the main components of a pneumatic control valve:
- Valve body: Houses the internal components and provides the flow path for the controlled medium.
- Actuator: Converts pneumatic pressure into mechanical motion to position the valve.
- Positioner: Ensures accurate valve positioning based on the input signal.
- Valve stem: Connects the actuator to the valve plug or ball.
- Valve seat: Creates a seal when the valve is closed.
- Diaphragm: Responds to changes in pneumatic pressure to move the valve stem.
The Role of Calibration in Valve Performance
Proper calibration is vital for maintaining the efficiency and reliability of pneumatic control valves. It ensures that the valve responds accurately to control signals, minimizing deviations from setpoints and reducing energy waste. Regular calibration helps prevent issues such as hysteresis, overshoot, and hunting, which can lead to poor process control and increased wear on valve components. By maintaining optimal calibration, facilities can improve product quality, reduce downtime, and extend the lifespan of their control valves.
Step-by-Step Guide to Calibrating a Pneumatic Control Valve
Preparation and Safety Measures
Before beginning the calibration process, it's crucial to prioritize safety and proper preparation:
- Isolate the valve: Ensure the valve is isolated from the process to prevent any unintended consequences.
- Relieve pressure: Depressurize the valve and associated piping to create a safe working environment.
- Gather necessary tools: Collect calibration equipment, including a pressure source, position indicator, and any valve-specific tools.
- Review documentation: Consult the valve manufacturer's guidelines and specifications for calibration procedures and tolerances.
- Personal protective equipment: Wear appropriate PPE, such as safety glasses and gloves, throughout the calibration process.
Calibration Procedure
Follow these steps to calibrate your pneumatic control valve:
- Connect equipment: Attach the calibrated pressure source to the valve actuator and position indicator to the valve stem.
- Set zero point: Adjust the positioner to ensure the valve is fully closed at zero input signal.
- Incremental testing: Gradually increase the input pressure while recording valve position at multiple points (e.g., 25%, 50%, 75%, and 100% of full scale).
- Compare results: Check the recorded values against the manufacturer's specifications or desired control characteristics.
- Make adjustments: Fine-tune the positioner settings to align the valve response with the required performance curve.
- Verify calibration: Cycle the valve through its full range of motion, both increasing and decreasing, to confirm consistent and accurate positioning.
- Document results: Record all calibration data, including initial readings, adjustments made, and final performance values.
Troubleshooting Common Calibration Issues
During the calibration process, you may encounter several common issues:
- Hysteresis: If the valve position differs when approaching a setpoint from different directions, check for mechanical friction or binding in the valve assembly.
- Deadband: A large gap between input changes and valve movement may indicate worn components or improper positioner settings.
- Non-linearity: Inconsistent valve response across its range could be due to improper cam selection or positioner misalignment.
- Hunting: Continuous oscillation around a setpoint may require tuning of the positioner's gain settings.
- Stiction: If the valve sticks or jumps during movement, inspect for debris, corrosion, or inadequate lubrication.
Maintaining Calibration and Optimizing Valve Performance
Regular Maintenance Practices
To ensure long-term accuracy and reliability of your pneumatic control valves, implement these maintenance practices:
- Scheduled inspections: Conduct visual checks for signs of wear, leakage, or corrosion.
- Lubrication: Apply appropriate lubricants to moving parts as recommended by the manufacturer.
- Clean air supply: Maintain clean, dry compressed air to prevent contamination and moisture-related issues.
- Stem packing adjustments: Periodically check and adjust stem packing to prevent leaks and ensure smooth operation.
- Actuator diaphragm inspection: Examine the actuator diaphragm for signs of wear or damage, replacing if necessary.
Advanced Calibration Techniques
For more precise control and improved performance, consider implementing these advanced calibration techniques:
- Split-range calibration: Calibrate multiple valves to work in sequence for enhanced process control.
- Characterization: Adjust the valve response curve to match specific process requirements.
- Partial stroke testing: Regularly perform partial stroke tests to verify valve functionality without full closure.
- Digital positioners: Utilize smart positioners with self-diagnostics and auto-calibration features.
- Valve signature analysis: Employ diagnostic tools to assess valve health and predict maintenance needs.
Integrating Calibration with Process Control Systems
Maximize the benefits of valve calibration by integrating it with your overall process control strategy:
- Calibration scheduling: Incorporate valve calibration into your facility's preventive maintenance program.
- Data logging: Use digital systems to track calibration history and valve performance over time.
- Remote monitoring: Implement remote monitoring capabilities to identify calibration drift or valve issues in real-time.
- Predictive maintenance: Analyze calibration data to predict potential failures and schedule proactive maintenance.
- Performance optimization: Use calibration results to fine-tune process control parameters and improve overall system efficiency.
Conclusion
Calibrating pneumatic control valves is a critical task that ensures optimal performance, energy efficiency, and longevity of industrial processes. By following a systematic approach to calibration, implementing regular maintenance practices, and leveraging advanced techniques, facilities can significantly improve their control valve reliability and overall process effectiveness. Remember that proper calibration is not a one-time event but an ongoing process that requires attention to detail, proper documentation, and integration with broader maintenance and control strategies.
