How to Avoid Control Valve Cavitation and Flashing?

Control valve cavitation and flashing are critical issues that can severely impact valve performance and longevity. To avoid these problems, implement proper valve sizing, use hardened materials, install trim designs that reduce pressure drop, and consider multi-stage pressure reduction. Additionally, maintain appropriate back pressure, employ cavitation-resistant valve types, and ensure regular maintenance. By following these strategies, you can significantly reduce the risk of cavitation and flashing, extending valve life and improving overall system efficiency in various industrial applications, from oil and gas to water treatment.

​​​​​​​

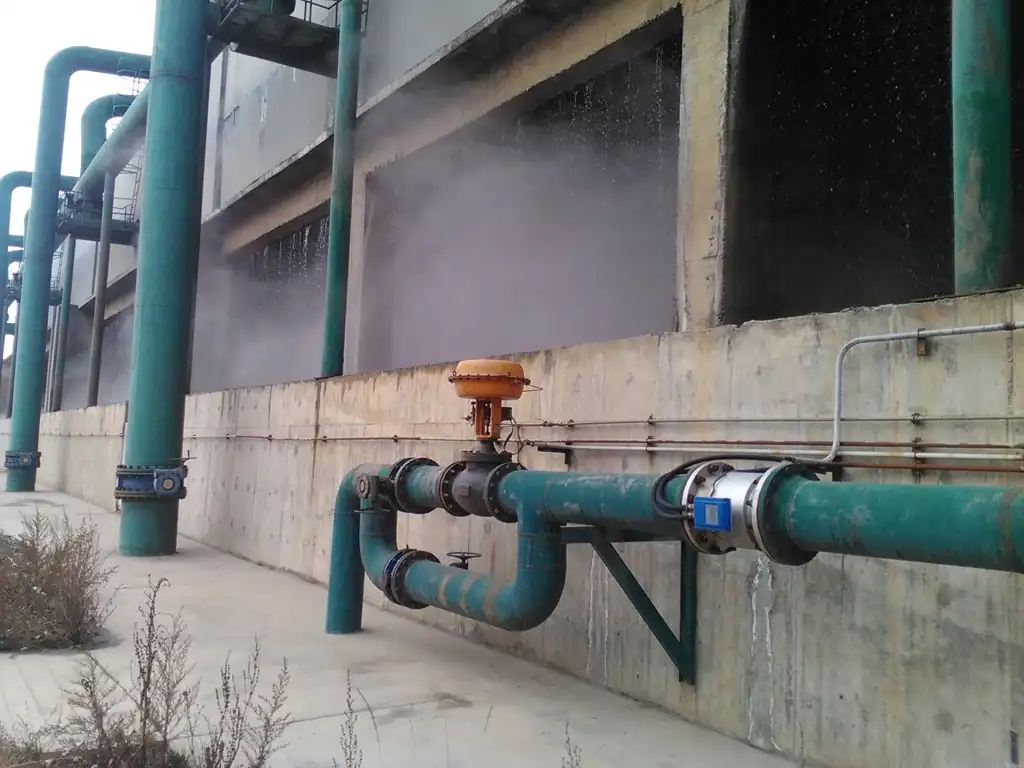

Understanding Control Valve Cavitation and Flashing

What is Control Valve Cavitation?

Control valve cavitation occurs when liquid pressure falls below its vapor pressure within the valve, causing vapor bubbles to form. These bubbles are carried downstream and collapse violently as the pressure recovers, producing intense localized shock waves. This rapid implosion can erode valve internals, damage seats and plugs, and cause vibration or noise in the system. Cavitation is most likely in applications with high-pressure drops, throttling operations, or when handling volatile or low-boiling-point liquids, making early detection and prevention critical to maintain valve longevity and performance.

The Mechanics of Flashing in Control Valves

Flashing occurs when the downstream pressure remains below the liquid’s vapor pressure, leading to continuous vaporization of a portion of the fluid. Unlike cavitation, the vapor bubbles do not collapse but persist downstream, potentially creating erosion, noise, and vibration along the valve body and piping. Over time, flashing can degrade valve internals, reduce flow capacity, and affect process control accuracy. This phenomenon is common in high-pressure-drop applications or systems handling volatile liquids, and it requires careful valve selection and proper system design to mitigate its damaging effects.

Comparing Cavitation and Flashing

Although both cavitation and flashing involve vapor bubble formation, their impacts differ significantly. Cavitation causes severe localized damage due to bubble implosions, affecting control valve seats, plugs, and nearby piping. In contrast, flashing produces ongoing erosion and vibration downstream, potentially affecting a wider portion of the system. Understanding these differences is essential for engineers when designing control valves or implementing protective measures. Selecting control valves with appropriate pressure recovery characteristics and controlling pressure drops can minimize the risk of both cavitation and flashing in industrial systems.

Strategies to Prevent Control Valve Cavitation

Proper Valve Sizing and Selection

One of the most effective ways to prevent cavitation is through proper valve sizing. A correctly sized valve ensures that the pressure drop occurs gradually, reducing the likelihood of cavitation. When selecting a valve, consider factors such as flow rate, pressure drop, and fluid properties. Opt for valves with a Cv (flow coefficient) that allows for operation within the recommended range, typically 60-80% of maximum capacity.

Utilizing Hardened Materials

Employing hardened materials in valve construction can significantly mitigate the effects of cavitation. Materials such as stainless steel, stellite, or ceramic offer increased resistance to the erosive forces of imploding bubbles. These materials are particularly beneficial in high-pressure applications or when handling abrasive fluids. While they may increase initial costs, the extended valve life and reduced maintenance often justify the investment.

Implementing Advanced Trim Designs

Advanced control valve trim designs can effectively manage pressure drops and minimize cavitation. Multi-stage trim designs, for instance, distribute the pressure drop across several stages, reducing the likelihood of reaching vapor pressure at any single point. Other innovative designs, such as anti-cavitation cages or characterized seats, can help direct flow patterns to minimize cavitation-prone areas within the valve.

Techniques for Mitigating Control Valve Flashing

Maintaining Appropriate Back Pressure

Maintaining sufficient back pressure is crucial in preventing flashing. This can be achieved through the use of orifice plates, restrictive piping, or back pressure regulators downstream of the control valve. By ensuring that the pressure downstream remains above the fluid's vapor pressure, you can significantly reduce the occurrence of flashing. However, care must be taken to balance this with overall system efficiency and pressure requirements.

Employing Multi-Stage Pressure Reduction

Multi-stage pressure reduction is an effective technique for mitigating flashing. By dividing the total pressure drop across multiple valves or stages within a single valve, you can ensure that the pressure at each stage remains above the vapor pressure of the fluid. This approach not only prevents flashing but also provides more precise control over the flow rate and pressure throughout the system.

Selecting Flashing-Resistant Valve Types

Certain control valve types are inherently more resistant to flashing. For instance, globe valves with balanced plugs or cage-guided trims can handle higher pressure drops without flashing. Angle valves are another good choice, as they provide a more gradual pressure reduction. When selecting a control valve for applications prone to flashing, consider these specialized designs to enhance system performance and longevity.

Conclusion

Preventing control valve cavitation and flashing is crucial for maintaining system efficiency and longevity. By implementing proper valve sizing, using hardened materials, and employing advanced trim designs, you can significantly reduce the risk of cavitation. For flashing prevention, maintaining appropriate back pressure, utilizing multi-stage pressure reduction, and selecting flashing-resistant valve types are key strategies. Regular maintenance and monitoring are also essential to catch and address any issues early. With these approaches, you can ensure optimal performance and extended life of your control valve systems across various industrial applications.

FAQs

1. How often should control valves be inspected for signs of cavitation or flashing?

Regular inspections should be conducted at least annually, with more frequent checks in critical applications or harsh environments.

2. Can software tools help in predicting and preventing cavitation and flashing?

Yes, advanced modeling software can simulate flow conditions and help optimize valve selection and system design to minimize these issues.

3. Are there any retrofitting options for existing systems prone to cavitation or flashing?

Retrofitting options include installing anti-cavitation trims, adding multi-stage pressure reduction components, or upgrading to more resistant valve materials.

Expert Control Valve Solutions for Cavitation and Flashing Prevention | CEPAI

At CEPAI, we specialize in providing cutting-edge control valve solutions as a trusted control valve manufacturer designed to combat cavitation and flashing effectively. Our advanced manufacturing techniques and strict adherence to ISO quality standards ensure that each valve meets the highest industry requirements. With our extensive experience in oil and gas, petrochemical, and industrial applications, we offer tailored solutions to meet your specific needs. For expert advice on selecting the right control valve for your challenging applications, contact our team at cepai@cepai.com.
