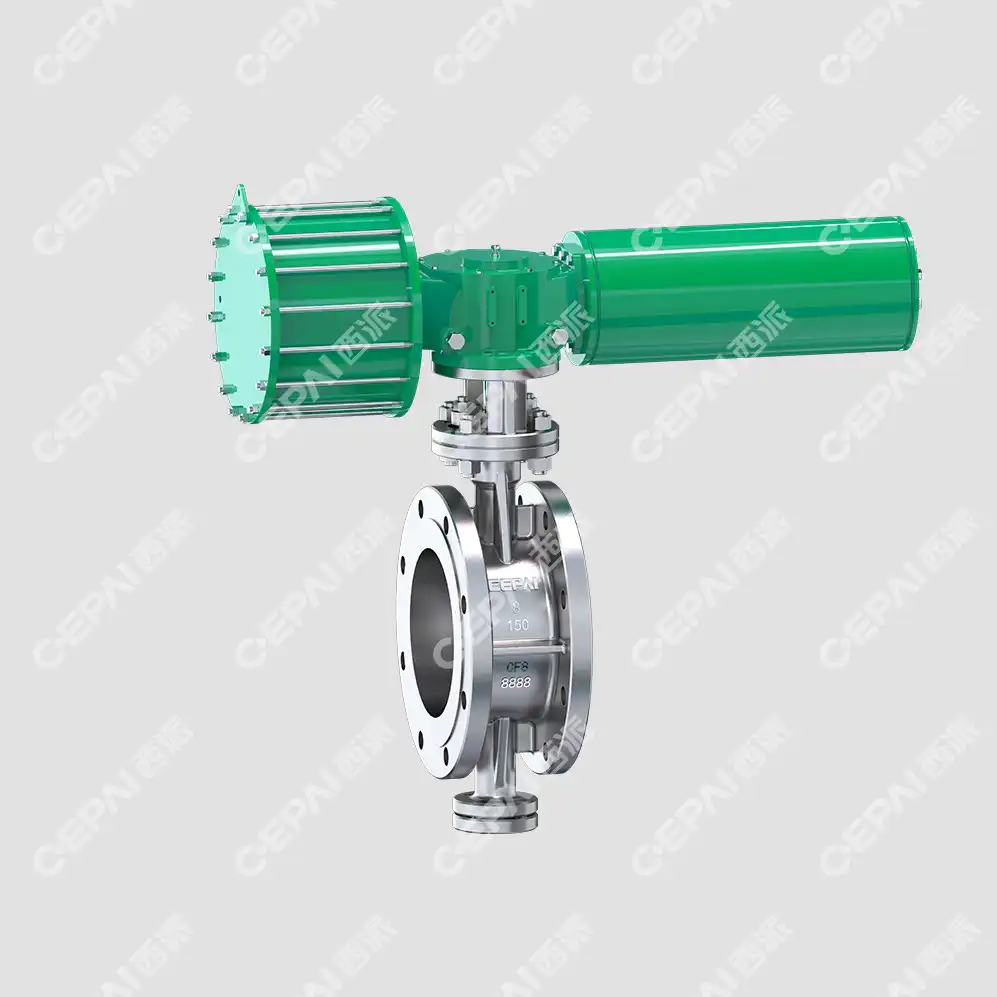

Understanding Cavitation in Butterfly Valves
What is Cavitation and Why is it Problematic?
Cavitation is a complex phenomenon that occurs in fluid systems, particularly in butterfly valves. It happens when the local pressure in a liquid drops below its vapor pressure, causing the formation of vapor bubbles. These bubbles then collapse violently when they move to areas of higher pressure, generating intense shock waves and microjets. This process can lead to severe damage to valve components, including erosion, pitting, and eventual failure of the valve system.
The problematic nature of cavitation stems from its destructive power. The implosion of vapor bubbles creates localized areas of extreme pressure and temperature, which can eat away at valve surfaces, compromise sealing integrity, and reduce overall efficiency. Over time, cavitation can lead to increased maintenance costs, decreased valve performance, and potential system failures. Understanding the mechanics of cavitation is the first step in developing effective prevention strategies.
Conditions that Promote Cavitation in Butterfly Valves
Several factors contribute to the onset of cavitation in butterfly valve systems. High pressure drops across the valve are a primary culprit, especially when the downstream pressure falls below the vapor pressure of the fluid. This situation is common in applications where butterfly valves are used for flow control or pressure reduction. The valve's geometry also plays a role, as sharp edges or abrupt changes in flow direction can create low-pressure zones conducive to cavitation.
Fluid velocity is another critical factor. As liquid accelerates through a partially open valve, the pressure decreases, potentially dropping below the vapor pressure and triggering cavitation. Temperature also influences cavitation susceptibility, as higher temperatures lower the vapor pressure of liquids, making cavitation more likely. Understanding these conditions is essential for implementing effective prevention measures and selecting appropriate valve designs for specific applications.
The Impact of Cavitation on Valve Performance and Lifespan
Cavitation can have severe consequences on both the immediate performance and long-term lifespan of butterfly valves. In terms of performance, cavitation can lead to erratic flow behavior, reduced flow capacity, and increased noise and vibration. These issues can compromise the valve's ability to provide precise flow control, potentially affecting the entire system's efficiency.
The long-term effects of cavitation on valve lifespan are equally concerning. The repeated impact of collapsing bubbles can cause material fatigue, leading to premature wear and tear of valve components. This erosion can affect critical areas such as the disc edge, seat, and body lining, compromising the valve's sealing ability and structural integrity. In severe cases, cavitation damage can necessitate frequent valve replacements, increasing maintenance costs and system downtime. By addressing cavitation proactively, operators can significantly extend the service life of their butterfly valves and maintain optimal system performance.
Strategies for Preventing Cavitation in Butterfly Valve Systems
Proper Valve Sizing and Selection
Selecting the right size and type of butterfly valve is paramount in preventing cavitation. Proper valve sizing ensures that the valve operates within its designed flow range, reducing the likelihood of extreme pressure drops that can lead to cavitation. When sizing a valve, consider factors such as the maximum and minimum flow rates, pressure differential, and fluid properties. Undersized valves may create excessive pressure drops, while oversized valves can lead to poor control and increased wear.
In addition to size, the valve type and design play crucial roles in cavitation prevention. Some butterfly valves are specifically engineered with anti-cavitation features, such as specialized disc designs or multi-stage trims. These designs help to gradually reduce pressure across the valve, minimizing the conditions that lead to cavitation. For applications with high risk of cavitation, consider valves with hardened materials or coatings that offer increased resistance to cavitation damage.
Optimizing Installation and Operating Conditions
Proper installation of butterfly valves is critical in preventing cavitation. Ensure that the valve is installed in the correct orientation and that there are sufficient straight pipe runs upstream and downstream of the valve. This helps to maintain uniform flow patterns and reduce turbulence that can contribute to cavitation. Pay attention to pipe fittings and transitions near the valve, as these can affect flow characteristics and pressure distribution.
Operating conditions also play a significant role in cavitation prevention. Maintain system pressures within the valve's specified range, avoiding excessive pressure drops across the valve. Where possible, implement control strategies that limit the valve's operating range to areas less prone to cavitation. This might involve using a bypass line for extreme low-flow conditions or implementing a staged pressure reduction system for high-pressure applications. Regular monitoring of system parameters can help identify potential cavitation risks before they lead to valve damage.
Implementing Advanced Cavitation Mitigation Techniques
For systems where basic prevention measures are insufficient, advanced cavitation mitigation techniques can be employed. One such technique is the use of anti-cavitation plates or cages. These devices are installed downstream of the valve and help to break up flow streams, redistributing pressure more evenly and reducing the intensity of cavitation effects. Another approach is the use of multi-stage trim designs, which divide the pressure drop across several stages, preventing the formation of large vapor bubbles.
In some cases, alternative valve technologies may be considered for high-cavitation risk applications. For instance, globe valves or specialized control valves might be more suitable than traditional butterfly valves in certain high-pressure drop scenarios. Additionally, implementing intelligent control systems that dynamically adjust valve positions based on real-time flow conditions can help maintain optimal operating parameters and minimize cavitation risks. These advanced techniques, when properly applied, can significantly enhance the cavitation resistance of your valve system.
Maintenance and Monitoring for Long-term Cavitation Prevention
Regular Inspection and Maintenance Procedures
Implementing a robust inspection and maintenance program is essential for long-term cavitation prevention in butterfly valve systems. Regular visual inspections can help identify early signs of cavitation damage, such as pitting or erosion on valve surfaces. These inspections should focus on critical areas like the disc edge, seat, and body lining. Utilize non-destructive testing methods, such as ultrasonic thickness measurement, to monitor material loss in susceptible areas.
Maintenance procedures should include regular cleaning and lubrication of valve components to ensure smooth operation. Pay special attention to sealing surfaces and actuator mechanisms, as these can affect valve performance and potentially contribute to conditions that promote cavitation. Establish a schedule for component replacement based on both time in service and observed wear, rather than waiting for failure to occur. This proactive approach can significantly reduce the risk of unexpected valve failures due to cavitation damage.
Monitoring Systems and Performance Analysis
Implementing advanced monitoring systems can provide valuable insights into valve performance and help detect early signs of cavitation. Install pressure sensors upstream and downstream of critical valves to continuously monitor pressure differentials. Acoustic sensors can detect the characteristic sounds associated with cavitation, allowing for early intervention. Integrate these sensors with your control system to enable real-time monitoring and automated alerts.
Regularly analyze performance data to identify trends or anomalies that might indicate developing cavitation issues. Look for changes in flow characteristics, increased noise levels, or unexpected pressure fluctuations. Utilize predictive maintenance techniques, such as vibration analysis, to detect potential problems before they lead to significant damage. By leveraging these monitoring and analysis tools, you can create a more responsive and effective cavitation prevention strategy.
Training and Best Practices for Operators
Effective cavitation prevention relies heavily on the knowledge and skills of system operators. Develop comprehensive training programs that educate operators on the causes and consequences of cavitation in butterfly valve systems. Ensure they understand the proper operation of valves, including the importance of avoiding rapid valve closures or openings that can create pressure spikes and increase cavitation risk.
Establish clear operational guidelines and best practices for valve operation. This might include specific procedures for startup and shutdown sequences, guidelines for adjusting valve positions during normal operation, and protocols for responding to potential cavitation events. Encourage operators to report any unusual valve behavior or system performance issues promptly. By fostering a culture of awareness and proactive management, you can significantly enhance your overall cavitation prevention efforts and maintain optimal valve system performance.
Conclusion
Preventing cavitation in butterfly valve systems is crucial for maintaining efficient operations and extending equipment lifespan. By implementing proper valve sizing, optimizing installation and operating conditions, and utilizing advanced mitigation techniques, you can significantly reduce the risk of cavitation damage. Regular maintenance, coupled with sophisticated monitoring systems and well-trained operators, forms a comprehensive approach to cavitation prevention. Remember, addressing cavitation proactively not only preserves valve integrity but also ensures smooth, reliable operation of your entire fluid system.
