The Fundamental Role of Control Valves in Membrane Filtration

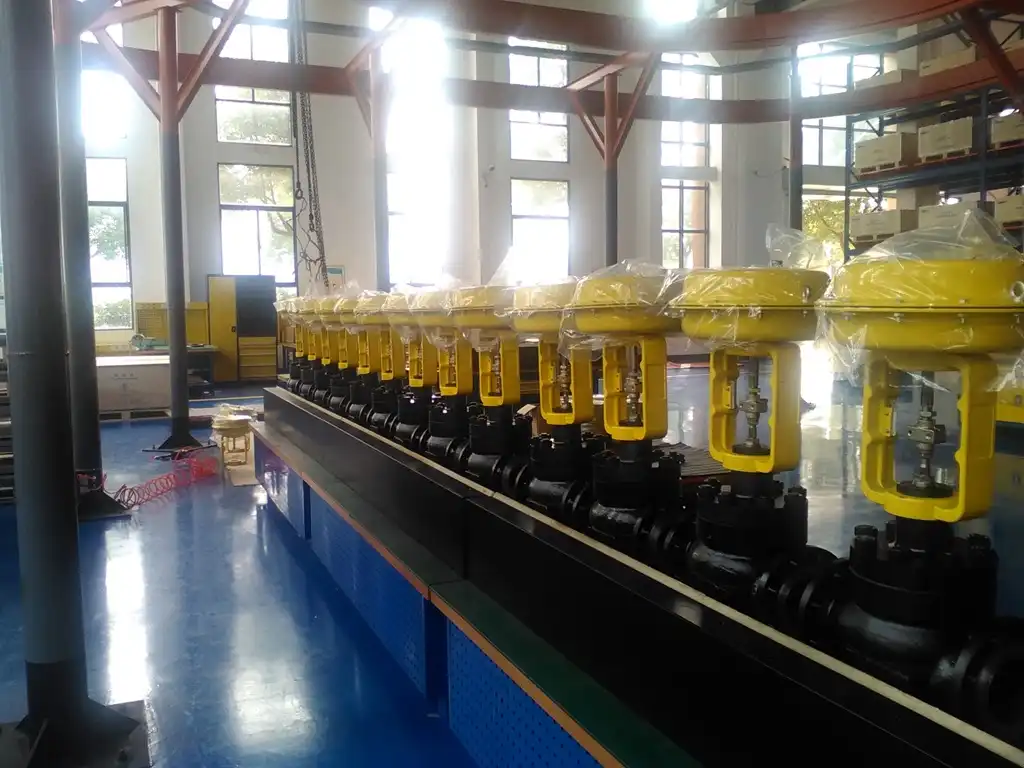

Understanding Control Valve Mechanics in Filtration Processes
Control valves serve as the cornerstone of flow regulation in membrane filtration systems. These sophisticated devices utilize a variable orifice to modulate the flow of fluids with remarkable precision. The heart of a control valve is its trim, which consists of a plug or ball that moves relative to a seat, creating a flow path that can be adjusted to achieve the desired flow rate. In membrane filtration, this capability is paramount as it allows for fine-tuning of the transmembrane pressure, which directly impacts the filtration efficiency and membrane longevity.
The mechanics of control valves in filtration processes involve a delicate balance of forces. As the actuator responds to signals from the control system, it positions the valve stem, which in turn alters the position of the plug or ball. This movement changes the flow area, thereby regulating the fluid dynamics within the system. The ability to make these adjustments in real-time is what sets control valves apart from static flow control devices, enabling them to respond to fluctuations in feed characteristics or process demands instantaneously.
Types of Control Valves Used in Membrane Systems
Membrane filtration systems employ various types of control valves, each suited to specific operational requirements. Globe valves are widely used due to their excellent throttling capabilities and ability to handle a wide range of flow coefficients. Their design allows for precise control over a broad range of operating conditions, making them ideal for applications where frequent adjustments are necessary.
Butterfly valves find their niche in large-diameter pipelines where space is at a premium. Their quarter-turn operation and low-pressure drop characteristics make them suitable for applications requiring quick changes in flow rates. For more corrosive or abrasive fluids, diaphragm valves offer superior sealing properties and minimal maintenance requirements, protecting the valve internals from harsh process media.
Specialized control valves, such as pinch valves, are particularly useful in slurry applications or where sterile processing is crucial. Their flexible sleeve design allows for complete isolation of the control mechanism from the process fluid, ensuring longevity and preventing contamination. The selection of the appropriate control valve type is critical to achieving optimal performance in membrane filtration systems and must be based on a thorough understanding of the process requirements and fluid properties.
Impact of Valve Sizing on Filtration Efficiency
Proper valve sizing is a critical factor in maximizing the efficiency of membrane filtration systems. An undersized valve may struggle to provide adequate flow rates, leading to increased energy consumption and potential membrane fouling due to insufficient cross-flow velocities. Conversely, an oversized valve can result in poor control resolution, causing instability in the filtration process and potentially damaging sensitive membrane elements through excessive pressure fluctuations.
The sizing process involves a detailed analysis of the system's hydraulic characteristics, including flow rates, pressure drops, and fluid properties. Engineers must consider factors such as the valve's flow coefficient (Cv), rangeability, and installed characteristics to ensure optimal performance across the entire operating range of the filtration system. Advanced computational fluid dynamics (CFD) modeling is often employed to predict valve behavior under various process conditions, allowing for fine-tuning of valve selection and configuration before installation.
By carefully matching the control valve specifications to the specific requirements of the membrane filtration system, operators can achieve significant improvements in filtration efficiency. Properly sized valves contribute to stable transmembrane pressures, uniform flux distribution across membrane surfaces, and reduced energy consumption. This attention to detail in valve sizing translates directly into enhanced product quality, increased membrane life, and lower operational costs for filtration plant operators.
Advanced Control Strategies for Optimized Membrane Filtration
Implementing Feedback Control Loops
Feedback control loops are the backbone of advanced control strategies in membrane filtration systems. These loops continuously monitor key process variables such as flow rate, pressure, and permeate quality, comparing them against setpoints and adjusting control valve positions accordingly. The implementation of robust feedback mechanisms ensures that the filtration process remains stable and efficient despite variations in feed characteristics or environmental conditions.
Modern control valves equipped with smart positioners play a crucial role in these feedback systems. These positioners incorporate microprocessors that can interpret complex control signals and provide precise valve stem positioning. The integration of smart positioners with advanced process controllers allows for rapid response to process disturbances, minimizing deviations from optimal operating conditions and maintaining consistent filtration performance.
Furthermore, the incorporation of cascade control strategies can enhance the overall system responsiveness. In a cascade configuration, multiple control loops are nested, with the output of one loop serving as the setpoint for another. This hierarchical approach allows for more nuanced control over interrelated process variables, such as balancing flux rates with transmembrane pressure to optimize filtration efficiency while protecting membrane integrity.
Adaptive Control Algorithms for Dynamic Process Conditions
Adaptive control algorithms represent the cutting edge of membrane filtration system optimization. These sophisticated software solutions can dynamically adjust control parameters based on real-time process data and historical performance trends. By continuously learning from system behavior, adaptive algorithms can fine-tune valve operations to accommodate changes in feed composition, membrane fouling rates, or production demand fluctuations.
One particularly effective application of adaptive control in membrane filtration is the implementation of model predictive control (MPC) strategies. MPC utilizes a process model to predict future system behavior and optimize control actions accordingly. This predictive capability allows for proactive adjustments to control valve settings, anticipating process changes before they occur and maintaining optimal filtration conditions with minimal disruption.
The integration of machine learning techniques with control valve operation has opened new avenues for process optimization. Neural networks and fuzzy logic controllers can be trained to recognize complex patterns in filtration system behavior, enabling them to make intelligent decisions about valve positioning that may not be apparent through traditional control methodologies. This level of adaptivity is particularly valuable in industries with highly variable feed streams or stringent product quality requirements.
Valve Diagnostics and Predictive Maintenance
Advanced control valve technologies now incorporate sophisticated diagnostic capabilities that contribute significantly to the overall reliability and efficiency of membrane filtration systems. These diagnostic tools continuously monitor valve performance parameters such as stem position, actuator pressure, and cycle count, providing operators with real-time insights into valve health and operational status.
Predictive maintenance algorithms analyze this diagnostic data to forecast potential valve failures or performance degradation before they impact the filtration process. By identifying issues such as valve stiction, seat wear, or actuator drift in their early stages, maintenance teams can schedule interventions during planned downtimes, minimizing disruptions to production and avoiding costly emergency repairs.
The integration of valve diagnostics with plant-wide asset management systems enables a holistic approach to maintenance planning. This integration allows for the coordination of valve maintenance activities with other equipment servicing, optimizing resource allocation and reducing overall maintenance costs. Additionally, the wealth of performance data collected through these diagnostic systems provides valuable insights for process engineers, informing future system designs and control strategies to further enhance filtration efficiency and reliability.
Enhancing Membrane Longevity and System Performance through Precision Flow Control
Mitigating Membrane Fouling with Strategic Flow Manipulation
Control valves play a pivotal role in mitigating membrane fouling, one of the most significant challenges in maintaining efficient membrane filtration systems. By strategically manipulating flow patterns, control valves can create hydrodynamic conditions that minimize the accumulation of foulants on membrane surfaces. This is achieved through precise adjustment of cross-flow velocities and transmembrane pressures, which influences the balance between permeation and particle deposition.
Advanced control valve systems can implement dynamic flux control strategies, such as flux stepping or flux cycling. These techniques involve periodically altering the filtration flux to create flow instabilities that dislodge accumulated particles from the membrane surface. The ability of control valves to rapidly and accurately modulate flow rates is essential for the successful execution of these anti-fouling strategies, which can significantly extend membrane cleaning intervals and operational lifespans.
Moreover, the integration of control valves with inline cleaning systems allows for the implementation of efficient clean-in-place (CIP) procedures. During CIP cycles, valves can be programmed to divert flow, adjust cleaning agent concentrations, and control backwash intensities, ensuring thorough membrane cleaning while minimizing chemical usage and downtime. This level of control over the cleaning process is crucial for maintaining long-term membrane performance and reducing operational costs associated with frequent membrane replacements.
Energy Efficiency Improvements Through Optimized Flow Regulation
Precision flow regulation through advanced control valve technology significantly contributes to energy efficiency in membrane filtration systems. By maintaining optimal flow rates and pressures, control valves minimize unnecessary energy expenditure associated with over-pumping or excessive pressure drops. This fine-tuning of system hydraulics translates directly into reduced power consumption and lower operating costs.
Variable frequency drives (VFDs) paired with intelligent control valve systems create synergistic energy-saving opportunities. The control valves can modulate flow rates to match process demands precisely, while VFDs adjust pump speeds accordingly. This coordinated approach ensures that pumps operate at their most efficient points, avoiding energy waste from throttling or recirculation loops commonly used in less sophisticated systems.
Furthermore, advanced control algorithms can optimize the distribution of flow across multiple membrane modules or stages in large-scale filtration plants. By balancing the load between parallel filtration trains and sequencing the operation of membrane units based on real-time performance data, control valves help maximize overall system efficiency. This intelligent flow distribution not only saves energy but also promotes uniform membrane utilization, extending the useful life of the entire filtration system.
Quality Assurance Through Consistent Flow Management
Control valves are instrumental in ensuring consistent product quality in membrane filtration applications. By maintaining stable operating conditions, these valves help achieve uniform permeate characteristics, which is critical in industries such as pharmaceutical manufacturing or food and beverage production where product consistency is paramount.
The ability of modern control valves to respond rapidly to process disturbances allows for tight control over critical quality parameters such as permeate flux and solute rejection rates. This responsiveness is particularly valuable in batch processes or during product changeovers, where rapid stabilization of filtration conditions is essential for minimizing off-spec production and maximizing yield.
Advanced control valve systems also facilitate the implementation of real-time quality control measures. By integrating inline analytical instruments with control valve networks, filtration systems can automatically adjust operating parameters based on continuous product quality measurements. This closed-loop quality control approach ensures that filtration performance remains within specified tolerances, even in the face of varying feed characteristics or environmental conditions, thereby safeguarding product integrity and regulatory compliance.
Conclusion
Control valves are indispensable components in modern membrane filtration systems, offering unparalleled precision in flow regulation that directly translates to improved system performance, extended membrane life, and enhanced product quality. Their ability to dynamically adjust to changing process conditions, coupled with advanced control strategies and diagnostic capabilities, positions them at the forefront of filtration technology innovation. As membrane filtration continues to evolve and find new applications across various industries, the role of control valves in optimizing these systems will only grow in importance, driving further advancements in valve design and control methodologies to meet the ever-increasing demands for efficiency, reliability, and product consistency in filtration processes.
FAQs
1. How often should control valves in membrane filtration systems be serviced?
The service frequency depends on factors like operating conditions and valve type. Generally, a comprehensive inspection is recommended annually, with more frequent checks for critical applications.
2. Can control valves help reduce energy consumption in filtration processes?
Yes, by optimizing flow rates and pressures, control valves significantly improve energy efficiency, reducing pump power requirements and overall system energy consumption.
3. What are the key factors to consider when selecting control valves for membrane filtration?
Important factors include flow characteristics, pressure ratings, material compatibility with process fluids, rangeability, and response time to ensure optimal performance in the specific filtration application.
