Understanding High Performance Electric Ball Valves
Design and Components
High performance electric ball valves are engineered for superior functionality in HVAC systems. The core component is a precision-machined ball with a bore that allows or restricts flow when rotated. This ball is typically crafted from durable materials such as stainless steel or brass, ensuring longevity and resistance to corrosion. The valve body houses the ball and is designed to withstand high pressures and temperatures common in HVAC applications.
The electric actuator is a key feature that sets these valves apart. It consists of an electric motor, gearing mechanism, and control circuitry. This actuator enables remote operation and integration with building management systems. The stem connects the ball to the actuator, transferring rotational motion to control flow. High-quality seals and gaskets ensure leak-free operation, while position indicators provide visual feedback on valve status.
Operational Principles
The operation of high performance electric ball valves in HVAC systems is based on precise control and rapid response. When signaled, the electric actuator rotates the ball to the desired position, effectively modulating flow. This process can be infinitely variable, allowing for fine-tuned control of heating or cooling output. The valves can operate in on-off mode for simple applications or modulating control for more complex temperature regulation.
Advanced models incorporate feedback mechanisms that continuously monitor valve position and adjust as needed. This ensures accurate flow control even under varying pressure conditions. Some electric ball valves feature fail-safe mechanisms that automatically close or open the valve in case of power failure, enhancing system safety and reliability.
Benefits in HVAC Applications
The implementation of high performance electric ball valves in HVAC systems offers numerous advantages. Their quick response time allows for rapid adjustment to changing temperature demands, improving overall system efficiency. The precise control capabilities enable more accurate temperature regulation, enhancing comfort for building occupants. These valves also contribute to energy savings by preventing overheating or overcooling, thus reducing unnecessary energy consumption.
Electric actuation eliminates the need for manual operation, allowing for centralized control and integration with smart building systems. This remote operation capability simplifies maintenance and troubleshooting processes. Additionally, the robust construction of these valves ensures long-term reliability, reducing the frequency of replacements and associated downtime. Their versatility makes them suitable for various HVAC applications, from chilled water systems to steam distribution networks.
Selection and Sizing Considerations
Flow Characteristics
When selecting high performance electric ball valves for HVAC systems, understanding flow characteristics is paramount. The valve's Cv factor, which indicates flow capacity, must be carefully considered to ensure proper system performance. Engineers must analyze the required flow rates at different operating conditions to choose a valve with appropriate capacity. The valve's flow characteristic curve, whether it's equal percentage, linear, or quick opening, should match the specific HVAC application requirements.
Pressure drop across the valve is another critical factor. Excessive pressure drop can lead to inefficiencies and increased energy consumption. Conversely, undersized valves may not provide adequate flow control. Balancing these factors requires careful calculation and often involves computational fluid dynamics simulations to optimize valve selection.
Material Compatibility
The choice of materials for high performance electric ball valves in HVAC systems is crucial for long-term reliability. The valve body, ball, and stem materials must be compatible with the fluid being controlled, whether it's water, glycol solutions, or refrigerants. Stainless steel is often preferred for its corrosion resistance and durability, particularly in systems with treated water or where chemical compatibility is a concern.
Seal materials require special attention to ensure they can withstand the temperature range and chemical composition of the fluid. PTFE (Teflon) seals are commonly used for their excellent chemical resistance and low friction properties. However, in high-temperature applications, reinforced PTFE or specialized elastomers may be necessary. The actuator components should also be selected with environmental conditions in mind, considering factors such as humidity and ambient temperature fluctuations.
Actuator Specifications
The electric actuator is a critical component in high performance electric ball valves for HVAC systems. Torque requirements must be carefully calculated, taking into account the valve size, operating pressure, and potential scaling or debris accumulation over time. A safety factor is typically applied to ensure reliable operation throughout the valve's lifecycle. The actuator's duty cycle should match the expected frequency of operation in the HVAC system.
Control signal compatibility is another key consideration. Actuators must be selected to work with the building's control system, whether it uses analog signals (e.g., 4-20mA, 0-10V) or digital protocols like BACnet or Modbus. Some advanced actuators offer programmable features, allowing for customized control logic directly at the valve level. Power requirements and backup power options should also be evaluated, especially for critical applications where fail-safe operation is necessary.
Installation and Maintenance Best Practices
Proper Installation Techniques

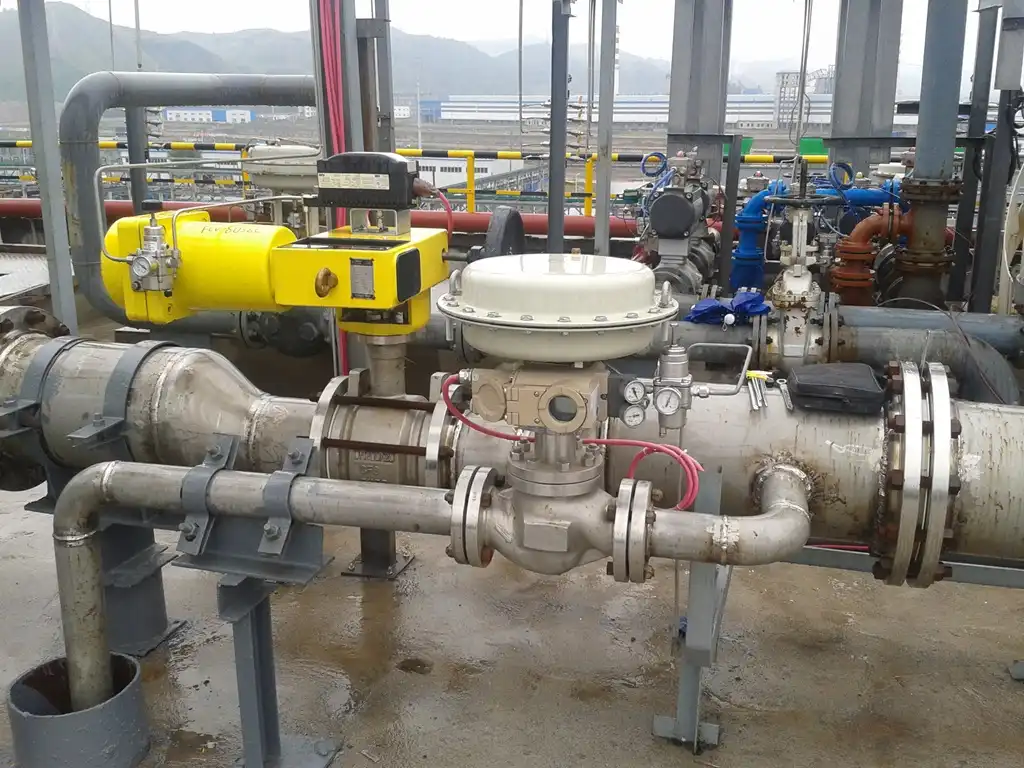

Correct installation of high performance electric ball valves is crucial for optimal HVAC system performance. The valve should be installed in a location that allows easy access for maintenance and manual override if necessary. Proper alignment is essential to prevent undue stress on the valve body and actuator. Installers must ensure that the piping is adequately supported to avoid transferring weight or vibration to the valve assembly.
When mounting the actuator, it's important to follow manufacturer guidelines for orientation and clearance. Electrical connections should be made with appropriate conduit and sealing to protect against moisture ingress. Many modern electric ball valves feature modular designs that allow for field-replaceable actuators, simplifying future maintenance or upgrades. It's also crucial to verify that the valve's flow direction matches the system requirements, as some valves are designed for unidirectional flow only.
Regular Maintenance Procedures
Implementing a robust maintenance program for high performance electric ball valves ensures their longevity and reliable operation. Regular visual inspections can identify early signs of wear, leakage, or corrosion. Actuator functionality should be tested periodically, checking for smooth operation and correct positioning. This may involve cycling the valve through its full range of motion and verifying position feedback accuracy.
Lubrication of moving parts, particularly the valve stem and actuator gears, should be performed according to manufacturer recommendations. In systems with high mineral content or particulate matter, more frequent cleaning of the valve internals may be necessary to prevent buildup and ensure smooth operation. Electrical components, including wiring connections and control boards, should be inspected for signs of deterioration or loose connections. Implementing a predictive maintenance approach using valve diagnostics and performance trend analysis can help prevent unexpected failures and optimize maintenance schedules.
Troubleshooting Common Issues
Even with proper installation and maintenance, high performance electric ball valves may occasionally experience issues. Common problems include incomplete closure or opening, which can often be addressed by recalibrating the actuator or adjusting limit switches. Leakage around the stem may indicate worn seals, requiring replacement to maintain system integrity. If the valve fails to respond to control signals, the issue may lie in the actuator's electrical components or the control system itself.
Erratic operation or unusual noises during actuation could suggest mechanical problems within the valve or actuator assembly. In such cases, disassembly and inspection by a qualified technician may be necessary. For valves with digital controls, software diagnostics can often provide valuable insights into operational issues. It's important to maintain detailed records of valve performance and any maintenance actions taken, as this historical data can be invaluable for diagnosing recurring problems and optimizing long-term reliability.
Conclusion
High performance electric ball valves have become indispensable components in modern HVAC systems, offering precise control, energy efficiency, and reliability. Their advanced design, incorporating durable materials and sophisticated actuators, enables seamless integration with building automation systems. By understanding the key factors in selection, installation, and maintenance, facility managers and engineers can maximize the benefits of these valves, ensuring optimal HVAC performance and occupant comfort. As the demand for smarter, more efficient buildings continues to grow, the role of high performance electric ball valves in achieving these goals will only become more significant, driving further innovations in valve technology and control strategies.
FAQs
1. How do high performance electric ball valves differ from traditional manual valves?
Electric ball valves offer remote operation, precise control, and integration with building management systems, unlike manual valves that require physical adjustment.
2. What are the energy-saving benefits of using these valves in HVAC systems?
They provide accurate temperature regulation, preventing overheating or overcooling, thus reducing energy waste and improving overall system efficiency.
3. How often should high performance electric ball valves be maintained?
Regular maintenance, including visual inspections and functionality tests, should be performed at least annually, with more frequent checks in demanding applications.
