Design and Operation: Understanding the Fundamentals

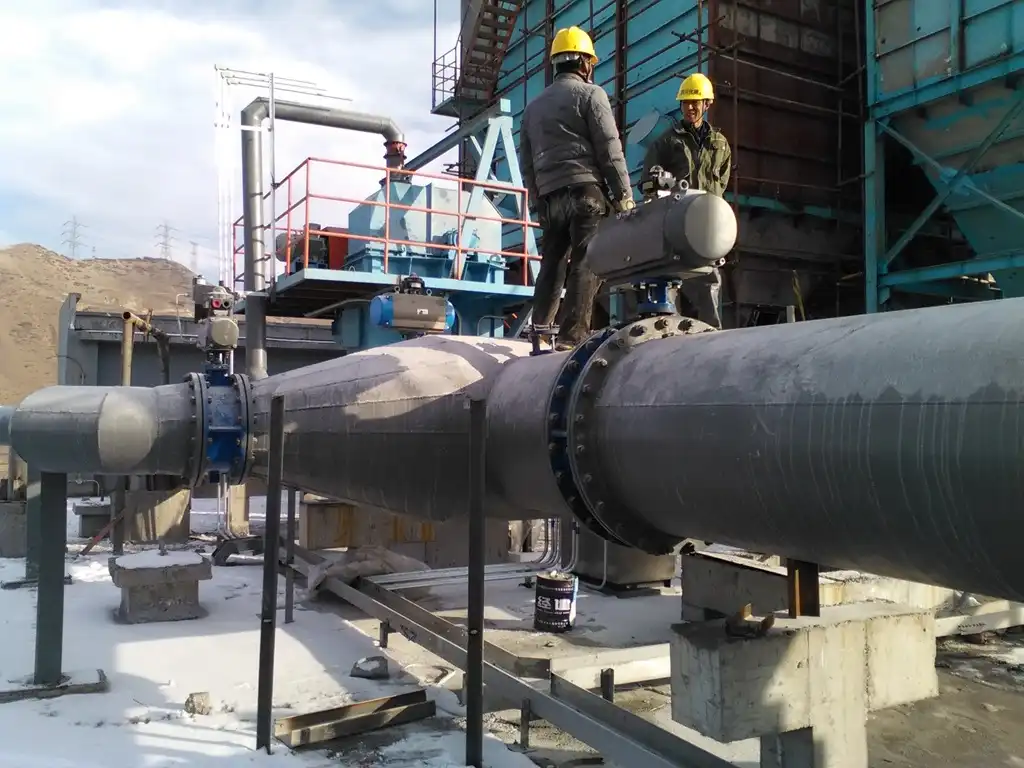

Electric V-Type Ball Valve: Innovative Flow Control
The electric V-type ball valve represents a significant advancement in valve technology. Its distinctive feature is the V-shaped ball, which allows for more precise flow control compared to traditional ball valves. The V-shaped cut in the ball creates a variable orifice that changes size as the valve opens or closes, providing a near-linear flow characteristic. This design enables smooth and accurate regulation of flow rates, making it ideal for applications requiring fine-tuned control.
The electric actuator attached to the V-type ball valve adds another layer of precision and convenience. It allows for remote operation and integration with automated control systems, enhancing overall process efficiency. The actuator can be programmed to respond to various input signals, enabling precise positioning of the valve based on specific flow requirements or process conditions.
Globe Valve: Traditional Reliability
Globe valves have been a staple in flow control for decades, known for their reliability and straightforward design. The valve operates by raising or lowering a plug onto a seat, which is perpendicular to the flow path. This design creates a tortuous flow path, which is beneficial for throttling applications but can lead to higher pressure drops.
The linear motion of the globe valve's stem provides a direct correlation between stem position and flow rate, making it relatively easy to control. However, this design also means that globe valves typically require more turns to fully open or close compared to ball valves, potentially leading to longer actuation times.
Comparative Analysis of Valve Mechanisms
When comparing the mechanisms of electric V-type ball valves and globe valves, several key differences emerge. The V-type ball valve's quarter-turn operation allows for quicker opening and closing times, which can be crucial in certain applications. Its streamlined flow path results in lower pressure drops and higher flow coefficients (Cv values) compared to globe valves of similar size.
Globe valves, while generally slower to operate, offer excellent sealing capabilities and are often preferred in applications where tight shut-off is critical. Their design also allows for easy maintenance and replacement of sealing components. However, the more complex flow path of globe valves can lead to higher energy consumption due to increased pressure drops.
Flow Efficiency: Quantifying Performance
Pressure Drop Analysis
One of the most significant factors in valve performance is pressure drop. Electric V-type ball valves excel in this area, typically exhibiting lower pressure drops compared to globe valves of similar size. This characteristic is due to the ball valve's straighter flow path and larger orifice area when fully open. Lower pressure drops translate to reduced energy requirements for pumping, potentially leading to significant cost savings in large-scale operations.
Globe valves, with their more convoluted flow path, generally produce higher pressure drops. While this can be advantageous for certain throttling applications where pressure reduction is desired, it often results in higher energy consumption in systems where maintaining pressure is crucial.
Flow Coefficient (Cv) Comparison
The flow coefficient, or Cv value, is a critical metric for comparing valve performance. It represents the amount of water that will flow through a valve with a pressure drop of 1 psi. Electric V-type ball valves typically boast higher Cv values than globe valves of comparable size, indicating superior flow capacity. This higher flow capacity allows for the use of smaller valve sizes in many applications, potentially reducing initial costs and space requirements.
Globe valves, while generally having lower Cv values, offer more consistent control characteristics across their operating range. This can be advantageous in applications requiring precise flow control at lower flow rates.
Energy Efficiency and Operating Costs
The energy efficiency of a valve has a direct impact on operating costs. Electric V-type ball valves, with their lower pressure drops and higher flow coefficients, often result in reduced pumping requirements and lower energy consumption. Over time, these efficiency gains can translate into substantial cost savings, particularly in large-scale industrial applications.
Globe valves, while potentially less energy-efficient due to higher pressure drops, may still be preferable in certain situations where their specific control characteristics or tight shut-off capabilities outweigh efficiency considerations. However, in applications where energy efficiency is a primary concern, the electric V-type ball valve often emerges as the more economical choice.
Application Suitability: Choosing the Right Valve
Industry-Specific Requirements

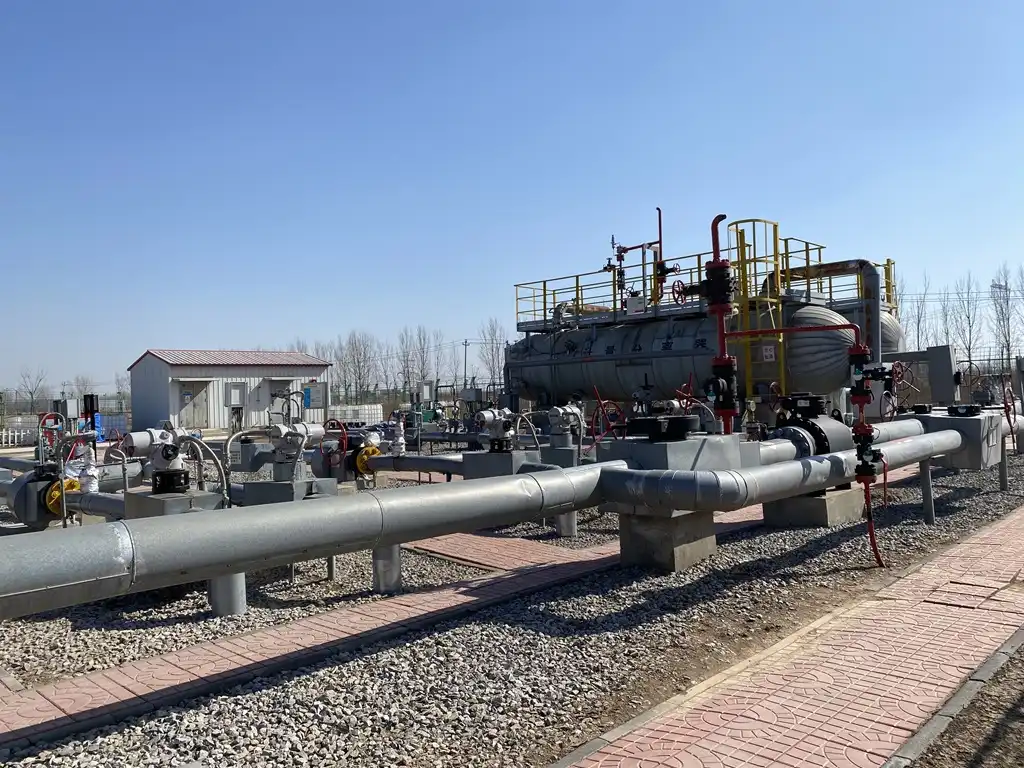

Different industries have varying requirements for valve performance, and understanding these nuances is crucial for selecting the appropriate valve type. In the oil and gas industry, for instance, electric V-type ball valves are increasingly favored for their ability to handle high-pressure applications and their resistance to erosion and corrosion. Their quick operation and low-pressure drop characteristics make them ideal for pipeline systems where minimizing energy loss is critical.
In contrast, globe valves maintain a strong presence in industries such as power generation and chemical processing. Their excellent throttling capabilities and ability to provide tight shut-off make them suitable for applications involving steam control or where precise flow regulation is paramount. The choice between an electric V-type ball valve and a globe valve in these industries often comes down to specific process requirements and the balance between control precision and flow efficiency.
Flow Control Precision
Flow control precision is a crucial factor in many industrial processes. Electric V-type ball valves, with their V-shaped ball design, offer excellent control characteristics, especially in the lower flow ranges. The variable orifice created by the V-cut allows for more precise flow modulation compared to traditional ball valves. This feature, combined with electric actuation, enables fine-tuned control that can be particularly beneficial in processes requiring frequent adjustments or automated control systems.
Globe valves have long been valued for their linear flow characteristics, which provide a direct relationship between stem position and flow rate. This predictable behavior makes them well-suited for applications requiring stable control across a wide range of flow rates. However, the inherent design of globe valves can sometimes lead to less precise control at extremely low flow rates compared to the V-type ball valve.
Maintenance and Longevity Considerations
The long-term performance and maintenance requirements of valves are critical considerations in industrial applications. Electric V-type ball valves generally offer advantages in terms of maintenance simplicity and longevity. Their quarter-turn operation results in less wear on sealing surfaces compared to multi-turn valves like globe valves. Additionally, the streamlined flow path of ball valves reduces the likelihood of debris accumulation, potentially extending the intervals between maintenance cycles.
Globe valves, while potentially requiring more frequent maintenance due to their more complex internal structure, offer advantages in terms of repairability. The separate seat and plug design allows for easier replacement of worn components without necessarily replacing the entire valve body. This can be particularly beneficial in applications where valve replacement is challenging or costly.
When considering longevity, both valve types can offer excellent service life when properly selected and maintained. However, the specific operating conditions, such as temperature, pressure, and media characteristics, play a significant role in determining the most suitable valve type for long-term reliability.
Conclusion
The comparison between electric V-type ball valves and globe valves reveals distinct advantages for each type in specific applications. Electric V-type ball valves excel in scenarios demanding high flow efficiency, quick operation, and precise control, particularly in high-pressure environments. Their lower pressure drops and higher flow coefficients make them ideal for energy-conscious operations. Globe valves, with their proven reliability and excellent throttling capabilities, remain the preferred choice in applications requiring tight shut-off and consistent control across a wide range of flow rates. Ultimately, the selection between these valve types should be based on a thorough analysis of specific application requirements, considering factors such as flow characteristics, control precision, energy efficiency, and long-term maintenance needs.
FAQs
What is the main difference between an electric V-type ball valve and a globe valve?
The main difference lies in their design and flow characteristics. Electric V-type ball valves have a V-shaped ball that allows for precise flow control and lower pressure drops, while globe valves use a linear motion to regulate flow, offering excellent throttling capabilities.
Which valve type is more energy-efficient?
Generally, electric V-type ball valves are more energy-efficient due to their lower pressure drops and higher flow coefficients, resulting in reduced pumping requirements.
Are globe valves better for precise flow control?
Globe valves are known for their precise flow control, especially across a wide range of flow rates. However, electric V-type ball valves with their V-shaped design can offer comparable precision, particularly at lower flow rates.
