Understanding the Basics of Butterfly Valves
What Are Butterfly Valves?
Among the many industrial uses for butterfly valves, which are characterised by a quarter-turn rotational motion, is the regulation of flow. The media flow through the valve body is controlled by a disc that is positioned on a revolving shaft. Butterfly valves are perfect for on-off and throttling applications since the disc spins to either restrict or allow flow. Their compact size, minimal pressure drop, and rapid processing make them valuable in numerous industries, including chemical processing, water treatment, and oil and gas.
Evolution of Butterfly Valve Design
Butterfly valves have undergone redesigns to improve their performance and reliability in demanding industrial environments. While classic circular butterfly valves served their purpose admirably in most applications, they failed miserably under extreme heat or pressure. Offset designs were developed as a result, which alter the fit between the disc and seat to address these issues. From a concentric valve to a double offset valve and finally to a three eccentric butterfly valve, there has been a lot of progress in valve technology. Each step has improved sealing and working benefits.
Importance of Valve Selection in Industrial Applications
Choosing the right type of valve is very important for making sure that industrial processes work well, are safe, and are efficient. The best valve design is based on things like the working pressure, temperature, media composition, and the flow characteristics that are needed. For engineers and plant workers to make smart choices that can have a big effect on system reliability, maintenance needs, and overall operational costs, they need to know the differences between double offset and triple offset butterfly valves. In important industry settings, making the right choice can lead to better process control, less downtime, and higher safety.
Double Offset Butterfly Valves: Features and Benefits

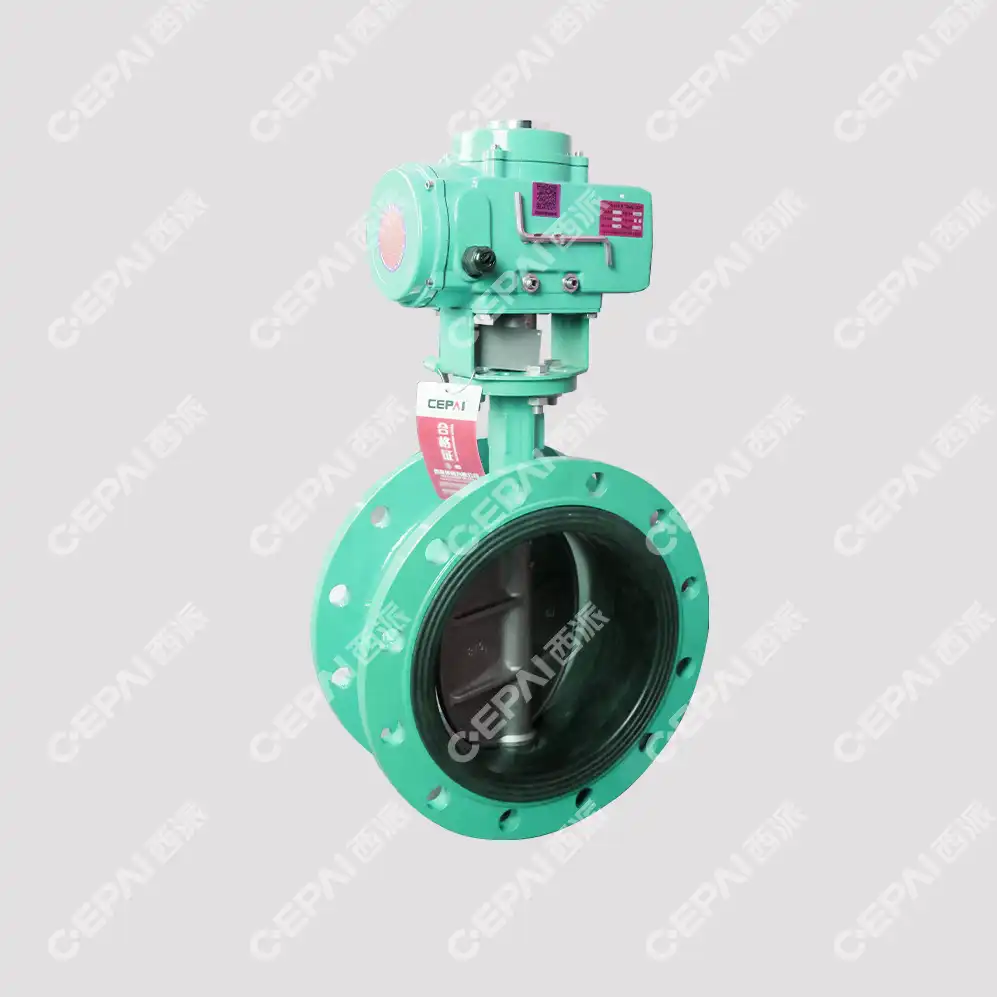

Design Principles of Double Offset Valves
Double offset butterfly valves, also referred to as two eccentric butterfly valves, represent a significant improvement over concentric designs. The name "double offset" is given to these valves because of two distinctive characteristics. The first offset shifts the shaft's location such that it is at an angle to the pipe and valve body's centerline; the second shifts it such that it is behind the sealing surface's plane. Operating with this setup creates a cam-like action, which lessens wear and friction on the seat and disc edge. The double offset design of the valve outperforms the standard concentric butterfly valves in terms of sealing performance and service life.
Operational Advantages of Double Offset Valves
The unique geometry of double offset butterfly valves and three eccentric butterfly valve offers several operational advantages. The cam-like action during opening and closing reduces the contact between the disc and seat until the final degrees of closure, minimizing wear and extending the valve's lifespan. A smaller and less expensive actuator is possible thanks to this design's ability to reduce working torque, which in turn makes the valve easier to operate. For applications requiring moderate pressure and temperature, as well as those with superior shut-off capabilities than concentric designs, double offset valves are a good choice. Increased process efficiency and decreased leakage are further benefits of their superior sealing properties.
Applications Suited for Double Offset Butterfly Valves
Because of their adaptability and enhanced performance, double offset butterfly valves are widely used in many different industrial industries. Their corrosion resistance and dependable sealing capabilities make them ideal for use in water and wastewater treatment plants. Pipelines and processing plants in the oil and gas sector frequently use double offset valves for on-off and throttling purposes. Their versatility in handling different media and their capacity to precisely control flow are two advantages that chemical processing plants have. The small size and efficient performance of these valves make them ideal for use in HVAC systems, electricity generating facilities, and food and beverage processing, among other applications.
Triple Offset Butterfly Valves: Advanced Sealing Technology

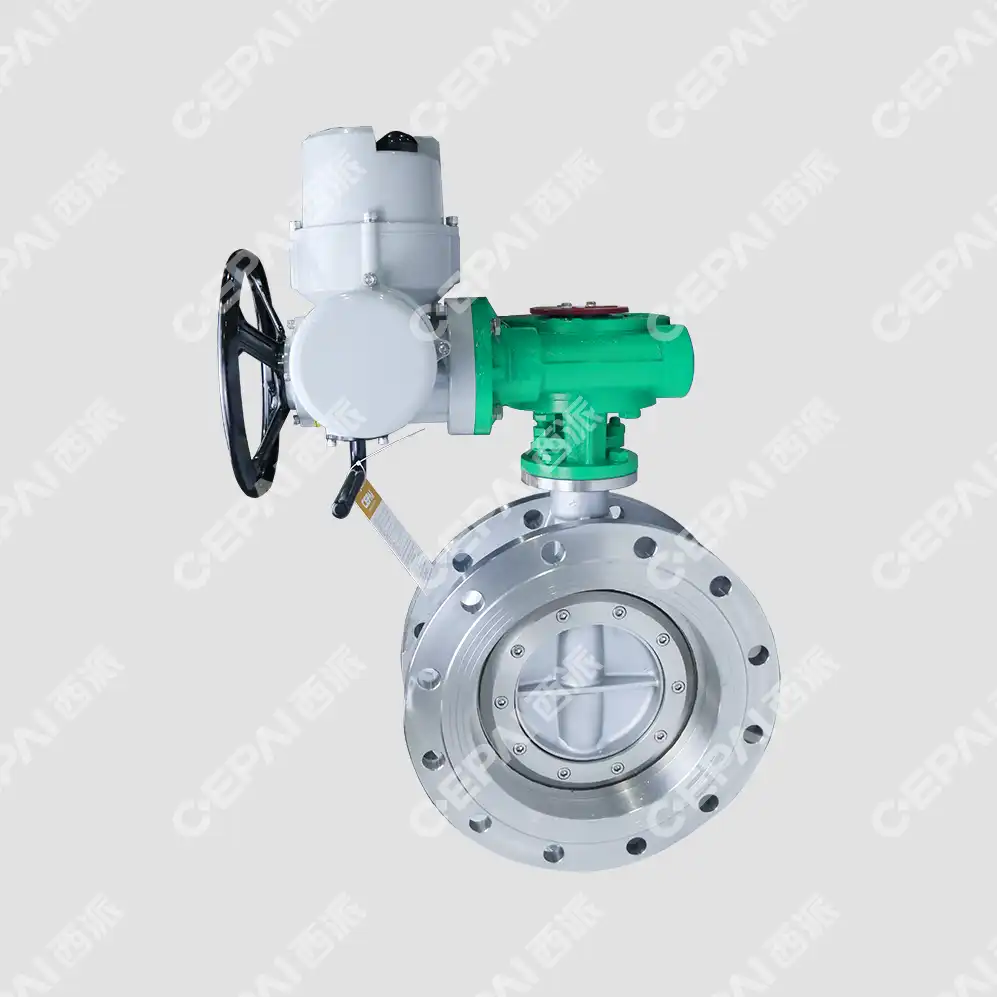

Innovative Design of Triple Offset Valves
Triple offset butterfly valves, also known as three eccentric butterfly valves, represent the pinnacle of butterfly valve design. Building upon the double offset concept, these valves incorporate a third offset that creates a helical offset of the sealing surfaces. A metal-to-metal seal that does not rub produces an unusually tight and long-lasting seal because of this novel design. The valve's sealing surfaces are completely isolated until the valve is fully closed because to the conical shape formed by the disc and seat geometries. In spite of harsh environments, this one-of-a-kind design maintains a bubble-tight seal and removes operating friction.
Performance Benefits of Triple Offset Technology
The advanced design of triple offset butterfly valves offers numerous performance benefits that set them apart from other valve types. Even in situations involving high pressure and temperatures, the metal-to-metal sealing mechanism frequently manages to achieve zero leakage, demonstrating exceptional leak-tightness. Superior sealing capabilities means less product loss and more efficient processes. The sealing surfaces experience almost little wear due to the non-rubbing motion during operation, leading to a longer service life and less maintenance needs. In addition to being great at sealing in both directions, triple offset valves work well in situations when there is a reverse flow. They are perfect for mission-critical applications that require dependable performance because to their precision control and low-torque operation.
Industries and Applications Leveraging Triple Offset Valves
Triple offset butterfly valves have found widespread adoption in industries that demand the highest levels of performance and reliability. These valves are essential in the oil and gas industry, where they manage the flow of raw materials to finished goods at every stage of the process. When it comes to handling strong chemicals and ensuring a tight shut-off, the petrochemical industry depends on triple offset valves. Due to their high-temperature capabilities and precise control, these valves are utilised in feedwater applications and steam systems of power production plants. Also, triple offset valves are becoming more popular in places where standard valve designs would fail, such as LNG terminals and cryogenic applications. Their versatility and superior performance make them a preferred choice for critical flow control applications across various industrial sectors.
Conclusion
The choice between double offset and three eccentric butterfly valve depends on the specific requirements of each application. Suitable for a variety of moderate-duty applications, double offset valves provide better performance than typical designs. When it comes to demanding service environments, nothing beats the improved tightness and longevity offered by triple offset valves, thanks to their cutting-edge sealing technology. Engineers and plant operators may maximise efficiency, dependability, and performance in industrial processes by understanding these distinctions and selecting the best suitable valve for their purposes. Twofold and triple counterbalanced plans will both be fundamental in fulfilling the changed requests of modern mechanical stream control as valve innovation progresses.
