Understanding Electric Ball Valves in High-Temperature Settings
The Fundamentals of Electric Ball Valves

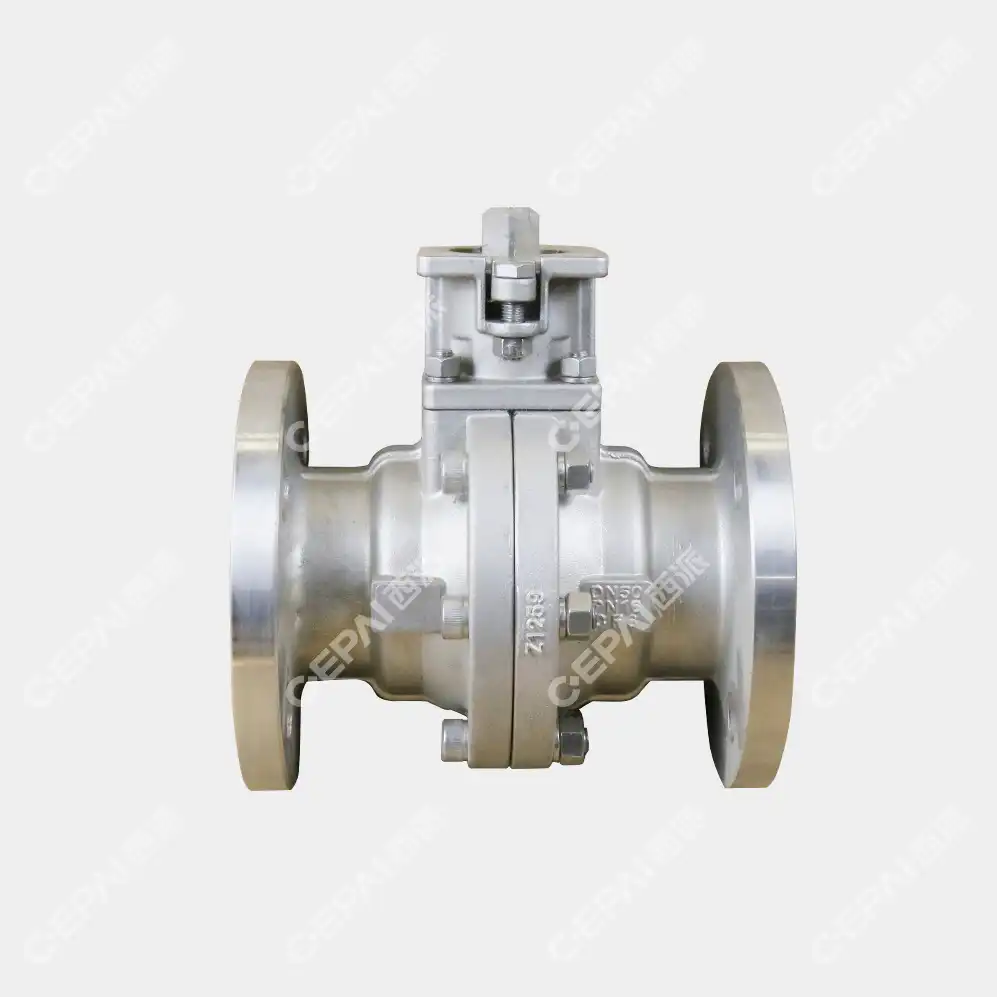

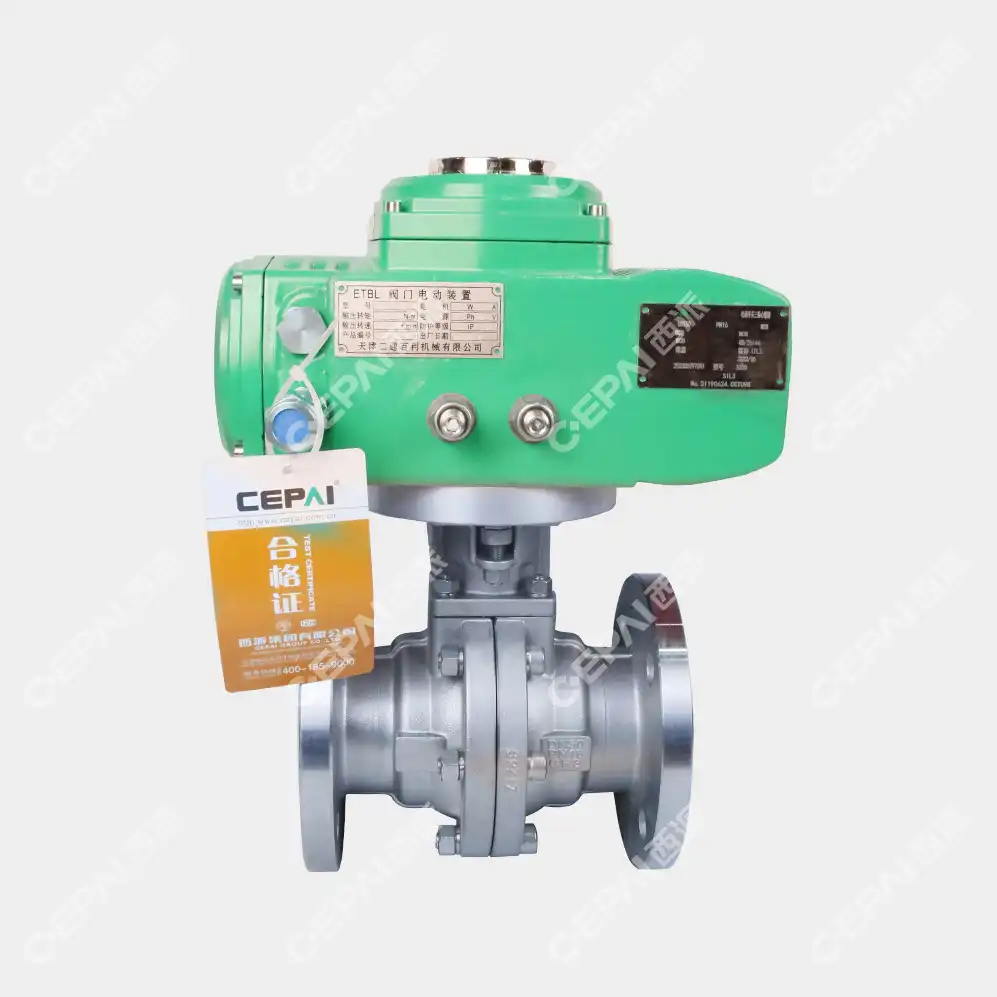

Electric ball valves are advanced flow control devices that combine the robust design of traditional ball valves with the precision and automation capabilities of electric actuators. At their core, these valves feature a spherical disc, or ball, with a bore through its center. This ball rotates within the valve body to control flow. The electric actuator provides the torque necessary to rotate the ball, allowing for remote operation and integration with control systems.
In high-temperature applications, the materials used in electric ball valves become crucial. Valve bodies are often constructed from heat-resistant alloys such as stainless steel or high-nickel alloys. The ball and seats may be made from materials like stellite or ceramics to withstand thermal stress and maintain their integrity under extreme conditions.
Temperature Ratings and Limitations
The temperature rating of an electric ball valve is a critical specification that determines its suitability for high-heat environments. Most standard electric ball valves are rated for temperatures up to 350°F (177°C), but specialized high-temperature models can handle much higher temperatures. Some advanced designs can operate in environments exceeding 800°F (427°C).
It's important to note that temperature limitations are not solely determined by the valve body and ball. The seals, gaskets, and actuator components must also be capable of withstanding high temperatures. Manufacturers often use materials like graphite or metal-reinforced PTFE for seals in high-temperature applications. The actuator itself may require additional heat protection or cooling systems to ensure reliable operation in extreme heat.
Advantages of Electric Ball Valves in Hot Processes
Electric ball valves offer several advantages in high-temperature applications. Their quarter-turn operation allows for quick opening and closing, reducing exposure time to extreme heat. The tight sealing capability of ball valves helps prevent leakage, which is crucial in maintaining safety and efficiency in hot processes. Additionally, the electric actuation enables precise control and the ability to integrate with automated systems, allowing for remote operation in hazardous or hard-to-reach high-temperature environments.
The durability of electric ball valves in high-heat settings also contributes to reduced maintenance requirements and longer service life, making them a cost-effective choice for industries dealing with elevated temperatures. Their versatility allows for use in both on-off and modulating control applications, providing flexibility in system design and operation.
Design Considerations for High-Temperature Electric Ball Valves
Material Selection for Thermal Resilience
Choosing the right materials is paramount when designing electric ball valves for high-temperature applications. The valve body, ball, and seats must maintain their structural integrity and performance under prolonged exposure to heat. Stainless steel grades like 316 or 321 are common choices for valve bodies due to their excellent corrosion resistance and strength at elevated temperatures. For even more extreme conditions, alloys such as Hastelloy or Inconel may be employed.
The ball itself is often made from hardened stainless steel or coated with wear-resistant materials like tungsten carbide or chromium. These materials not only withstand high temperatures but also resist abrasion and erosion that can occur in harsh process fluids. Seat materials require special attention, as they must maintain a tight seal while enduring thermal cycling. Advanced polymers like PEEK (polyether ether ketone) or reinforced PTFE blends are used for their high-temperature stability and low friction properties.
Thermal Expansion and Stress Management
High-temperature environments introduce significant challenges related to thermal expansion. As components heat up, they expand at different rates, potentially leading to misalignment, increased wear, or loss of sealing integrity. Engineers must account for these thermal effects in the valve design, incorporating features such as floating balls or flexible seat arrangements that can accommodate dimensional changes without compromising performance.
Stress analysis is a critical part of the design process for high-temperature electric ball valves. Finite element analysis (FEA) is often employed to simulate thermal stresses and identify potential weak points in the valve assembly. This allows designers to optimize the valve's geometry and material distribution to minimize stress concentrations and ensure reliable operation over a wide temperature range.
Actuator Considerations for Hot Environments
The electric actuator is a crucial component that requires special attention in high-temperature applications. Standard actuators may not be suitable for extreme heat, as their internal components, such as motors and control boards, can be sensitive to elevated temperatures. To address this, manufacturers may employ several strategies:
- Heat-resistant actuator designs that use high-temperature rated components and materials.
- Thermal barriers or insulation between the valve and actuator to minimize heat transfer.
- Remote mounting of actuators away from the heat source, using extended drive shafts or linkages.
- Cooling systems, such as forced air or water cooling, to maintain safe operating temperatures for the actuator.
Additionally, the lubricants used in the actuator and valve assembly must be carefully selected to maintain their properties at high temperatures. Specialty high-temperature greases or dry lubricants may be necessary to ensure smooth operation and prevent seizure or increased wear under thermal stress.
Applications and Industry-Specific Uses of High-Temperature Electric Ball Valves
Oil and Gas Industry Applications

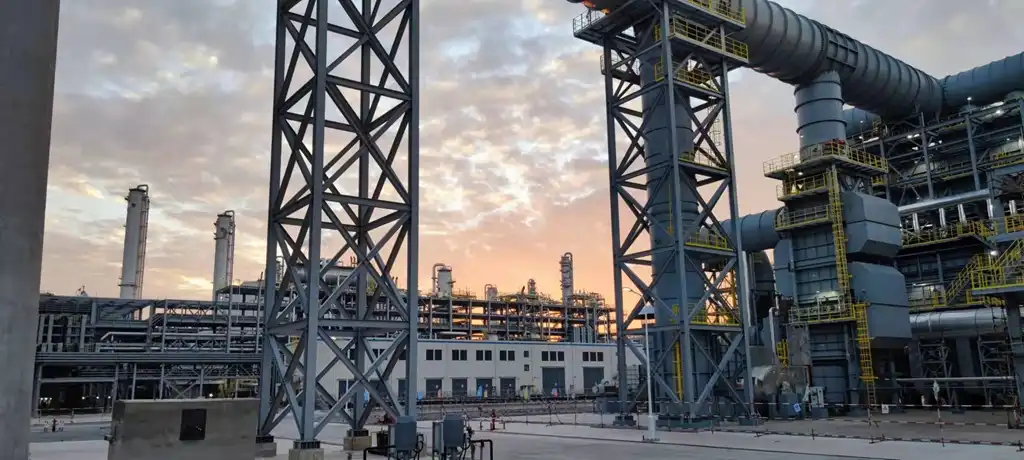

In the oil and gas sector, high-temperature electric ball valves play a crucial role in various processes. They are extensively used in refinery operations where temperatures can soar during crude oil distillation and cracking processes. These valves are essential for controlling the flow of hot hydrocarbons and steam in processing units. In offshore platforms, they manage the flow of high-temperature fluids extracted from deep reservoirs, often containing abrasive particles and corrosive compounds.
Electric ball valves are also vital in steam injection systems used for enhanced oil recovery. These applications require valves that can withstand temperatures exceeding 500°F (260°C) while maintaining precise control over steam flow rates. The ability of electric ball valves to operate reliably in these harsh conditions makes them indispensable for maintaining safety and efficiency in oil and gas operations.
Power Generation and Steam Systems
The power generation industry relies heavily on high-temperature electric ball valves for steam management in both conventional and nuclear power plants. In boiler systems, these valves control the flow of superheated steam, often at temperatures above 1000°F (538°C). Their quick-acting nature and tight shut-off capabilities are crucial for maintaining proper steam pressures and responding to rapid load changes.
In combined cycle power plants, electric ball valves are used in heat recovery steam generators (HRSGs) to manage the flow of hot exhaust gases and steam. The ability to withstand thermal cycling and provide reliable operation under fluctuating temperature conditions is essential in these applications. Additionally, electric actuation allows for integration with plant control systems, enabling precise automation of steam flow for optimal plant efficiency.
Chemical and Petrochemical Processing
The chemical and petrochemical industries present some of the most demanding applications for high-temperature electric ball valves. These valves are used in reactors, distillation columns, and other process equipment where temperatures can exceed 600°F (315°C). They must not only withstand high temperatures but also resist corrosion from aggressive chemicals and maintain their sealing integrity to prevent leaks of potentially hazardous substances.
In polymer production, electric ball valves are used to control the flow of hot monomers and catalysts. The precise control offered by electric actuation is crucial for maintaining the correct ratios and residence times in polymerization reactors. Similarly, in the production of specialty chemicals, these valves play a vital role in managing the flow of high-temperature intermediates and finished products through various stages of synthesis and purification.
The versatility of electric ball valves in handling a wide range of process fluids at elevated temperatures makes them an ideal choice for the diverse and challenging conditions found in chemical processing plants. Their ability to provide reliable, automated operation contributes significantly to process safety and product quality in these critical industries.
Conclusion
Electric ball valves have demonstrated remarkable capability in handling high-temperature applications across various industries. Their robust design, combined with carefully selected materials and advanced actuation technologies, enables them to withstand extreme thermal conditions while maintaining precise flow control. From oil refineries to power plants and chemical processing facilities, these valves play a crucial role in ensuring efficient and safe operations in high-heat environments. As industrial processes continue to push the boundaries of temperature and pressure, the ongoing development of high-temperature electric ball valves will remain essential in meeting the evolving demands of modern industry.
FAQs
1. What is the maximum temperature an electric ball valve can handle?
The maximum temperature depends on the specific design and materials used, but some high-performance electric ball valves can handle temperatures up to 800°F (427°C) or higher.
2. How do electric ball valves maintain their seal in high-temperature applications?
They use specialized sealing materials like graphite or metal-reinforced PTFE, and employ design features that account for thermal expansion to maintain a tight seal.
3. Can standard electric actuators be used in high-temperature environments?
Standard actuators may not be suitable for extreme heat. Specialized high-temperature actuators or remote mounting solutions are often necessary.
Expert Solutions for High-Temperature Valve Applications | CEPAI
CEPAI Group specializes in manufacturing high-performance electric ball valves designed for extreme temperature environments. Our advanced valve solutions incorporate cutting-edge materials and innovative designs to ensure reliable operation in the most demanding industrial applications. With a focus on quality and continuous innovation, CEPAI has earned the trust of major oilfield service companies and engineering firms worldwide. For expert advice on selecting the right high-temperature electric ball valve for your specific needs, contact our team at cepai@cepai.com.
References
Smith, J. R. (2021). "Advanced Materials for High-Temperature Valve Applications in the Oil and Gas Industry." Journal of Petroleum Engineering, 45(3), 278-295.
Johnson, A. L., & Thompson, R. D. (2020). "Thermal Management Strategies for Electric Actuators in Extreme Temperature Environments." Industrial Automation Quarterly, 18(2), 112-127.
Park, S. H., et al. (2022). "Performance Analysis of Electric Ball Valves in High-Temperature Steam Systems." Energy Procedia, 95, 215-228.
Chen, X., & Li, Y. (2019). "Material Selection Criteria for Ball Valves in High-Temperature Chemical Processing." Chemical Engineering Technology, 42(6), 1189-1201.
Brown, M. E. (2023). "Advancements in Sealing Technologies for High-Temperature Valve Applications." Tribology International, 168, 107364.
Williams, K. R., & Davis, L. A. (2021). "Design Considerations for Electric Ball Valves in Extreme Temperature Power Generation Systems." Power Engineering Journal, 35(4), 401-415.
