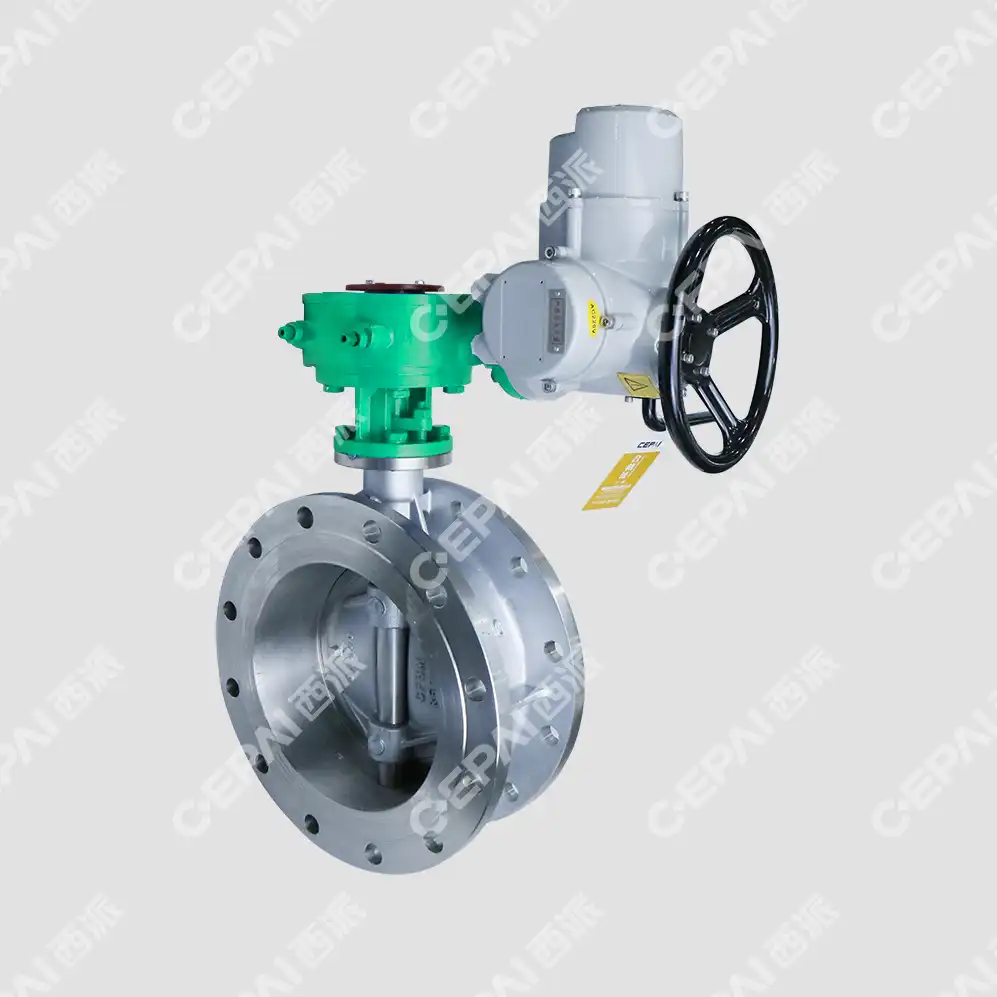

Preparing for Butterfly Valve Installation
Site Assessment and Planning
Before beginning the installation process, it's essential to conduct a thorough site assessment. In this step, the installation setting is looked at, including things like temperature, pressure, and the kind of media that is flowing through the system. Making a detailed plan will help you pick the right butterfly valve for your needs, considering things like the valve's size, material, and how it is activated. Also, think about the room that is available for installation and maintenance, as well as any safety issues or environmental concerns that might affect the installation process.
Gathering Necessary Tools and Equipment
Assembling the right tools and equipment is crucial for a smooth and efficient butterfly valve installation. Common tools required include wrenches, screwdrivers, alignment tools, and torque wrenches for precise bolt tightening. Depending on the valve size and type, you may also need lifting equipment or specialized installation tools. Ensure that all tools are in good condition and properly calibrated to avoid any issues during the installation process. In case of unforeseen problems, it is also wise to have spare parts like nuts and gaskets available.
Valve Inspection and Preparation
Before installation, carefully inspect the butterfly valve for any signs of damage or defects. Make that there are no dings, scratches, or other flaws on the valve seat, disc, or body that can compromise performance. Make sure the valve has all the required certifications and that its specs are a good fit for your system. Thoroughly clean the valve, making sure to remove any protective coatings, dirt, or debris that could obstruct its correct operation. Lubricate moving parts as recommended by the manufacturer, and ensure that the valve operates smoothly through its full range of motion before proceeding with installation.
Key Steps in Butterfly Valve Installation
Proper Alignment and Positioning
Achieving proper alignment is critical for the optimal performance of butterfly valves. Start by carefully positioning the valve between the pipe flanges, ensuring that it is centered and level. Use alignment tools or laser equipment to verify that the valve is perfectly aligned with the piping system. Pay close attention to the flow direction indicated on the valve body, as incorrect orientation can significantly impact performance and may cause damage to the valve or system. For valves with shaft bearings, ensure that the shaft is perpendicular to the pipe centerline to prevent uneven wear and premature failure.
Gasket Selection and Installation
Selecting the appropriate gasket material and properly installing it is crucial for preventing leaks and ensuring a tight seal. Choose a gasket that is compatible with the media being handled and can withstand the system's temperature and pressure requirements. When installing the gasket, ensure that it is centered between the valve and pipe flanges. Avoid using excessive force when tightening bolts, as this can damage the gasket or cause it to extrude. Some butterfly valve designs may incorporate integral sealing elements, eliminating the need for separate gaskets. In such cases, follow the manufacturer's guidelines for proper installation and sealing.
Bolt Tightening Sequence and Torque
Proper bolt tightening is essential for maintaining a secure and leak-free connection. Follow a star pattern or cross-bolt sequence when tightening flange bolts to ensure even pressure distribution. Begin by hand-tightening all bolts, then use a torque wrench to gradually tighten them to the manufacturer's recommended torque specifications. Fix jolts in a few passes, expanding the torque incrementally with each pass. This approach diminishes the probability of spills or harmed by keeping up a imperative partitioned from uneven expand on the valve body and spines. After the to begin with fixing, grant the framework a small time to settle down some time recently checking the torque one final time and making any vital alterations.
Post-Installation Procedures and Maintenance
System Flushing and Leak Testing
Once the butterfly valve is installed, it's crucial to flush the system to remove any debris or contaminants that may have entered during the installation process. Doing so guarantees trouble-free operation right from the outset and protects the valve from harm. After flushing, conduct thorough leak tests to verify the integrity of the installation. Use appropriate pressure testing methods based on your system requirements and industry standards. The seals on the valve stem and the flange joints should be your first priority. Stop any leaks in their tracks by re-tightening nuts or, if necessary, replacing gaskets. In addition to preventing accidents, thorough leak testing can reveal problems before they become major headaches.
Valve Operation and Adjustment

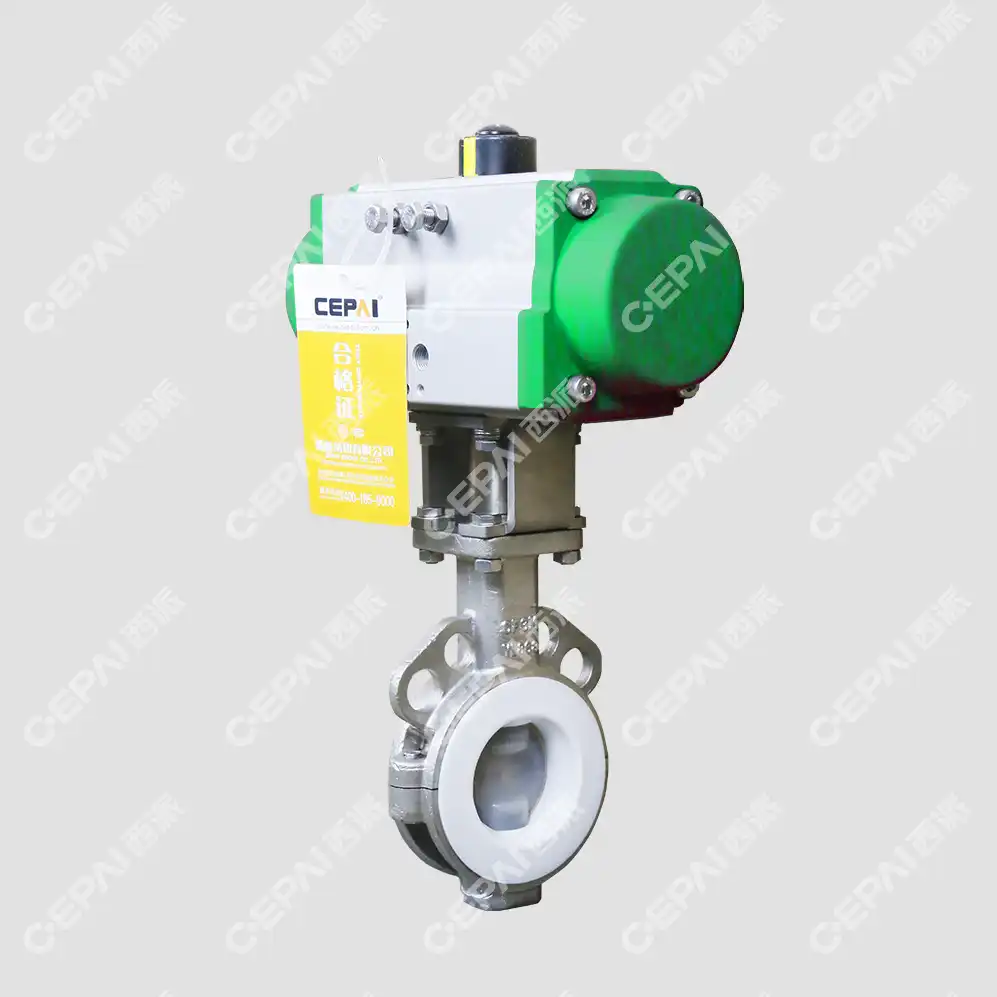

Following installation, it's essential to verify that the butterfly valve operates smoothly throughout its full range of motion. Cycle the valve several times, observing for any signs of binding, excessive resistance, or unusual noises. For automated valves, check that the actuator is properly aligned and functioning correctly. Adjust limit switches or mechanical stops to ensure accurate valve positioning at both the fully open and fully closed positions. If the valve is equipped with a positioner or controller, calibrate these devices according to the manufacturer's instructions to achieve precise flow control. The optimal performance and extended service life of a valve can be achieved by regular adjustments and checks during operation.
Ongoing Maintenance and Inspection
Implementing a robust maintenance program is crucial for ensuring the long-term performance and reliability of butterfly valves. Consider the operating conditions, the criticality of the valve, and the manufacturer's recommendations while developing an inspection plan. When you check the valves, especially the disc, seat, and shaft seals, look for signs of wear, rust, or damage. As the maker suggests, grease any moving parts and replace any worn parts right away to avoid sudden breakdowns. Keep thorough records of all maintenance tasks, such as any repairs or adjustments that are made. Documentation like this might reveal patterns of wear or performance issues, which in turn can inform maintenance plans and lead to better valve operating in the long run.
Conclusion
In mechanical settings, butterfly valves must be introduced accurately for them to work well and final a long time. If you follow these complete tips and best practices, you can make sure that your butterfly valves work well, have little downtime, and control flow reliably. Every step is important for getting the best performance out of valves, from careful planning and exact installation to careful follow-up and ongoing maintenance. Remember that paying close attention to the little things during installation can help you avoid a lot of common problems and make your butterfly valves last longer, which will improve the overall efficiency and dependability of your industrial processes.
