Bellows Seal vs Packing Seal: Which Stops Toxic Leaks Best

The choice between bellows seal valves and packing seal valves can mean the difference between safety and disaster when it comes to stopping dangerous chemical leaks in factories. Due to their hermetic sealing design and ability to produce no emissions, bellows seal valves regularly stop harmful leaks better than standard packing seals. The metal bellows design makes a barrier that doesn't leak and stops rogue emissions. This is why these valves are so important for working with dangerous fluids in nuclear, oil and gas, and chemical processing settings, where even a small leak can pose serious safety and environmental risks.

Understanding the Basics of Bellows Seal and Packing Seal Valves

Today's factories need valve technologies that can handle the most difficult fluid control situations while still meeting the highest safety standards. The main differences between bellows seal and packing seal valves decide how well they stop harmful leaks in different kinds of situations.

The Engineering Behind Bellows Seal Technology

A bendy, accordion-like metal bellows is welded directly to both the valve stem and cover of a bellows seal valve. This design makes an airtight seal that moves with the valve stem as it works, so the barrier doesn't break when the stem expands or contracts. The material used to make bellows is usually stainless steel or a special alloy like Inconel 625. It is very resistant to poisons that break down metal and high temperatures.

As a dynamic seal and a safe barrier, the bellows keeps process fluids from touching the valve stem and prevents any leaking from the outside. This way of designing gets rid of the usual leak path between the stem and valve body. This makes bellows seal valves almost completely leak-proof when they are working normally.

Traditional Packing Seal Valve Construction

Packing seal valves use materials that can be squished together to make a seal around the valve stem. Some of these materials are coiled graphite, PTFE, and more specialized compounds that are made to work with certain chemicals. A gland follower and packing nuts are used to squeeze the packing, which makes friction against the moving stem to stop fluid from escaping.

Packing seals have been used in industry for decades, but they only work well if they are installed correctly, maintained regularly, and adjusted every so often. Leakage can be managed by the way it's built, which is usually seen as normal in this business. When working with poisonous or environmentally harmful fluids, on the other hand, this leakage is no longer okay.

Why Leak Prevention Matters: Toxic Leak Risks and Consequences？

If a valve like a bellows seal valve fails in a harmful service application, it can cause a lot more damage than just machine damage or production delays. Knowing these effects helps explain why picking the right closing technology is such an important business and safety choice.

Health and Safety Implications

Leaks of toxic fluid put people in instant danger of getting sick by breathing it in, touching it, or getting it in their eyes. Even small amounts of some industrial fluids can cause chemical burns, damage to the lungs, and long-term health problems. The Occupational Safety and Health Administration (OSHA) has records of many cases where worker injuries and deaths were caused by valve leaks. These events mostly happened in chemical processing and oil refining sites.

As part of the emergency reaction plan for toxic leaks, buildings often have to be evacuated and specialist hazmat teams have to be sent in, which stops activities for long periods of time. Because bad closing technology can hurt people, industrial site managers have to make sure there are no leaks. This is not only a legal requirement, but also a moral one.

Environmental and Regulatory Consequences

Under the Clean Air Act, the Environmental Protection Agency (EPA) tightly limits the amount of fugitive fumes that come from industrial valves. Facilities that break emission limits are subject to harsh fines, technology updates, and more regulatory inspection. The cost of not following the rules often far outweighs the initial investment in better closing technology by a large amount.

Long-term environmental problems can last for decades after toxic substances are released into soil and groundwater. Companies that didn't invest in the right leak protection technologies have gone bankrupt because of the costs of cleanup, court settlements, and damage to their reputations caused by environmental incidents. Because of these effects, choosing the right valve is a smart business choice that has effects that go far beyond the purchase price.

Bellows Seal vs Packing Seal: Comparative Analysis for Toxic Leak Prevention

When you look closely at these two types of sealing technology, you can see why bellows seals have become the best choice for many businesses that need to deal with dangerous chemicals.

Leak Performance and Reliability Metrics

The Valve Research Council did independent tests that show bellows seal valves that are properly built can leak less than 10^-6 cc/sec of helium, which is almost nothing by industrial standards. This performance stays the same for the whole life of the valve as long as it is used according to its design limits. Even when they are well taken care of, packing seal valves usually have 100 to 1000 times higher leak rates, and their performance gets worse over time as the packing materials wear out and compress.

The effects of these tools, like a bellows seal valve, failing in very different ways are very different. Most bellows seals fail slowly over time due to wear cracking, which gives you time to fix the problem before it gets really bad. When squeezed materials shift or break down, packing seals can quickly fail, letting fluid escape without being noticed until a large amount has been lost.

Maintenance Requirements and Lifecycle Costs

Bellows seal valves don't need much maintenance besides regular checks and standard valve repair processes. The airtight seal means that the packing doesn't need to be adjusted, re-torqued, or replaced on a regular basis. This means that less upkeep is needed, which means lower labor costs and less risk for maintenance workers who have to work around harmful fluids.

To keep leak rates at a reasonable level, packing seal valves need to be checked regularly. Adjustments to the packing, refills, and lubrication of the stem all add to the cost of upkeep and create many chances for mistakes to happen. Over the course of 10 years of use, the total cost of maintaining packing seals often goes over the difference in price between bellows and packing seal technologies at the start.

Performance Under Extreme Conditions

When used in high-pressure and high-temperature situations, bellows seal technology shows its better performance. Pressures higher than 6,000 PSI and temps above 1,000°F don't affect bellows seals, even though these conditions break down most packing materials quickly. Bellows seals are made of metal, which makes them compatible with thermal expansion. This keeps the seal from sticking or failing during thermal cycles.

Bellows seal technology works especially well in service uses that use corrosive materials. When chemicals attack packing materials, they break down early and cause more leaks. But bellows metals that are chosen correctly don't rust and keep their closing integrity for the whole time they're supposed to.

Selecting the Right Valve Seal: A Decision Support Framework

To make smart choices about valve sealing technology, you need to carefully look at the needs of the product, the working conditions, and the expected performance.

Critical Application Parameters

More than anything else, the properties of the fluid determine which closing technique is best for a bellows seal valve. For fluids that are toxic, cancerous, or bad for the environment, zero-leakage sealing technology is required. This makes bellows seals the best choice. To make sure the seal stays strong over time, corrosive fluids need to be tested for compatibility with the materials. Also, high-temperature uses may be too hot for many packing materials.

The operating pressure and temperature ranges must match what the valve is designed to handle. The number of cycles affects the fatigue life of the bellows and should be taken into account when choosing the right valve size and type. Applications that do more than 10,000 rounds a year may need better bellows designs or different material factors.

Economic Evaluation Methodology

The initial cost of the valve, the cost of fitting, the cost of upkeep, and any possible leak-related costs should all be added to the total cost of ownership. Bellows seal valves usually have higher starting costs, but they are more cost-effective over their entire lifecycle, which includes costs for upkeep work, replacement parts, and following rules.

Methods for risk assessment help figure out how much it might cost if a valve fails in harmful service. Insurance companies are lowering premiums for businesses that use better leak prevention technologies. This is because bellows seal valves lower a business's risk exposure.

Compliance and Certification Requirements

For quarter-turn valves, API 641 certification covers fugitive emission standards in detail, and API 622 certification covers linear motion valves, such as bellows seal designs. These standards set performance standards for checking leak-tightness and durability, which helps make sure that important systems work reliably.

International rules for classifying and testing valve leak-tightness are found in ISO 15848 standards. Valve certification to international environmental standards helps facilities that have to follow environmental rules in more than one country.

Procurement Insights: Buying Bellows Seal Valves with Confidence

To buy bellows seal valves successfully, you need to know what the maker can do, how they handle quality, and how the market works, as these things affect price and delivery.

Manufacturer Evaluation Criteria

The best companies that make bellows seal valves have complete quality control systems that include API Q1, ISO 9001, and other standards specific to nuclear or aerospace uses. An evaluation of a manufacturer's abilities should include knowledge of how to make bellows, methods for getting materials, and testing sites that can check the performance of leak-tightness.

Design engineering support is what sets premium makers apart from commodity sellers. Manufacturers who have a track record of engineering skills and application knowledge are needed for jobs that involve rare materials, harsh circumstances, or custom configurations. For more complicated systems, having technical support available during commissioning and operation is very helpful.

Quality Assurance and Testing Standards

As part of the factory acceptance testing process, all valve parts should be functionally checked and gas leaks should be tested. Certified material test records make sure that materials can be tracked and meet the requirements for corrosive service uses.

Independent third-party testing services make sure that the standard of the goods being made meets the requirements set by the buyer. This extra supervision helps make sure that the performance of the valve meets the needs of the application and gives proof for legal compliance.

Conclusion

When you look at bellows seal valves side by side with packing seal valves, it's clear that bellows technology is better at stopping harmful leaks. Bellows seal valves are the best option for important industrial uses due to their superior leak-tightness, reduced maintenance needs, and improved safety performance. Even though the starting costs may be higher, the lower risk and lower total cost of ownership make bellows seal technology a strong economic choice for toxic service uses.

FAQ

What makes bellows seal valves superior for toxic leak prevention?

Because they are made of welded metal, bellows seal valves create an airtight seal that gets rid of the leak path that is present in traditional packing seal designs. Because they don't release any pollution, they are necessary for working with dangerous, harmful, or environmentally damaging fluids where any leaks could put people in danger.

How long do bellows seals typically last in industrial service?

If you build bellows seals correctly, they can last between 10,000 and 100,000 cycles, based on the conditions of the application and the materials you choose. The metal design lasts longer than soft packing materials, which need to be replaced and adjusted more often.

Are bellows seal valves suitable for high-pressure applications?

With the right design changes, modern bellows seal valves can handle pressures higher than 6,000 PSI. The metal bellows construction can handle more pressure than many other packing seal designs, especially when used in environments with high temperatures or corrosion.

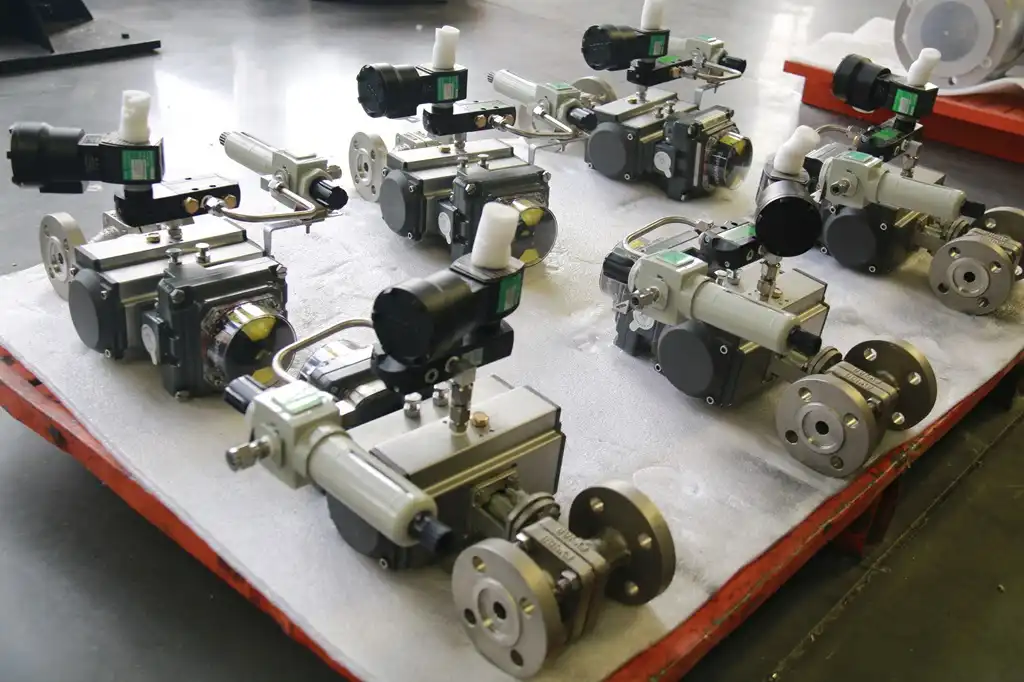

CEPAI Bellows Seal Valve Solutions

CEPAI is a leader in bellows seal valve creation, and they offer complete solutions for chemical processing, oil and gas research, and pipeline operations. Our bellows seal valve products use advanced metalworking and precise assembly to work without releasing any pollution in the harshest industrial settings. With certifications in API Q1, API 6A, API 6D, and ISO 9001, CEPAI makes sure that every relationship with a bellows seal valve provider provides quality and dependability that has been checked. Email our technical team at cepai@cepai.com to talk about your unique application needs and find out how our bellows seal valve for sale choices can improve the safety and efficiency of your facility's operations.
