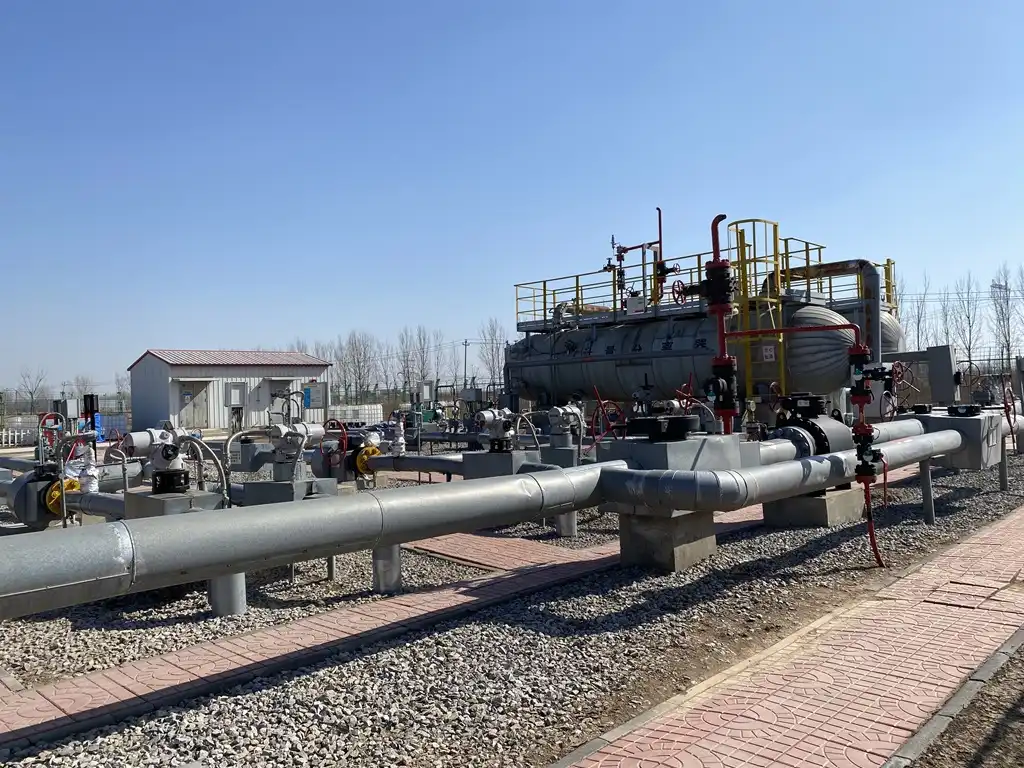

Ball Valves vs Gate Valves in Power Generation Systems

Power generation systems depend on reliable flow control equipment. Engineers often compare ball valves and gate valves when designing systems that must handle steam, water, gas, and other media. Each valve type brings clear strengths. Ball valves offer fast shutoff and reliable sealing. Gate valves can manage large flow volumes under stable conditions. Understanding how they perform helps operators select the best option for safety and efficiency in power plants.

​​​​​​​

Understanding the Functional Differences Between Ball Valves and Gate Valves

Both valve types support flow regulation in power generation systems. Yet they work in very different ways. Their internal structures shape how they handle pressure, temperature, and wear. These differences influence safety, service life, and maintenance needs across steam lines, cooling circuits, and fuel systems.

How Ball Valves Operate in Power Generation Systems?

A ball valve uses a drilled sphere to open and close flow with a simple quarter turn. This design allows rapid operation in critical areas. The tight shutoff makes the valve useful for emergency isolation. The flow path is smooth, which limits pressure drop. Power plants use these valves because they seal well even after long service. They also handle frequent operation with less stress on the body and stem. This makes them dependable for systems that start and stop often.

How Gate Valves Operate and Where They Fit Best?

Gate valves use a rising or non-rising wedge that lifts to open the flow path. When fully open, the path is almost straight. This improves flow efficiency. These valves work best in systems that remain stable for long periods. They are not designed for frequent cycling because the gate and seat can wear. In power production, they are common on large pipelines that carry high flow volumes. They are efficient where flow stays steady and where slow operation is acceptable.

Key Structural Differences That Affect Performance

The ball inside a ball valve provides uniform sealing pressure on the seats. This creates a tight shutoff. A gate valve's wedge contacts the seats along two sides. This can reduce sealing efficiency during rapid changes. A ball valve body is compact and strong under high pressure. A gate valve body must be larger to support the gate. These structural differences shape their performance in high-pressure boilers, cooling water lines, and compressors. Engineers must compare these details when selecting equipment for reliability and long-term use.

Comparing Performance, Durability, and Safety in Power Generation Systems

Power plants rely on components that work under heat, vibration, corrosion, and pressure swings. Ball valves and gate valves handle these challenges differently. Their performance profiles influence downtime, safety, and energy efficiency.

Performance Under High Pressure and Temperature

Steam generation units place heavy demands on valves. Ball valves maintain strong sealing when exposed to high temperature and pressure. Their single-piece design reduces leak points. Gate valves can handle these conditions when stable. Yet they react slowly to sudden changes. A gate valve can deform under fast pressure shifts. This reduces sealing accuracy. For this reason, many operators choose ball valves for isolation points near boilers and heat exchangers. Their consistency supports stable plant operation.

Durability and Wear in Continuous Operation

Durability matters in systems that run for thousands of hours each year. Ball valves resist wear because the ball rotates away from the seat during operation. This reduces friction. Gate valves slide across the seat every time they open or close. This leads to faster erosion. In areas with grit or scaling, a gate valve can wear even faster. Ball valves typically last longer and require fewer service intervals. This reduces maintenance costs and avoids unplanned shutdowns.

Safety Considerations and Risk Reduction

Safety is a core priority in power generation. Isolation points must work even during emergency events. Ball valves deliver tight shutoff that helps contain leaks and protect workers. Their quick quarter-turn action is useful in safety systems. Gate valves offer reliable service in stable situations, but they take longer to close. In emergencies, seconds matter. For this reason, engineers often specify ball valves for safety-related isolation. Their predictable operation improves overall plant risk control.

Selecting the Right Valve for Your Power Generation Application

Different plant systems require different flow behaviors. Choosing between a ball valve and a gate valve requires a close look at system design, operating conditions, and long-term cost.

Matching Valve Type to System Requirements

System design determines which valve type works best. A ball valve suits applications needing fast actuation, minimal leakage, or regular cycling. Cooling water systems and emergency shutoff lines benefit from this reliability. A gate valve fits systems where large flow volumes move through steady pipelines. When a line stays open for long periods, the gate valve design provides smooth flow and low resistance. Engineers must evaluate each pipeline's pressure, temperature, and purpose to select the correct option.

Considering Efficiency, Maintenance, and Lifecycle Costs

A valve's cost includes purchase, installation, and long-term service. Ball valves usually cost more initially. However, they require less maintenance. Their sealing surfaces last longer. Gate valves cost less at first. Yet their seats and gates wear faster. This can increase lifetime expenses. Power plants must look beyond the purchase price. Choosing a valve with fewer service needs can reduce downtime and extend equipment life. This improves total system efficiency.

When to Choose Ball Valves for Maximum Value?

Ball valves deliver strong value in systems that demand reliability, control, and safety. Their design prevents small leaks. They handle high pressure shocks. Their quick operation supports emergency planning. Power plants often select them for turbine lines, fuel systems, and high-risk isolation points. They also perform well in automated systems where actuators manage flow. These advantages help operators maintain steady output while protecting staff and equipment.

Conclusion

Ball valves and gate valves both serve important roles in power generation. Yet their strengths differ. Ball valves offer reliable sealing, fast operation, and strong performance under changing conditions. Gate valves support high-volume flow in steady pipelines. Understanding their differences helps operators improve efficiency and safety. The right choice depends on system design, maintenance goals, and long-term cost.

FAQs

Can a ball valve be used for throttling or regulating flow?

No, this is not recommended. While you can partially open a ball valve, the high-velocity fluid hitting the edge of the ball and the seats will cause severe erosion. This quickly degrades the sealing surfaces, leading to poor shutoff and eventual failure. For throttling applications, a globe valve or a specially designed regulating valve should be used to control flow accurately without damaging the valve.

Why are gate valves so slow to operate?

Gate valves operate using a multi-turn stem. The threaded stem slowly lifts the gate into the bonnet. This slow, deliberate motion is a feature, not a flaw. It prevents water hammer, a dangerous pressure surge that can occur when a valve is closed too quickly in a high-flow system. The slow operation ensures the pipeline is depressurized safely without shock to the system.

Which valve type is better for high-temperature service?

Both can be used, but for extremely high temperatures, such as in main superheated steam lines, a gate valve is traditionally favored. Specially designed metal-seated gate valves with flexible wedges can handle temperatures exceeding 1000°F (538°C). While high-performance metal-seated ball valves exist, they can be very costly. The gate valve's simple, robust design remains a workhorse for the most demanding high-temperature, high-pressure applications in power plants.

Choosing Reliable Flow Control Solutions for Modern Power Plants | CEPAI

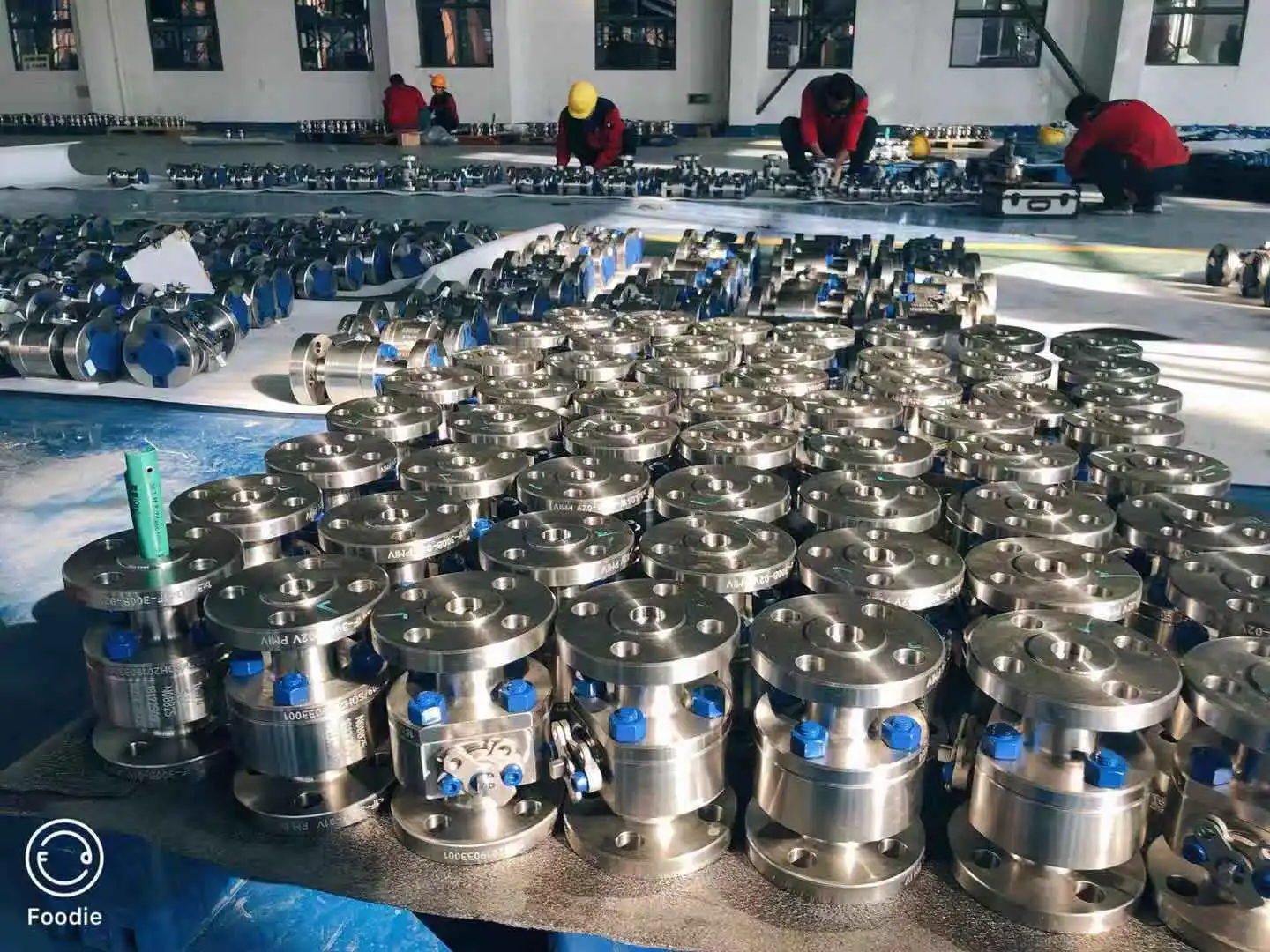

Power plants need dependable valves that support efficiency and safety. As a global manufacturer, supplier, and factory of advanced flow control equipment, CEPAI provides high-quality ball valve and control valve products for demanding power generation systems. Our certified engineering and strong production capability help customers achieve stable operation and long service life. For more information or technical support, contact us at cepai@cepai.com.
